Product Introduction

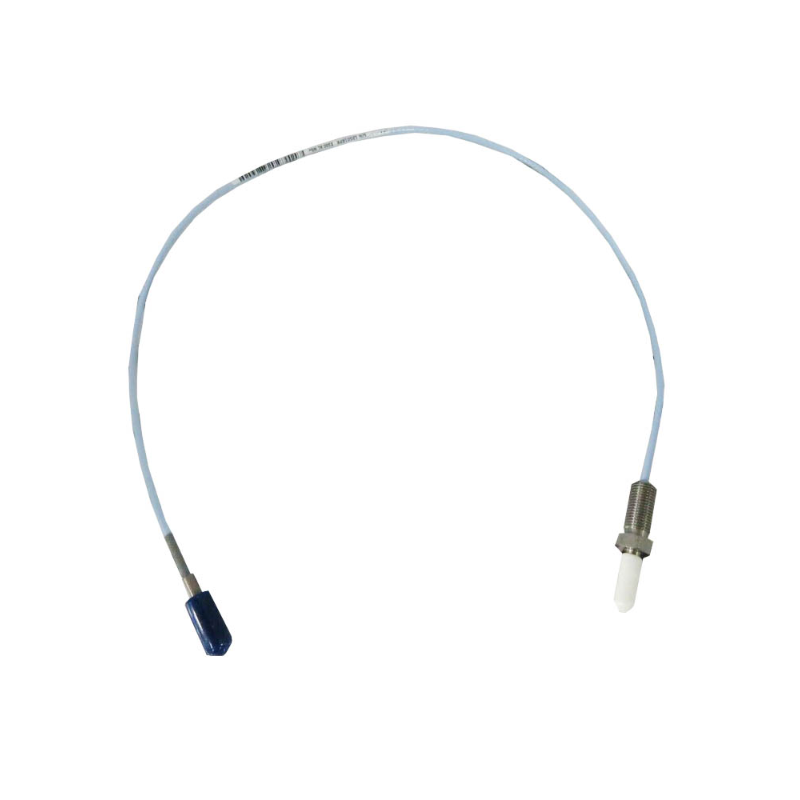

The Bently Nevada 330906-02-12-05-02-00 is a high-precision 3300 NSv (Narrow Side View) reverse-mount proximity probe designed for shaft vibration and position monitoring in tight or restricted installation environments. Unlike standard forward-mount probes, this reverse-mount configuration allows the sensor tip to be positioned facing backward relative to the mounting point, enabling measurements in applications where space constraints or machinery geometry prevent conventional probe installation.
With a total length of 0.5 meters and a durable construction, this probe is engineered to provide consistent and accurate eddy current sensing performance for industrial rotating equipment. Its weight of 0.453 kg reflects the robust materials and reinforced design intended for long-term reliability under harsh operating conditions. The probe is compatible with Bently Nevada 3300 NSv driver systems and adheres to industry standards, making it a preferred choice in sectors like oil & gas, power generation, petrochemical, and heavy industry.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | 330906-02-12-05-02-00 |
| Product Series | 3300 NSv Reverse-Mount Proximity Probe |
| Sensor Type | Eddy Current (non-contact) |
| Probe Configuration | Reverse-mount (tip faces backward) |
| Total Length | 0.5 meters |
| Probe Tip Diameter | 12 mm (metric) |
| Thread Size | M12 x 1.5 |
| Measurement Range | ± 0.127 mm linear range |
| Sensitivity | Approximately 7.87 mV/μm |
| Housing Material | Stainless steel |
| Operating Temperature | –35°C to +175°C |
| Environmental Protection | Hermetically sealed |
| Vibration Rating | Compliant with API 670 and IEC standards |
| Cable Connection | Integral cable with connector or extension cable options |
| Weight | 0.453 kg |
| Compatibility | Bently Nevada 3300 NSv drivers and cables |
Product Applications
The 330906 reverse-mount probe is specifically designed for monitoring shaft vibration and displacement where installation space is restricted or the probe must be installed facing backward. Typical applications include:
-
Gas and Steam Turbines: For shaft position and vibration monitoring in turbines with limited forward clearance or unique housing geometries.
-
Compressors: Installation in tight axial spaces where traditional probe placement is not feasible.
-
Gearboxes: Measuring shaft displacement in compact gear trains requiring non-standard probe orientations.
-
Turboexpanders: Monitoring high-speed shafts in compact mechanical layouts.
-
Pumps and Motors: Ensures reliable condition monitoring in confined spaces or challenging geometries.
-
OEM Machinery: Suitable for equipment manufacturers needing flexible sensor mounting options for complex designs.
Product Advantages
-
Reverse-Mount Design: Enables shaft monitoring in restricted spaces and unique orientations not possible with standard probes.
-
High Accuracy and Sensitivity: Maintains precise measurement capability across the ±0.127 mm linear range.
-
Rugged Construction: Stainless steel housing and hermetic sealing protect against harsh industrial conditions and contamination.
-
Compliance with Industry Standards: Meets API 670 and IEC vibration monitoring requirements for critical machinery protection.
-
Wide Operating Temperature Range: Suitable for environments from –35°C up to +175°C without performance loss.
-
Robust Cable and Connector Options: Supports various installation scenarios with high signal integrity.
-
Compact and Lightweight: At 0.453 kg and 0.5 m length, it is easy to handle and install in constrained spaces.
-
Compatibility: Seamless integration with Bently Nevada 3300 NSv systems for streamlined maintenance and support.
-
Long Service Life: Engineered for extended operational reliability with minimal maintenance.
-
Global Acceptance: Trusted worldwide for critical applications in energy, petrochemical, and manufacturing industries.
Frequently Asked Questions (FAQ)
Q1: What makes the reverse-mount probe different from standard probes?
A1: The reverse-mount probe has its sensing tip oriented backward relative to the mounting point, allowing installation in tight or unconventional spaces.
Q2: What is the total length and weight of this probe?
A2: The probe has a total length of 0.5 meters and weighs 0.453 kg.
Q3: What is the probe tip diameter and thread size?
A3: The tip diameter is 12 mm with an M12 x 1.5 thread size for mounting.
Q4: What operating temperatures can the probe withstand?
A4: It can reliably operate in temperatures ranging from –35°C to +175°C.
Q5: Is this probe compatible with standard 3300 NSv drivers?
A5: Yes, it is fully compatible with 3300 NSv driver units and extension cables.
Q6: What measurement range does this probe offer?
A6: It provides a linear measurement range of ±0.127 mm.
Q7: How durable is the probe in harsh environments?
A7: It is hermetically sealed and housed in stainless steel, ensuring protection from dust, moisture, and corrosive agents.
Q8: Can this probe be used for critical machinery protection?
A8: Yes, it meets API 670 standards for machinery vibration monitoring and protection.
Q9: What cable options are available with this probe?
A9: The probe comes with integral cables and can be connected with a variety of connectors and extension cables suited to installation needs.
Q10: Does the reverse-mount configuration affect signal quality?
A10: No, the reverse mounting does not affect signal accuracy or integrity when installed correctly.
