Product Introduction

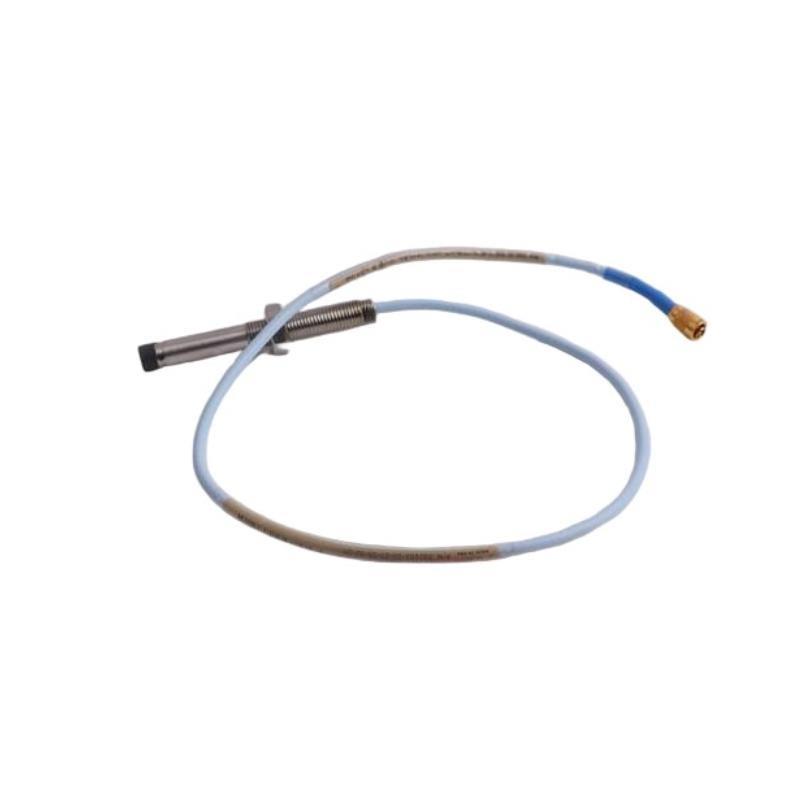

The Bently Nevada 330902-00-40-10-02-00 is a precision 3300 NSv Proximity Probe designed to provide reliable shaft vibration and displacement measurements in rotating machinery. Part of the reputable 3300 NSv series, this probe is engineered for robust performance in demanding industrial environments, helping to prevent machinery failures through early fault detection.
With a total length of 1 meter and weighing approximately 0.82 kg, this probe is ideal for applications requiring moderate cable length and high sensitivity. Its design supports continuous monitoring in sectors such as power generation, oil and gas, chemical processing, mining, and manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 3300 NSv Proximity Probe |
| Part Number | 330902-00-40-10-02-00 |
| Total Length | 1 meter |
| Weight | 0.82 kg |
| Tip Diameter | 5 mm |
| Sensing Range | ±2.0 mm |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | -40°C to +120°C |
| Mounting Style | Threaded Mount |
| Vibration Resistance | 10 g peak (0–2000 Hz) |
| Shock Resistance | 200 g for 11 ms pulse |
Product Applications
The 330902-00-40-10-02-00 proximity probe is widely used for monitoring rotating machinery across multiple industries:
-
Power Generation
Monitors turbines, generators, and related equipment, ensuring early detection of shaft misalignment, imbalance, or bearing wear. -
Oil & Gas
Applied to pumps, compressors, and motors in refineries and offshore installations, enhancing operational reliability. -
Chemical Processing
Monitors agitators, pumps, and rotating machinery in chemical plants to prevent unplanned downtime. -
Mining
Tracks the condition of crushers, conveyors, and other rotating equipment exposed to harsh conditions. -
Manufacturing
Ensures smooth operation of motors and drives in various manufacturing processes. -
Water & Wastewater Treatment
Provides reliable monitoring of pumps and motors critical to treatment operations.
Product Advantages
-
High Precision Displacement Measurement
The probe offers a ±2.0 mm sensing range, providing accurate real-time shaft displacement data. -
Durable Construction
Designed to operate reliably from -40°C to +120°C, it withstands harsh industrial environments. -
Moderate Cable Length for Flexibility
The 1-meter cable balances installation flexibility and signal integrity. -
Threaded Mount for Secure Fit
Ensures stable and vibration-resistant mounting. -
Wide Frequency Response
Suitable for monitoring both low and high-frequency vibrations (DC to 10 kHz). -
High Shock and Vibration Resistance
Withstands shocks up to 200 g and vibrations up to 10 g peak. -
Compact Tip Diameter
The 5 mm tip allows use in tight shaft clearances. -
Reliable Long-Term Performance
Minimizes maintenance and downtime with robust design. -
Seamless Integration
Compatible with Bently Nevada 3300 and 3500 monitoring systems. -
Versatile Industrial Use
Suitable for a variety of industries requiring precise vibration monitoring.
Frequently Asked Questions (FAQ)
-
Q: What is the total length of this proximity probe?
A: The probe has a total cable length of 1 meter. -
Q: How much does the probe weigh?
A: The weight is approximately 0.82 kg. -
Q: What sensing range does the probe provide?
A: It provides a sensing range of ±2.0 mm. -
Q: What frequency range can the probe detect?
A: It detects vibrations from DC up to 10 kHz. -
Q: What is the operating temperature range?
A: The probe works between -40°C and +120°C. -
Q: What type of mounting does this probe use?
A: It uses a threaded mounting style for secure installation. -
Q: Is the probe suitable for high-vibration environments?
A: Yes, it withstands vibration levels up to 10 g peak. -
Q: What shock levels can this probe handle?
A: It can handle shocks up to 200 g for 11 ms. -
Q: Which industries commonly use this probe?
A: Power generation, oil & gas, chemical processing, mining, manufacturing, and water treatment. -
Q: Can this probe reduce maintenance costs?
A: Yes, by enabling early fault detection, it helps prevent costly repairs and unplanned downtime.
Recommended Models (Same Series or Related)
| Model | Cable Length (m) | Weight | Key Features |
|---|---|---|---|
| 330902-00-12-10-02-05 | 1.0 | 0.82 kg | Compact tip, versatile use |
| 330902-00-30-05-02-05 | 0.5 | 2.0 kg | Heavy-duty construction |
| 330902-00-40-10-02-05 | 1.0 | 0.85 kg | Extended cable, robust design |
| 330901-00-40-10-02-00 | 1.0 | 0.80 kg | Alternative mounting option |
| 330900-00-40-10-02-00 | 1.2 | 0.88 kg | High-temperature resistant model |
| 330902-00-50-10-02-00 | 1.5 | 0.90 kg | Longer cable for flexible setups |
Popular Models (Same Brand)
| Model | Description | Cable Length | Connector Type | Application |
|---|---|---|---|---|
| 330901-00-95-05-02-00 | Shielded extension cable, 0.5 meter length | 0.5 meter | Coaxial | Compact sensor extension |
| 330901-00-96-10-02-05 | Shielded extension cable, 1.0 meter length | 1.0 meter | Coaxial | General vibration monitoring |
| 330901-02-24-10-01-00 | High-flex shielded extension cable, 1.0 meter | 1.0 meter | Flexible coaxial | Dynamic machinery monitoring |
| 330901-00-95-10-02-00 | Shielded extension cable, 1.0 meter length | 1.0 meter | Coaxial | Tight-space sensor connections |
| 330901-00-96-05-01-00 | Low-noise shielded cable, 0.5 meter | 0.5 meter | Shielded coaxial | Noise-sensitive environments |
| 330901-02-24-15-01-05 | Extra shielded high-flex cable, 1.5 meters | 1.5 meters | Shielded coaxial | Harsh industrial environments |
