Product Introduction

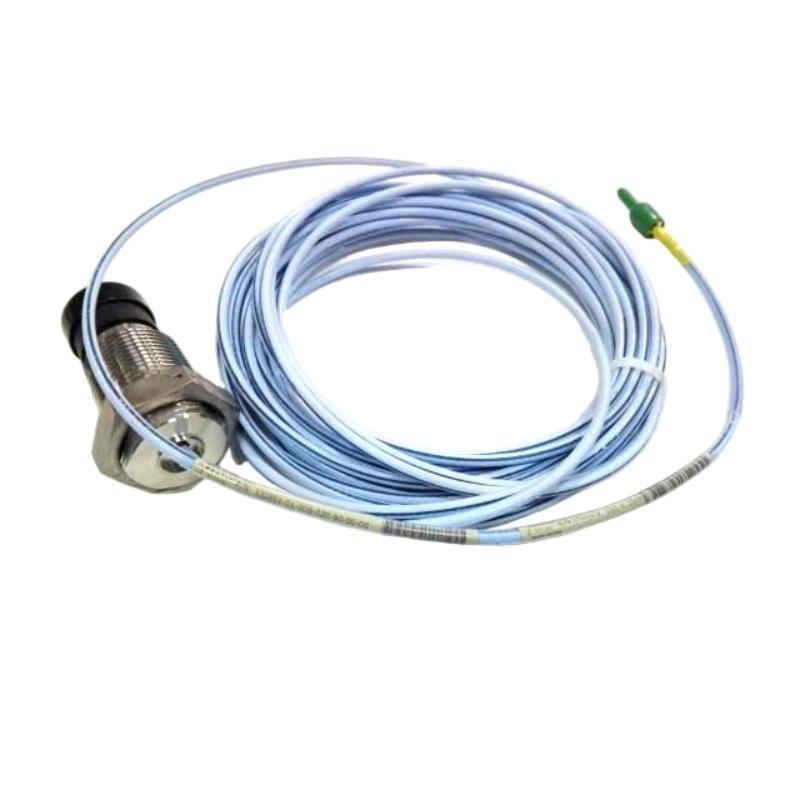

The Bently Nevada 330851-04-000-023-10-01-05 is a highly advanced 25mm proximity probe from the 3300 XL series, designed to offer accurate and reliable measurements for condition monitoring in rotating machinery. This probe is engineered for industries requiring precise monitoring of displacement, vibration, and other key parameters of rotating equipment, helping detect issues like misalignment, imbalance, and bearing faults before they lead to costly failures.
Part of the Bently Nevada 3300 XL series, this model provides high performance in harsh operating environments. It measures the displacement between the probe and the machinery shaft, with a 4-20mA output signal that makes it easy to integrate into existing condition monitoring systems. The 3300 XL 25mm Proximity Probe is designed for reliability, accuracy, and long-term operation, offering essential data for predictive maintenance and ensuring the safe operation of critical industrial machinery.
Product Specifications
| Specification | Value |
|---|---|
| Model | Bently Nevada 330851-04-000-023-10-01-05 |
| Probe Type | Proximity Probe (25 mm) |
| Probe Size | 25 mm diameter |
| Total Length | 1.0 meter |
| Weight | 0.33 kg |
| Material | Stainless Steel |
| Temperature Range | -40°C to +120°C |
| Mounting Type | Surface Mount |
| Signal Type | 4-20mA Output |
| Operating Voltage | 10-30 VDC |
| Measurement Range | 0-25 mm |
| Accuracy | ±0.05 mm |
Applications
The 3300 XL 25mm Proximity Probe is used across a wide variety of industrial applications, including:
-
Vibration Monitoring: It detects vibrations in rotating machinery such as motors, compressors, turbines, and pumps. This helps to identify faults like imbalance or misalignment that could lead to damage.
-
Condition Monitoring: The probe measures displacement in rotating machinery to detect issues like bearing wear, shaft misalignment, and other potential faults.
-
Predictive Maintenance: Continuous data collection from the proximity probe provides early warning signs, enabling maintenance teams to take corrective actions before equipment failure occurs.
-
Machinery Protection: The probe is used as part of a protection system to monitor critical machinery, ensuring safe and efficient operation without costly downtime.
-
Rotating Equipment Monitoring: It is ideal for large-scale industrial applications where continuous monitoring of rotating machinery is essential to prevent failures and extend the life of equipment.
-
Process Industries: Industries such as oil & gas, power generation, and manufacturing rely on the 3300 XL 25mm Proximity Probe to maintain smooth and safe operations in critical equipment.
Advantages
-
High Accuracy: The 3300 XL 25mm Proximity Probe offers an accuracy of ±0.05 mm, making it highly suitable for precision measurements in rotating machinery.
-
Wide Temperature Range: It operates in extreme temperatures, from -40°C to +120°C, making it versatile for both low and high-temperature environments.
-
Durability: Built from stainless steel, the probe is durable and resistant to corrosion, ensuring reliable performance even in challenging industrial conditions.
-
Easy Integration: With a 4-20 mA output, it integrates easily into existing industrial monitoring systems, allowing seamless data collection and analysis.
-
Predictive Maintenance Support: Real-time measurements provide early warning signs, supporting predictive maintenance strategies that reduce downtime and increase equipment reliability.
-
Reliable Operation: The probe is designed for long-term operation, with minimal maintenance required and dependable performance in tough conditions.
-
Versatility: Suitable for use in a variety of industries, the probe can be used for monitoring different types of rotating machinery, including pumps, motors, and turbines.
FAQ
1. How does the 3300 XL proximity probe measure displacement?
The 3300 XL 25mm Proximity Probe uses inductive sensing technology. The probe tip creates a magnetic field that changes as it moves closer to or farther from the rotating shaft. These changes are converted into an electrical signal, which is then used to calculate displacement.
2. Can the 3300 XL proximity probe be used in hazardous environments?
Yes, the 3300 XL 25mm Proximity Probe is built for industrial environments and can be used in hazardous conditions when installed and maintained according to proper safety procedures.
3. What is the output signal type of this proximity probe?
The 3300 XL 25mm Proximity Probe provides a 4-20 mA output, which is widely used for industrial control systems to monitor the displacement and vibration of machinery.
4. How does the probe contribute to predictive maintenance?
By providing continuous real-time data on machinery health, the probe helps identify issues such as imbalance or misalignment before they lead to equipment failure, thus supporting predictive maintenance strategies.
5. What is the measurement range of the 3300 XL proximity probe?
The 3300 XL 25mm Proximity Probe has a measurement range of 0-25 mm, making it ideal for monitoring the displacement of rotating machinery with precision.
6. What types of faults can the probe detect?
The probe detects several key issues in machinery, such as misalignment, imbalance, bearing wear, and displacement anomalies, helping prevent costly failures by providing early warnings.
7. What is the maximum operating temperature for this proximity probe?
The 3300 XL 25mm Proximity Probe operates within a temperature range of -40°C to +120°C, making it suitable for a wide variety of industrial environments, from cold storage facilities to high-heat industrial zones.
8. How is the 3300 XL proximity probe mounted?
The probe is designed for surface mounting, allowing easy installation on machinery such as shafts, turbines, and motors.
9. What industries benefit most from using the 3300 XL proximity probe?
The 3300 XL 25mm Proximity Probe is particularly useful in industries like oil & gas, power generation, mining, and manufacturing, where continuous monitoring of rotating equipment is essential for safe and efficient operations.
10. What type of signal conditioning is required for the 3300 XL proximity probe?
The probe requires minimal signal conditioning, as it provides a 4-20 mA output that can be directly integrated into most monitoring systems without needing additional processing.
