Product Introduction

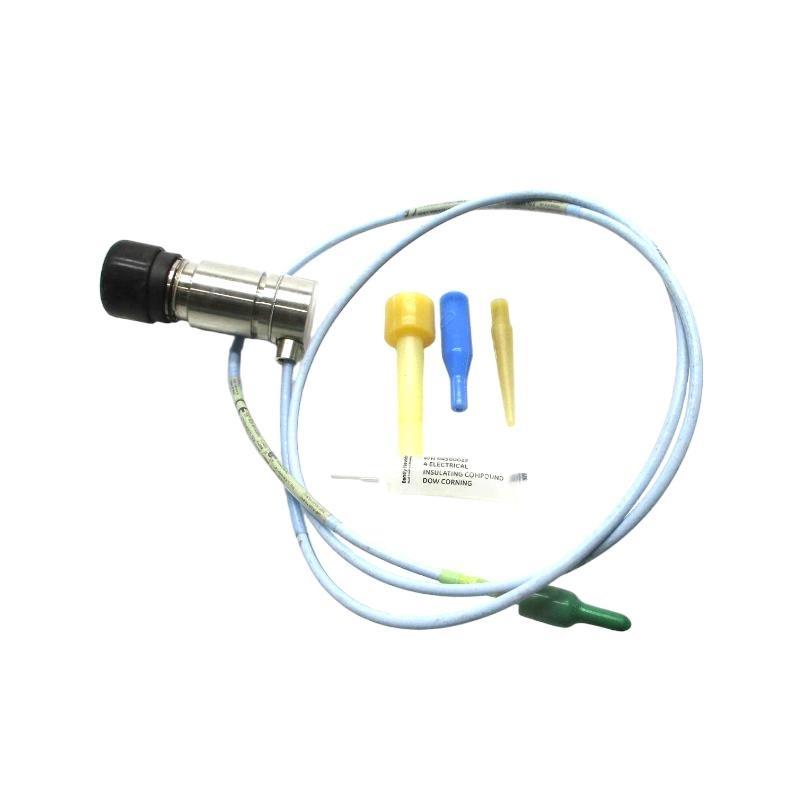

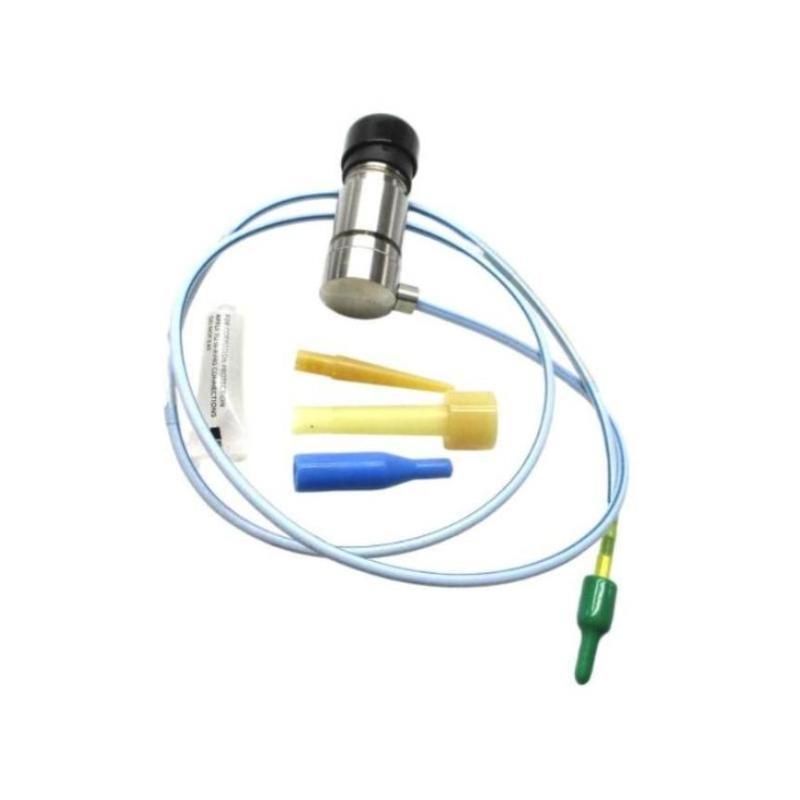

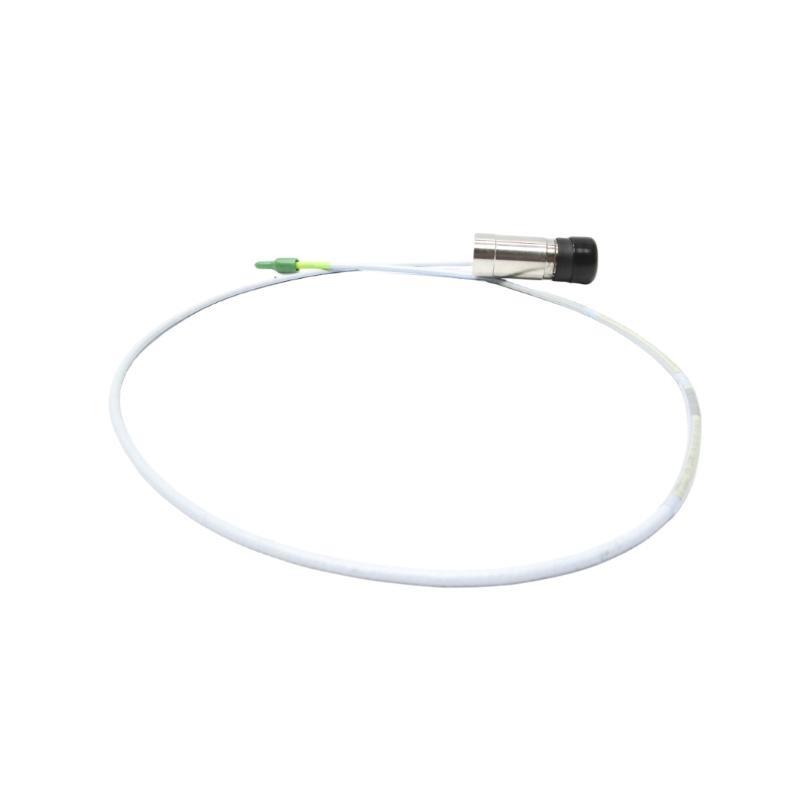

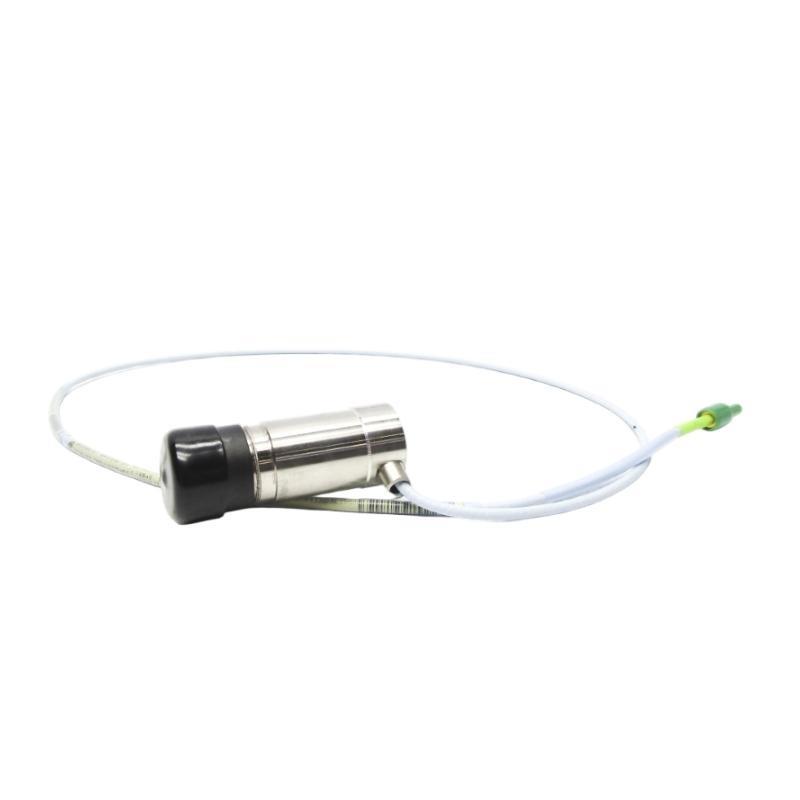

The Bently Nevada 330851-04-000-020-10-00-05 is a 25mm proximity probe part of the 3300 XL series, offering high precision and reliability for monitoring the condition of rotating machinery. It is specifically engineered for vibration monitoring, shaft alignment, and condition-based maintenance in industrial applications.
The 3300 XL proximity probe is an advanced inductive sensor used to measure the relative displacement between the probe and the rotating shaft of machinery. This probe is compatible with various Bently Nevada monitoring systems, providing critical data that helps prevent damage to machinery and reduce unplanned downtime. The 330851-04-000-020-10-00-05 model is designed for use in environments requiring highly accurate and real-time monitoring of rotational equipment.
Product Specifications
| Specification | Value |
|---|---|
| Model | Bently Nevada 330851-04-000-020-10-00-05 |
| Probe Type | Proximity Probe (25 mm) |
| Probe Size | 25 mm diameter |
| Total Length | 1.0 meter |
| Weight | 0.23 kg |
| Material | Stainless Steel |
| Temperature Range | -40°C to +120°C |
| Mounting Type | Surface Mount |
| Signal Type | 4-20mA Output |
| Operating Voltage | 10-30 VDC |
| Measurement Range | 0-25 mm |
| Accuracy | ±0.05 mm |
Applications
The 3300 XL 25mm Proximity Probe is designed to meet the needs of various industries and applications, including:
-
Vibration Monitoring: This probe helps in detecting vibrations in rotating machinery such as pumps, motors, compressors, and turbines.
-
Condition Monitoring: The probe continuously measures shaft displacement, helping identify faults like bearing wear, misalignment, or imbalance.
-
Predictive Maintenance: By providing real-time data, the probe allows for the early detection of potential issues, facilitating proactive maintenance.
-
Machinery Protection: It helps prevent damage to critical machinery by monitoring key parameters like displacement, ensuring safe and efficient operations.
-
Rotating Equipment Monitoring: Suitable for use in large-scale industrial applications where rotating equipment is integral, it provides valuable data on machinery health.
-
Process Industries: Widely used in sectors like oil & gas, power generation, and manufacturing, where equipment reliability is essential to maintaining operations.
Advantages
-
High Precision: The 3300 XL 25mm Proximity Probe delivers an accuracy of ±0.05 mm, ideal for applications requiring detailed displacement measurements.
-
Wide Operating Temperature Range: With a range of -40°C to +120°C, it is highly suited for harsh industrial environments.
-
Durability: Built with stainless steel, the probe can withstand corrosion, ensuring longevity and reliability in tough conditions.
-
Easy Integration: It seamlessly integrates with the Bently Nevada 3300 XL series vibration monitoring systems, facilitating smooth operations.
-
Predictive Insights: Continuous data allows operators to make informed decisions, helping avoid costly repairs and minimizing downtime.
-
Flexible Usage: Suitable for a wide range of industrial applications, from routine machinery monitoring to complex process systems.
-
Reliable Signal Output: Provides a 4-20 mA output, a widely accepted standard for industrial monitoring systems.
FAQ
1. What is the working principle of the 3300 XL proximity probe?
The 3300 XL proximity probe operates based on the principle of inductance. It generates a magnetic field, and as the probe nears the rotating shaft, the field’s intensity changes. This change in intensity is converted into an electrical signal, providing accurate displacement measurements.
2. Can the 3300 XL proximity probe be used in hazardous environments?
Yes, the 3300 XL 25mm Proximity Probe is designed for use in challenging environments. It meets various industrial safety standards and can be used in hazardous areas as long as proper installation and maintenance procedures are followed.
3. How accurate is the 3300 XL proximity probe?
The 3300 XL 25mm Proximity Probe offers an accuracy of ±0.05 mm, making it highly reliable for precise displacement and vibration monitoring in critical machinery.
4. What is the maximum temperature range of the probe?
The probe operates in a temperature range from -40°C to +120°C, ensuring reliable performance in both low and high-temperature environments.
5. Can the probe measure vibrations in all types of machinery?
Yes, the probe is versatile and can measure vibrations in a wide range of rotating machinery, including motors, pumps, turbines, compressors, and more.
6. What output signal does the 3300 XL proximity probe provide?
The 3300 XL 25mm Proximity Probe provides a 4-20mA output, which is a standard signal used in industrial monitoring systems for transmitting displacement and vibration data.
7. How is the probe mounted?
The 3300 XL 25mm Proximity Probe is designed for surface mounting on rotating equipment. It can be installed to monitor shaft displacement and vibration without the need for extensive modifications.
8. What is the main benefit of using this proximity probe in machinery protection?
The 3300 XL 25mm Proximity Probe continuously monitors critical machinery, allowing for the early detection of faults like misalignment or imbalance, thereby preventing catastrophic failures and reducing the need for emergency repairs.
9. Is this proximity probe compatible with other Bently Nevada systems?
Yes, the 3300 XL 25mm Proximity Probe is fully compatible with other Bently Nevada 3300 XL series systems, allowing for seamless integration into your existing machinery monitoring infrastructure.
10. How does the probe contribute to predictive maintenance?
By providing real-time, precise data on machinery health, the 3300 XL 25mm Proximity Probe enables predictive maintenance strategies, allowing operators to address potential issues before they lead to failure.
