Product Overview

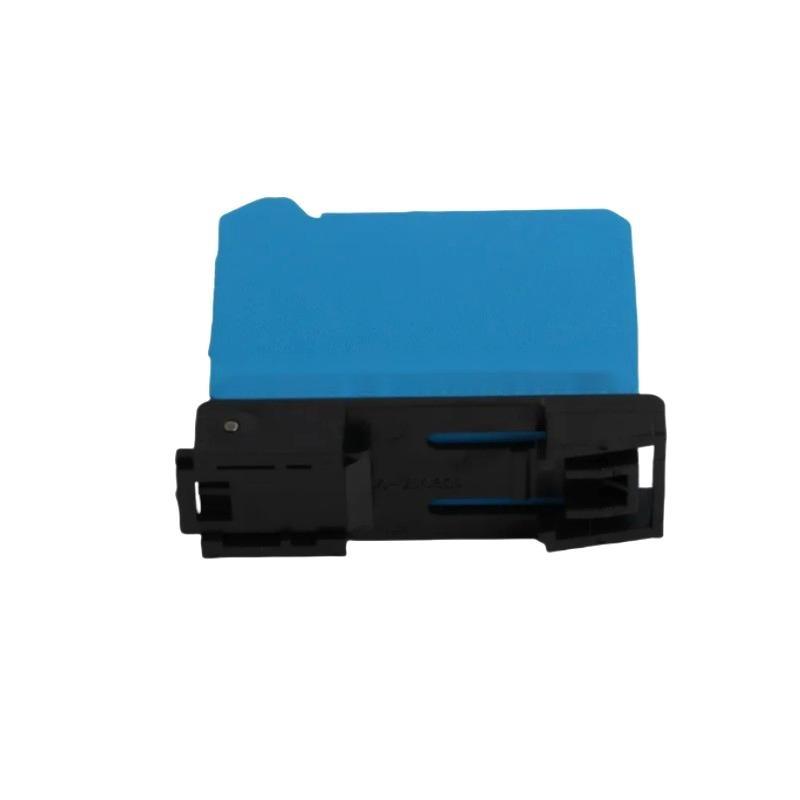

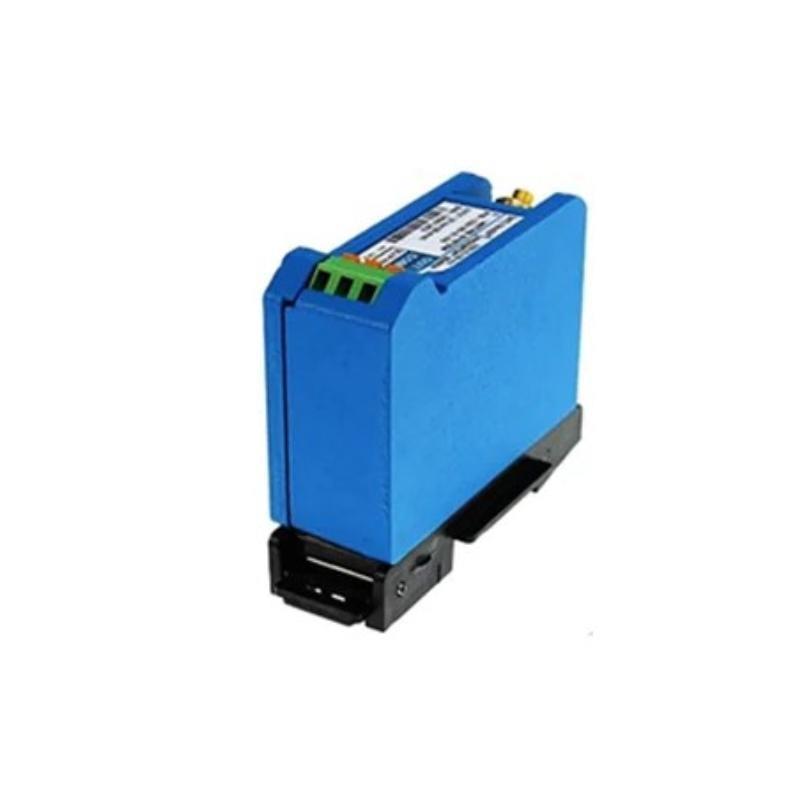

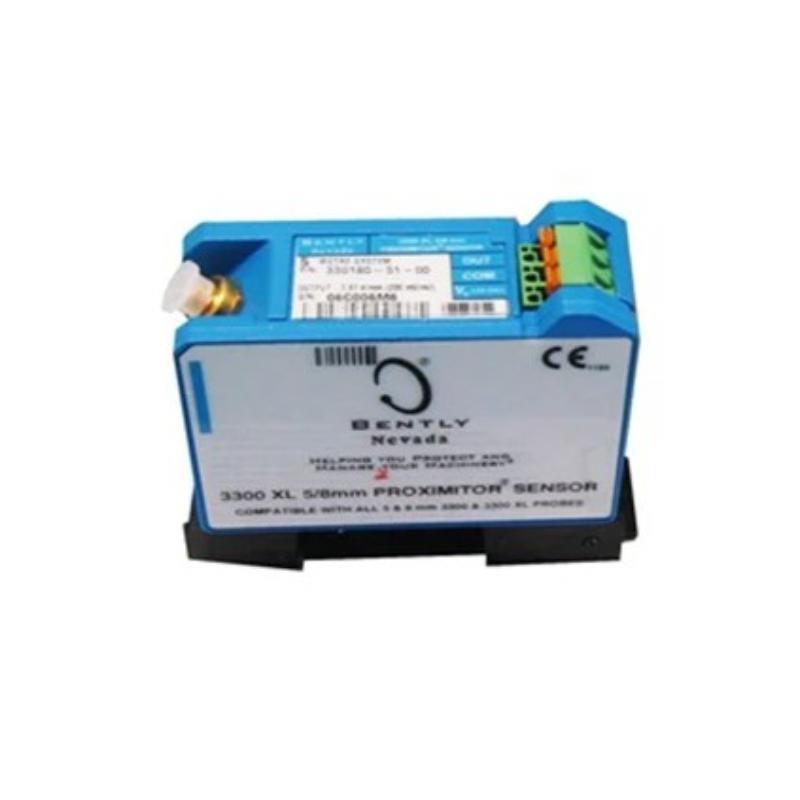

The Bently Nevada 330180-X1-00 149032-08 is a precision 8mm Proximitor Sensor engineered for the 3300 XL machinery protection system. It offers highly accurate shaft displacement and vibration measurements that are critical for monitoring and safeguarding rotating machinery such as turbines, compressors, and pumps. Designed for demanding industrial environments, this sensor ensures reliable performance and long-term durability for continuous condition monitoring and early fault detection.
Key Features
-
8mm probe diameter providing precise proximity measurements
-
Compatible with the Bently Nevada 3300 XL system
-
Outputs AC voltage proportional to shaft displacement
-
Durable construction for extreme temperature and vibration tolerance
-
Supports long cable lengths to accommodate various installation configurations
-
Enables predictive maintenance and machinery fault prevention
-
Easy to install with standard connectors or cable termination options
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Probe) |
| Model Number | 330180-X1-00 |
| Part Number | 149032-08 |
| Manufacturer | Bently Nevada (Baker Hughes Company) |
| Probe Diameter | 8 mm |
| Probe Length | 50 mm |
| Measurement Range | 0 to 50 mils (0 to 1.27 mm) |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40°C to +121°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 100 g, 10 to 2,000 Hz |
| Shock Resistance | 100 g, 11 ms |
| Cable Length | Up to 20 m (customizable) |
| Connector Type | Integral connector or cable termination options |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| Weight | 0.246 kg |
Industry Applications
-
Power Generation Turbines
-
Industrial Compressors
-
Pumps and Motors
-
Gas and Steam Turbines
-
Oil and Gas Industry Equipment
-
Manufacturing Plant Machinery
-
Aerospace and Defense Rotating Equipment
-
Marine Propulsion Systems
Product Advantages
-
Provides accurate and repeatable proximity measurements
-
Robust design for reliable operation in harsh environments
-
Fully compatible with 3300 XL monitoring systems
-
Supports flexible installation with long cable options
-
High resistance to vibration and shock enhances durability
-
Facilitates early fault detection and predictive maintenance
-
Simple installation with standard connector options
Frequently Asked Questions (FAQ)
1. What is the probe diameter?
The probe diameter is 8 mm.
2. What is the measurement range?
0 to 50 mils (0 to 1.27 mm).
3. What type of output signal does this sensor provide?
AC voltage proportional to shaft displacement.
4. Is this sensor compatible with 3300 XL systems?
Yes, it is designed for the 3300 XL system.
5. What is the operating temperature range?
-40°C to +121°C.
6. How resistant is it to vibration and shock?
It withstands 100 g vibration (10 to 2,000 Hz) and 100 g shock for 11 ms.
7. What cable lengths are supported?
Up to 20 meters standard; custom lengths available.
8. What is the weight of the sensor?
Approximately 0.246 kg.
9. Which industries commonly use this sensor?
Power generation, oil and gas, aerospace, marine, manufacturing.
10. How easy is installation?
Installation is straightforward with integral connectors or cable termination options.
