Product Introduction

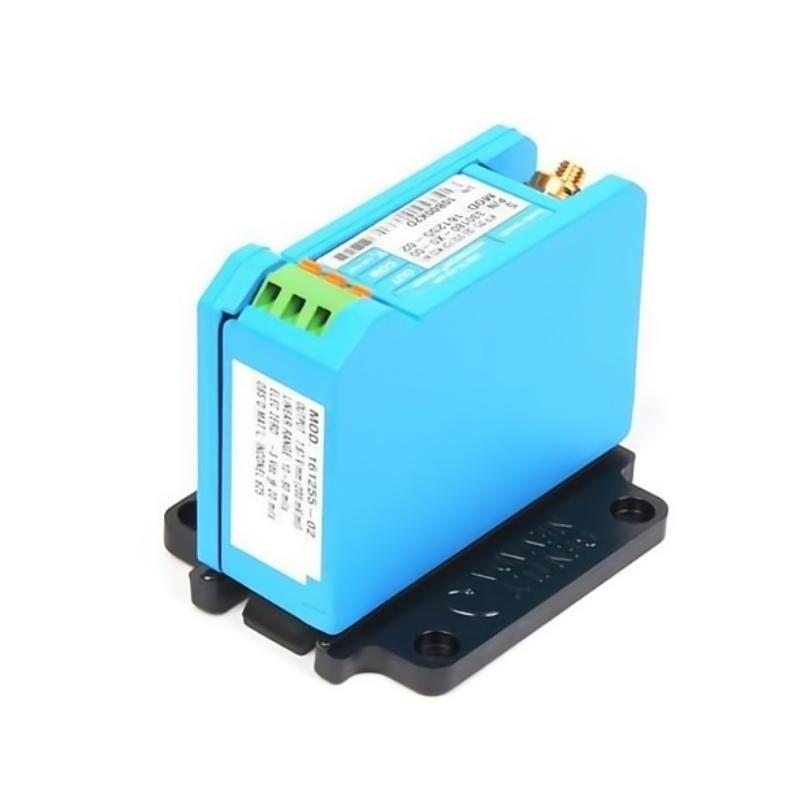

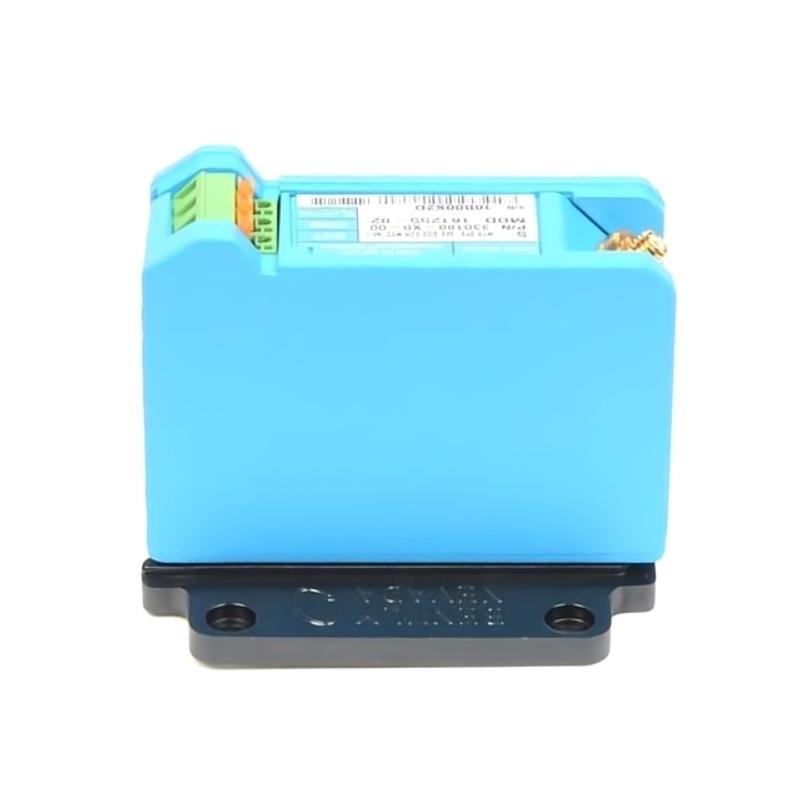

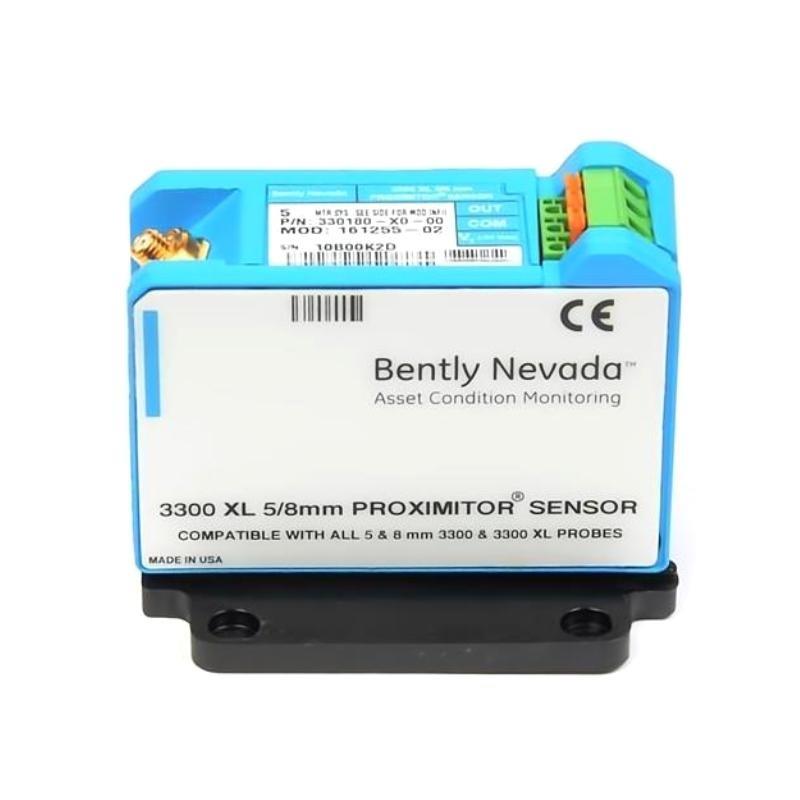

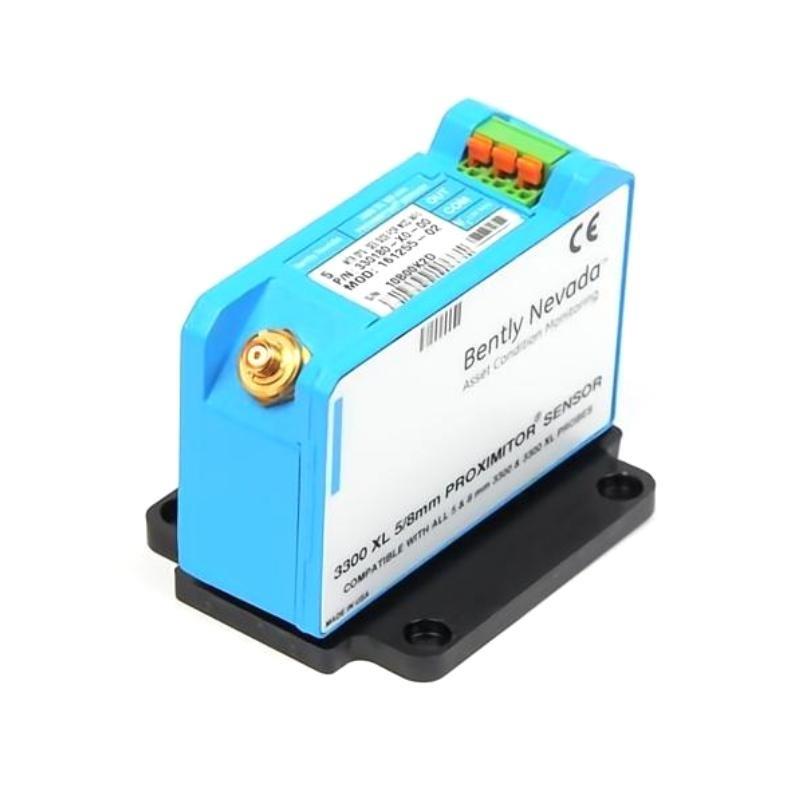

The Bently Nevada 330180-X0-00 / 145004-113 – 3300 XL 8mm Proximitor Sensor is part of the industry-leading 3300 XL Series developed by Bently Nevada, a GE brand renowned for its expertise in machinery condition monitoring and protection.
This sensor is designed to accurately detect and measure the proximity (or displacement) of rotating machinery shafts relative to a fixed reference point. As part of a proximity transducer system, this sensor works in conjunction with a Proximitor® module and an extension cable to deliver precise, real-time shaft vibration and position data.
The 3300 XL 8mm sensor is most commonly deployed in critical machinery such as turbines, compressors, pumps, and gearboxes where axial and radial shaft movement must be monitored for protection, diagnostics, and predictive maintenance. This model is known for its rugged design, EMI immunity, and reliable performance in extreme environments, including high temperature and high vibration areas.
Product Specifications
| Parameter | Details |
|---|---|
| Product Name | 3300 XL 8mm Proximitor Sensor |
| Part Numbers | 330180-X0-00, 145004-113 |
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Series | 3300 XL Series |
| Sensor Type | Non-contact Eddy Current Proximity Probe |
| Measurement Range | 0 to 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2.0 mm (10 mils to 80 mils) |
| Output Voltage | -200 mV/mil ±5% (nominal) |
| System Compatibility | Compatible with 3300 XL Proximitor and Extension Cables |
| Operating Frequency Range | 0 to 10 kHz (typical vibration response) |
| Target Material | 4140 steel (standard calibration) |
| Operating Temperature | -35°C to +177°C (probe tip) |
| Environmental Sealing | Hermetically sealed probe, IP67 |
| Cable Type | Triaxial, BNC connector, double-shielded (EMI resistant) |
| Mounting Thread | 1/4-28 UNF or M8 × 1 |
| Extension Cable Lengths | Available in 5 m, 7 m, and 9 m options |
| Certification | CE, CSA, ATEX (depending on configuration) |
| Dimensions (L × D) | 81.3 x 35.1 x 58.4 mm |
| Weight | 0.246 kg |
Product Applications
The 330180-X0-00 / 145004-113 Proximitor Sensor is widely used across a variety of industrial applications that require real-time, non-contact displacement and vibration monitoring of rotating machinery. Some of the core application areas include:
-
Steam and Gas Turbines
Monitor shaft position and vibration to prevent catastrophic failure. -
Compressors (Centrifugal and Reciprocating)
Measure rod drop, shaft radial and axial movement. -
Large Motors and Generators
Detect imbalance, misalignment, and shaft displacement. -
Pumps (API compliance)
Support compliance with industry standards for machinery protection. -
Gearboxes and Speed Reducers
Monitor bearing wear and shaft misalignment over time. -
Industrial Fans and Blowers
Ensure operational integrity and early fault detection.
Product Advantages
-
Proven Reliability
Field-proven over millions of operating hours in critical systems worldwide. -
High EMI Immunity
Designed to operate accurately in environments with high electromagnetic interference, thanks to advanced shielding and signal integrity. -
Wide Temperature Tolerance
Operates effectively in high-temperature environments up to 177°C at the probe tip. -
Precision Calibration
Calibrated to 4140 steel targets, ensuring accuracy in typical industrial applications. -
Modular Design
Works seamlessly with 3300 XL Proximitor and extension cables, enabling flexible configuration for different monitoring distances. -
Hermetically Sealed
Provides IP67 protection against dust, oil, moisture, and chemicals, ensuring longevity in harsh industrial zones. -
Low Signal Noise
Enables precise data collection for vibration and displacement with minimal electrical interference. -
API 670 Compliant
Designed to meet the strict requirements of critical process industries for condition monitoring and protection. -
Fast Response Time
Captures dynamic shaft movements accurately for real-time diagnostics and protection. -
Long-Term Availability
Supported by Bently Nevada’s robust service network and spare parts catalog.
FAQ
-
What is the output sensitivity of the 3300 XL 8mm Proximitor sensor?
It provides a nominal output of -200 mV/mil ±5%. -
Which target material is this sensor calibrated for?
Standard calibration is for 4140 steel; other materials may require custom calibration. -
Can this sensor be used with older Bently Nevada systems?
Yes, it is backward compatible with legacy 3300 series Proximitor modules and cabling. -
What frequency range does the sensor respond to for vibration analysis?
The typical frequency response is up to 10 kHz. -
What kind of shielding does the extension cable use?
It uses a triaxial, double-shielded design for high EMI immunity. -
Is it suitable for high-temperature machinery environments?
Yes, the sensor tip is rated for up to +177°C. -
What is the linear measurement range of the system?
From 0.25 mm to 2.0 mm (10 mils to 80 mils), with high linearity. -
Can this sensor be installed in hazardous locations?
Yes, when used with the appropriate Proximitor and certified configurations (ATEX, CSA). -
Does it require a specific mounting orientation?
It should be installed perpendicular to the shaft surface for accurate readings. -
What’s the minimum recommended cable length for optimal signal transmission?
Minimum cable length should match system configuration—typically 5 meters for calibrated setups.
Related Models (Same Series or Function)
| Model | Part Number | Description |
|---|---|---|
| 330180-91-00 | 145004-113 | 8mm probe with 1/4-28 UNF mounting thread |
| 330180-50-00 | 145004-110 | Short-length version for compact installations |
| 330130-040-00 | 3300 XL Extension Cable | 4.0-meter extension cable for 8mm system |
| 3300 XL 8mm Probe | 330171-XX-XX | Custom probe lengths and connectors available |
| 3300 XL NSv Probe | 330190-XX-XX | Narrow-tip sensor for small targets |
| 3300 XL Proximitor | 3300 XL 145988-02 | Matching signal conditioner for 8mm probe systems |
