Product Overview

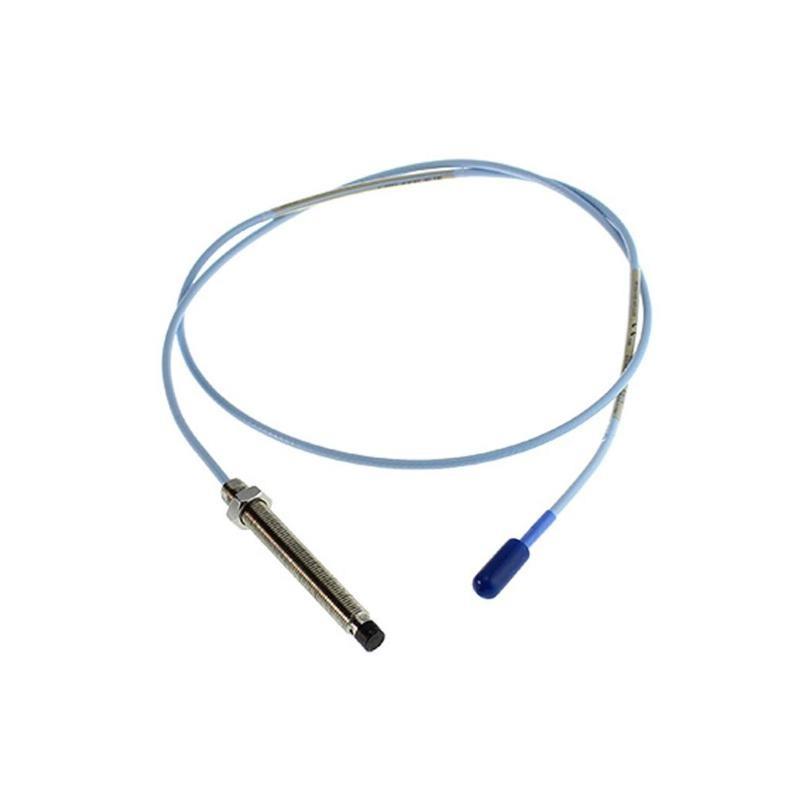

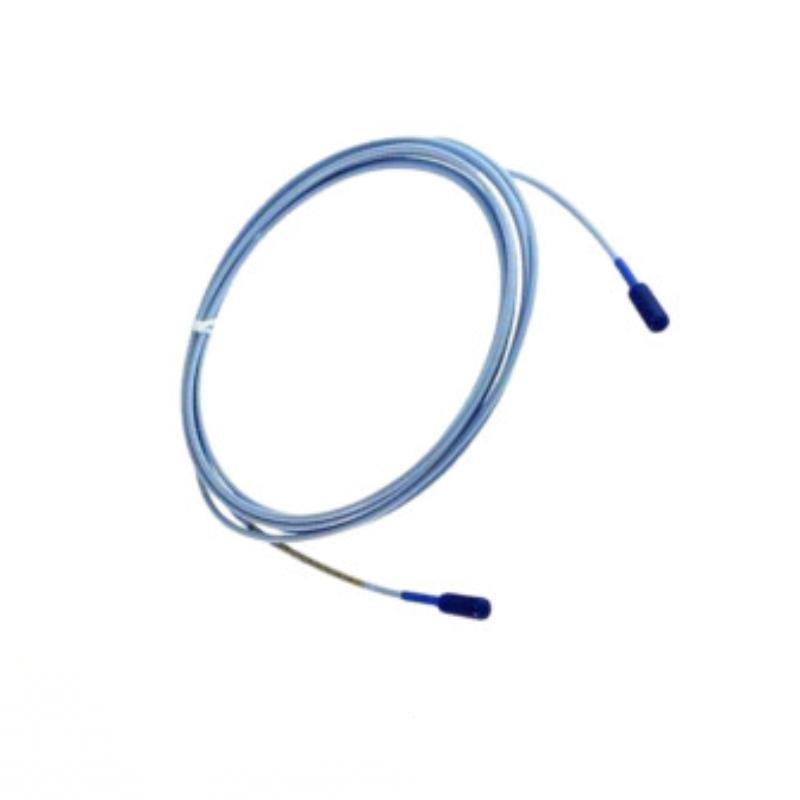

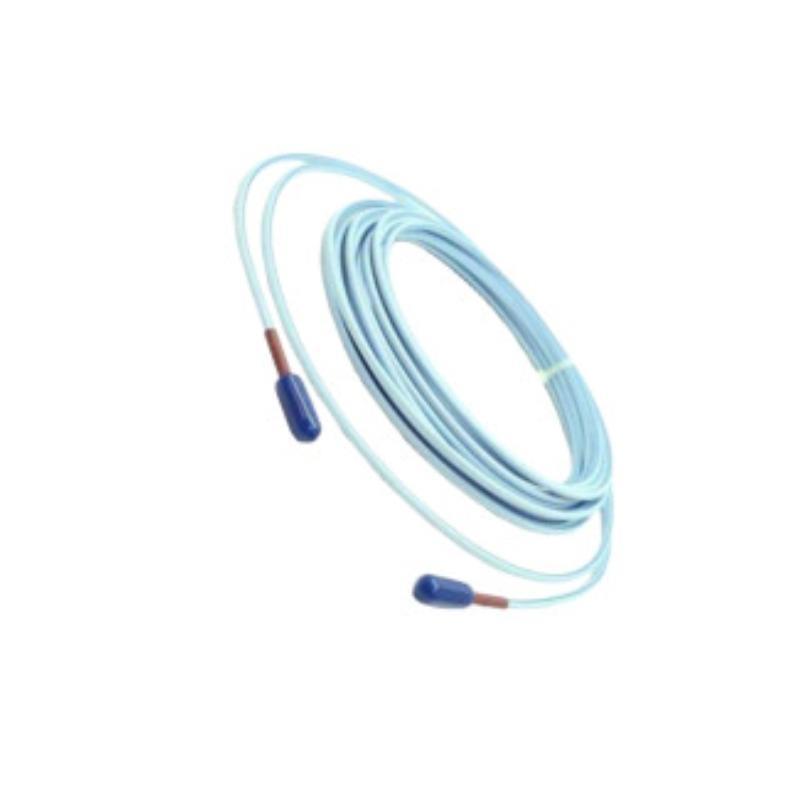

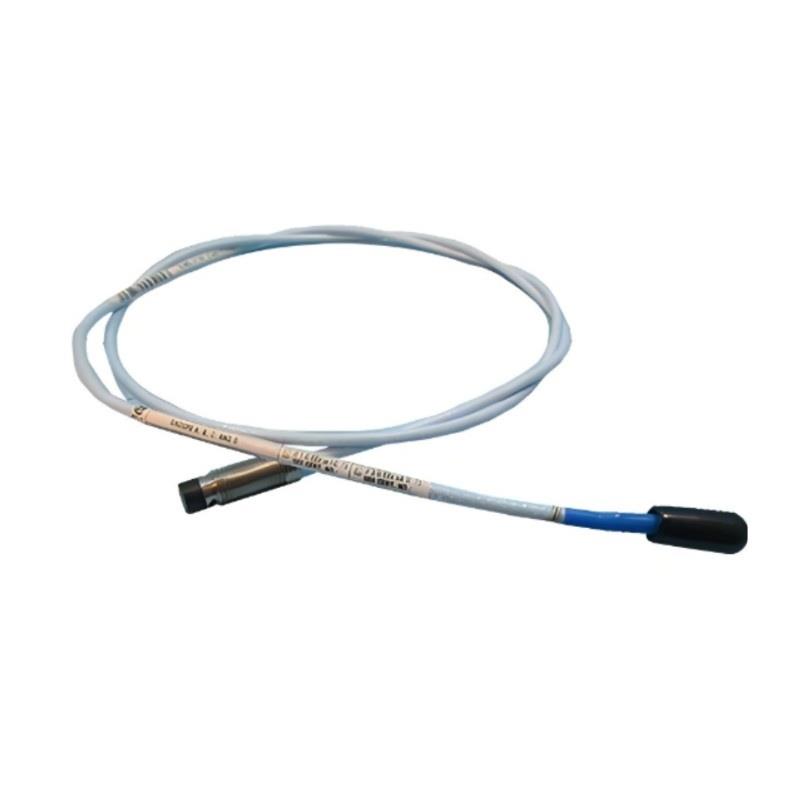

The Bently Nevada 330104-00-06-50-01-00 is a robust 8 mm proximity probe, part of the 3300 XL Proximity Transducer System. It is engineered to detect both static and dynamic shaft position and vibration in fluid-film bearing machinery. This model includes an M10 x 1 threaded probe with 5.0 meters of armored cable and is compliant with API 670 standards.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330104-00-06-50-01-00 |
| Probe Tip Diameter | 8.0 mm |
| Thread Type | M10 x 1 |
| Total Length | 5.0 meters |
| Cable Type | Armored, Standard |
| Cable Connector | Miniature coaxial ClickLoc connector |
| Recommended Gap | 1.27 mm (50 mils) |
| Linear Range | 0.25 mm to 2.3 mm |
| Output Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz |
| Temperature Range (Standard) | –52°C to +177°C (Probe), –52°C to +177°C (Cable) |
| Temperature Range (Storage) | –52°C to +105°C (Proximitor Sensor) |
| Pressure Seal | Viton® O-ring, differential pressure sealing |
| Weight | 1.165 kg (Total System) |
| Compliance | API 670, CE, FCC, RoHS, SIL2/SIL3, ATEX, IECEx |
Applications
-
Shaft vibration and position monitoring
-
Keyphasor reference signal acquisition
-
Speed measurement in rotating equipment
-
Critical turbomachinery (pumps, compressors, turbines)
-
Overspeed and axial thrust detection
Product Advantages
-
Fully API 670 compliant
-
Interchangeable probes, cables, and sensors—no calibration required
-
High RFI/EMI immunity for harsh environments
-
Robust mechanical build with armored cable and ClickLoc connectors
-
Extended temperature range options available
-
Compatible with both DIN rail and panel mount installations
FAQ – Frequently Asked Questions
Q1: What is the probe thread type of this model?
A1: M10 x 1 metric thread.
Q2: What is the total system length for 330104-00-06-50-01-00?
A2: 5.0 meters.
Q3: Is this model compliant with API 670?
A3: Yes, it meets API 670 for linearity, range, and temperature stability.
Q4: What materials are used for the probe and armor?
A4: Stainless steel (AISI 304) for the probe and armor with a fluoropolymer jacket.
Q5: What is the temperature range of the probe?
A5: –52°C to +177°C for standard probes.
Q6: What is the scale factor for the output signal?
A6: 7.87 V/mm (200 mV/mil) ±5%.
Q7: Can this probe be used with other 3300 XL components?
A7: Yes, it is electrically and mechanically compatible with other 3300 XL 8 mm components.
Q8: Is an armored cable necessary?
A8: Armored cable enhances durability in mechanically aggressive environments.
Q9: What type of connector does this model use?
A9: ClickLoc miniature coaxial connector.
Q10: Is this product certified for hazardous environments?
A10: Yes, it holds ATEX, IECEx, and CSA approvals.
Related Bently Nevada Models (Same Series)
| Model Number | Description | Probe Length | Armor | Connector Type |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | 3/8-24 UNF thread, standard cable | 1.0 m | No | ClickLoc, No protector |
| 330102-00-20-10-02-00 | 3/8-24 UNF thread, armored cable | 2.0 m | Yes | ClickLoc, No protector |
| 330103-00-04-10-02-00 | M10 x 1 thread, standard cable | 1.0 m | No | ClickLoc, No protector |
| 330104-00-06-10-02-00 | M10 x 1 thread, armored cable | 1.0 m | Yes | ClickLoc, No protector |
| 330104-00-06-50-02-00 | M10 x 1 thread, armored cable | 5.0 m | Yes | ClickLoc, No protector |
| 330106-05-30-10-02-00 | M10 x 1 reverse mount, armored cable | 1.0 m | Yes | ClickLoc, No protector |
Popular Bently Nevada Models
| Model Number | Description | Function | Typical Application |
|---|---|---|---|
| 3300/20 | Dual Vibration Monitor | Vibration Measurement | General industrial machines |
| 3500/42M | Proximitor Seismic Monitor | Vibration Monitoring | Turbomachinery |
| 3500/22M | Transient Data Interface (TDI) | System Integration | Condition Monitoring |
| 330104-00-06-50-01-00 | XL 8 mm Proximity Probe | Shaft Vibration Measurement | Rotating equipment |
| 330180-50-05 | Proximitor Sensor (5m panel mount) | Signal Conversion | API 670 compliance systems |
| 330130-060-00-00-00 | Extension Cable (6 m, standard cable) | Signal Transmission | Probe-to-monitor wiring |
