Product Introduction

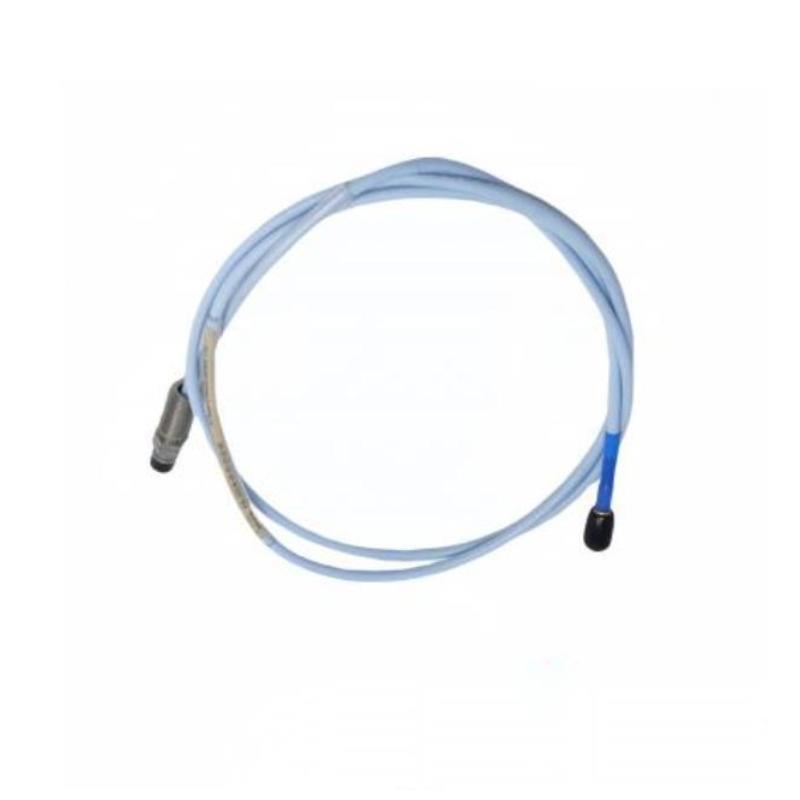

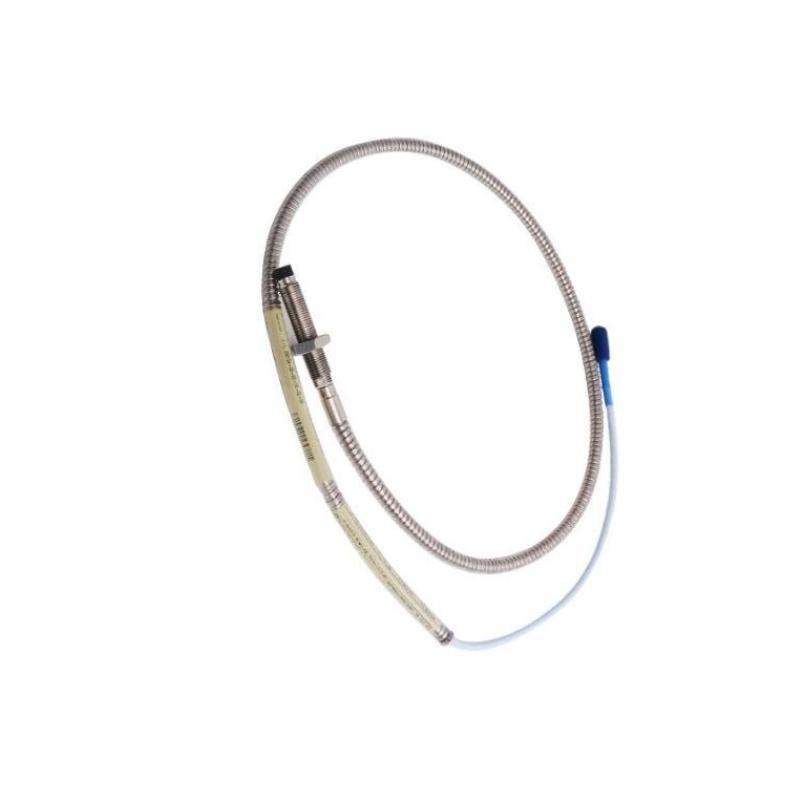

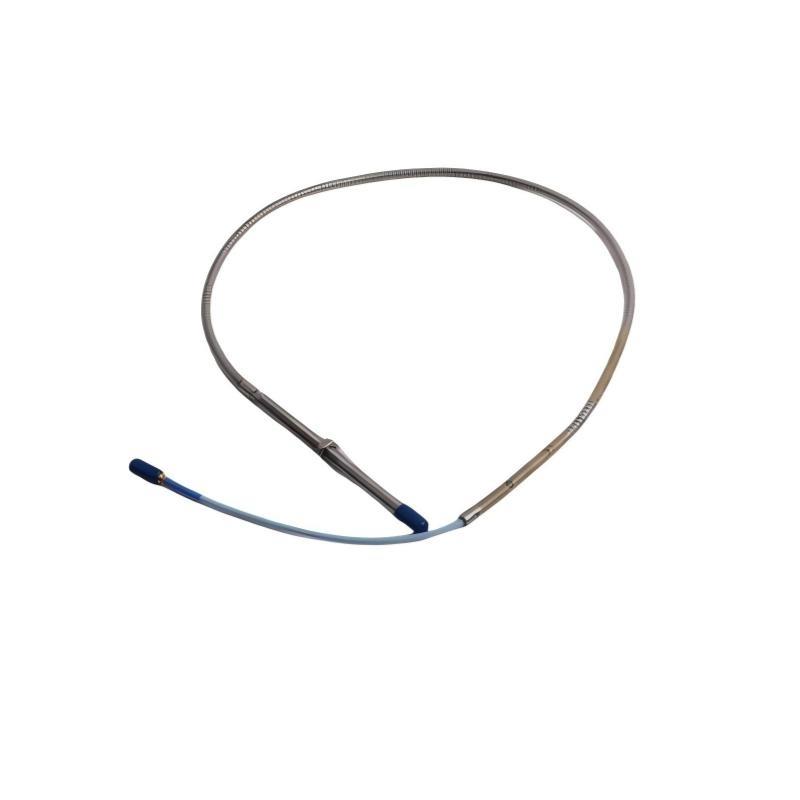

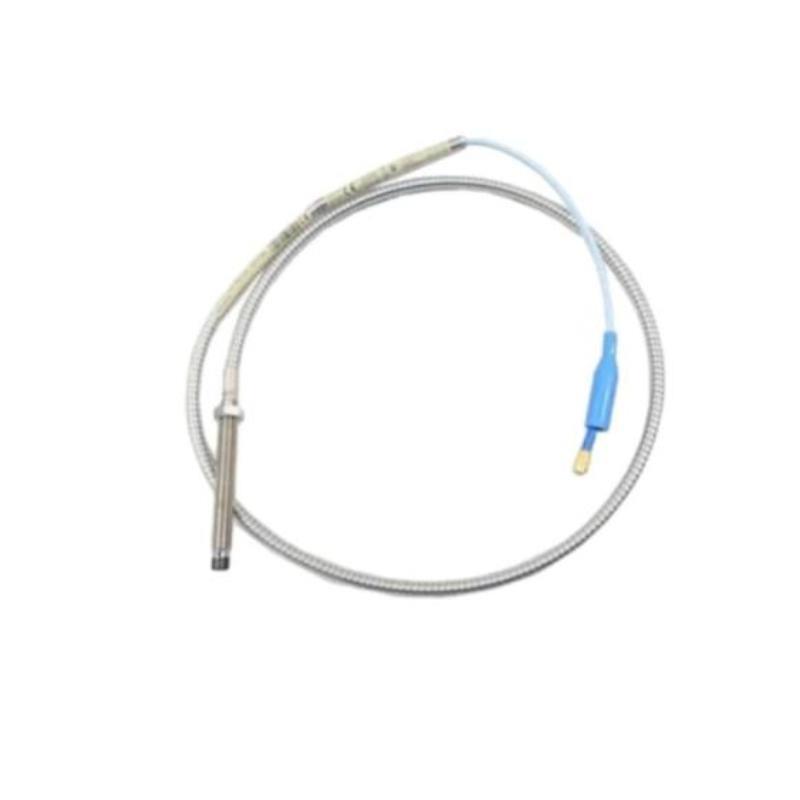

The Bently Nevada 330104-00-03-05-02-05 3300 XL 8 mm Proximity Probe is a high-performance vibration and displacement monitoring sensor widely used in rotating machinery protection systems. Designed as part of the 3300 XL series, this probe provides reliable and precise shaft displacement measurements in harsh industrial environments. Its construction ensures stability under extreme conditions, offering excellent resistance to electrical interference, mechanical vibration, and temperature variations.
The probe is typically paired with extension cables and proximitor sensors to form a complete measurement chain, enabling accurate real-time monitoring of shaft position and vibration for predictive maintenance and machinery protection applications.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330104-00-03-05-02-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 0.5 m |
| Weight | 0.162 kg |
| Case Material | Stainless steel |
| Thread Size | M10 × 1.0 |
| Linear Range | 2.0 mm (80 mils) |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Power Supply | Through proximitor sensor (±24 VDC system supply) |
| Operating Temperature | –35 °C to +177 °C (probe body) |
| Humidity Resistance | 100% condensing humidity |
| Electrical Isolation | >10 MΩ |
| Compliance | API 670 machinery protection standards |
Product Applications
-
Steam and gas turbines for vibration monitoring
-
Compressors and expanders to track shaft displacement
-
Motors and pumps for predictive maintenance
-
Generators for bearing and shaft protection
-
Industrial fans and blowers to prevent critical failures
-
Process industries such as oil & gas, petrochemical, and power generation
Product Advantages
-
High Reliability: Engineered to perform in extreme temperatures and hostile industrial environments.
-
Accurate Measurements: Provides consistent and linear output over its specified range.
-
API 670 Compliance: Meets international standards for machinery protection systems.
-
Durable Construction: Stainless steel design ensures long-term performance and resistance to corrosion.
-
Flexible Compatibility: Fully compatible with Bently Nevada proximitor sensors and extension cables.
-
Predictive Maintenance Support: Enables real-time shaft vibration and position monitoring to prevent unplanned shutdowns.
FAQ
Q1: What is the sensitivity of the 330104-00-03-05-02-05 probe?
A1: The probe has a sensitivity of 200 mV/mil (7.87 mV/µm).
Q2: Can this probe be used in high-temperature environments?
A2: Yes, the probe can operate reliably in environments from –35 °C up to +177 °C.
Q3: Which extension cables are compatible with this probe?
A3: It is compatible with 330130 and 330180 extension cable series.
Q4: Does the probe comply with API 670 standards?
A4: Yes, it fully meets API 670 requirements for machinery protection.
Q5: What type of machinery is this probe most commonly used with?
A5: It is commonly used with turbines, compressors, pumps, and generators.
Q6: How is the probe powered during operation?
A6: Power is supplied through the proximitor sensor from a ±24 VDC system supply.
Q7: What is the linear range of this probe?
A7: The probe offers a linear measurement range of 2.0 mm (80 mils).
Q8: Is the probe resistant to electrical interference?
A8: Yes, it is designed with strong shielding to minimize EMI and RFI interference.
Q9: What is the output signal type from this probe?
A9: The probe outputs a voltage signal proportional to shaft displacement.
Q10: Can the probe be installed in high-humidity conditions?
A10: Yes, it withstands 100% condensing humidity without loss of performance.
Related Models
| Model Number | Description |
|---|---|
| 330103-00-05-10-02-00 | 3300 XL 8 mm Proximity Probe (different length) |
| 330105-02-12-10-02-05 | 3300 XL 11 mm Proximity Probe |
| 330130-040-00-00 | 3300 XL Extension Cable (4 m) |
| 330180-91-00 | 3300 XL Proximitor Sensor |
| 330106-05-30-10-02-00 | 3300 XL 5 mm Proximity Probe |
| 330104-00-10-05-02-05 | 3300 XL 8 mm Proximity Probe (longer cable version) |
