Product Overview

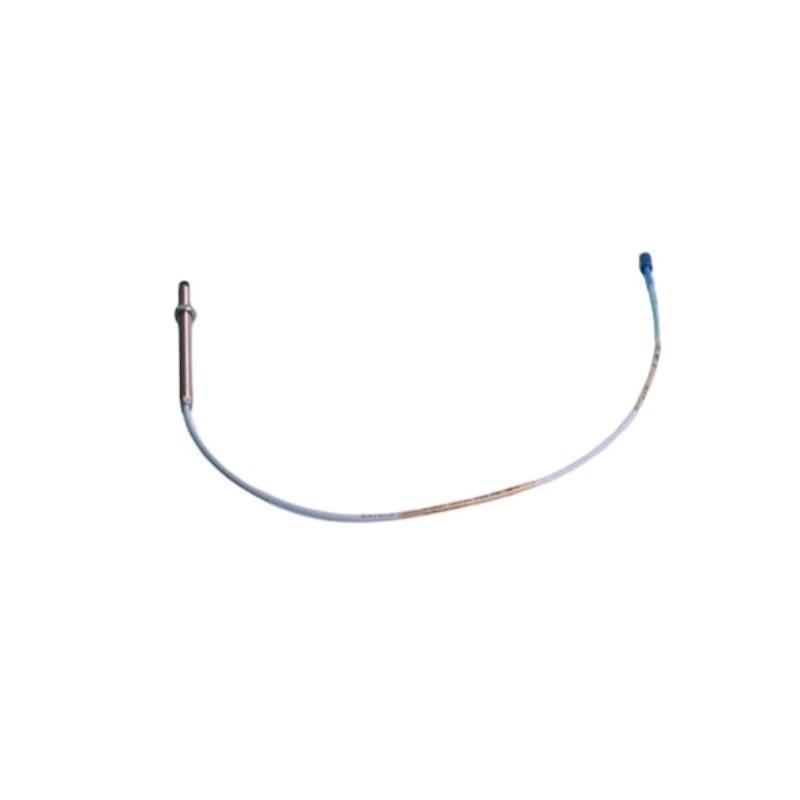

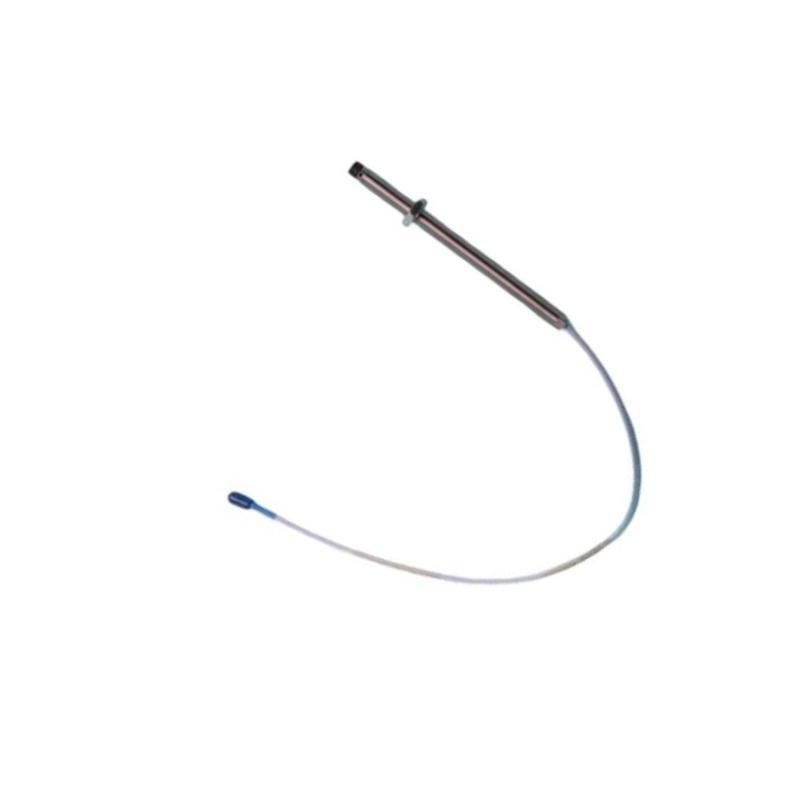

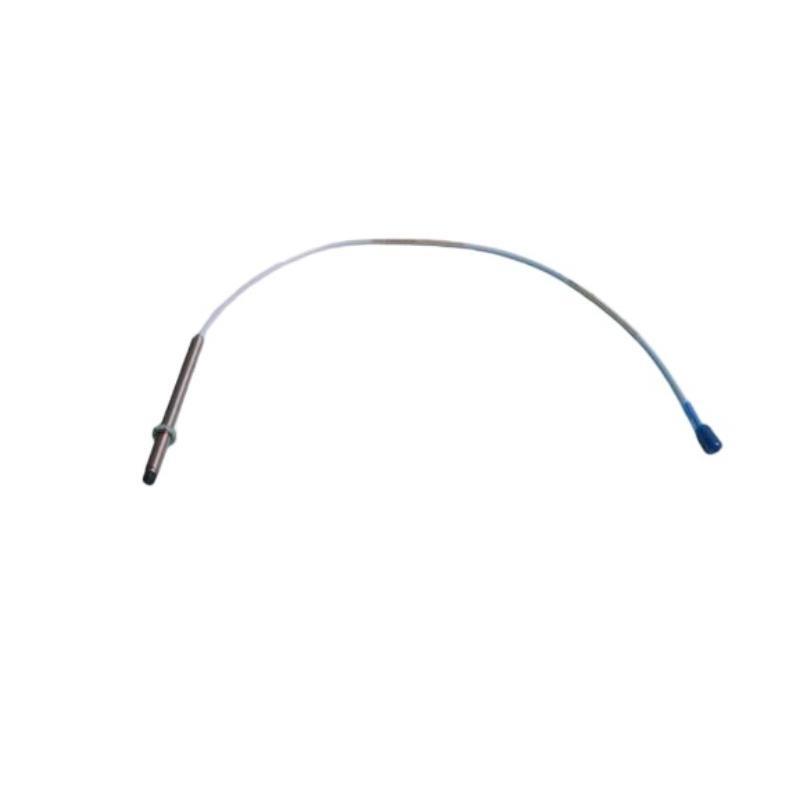

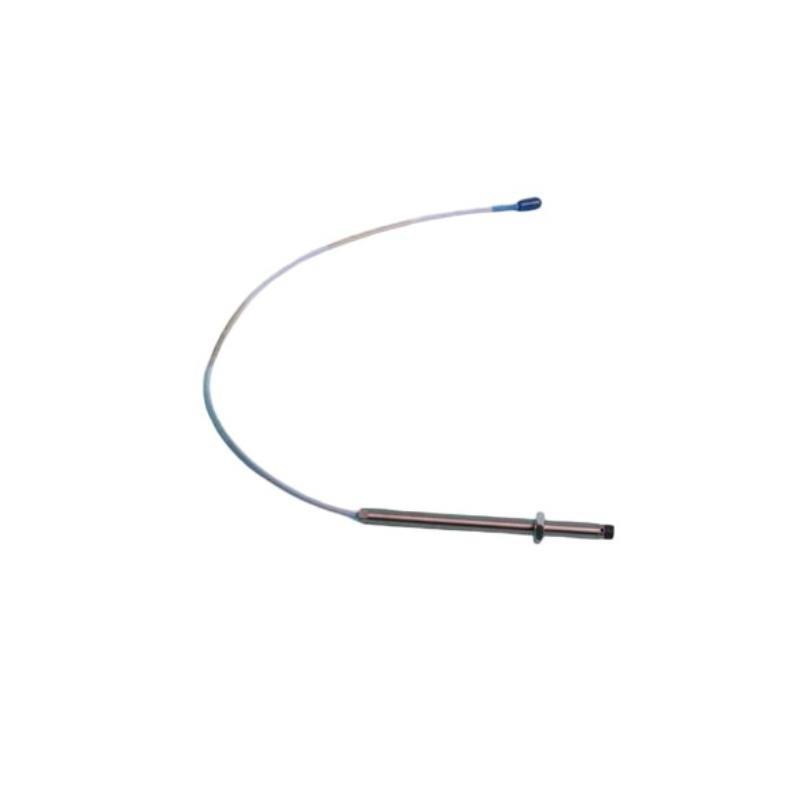

The Bently Nevada 330103-08-13-05-02-00 is a highly durable 8 mm proximity probe from the 3300 XL series, designed for accurate shaft position and vibration measurements in critical rotating machinery. With a 13-foot (3.96 meters) cable length, this model is ideal for medium-range installations requiring high precision over extended distances.
Constructed from corrosion-resistant stainless steel, the probe’s robust design is further enhanced by a polyphenylene sulfide (PPS) tip, making it capable of withstanding demanding environments. This probe is fully compatible with Bently Nevada’s 3300 XL Proximitor® sensor system, ensuring seamless integration for real-time machinery condition monitoring and protection.
Key Features
-
8 mm probe tip diameter for precise vibration and shaft position measurement
-
13-foot (3.96 meters) molded coaxial cable for medium-range installations
-
Stainless steel probe body provides exceptional durability and resistance to corrosion
-
Superior EMI/RFI shielding for clean and stable signal output
-
Reverse polarity and overvoltage protection
-
IP68-rated for dust and water ingress protection
-
Compliance with API 670 standards for machinery protection
-
CE and RoHS certified for global market acceptance
Technical Specifications
| Item | Specification |
|---|---|
| Product Model | 330103-08-13-05-02-00 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 13 feet (3.96 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (application-dependent) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| Weight | 0.161 kg |
| Dimensions | Total Length : 0.5 meter |
Industry Applications
-
Gas and steam turbines
-
Pumps, compressors, and other rotating machinery
-
Electric motors and generators
-
Gearboxes and drive systems
-
Petrochemical and chemical plants
-
Power generation facilities
-
Offshore platforms and marine engines
-
Manufacturing machinery condition monitoring
Product Advantages
-
Long Cable Length: The 13-foot (3.96 meters) cable allows for greater flexibility in installations.
-
Corrosion-Resistant: Made with stainless steel, it resists corrosion, ensuring longevity in harsh environments.
-
Enhanced Signal Quality: The probe’s EMI/RFI shielding minimizes signal interference, ensuring accuracy.
-
Dust and Water Protection: IP68 rating guarantees the probe remains functional even in extreme weather conditions.
-
Compliance: Meets API 670 standards, ensuring suitability for machinery protection in critical applications.
-
Seamless Integration: Fully compatible with Bently Nevada’s 3300 XL Proximitor® system.
-
Versatile: Suitable for use in industries ranging from power generation to petrochemicals and beyond.
-
Predictive Maintenance: Helps detect machinery issues before they result in costly downtime.
Frequently Asked Questions (FAQ)
-
What is the cable length for this probe?
This model has a 13-foot (3.96 meters) molded coaxial cable. -
Is this probe suitable for outdoor use?
Yes, the probe has an IP68 rating for protection against dust and water. -
What is the sensing range of the probe?
The sensing range is between 0.5 to 2.0 mm (20 to 80 mils). -
Can I use this probe with other Bently Nevada systems?
Yes, it is compatible with all 3300 XL Proximitor® sensors and extension cables. -
What materials are used for the probe body and tip?
The body is made of stainless steel (AISI 303), and the tip is made of polyphenylene sulfide (PPS). -
What is the operating temperature range of the probe?
The probe can operate within a temperature range of -35°C to +177°C. -
What type of connector does the probe use?
It uses a molded miniature coaxial connector. -
Does this probe offer protection from electrical issues?
Yes, it features reverse polarity and overvoltage protection. -
Is factory calibration required before use?
The probe comes factory-calibrated, but field verification is always recommended. -
What industries is this probe suitable for?
It is ideal for applications in power generation, petrochemical, marine, and manufacturing industries.
