Product Introduction

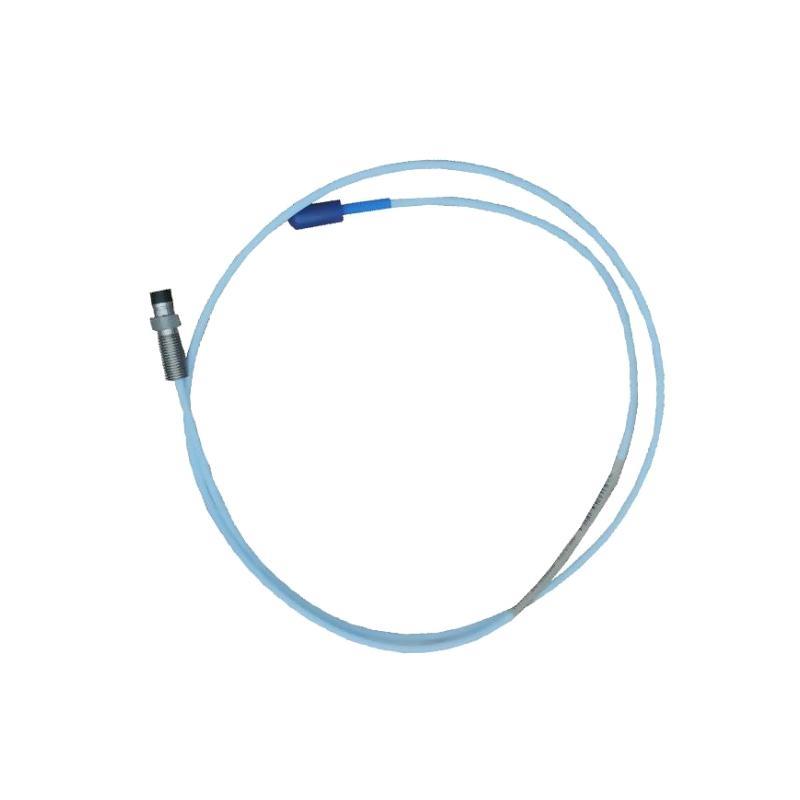

The Bently Nevada 330103-02-07-50-02-00 3300 XL 8mm Proximity Probe is a precision-engineered sensor designed for accurate measurement of shaft vibration and displacement in critical rotating machinery. As a member of the 3300 XL series, this probe provides high reliability, consistent measurement performance, and robust operation in demanding industrial environments.
This probe employs eddy current technology to detect the gap between the probe tip and the rotating shaft. Its 5-meter total length and 1.615 kg weight make it suitable for installations where long-distance cable routing is required without compromising signal integrity. The stainless steel housing ensures durability against corrosion, vibration, and mechanical stress. This model is optimized for integration with Proximitor sensors and 3300 XL monitoring systems, providing stable, high-fidelity data for machinery protection and predictive maintenance programs.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330103-02-07-50-02-00 |
| Series | 3300 XL 8mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| Total Length | 5 meters |
| Weight | 1.615 kg |
| Connector Type | Standard coaxial connector |
| Housing Material | Corrosion-resistant stainless steel |
| Frequency Response | DC to 10 kHz |
| Linear Measurement Range | 2 mm (typical with matching Proximitor sensor) |
| Nominal Gap | 2 mm |
| Operating Temperature Range | –35 °C to +180 °C |
| Humidity Tolerance | Up to 95% non-condensing |
| Shock Tolerance | 500 g, 1 ms half-sine |
| Vibration Tolerance | 10 g, 10–2000 Hz |
| Compliance | API 670 compliant |
Applications
The 330103-02-07-50-02-00 probe is widely applied in industrial condition monitoring and machinery protection systems. Typical applications include:
-
Monitoring radial vibration in turbines, compressors, pumps, and generators.
-
Measuring axial shaft displacement to prevent mechanical overload.
-
Providing real-time signals for predictive maintenance and early fault detection.
-
Integration into power plants, petrochemical facilities, and oil & gas installations.
-
Long-distance installations where a 5-meter cable is required for optimal sensor placement.
-
Detection of mechanical issues such as imbalance, misalignment, looseness, and bearing wear.
Advantages
-
High Measurement Accuracy: Delivers precise and repeatable vibration and displacement readings.
-
Long Cable Design: 5-meter cable allows flexible routing and installation in large machinery setups.
-
Robust Construction: Stainless steel housing provides corrosion and shock resistance.
-
Thermal and Vibration Stability: Maintains measurement accuracy from –35 °C to +180 °C under heavy vibration.
-
API 670 Compliance: Meets international standards for machinery protection systems.
-
System Compatibility: Fully compatible with 3300 XL Proximitor sensors and monitoring modules.
-
Electromagnetic Noise Immunity: Shielded cable ensures minimal interference and accurate signal transmission.
-
Interchangeable Design: Can replace other 3300 XL 8mm probes without recalibration, simplifying maintenance.
FAQ
1. What measurement principle does this probe use?
It uses eddy current technology to detect the gap between the probe tip and the shaft surface.
2. What is the linear measurement range?
The typical linear range is 2 mm when paired with a matching Proximitor sensor.
3. How does the 5-meter cable length affect signal transmission?
The probe and cable are factory-matched to ensure minimal signal loss over the 5-meter distance.
4. Can it measure both radial and axial shaft movement?
Yes, installation orientation determines whether it measures radial vibration or axial displacement.
5. What type of electrical output does the probe provide?
It generates a voltage signal proportional to shaft displacement.
6. How does the probe handle electromagnetic interference?
The probe has shielding to maintain signal accuracy in environments with electrical noise.
7. Is it suitable for high-vibration machinery environments?
Yes, it is designed to operate reliably under vibration levels up to 10 g across 10–2000 Hz.
8. What is the operating temperature range?
It operates reliably from –35 °C to +180 °C.
9. Can it be used with older Bently Nevada monitoring systems?
Yes, it is compatible with both 3300 and 3500 series monitoring systems.
10. What industry standards does the probe comply with?
It meets API 670 requirements for vibration and displacement monitoring in rotating machinery.
