Product Overview

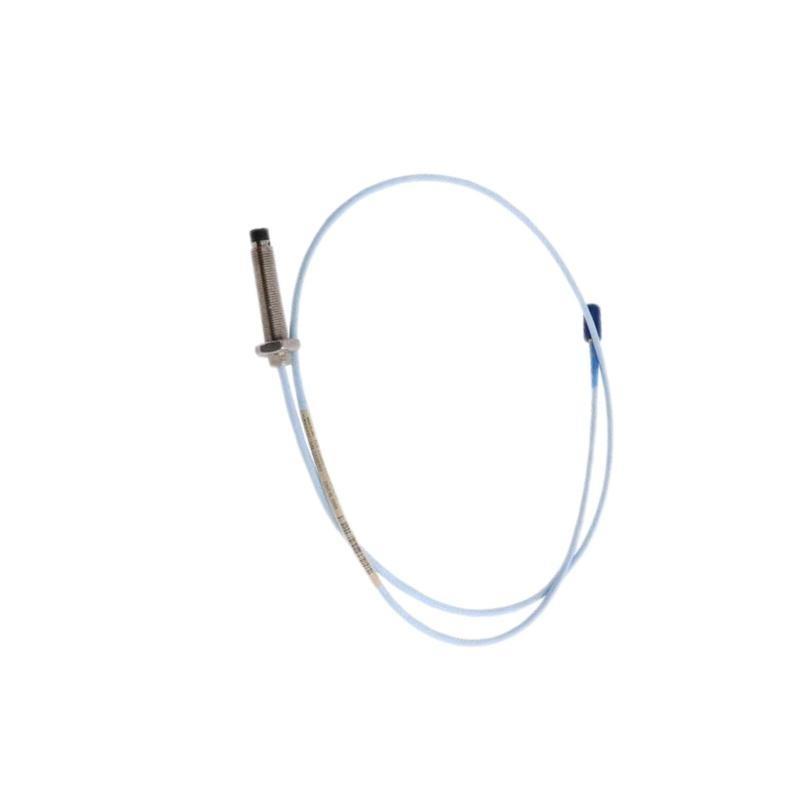

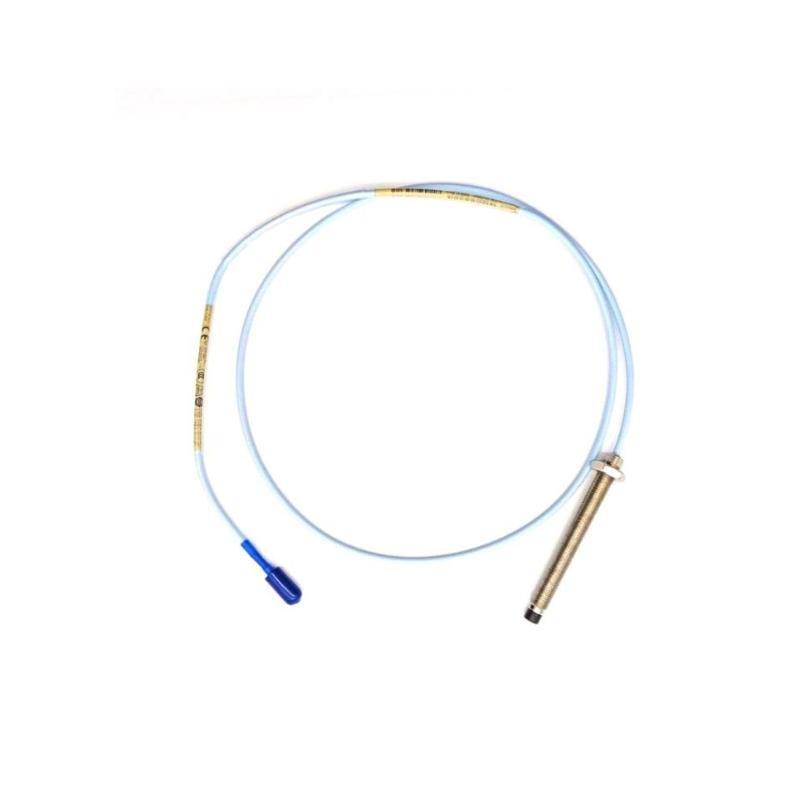

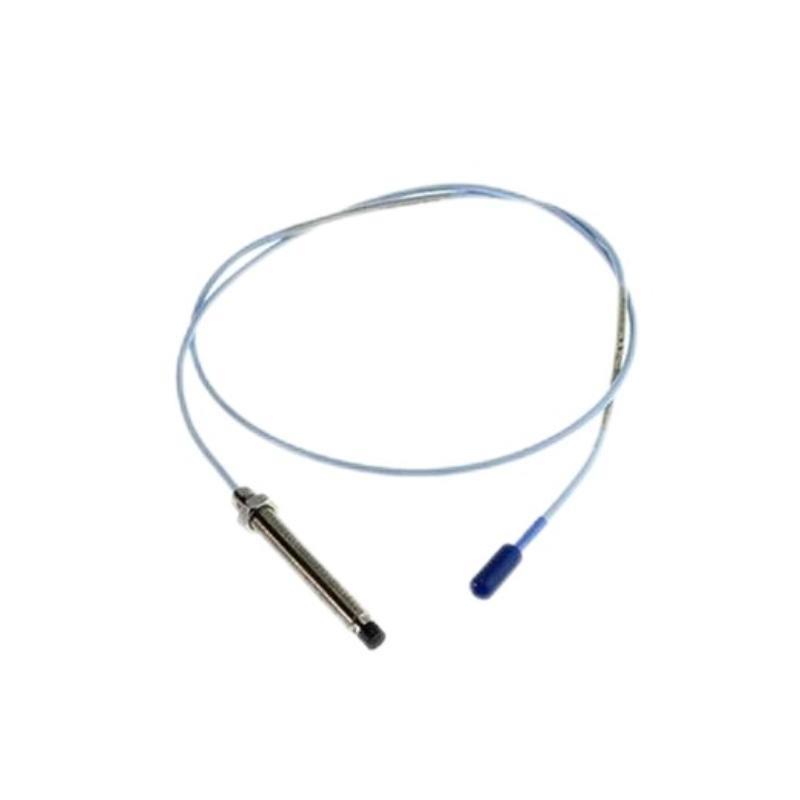

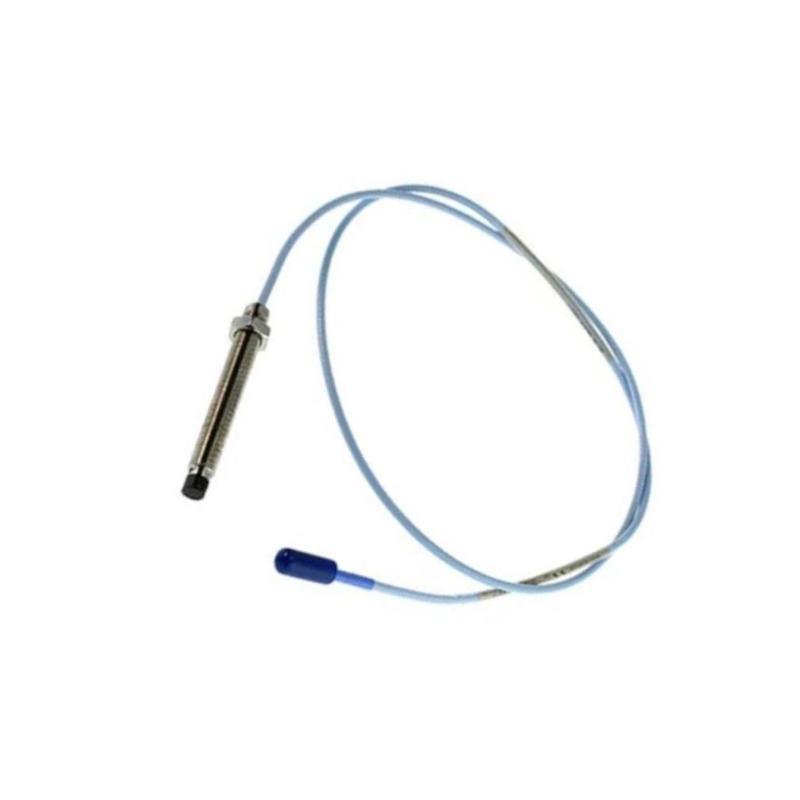

The Bently Nevada 330103-00-08-10-12-05 is an 8 mm proximity probe from the renowned 3300 XL series, designed for precise, non-contact monitoring of shaft vibration and displacement in critical rotating machinery. This model features an 8-meter integral cable, 5/8-18 UNF threaded mounting, and a 90° angled connector, ideal for installations requiring longer cable runs and compact connector orientation.
Manufactured with stainless steel housing, the probe offers excellent durability and reliability in harsh industrial environments, including high temperature, vibration, and oil exposure. It is fully compatible with Bently Nevada’s 3300 XL extension cables and Proximitor sensors, providing accurate and stable measurements to enhance machinery protection.
Key Features
-
8 mm probe tip diameter for high-resolution displacement measurement
-
8-meter integral, low-noise triaxial cable
-
5/8-18 UNF threaded mounting for secure installation
-
90° angled connector for space-saving cable routing
-
Robust stainless steel body for corrosion resistance
-
IP68 environmental sealing ensures protection against dust and moisture
-
Compatible with 3300 XL extension cables and Proximitor sensors
-
Factory calibrated for easy plug-and-play setup
-
Suitable for harsh industrial conditions and wide temperature ranges
-
Meets API 670 and CE standards
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | 330103-00-08-10-12-05 |
| Series | 3300 XL 8 mm |
| Probe Tip Diameter | 8 mm |
| Mounting Thread Size | 5/8-18 UNF-2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2.0 mm (10 to 80 mils) |
| Connector Orientation | 90° angled connector |
| Cable Length | 8 meters (integral) |
| Cable Type | Triaxial coaxial, low noise |
| Probe Body Material | AISI 304 Stainless Steel |
| Operating Temperature Range | -35°C to +177°C (-31°F to +351°F) |
| Storage Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Environmental Protection | IP68 sealed |
| Vibration Resistance | 50 g peak, 10 to 2000 Hz |
| Shock Resistance | 5000 g, 1 ms half-sine pulse |
| Insulation Resistance | >10⁹ ohms at 500 VDC |
| Typical Accuracy | ±0.07 mm (±2.8 mils) |
| Compliance | API 670, CE |
| Dimensions | Total Length : 1.0 meter |
| Weight | 0.323 kg |
Industry Applications
-
Power generation turbines and generators
-
Oil and gas compressors and pumps
-
Petrochemical processing equipment
-
Mining and metal processing machinery
-
Marine propulsion shaft monitoring
-
Industrial HVAC fan and blower shafts
-
Pulp and paper mill drive rollers
-
Water treatment plant pumps and motors
Product Advantages
-
Extended cable length (8 m) supports flexible installations over long distances
-
Durable stainless steel body resists corrosion and mechanical damage
-
90° angled connector simplifies cable management in constrained spaces
-
High tolerance to vibration and shock ensures signal accuracy
-
Factory calibration reduces installation time and risk of errors
-
IP68 environmental protection suitable for harsh industrial settings
-
Fully compatible with 3300 XL system components and extension cables
-
Long service life with minimal maintenance
-
Provides high precision and repeatability
-
Meets rigorous industrial and safety standards
Frequently Asked Questions (FAQ)
-
What is the cable length of this probe?
The integral cable length is 8 meters. -
Can the 90° connector fit in tight spaces?
Yes, it is designed for installations where space is limited. -
What mounting thread does it have?
It features a 5/8-18 UNF threaded mounting. -
Is the probe resistant to oil and moisture?
Yes, it has an IP68 rating when installed correctly. -
Which industries commonly use this probe?
Power generation, oil & gas, petrochemical, mining, marine, and more. -
Does the probe require field calibration?
No, it is factory calibrated. -
What temperature range does it operate in?
From -35°C to +177°C (-31°F to +351°F). -
Is this probe compatible with Bently Nevada extension cables?
Yes, it is compatible with all 3300 XL extension cables. -
What is the typical accuracy?
±0.07 mm (±2.8 mils). -
How heavy is the probe?
Approximately 230 grams.
Related Models
| Model Number | Description |
|---|---|
| 330103-00-05-10-12-05 | 5 m cable, 5/8-18 thread, 90° connector |
| 330103-00-06-10-12-05 | 6 m cable, 5/8-18 thread, 90° connector |
| 330103-00-08-10-12-00 | 8 m cable, 5/8-18 thread, straight connector |
| 330104-00-10-10-02 | 10 m extension cable, straight connector |
| 330130-045-01-00 | 4.5 m standard extension cable |
| 330180-91-05 | Proximitor sensor compatible with 8 mm probes |
Popular Bently Nevada Models
| Model Number | Description |
|---|---|
| 3500/22M-01-01-00 | Transient Data Interface Module |
| 3500/42M-01-00 | Vibration Monitor Module |
| 330104-00-05-10-02 | 5 m extension cable |
| 330130-045-01-00 | 4.5 m standard extension cable |
| 330180-91-05 | Proximitor sensor compatible with 8 mm probes |
| 1900/65A-00-01-01 | Compact machine monitor for vibration and speed |
