Product Introduction

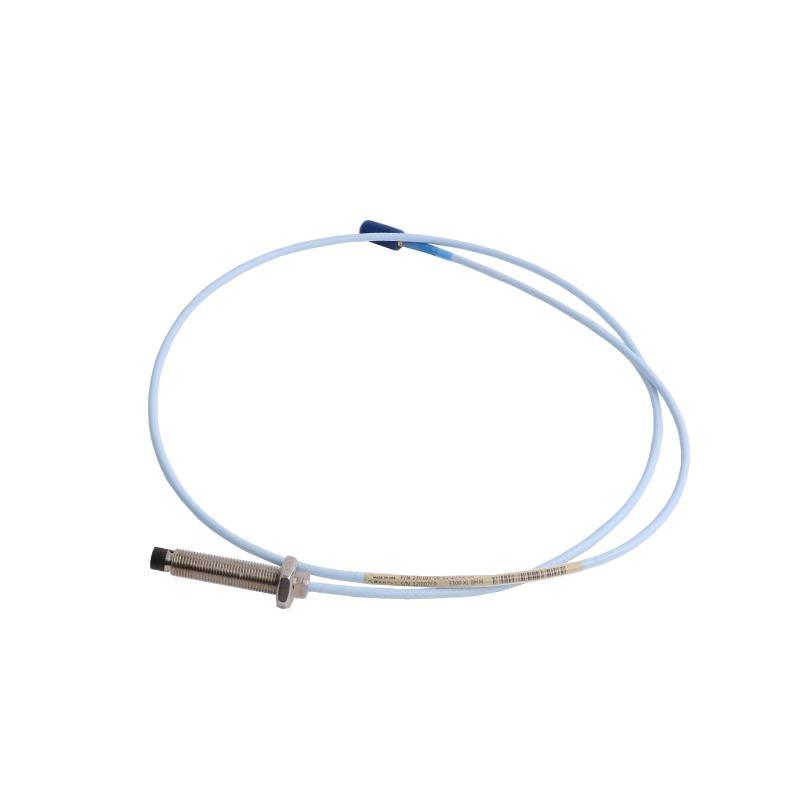

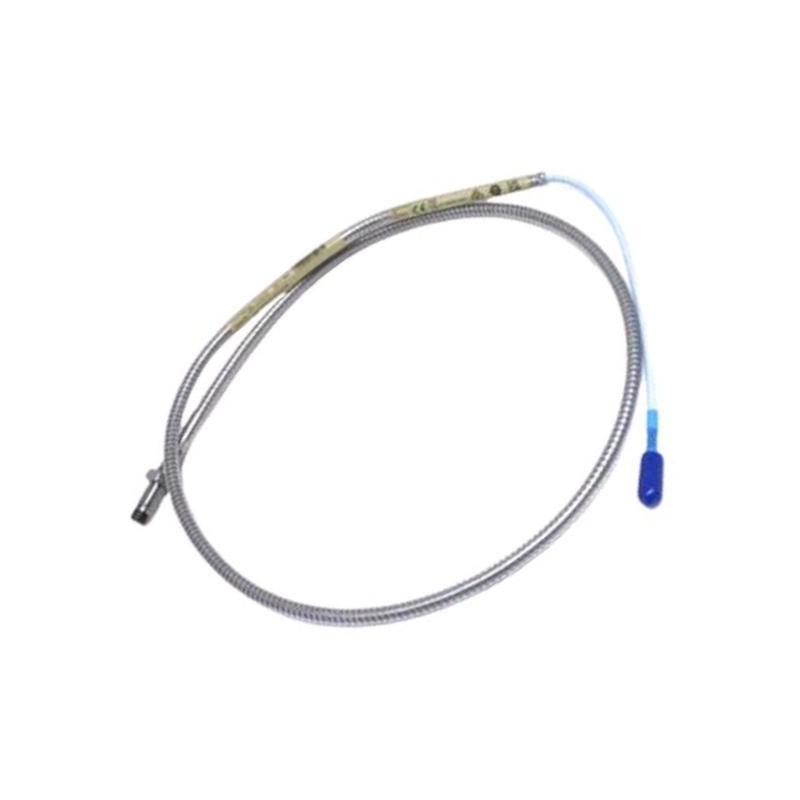

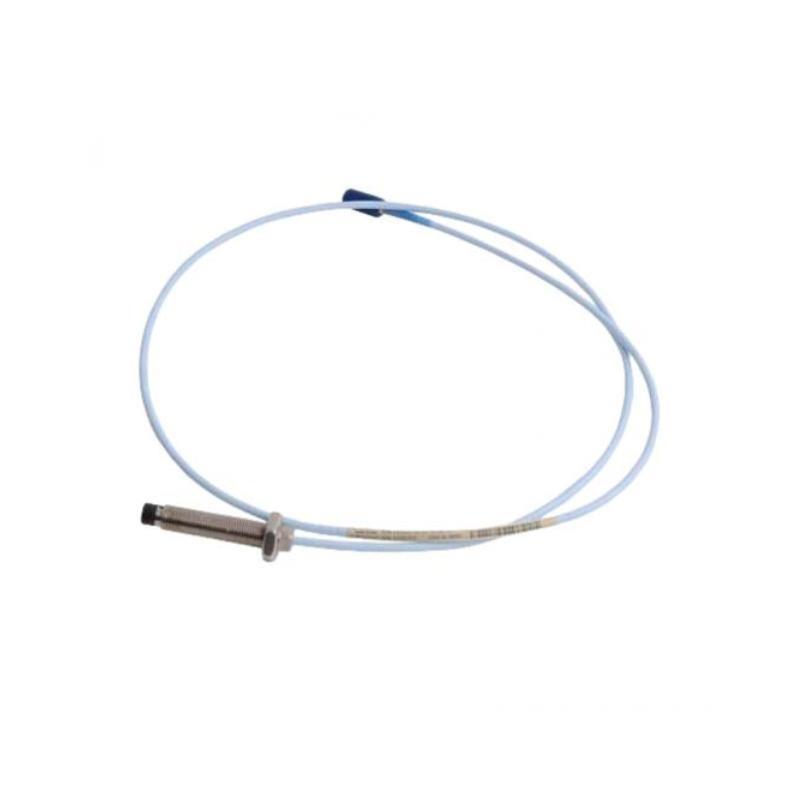

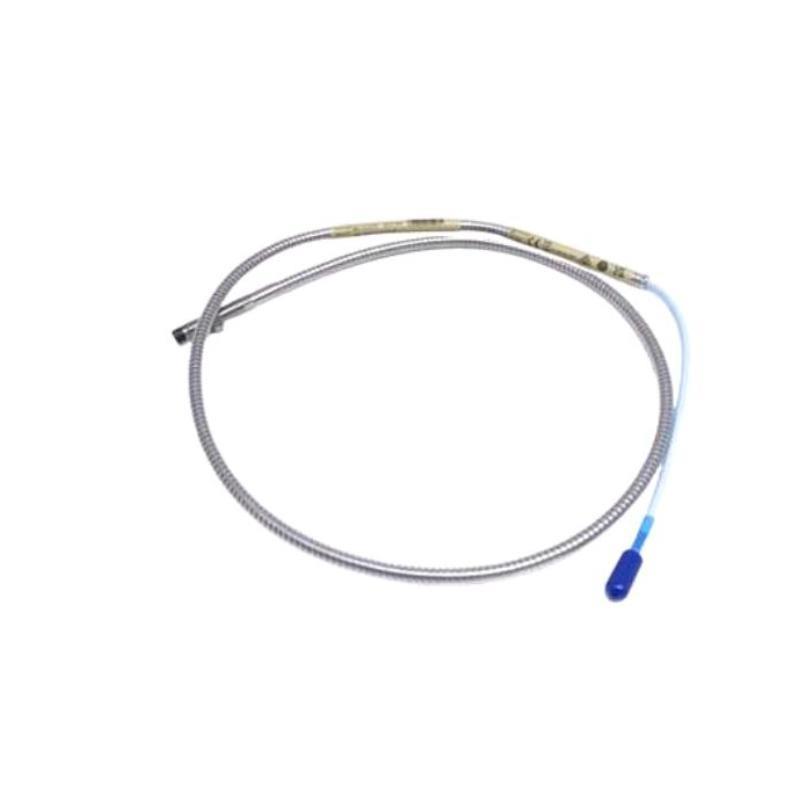

The Bently Nevada 330102-00-64-10-02-00 3300 XL 8 mm Proximity Probe is an advanced proximity transducer probe designed for machinery condition monitoring and protection. It is part of the 3300 XL series, which is widely used in critical rotating equipment such as turbines, compressors, pumps, and motors. This probe provides precise, reliable measurements of shaft vibration and position relative to the probe tip.
Its robust design ensures long-term stability in harsh industrial environments, including high temperature, high humidity, and areas exposed to oil or contaminants. The probe is engineered for compatibility with Bently Nevada 3300 XL extension cables and Proximitor® sensors, forming a complete transducer system that delivers highly accurate displacement and vibration measurements.
Product Parameters
| Parameter | Description |
|---|---|
| Model Number | 330102-00-64-10-02-00 |
| Series | 3300 XL 8 mm Proximity Probe |
| Tip Diameter | 8 mm |
| Connector Type | Standard male coaxial |
| Probe Material | Stainless steel body, polymer-insulated cable |
| Linear Range | 2 mm (80 mils) typical |
| Frequency Response | DC to 10 kHz |
| Sensitivity | 7.87 mV/μm (200 mV/mil) nominal |
| System Accuracy | ±5% with matched Proximitor® and extension cable |
| Operating Temperature | -35 °C to +177 °C |
| Weight | 0.323 kg |
| Total Length | 1 m |
Product Applications
The 330102-00-64-10-02-00 proximity probe is designed for critical vibration monitoring and position measurements in rotating machinery. Typical applications include:
-
Monitoring radial shaft vibration in large turbines and compressors.
-
Measuring shaft axial position and thrust bearing wear.
-
Detecting casing vibration and mechanical looseness.
-
Condition monitoring of motors, gearboxes, and centrifugal pumps.
-
Integration with Bently Nevada protection systems for machinery trip functions.
-
Supporting predictive maintenance strategies in oil & gas, power generation, and petrochemical industries.
Product Advantages
-
High Accuracy – Provides precise shaft displacement and vibration readings with excellent linearity.
-
Durability – Rugged stainless steel construction and polymer-insulated cable resist harsh conditions.
-
API 670 Compliance – Meets global industry standards for vibration monitoring and protection systems.
-
Wide Operating Range – Effective in extreme temperatures and contaminated industrial environments.
-
Interchangeability – Fully compatible with 3300 XL Proximitor® sensors and extension cables.
-
Low Noise and Drift – Ensures stable long-term performance without frequent recalibration.
-
Versatility – Suitable for both radial and axial position measurements.
FAQ
Q1: What is the sensitivity of the 3300 XL 8 mm probe when paired with a matching Proximitor®?
A1: The sensitivity is typically 7.87 mV/μm (200 mV/mil), ensuring accurate vibration measurement.
Q2: Can this probe be used interchangeably with older 7200 series probes?
A2: Yes, the 3300 XL probes are backward-compatible with most 7200 series applications, but performance should be validated in critical systems.
Q3: What is the maximum cable length supported in a complete transducer system?
A3: Up to 9 meters (probe + extension cable) is supported without loss of accuracy when paired with a Proximitor®.
Q4: Does the probe support axial position monitoring in addition to radial vibration?
A4: Yes, it can measure both shaft radial vibration and axial position depending on installation.
Q5: How does the probe ensure immunity to electromagnetic interference (EMI)?
A5: The probe uses a shielded coaxial cable and grounded stainless steel body to minimize EMI effects.
Q6: What is the linear measurement range of this probe?
A6: The typical linear range is 2 mm (80 mils). Beyond this range, measurements become non-linear.
Q7: What frequency response can be expected?
A7: The probe provides a flat frequency response from DC up to 10 kHz, suitable for most rotating machinery.
Q8: Is recalibration required during its service life?
A8: Routine recalibration is generally not required, as the probe is factory-calibrated. However, system verification during major overhauls is recommended.
Q9: Can the probe operate in high-temperature environments above 150 °C?
A9: Yes, it is designed to work up to +177 °C, making it suitable for turbines and compressors.
Q10: What type of output signal is produced by the system?
A10: The probe system produces a voltage signal proportional to shaft displacement, typically in mV/μm.
Recommended Related Models
| Model Number | Description |
|---|---|
| 330102-00-50-10-01-00 | 3300 XL 8 mm Proximity Probe, standard cable length |
| 330102-00-42-05-02-00 | 3300 XL 8 mm Probe with 5 m cable |
| 330102-00-48-05-02-05 | 3300 XL 8 mm Probe with angled connector |
| 330102-00-50-10-01-RU | 3300 XL 8 mm Probe, Russian-certified variant |
| 330102-00-64-05-02-05 | 3300 XL 8 mm Probe, 5 m extension |
| 330102-00-60-10-02-00 | 3300 XL 8 mm Probe, extended length |
Popular Bently Nevada Models
| Model Number | Description | Key Feature |
|---|---|---|
| 330103-00-05-10-02-05 | 3300 XL 11 mm Proximity Probe | Larger tip for thicker shaft measurements |
| 330130-045-00-00 | Extension Cable for 3300 XL Probes | High-quality shielded extension |
| 330180-50-00 | 3300 XL Proximitor Sensor | Converts probe signals to usable outputs |
| 330850-90-05 | Seismic Transducer | Measures casing vibration |
| 3500/22M | Transient Data Interface Module | Condition monitoring integration |
| 3500/42M | Proximitor/Seismic Monitor | Four-channel vibration monitor |
| 3500/92 | Communications Gateway | Ethernet connection for machinery data |
| 3500/15 | Power Supply Module | Provides power to monitoring rack |
