Product Introduction

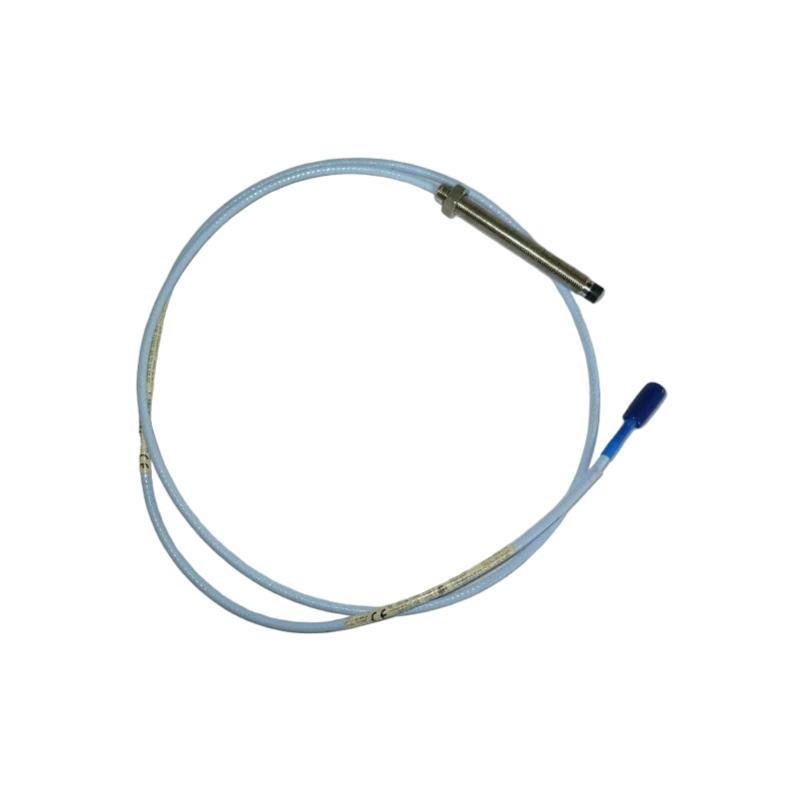

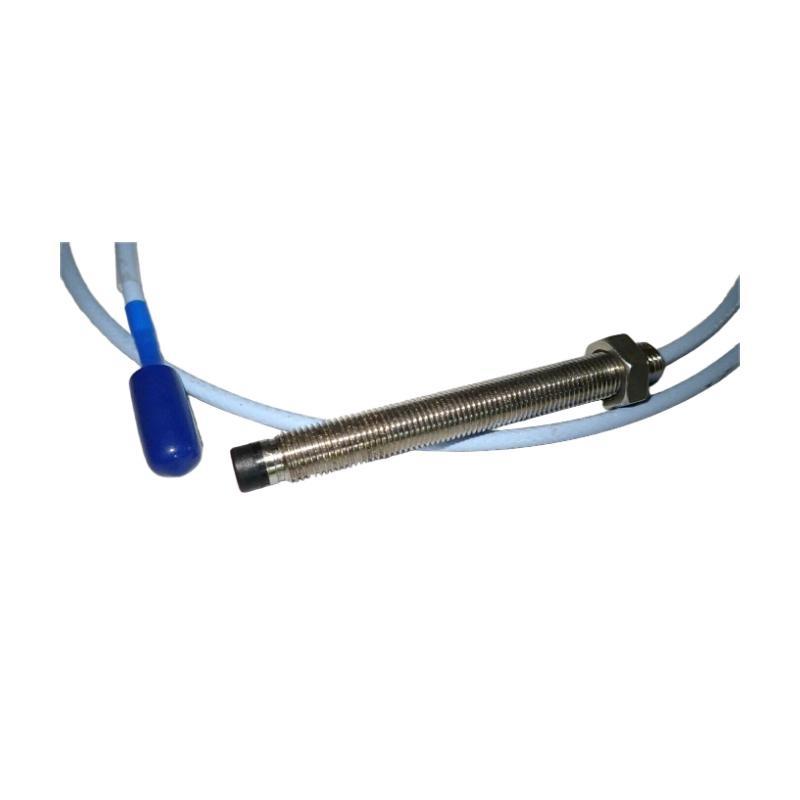

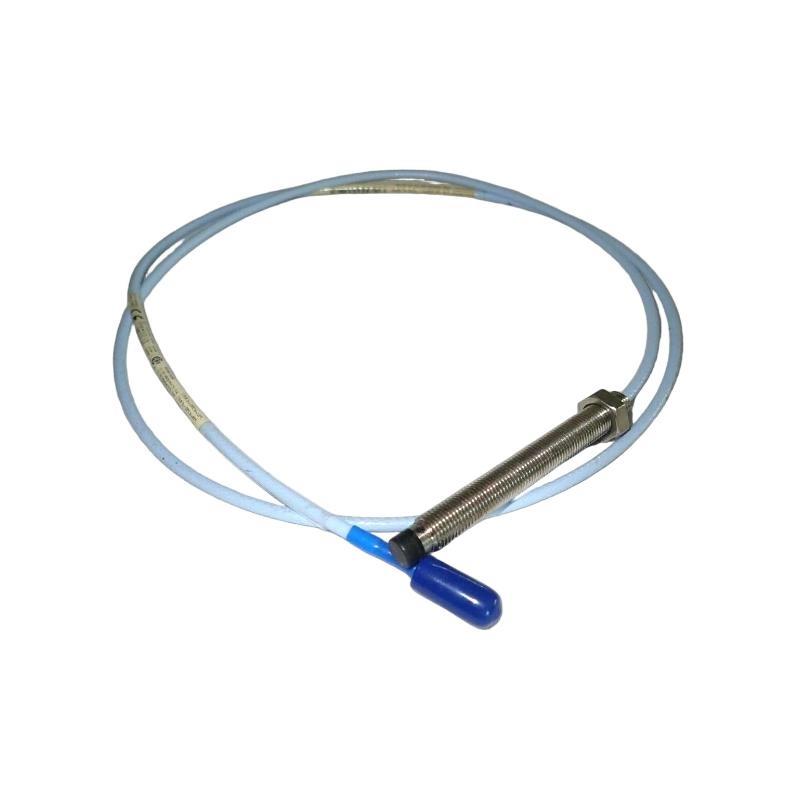

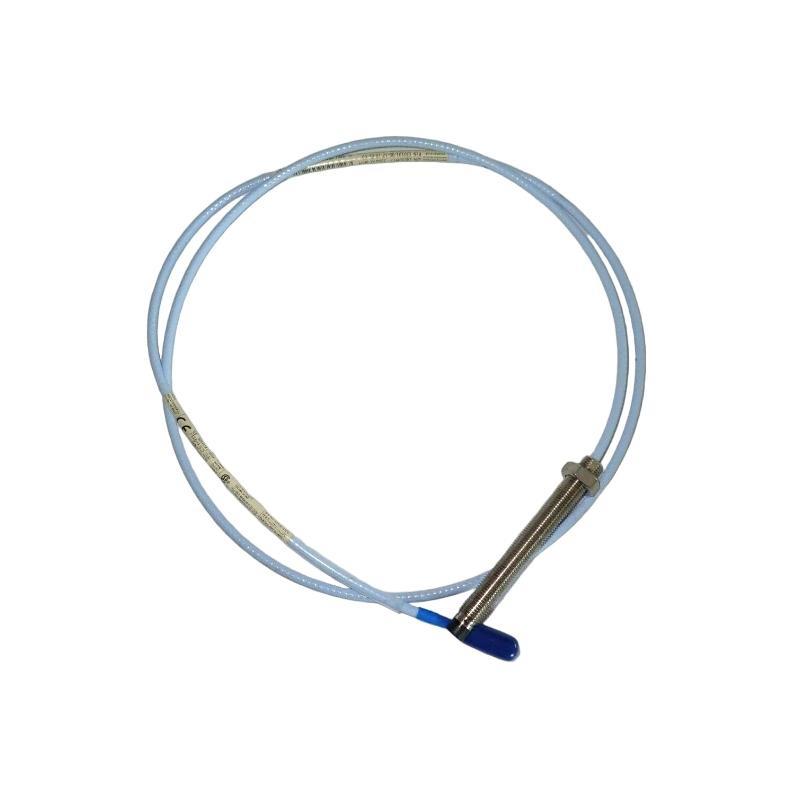

The Bently Nevada 330101-00-32-10-01-00 3300 XL 8mm Proximity Probe is an advanced, precision measurement sensor designed to monitor the displacement of rotating machinery components. As part of the 3300 XL series, this proximity probe is widely recognized for its robust performance in critical industrial applications. The 3300 XL series is known for its exceptional durability, accuracy, and reliability in providing real-time data to enhance predictive maintenance programs.
With an 8mm measuring range, this proximity probe allows users to detect even the smallest displacements in machinery, such as misalignment, imbalance, or wear. The probe’s design, featuring a total length of 1.0 meter and a weight of 0.323 kg, makes it suitable for integration into tight spaces while maintaining precise measurements. This model ensures that your monitoring systems can work effectively, preventing machinery failures and reducing unplanned downtime.
The Bently Nevada 3300 XL 8mm Proximity Probe is designed for high-accuracy monitoring and uses a 4-20 mA output signal, which integrates easily with existing machinery control systems. With an IP65 protection rating, it is built to withstand harsh environmental conditions, including dust and moisture. It also operates in a wide temperature range from -40°C to +85°C, ensuring high performance in both extreme heat and cold environments.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | 330101-00-32-10-01-00 |
| Series | 3300 XL |
| Measuring Range | 8 mm |
| Total Length | 1.0 meter |
| Weight | 0.323 kg |
| Output Signal | 4-20 mA |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Stainless Steel |
| Mounting Type | Threaded Mounting |
| Frequency Range | Up to 10 kHz |
| Protection Rating | IP65 |
| Accuracy | ±0.05 mm |
| Vibration Range | ±2 g to ±20 g |
| Connector Type | Standard M12 |
| Compliance | CE, UL, CSA certified |
Product Applications
The Bently Nevada 330101-00-32-10-01-00 3300 XL 8mm Proximity Probe is used across various industries where accurate monitoring of machinery is essential for minimizing downtime and enhancing operational efficiency. Key applications include:
-
Power Generation: This proximity probe is ideal for monitoring critical machinery such as turbines, generators, and motors in power plants. Early detection of issues like misalignment, imbalance, or bearing wear allows operators to perform preventative maintenance and avoid expensive repairs and downtime.
-
Oil & Gas: In the oil and gas industry, rotating equipment such as compressors, pumps, and motors are often subject to high levels of vibration and wear. The 3300 XL probe helps to detect and measure small displacements that may indicate early-stage problems, thus ensuring the reliability of these critical assets.
-
Manufacturing: Manufacturing facilities rely on the 3300 XL proximity probe to monitor machinery such as mixers, conveyors, and compressors. Its precise measurements enable operators to identify mechanical faults early and maintain smooth production processes.
-
Chemical & Petrochemical: In chemical and petrochemical industries, critical equipment such as reactors, pumps, and valves must operate continuously without failure. The 3300 XL proximity probe provides valuable data that helps prevent catastrophic failures and ensures smooth production.
-
Water Treatment: The probe is widely used in water treatment plants to monitor the health of large pumps and turbines. With real-time displacement data, the probe assists in early fault detection, allowing for scheduled maintenance and minimizing the risk of equipment failure.
-
Aerospace: The aerospace industry benefits from the 3300 XL proximity probe in monitoring turbine engines, actuators, and other essential components. Accurate displacement measurements help ensure the safety and performance of machinery that operates under high-stress conditions.
Product Advantages
-
High Precision: With an accuracy of ±0.05 mm, the 3300 XL 8mm proximity probe provides highly accurate displacement measurements, ensuring that even small misalignments or wear are detected before they lead to more serious issues.
-
Durability and Environmental Protection: The probe is built to withstand harsh industrial environments. Its IP65 rating ensures protection against dust and moisture, while the stainless steel housing offers exceptional strength and corrosion resistance.
-
Compact and Lightweight: The 1.0-meter total length and 0.323 kg weight make the probe suitable for installations where space is constrained. Its lightweight design allows for easy handling and installation, even in complex or hard-to-reach locations.
-
Wide Operating Temperature Range: The probe can function effectively in both extremely cold and hot environments, with an operating temperature range from -40°C to +85°C, making it adaptable to a variety of industrial conditions.
-
Easy Integration: The 4-20 mA output signal makes it compatible with existing condition monitoring systems, allowing for seamless integration into your machinery health management platform.
-
Cost-Effective Maintenance: By detecting potential issues early, the 3300 XL proximity probe helps avoid expensive repairs and unplanned downtime, offering a significant return on investment through proactive maintenance.
-
Real-Time Monitoring: The continuous feedback provided by the 3300 XL proximity probe ensures that operators are always informed about the health of their machinery. This real-time data enables quick responses to emerging issues before they lead to failure.
Frequently Asked Questions (FAQ)
1. What is the measuring range of the Bently Nevada 3300 XL 8mm proximity probe?
The measuring range of the 3300 XL 8mm proximity probe is 8 mm, allowing for accurate detection of small displacements in machinery.
2. How long is the 3300 XL 8mm proximity probe?
The probe has a total length of 1.0 meter, which provides flexibility in installation for various machinery types.
3. What is the weight of the 3300 XL 8mm proximity probe?
The probe weighs 0.323 kg, making it lightweight and easy to install.
4. What is the accuracy of the 3300 XL 8mm proximity probe?
The probe offers ±0.05 mm accuracy, ensuring highly precise displacement measurements.
5. Can the 3300 XL 8mm proximity probe be used in extreme environmental conditions?
Yes, the 3300 XL 8mm proximity probe is rated IP65, which provides protection against dust and moisture. It also operates in a wide temperature range of -40°C to +85°C, making it suitable for harsh environments.
6. What industries are the 3300 XL 8mm proximity probe suitable for?
The probe is ideal for industries such as power generation, oil & gas, manufacturing, chemical processing, aerospace, and water treatment.
7. What is the output signal of the 3300 XL 8mm proximity probe?
The 3300 XL 8mm proximity probe provides a 4-20 mA output signal, which allows it to integrate seamlessly with most industrial control systems.
8. What is the frequency range of the 3300 XL 8mm proximity probe?
The probe supports frequencies up to 10 kHz, allowing it to measure a wide range of vibrations.
9. How does the 3300 XL 8mm proximity probe help with predictive maintenance?
By continuously monitoring displacement and vibration, the probe helps detect early signs of mechanical problems, enabling operators to perform timely maintenance and avoid costly breakdowns.
10. How is the 3300 XL 8mm proximity probe mounted?
The 3300 XL 8mm proximity probe uses threaded mounting, making it easy to install on rotating machinery.
