Product Introduction

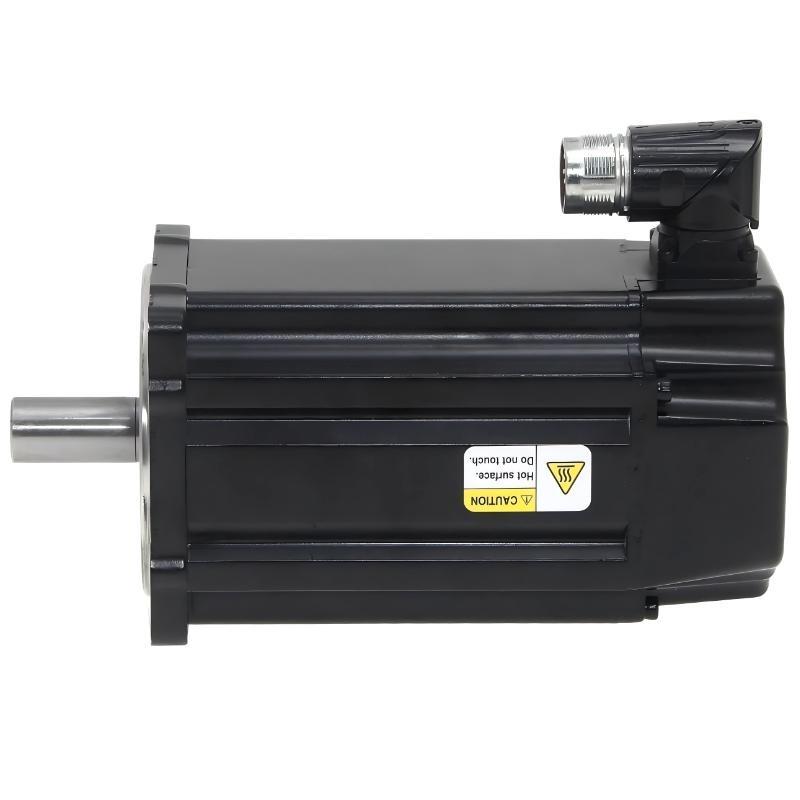

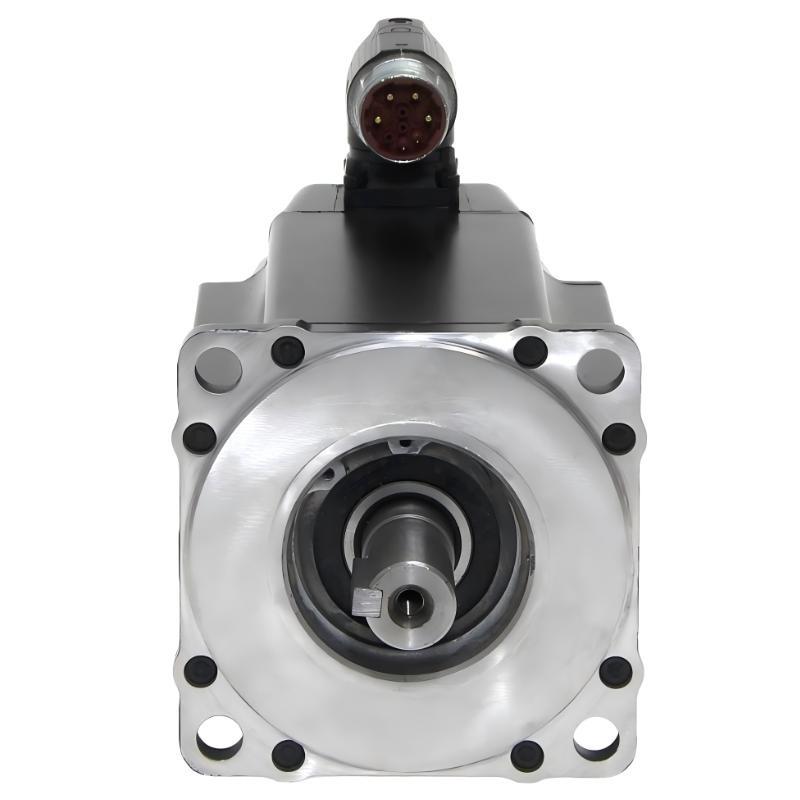

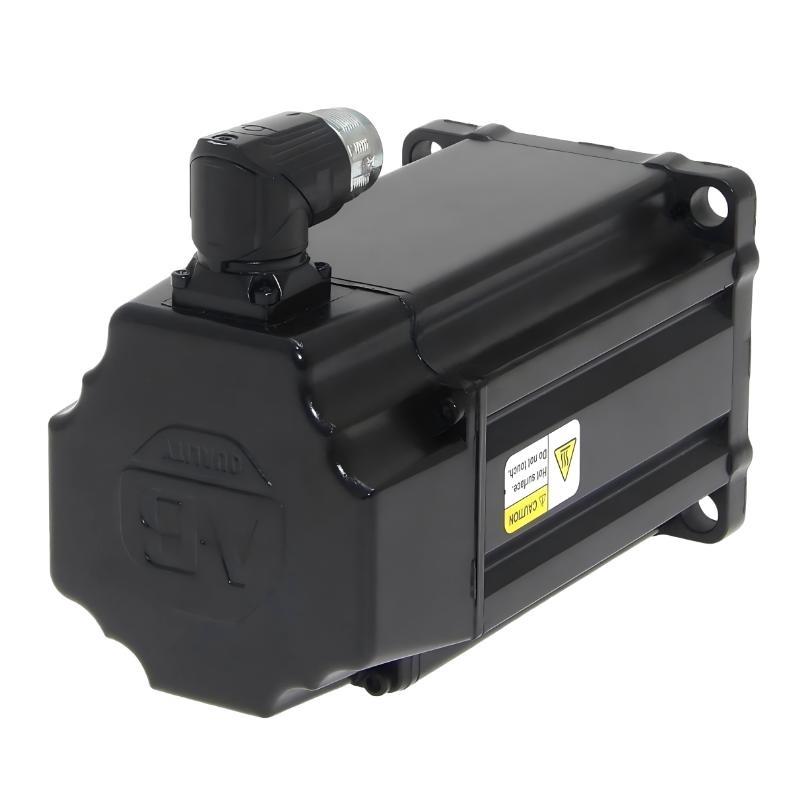

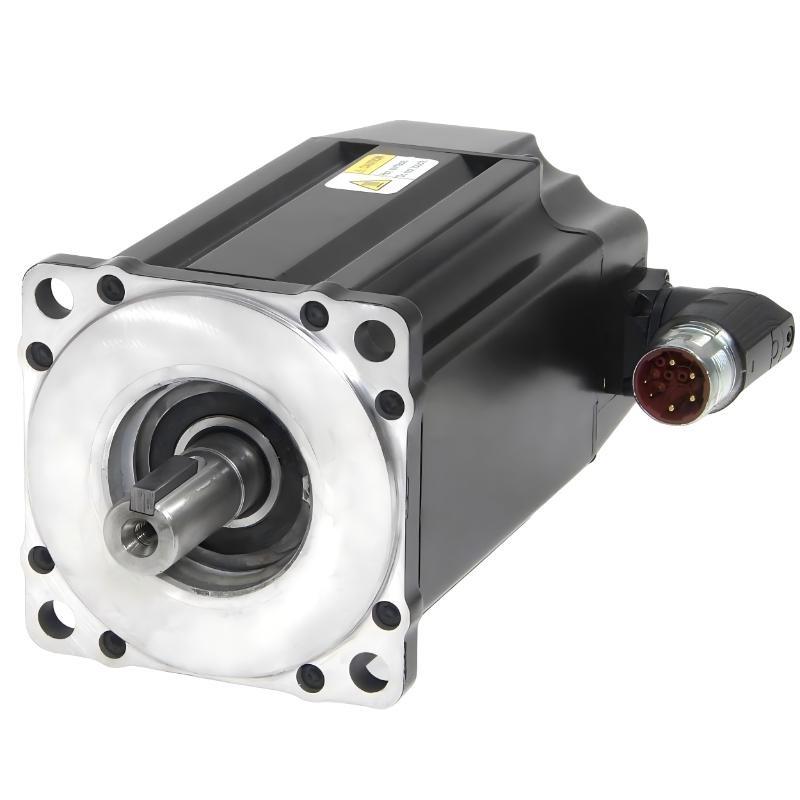

The Allen-Bradley VPL-B1652C-PJ14AA servo motor is a low-inertia, high-precision motion control device developed within the Kinetix VPL series. It is specifically designed for applications that require controlled acceleration, stable torque delivery, and reliable positioning performance under varying load conditions.
With a larger 165 mm frame size and a 2 magnet stack configuration, this motor is optimized for applications where smooth motion and controlled torque are more critical than maximum output. Its rated speed of 2500 RPM makes it particularly suitable for systems that prioritize stability and accuracy over high-speed operation.
The motor integrates an 18-bit absolute multi-turn digital encoder (Hiperface DSL), ensuring accurate feedback and simplified cabling through a single-cable interface. The keyed shaft design guarantees secure mechanical transmission, while the SpeedTec DIN connector allows fast and efficient installation.
A key feature of this model is the integrated 24V DC holding brake, which provides reliable holding force when the motor is powered off. This makes it ideal for vertical or safety-critical applications. The IEC metric design ensures compatibility with international standards and simplifies system integration.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Allen-Bradley |
| Series | Kinetix VPL Servo Motor |
| Model Number | VPL-B1652C-PJ14AA |
| Frame Size | 165 mm |
| Rated Voltage | 400 V |
| Rated Speed | 2500 RPM |
| Magnet Stack | 2 Magnet Stack |
| Inertia Type | Low Inertia |
| Encoder Type | 18-bit Absolute Multi-turn Digital Encoder (Hiperface DSL) |
| Shaft Type | Keyed Shaft |
| Connector Type | Single SpeedTec DIN Connector |
| Brake | 24V DC Holding Brake |
| Mounting Standard | IEC Metric |
| Cooling Method | Natural Convection |
| Protection Class | Typically IP65 |
| Operating Temperature | -20°C to +40°C |
| Weight | 17.8 kg |
Applications
• Vertical Motion Systems – Ideal for lifting platforms and Z-axis control where holding position is critical after power loss.
• CNC and Machine Tools – Suitable for precision machining requiring stable motion and controlled acceleration.
• Packaging Equipment – Used in processes requiring consistent positioning and moderate speed control.
• Material Handling – Applied in hoists, conveyors, and transfer systems where load stability is important.
• Automated Assembly Lines – Ensures repeatable positioning in multi-step assembly operations.
• Robotics – Supports robotic joints requiring holding torque and precise motion control.
Advantages
• Integrated Holding Brake – The 24V DC brake provides reliable load holding, enhancing safety in vertical or suspended applications.
• Low Inertia Design – Enables smooth acceleration and deceleration, improving control accuracy and system responsiveness.
• Stable Performance – Lower speed combined with optimized torque output ensures consistent and vibration-free operation.
• High-Resolution Feedback – 18-bit encoder delivers precise position data for accurate motion control.
• Simplified Wiring – Hiperface DSL single-cable solution reduces installation complexity and improves reliability.
• Robust Construction – Designed for long-term operation in industrial environments with dependable performance.
