Product Introduction

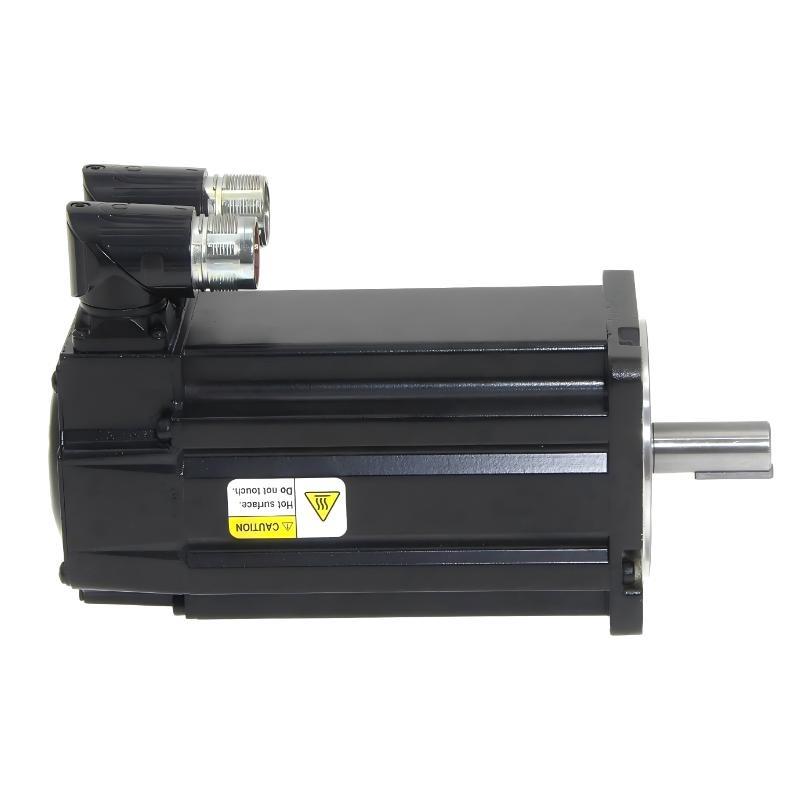

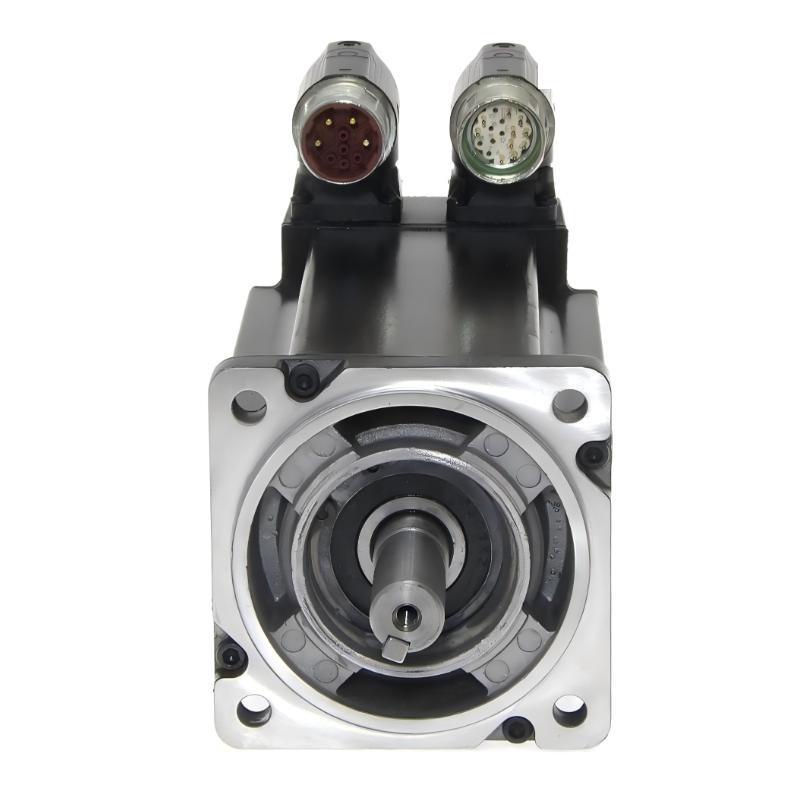

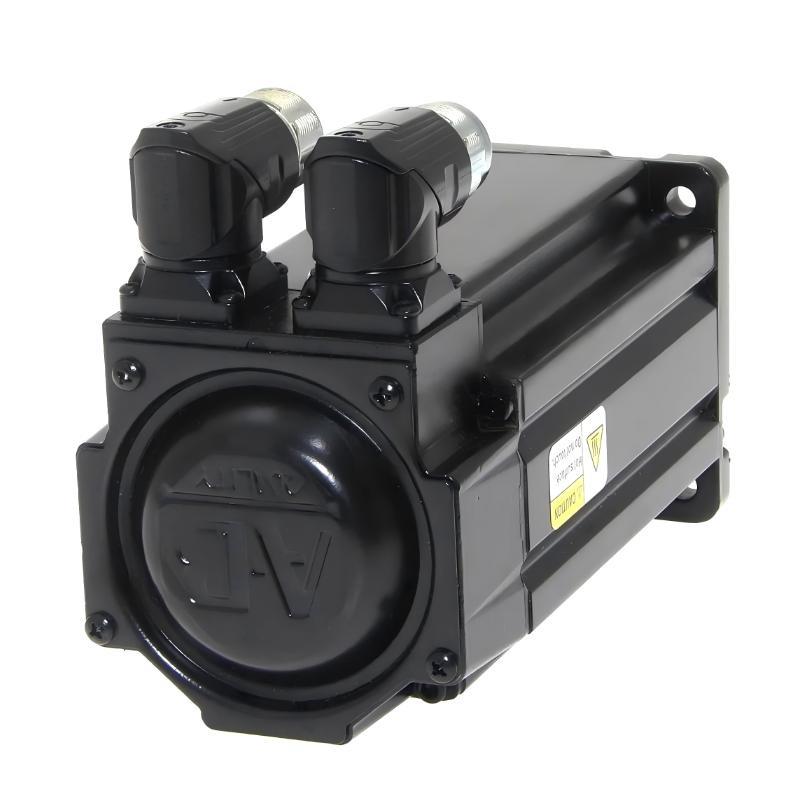

The Allen Bradley MPL-A330P-MJ72AA Servo Motor is a high-performance servo motor designed for precision motion control applications in industrial automation systems. As part of the MPL series, this motor is engineered to deliver high torque density, fast dynamic response, and reliable operation in demanding environments.
This model features a 200V voltage class and operates at a rated speed of 5000 rpm, making it suitable for high-speed motion control tasks. Equipped with a Hiperface absolute multi-turn encoder, the motor provides accurate position feedback, ensuring precise control and repeatability. The compact 100 mm frame size combined with a 76.2 mm magnet stack length offers an optimized balance between power and space efficiency.
With its SpeedTec DIN connector for quick and secure connections, along with a keyed shaft design, the motor ensures ease of installation and stable mechanical coupling. It is particularly suitable for applications where high precision, responsiveness, and reliability are essential.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | MPL-A330P-MJ72AA |
| Series | MPL Servo Motor |
| Frame Size | 100 mm |
| Voltage Class | 200 V |
| Rated Speed | 5000 rpm |
| Encoder Type | Absolute Multi-turn (Hiperface) |
| Encoder Resolution | 1024 Sin/Cos |
| Magnet Stack Length | 76.2 mm |
| Shaft Type | Keyed Shaft |
| Shaft Seal | No Shaft Seal |
| Connector Type | Circular (SpeedTec DIN Connector) |
| Brake | No Brake |
| Cooling Method | Natural Cooling |
| Mounting Type | Flange Mount |
| Weight | 4.6 kg |
Applications
● Packaging Machinery
High-speed and precise motion control ensures accurate positioning and synchronization of packaging processes.
● Material Handling Systems
Smooth and responsive operation improves conveyor and robotic movement efficiency.
● CNC and Machine Tools
Accurate positioning capability supports high-precision machining and repeatability.
● Robotics and Automation Equipment
Fast dynamic response enhances robotic arm movement and coordinated motion control.
● Printing and Converting Equipment
Consistent speed and torque control ensures high-quality output in continuous processes.
Advantages
● High-Speed Performance
5000 rpm rated speed enables rapid motion and increased productivity.
● Precision Feedback System
Hiperface absolute encoder provides accurate position tracking and eliminates the need for homing after power cycles.
● Compact and Efficient Design
100 mm frame with optimized magnet stack delivers high torque density in a compact size.
● Reliable Mechanical Connection
Keyed shaft design ensures secure coupling and stable torque transmission.
● Quick and Secure Installation
SpeedTec DIN connector simplifies wiring and reduces installation time.
● Flexible Application Integration
Suitable for a wide range of motion control systems in industrial automation.
