Product Introduction

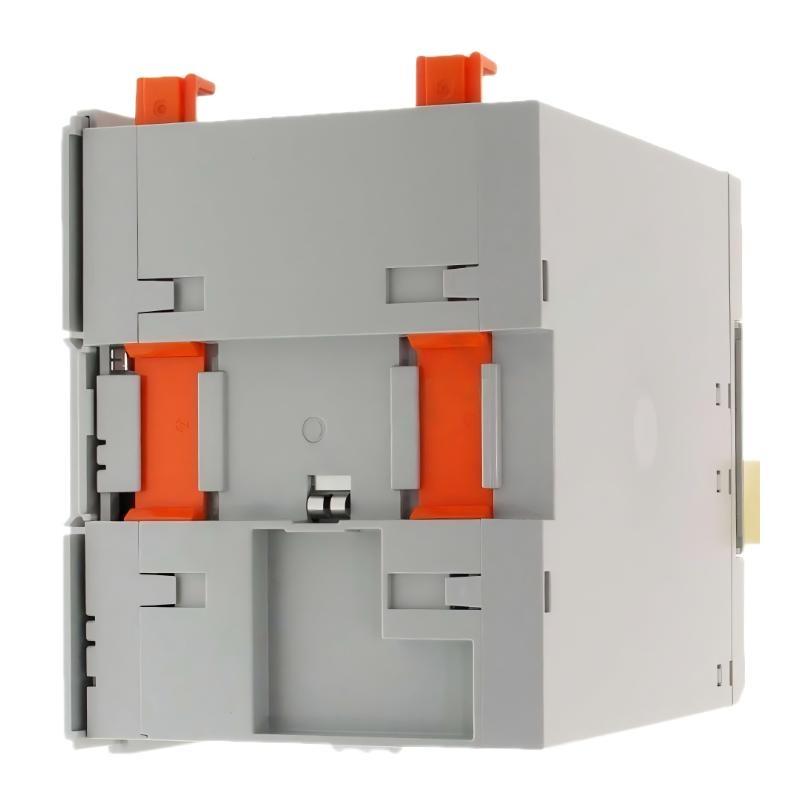

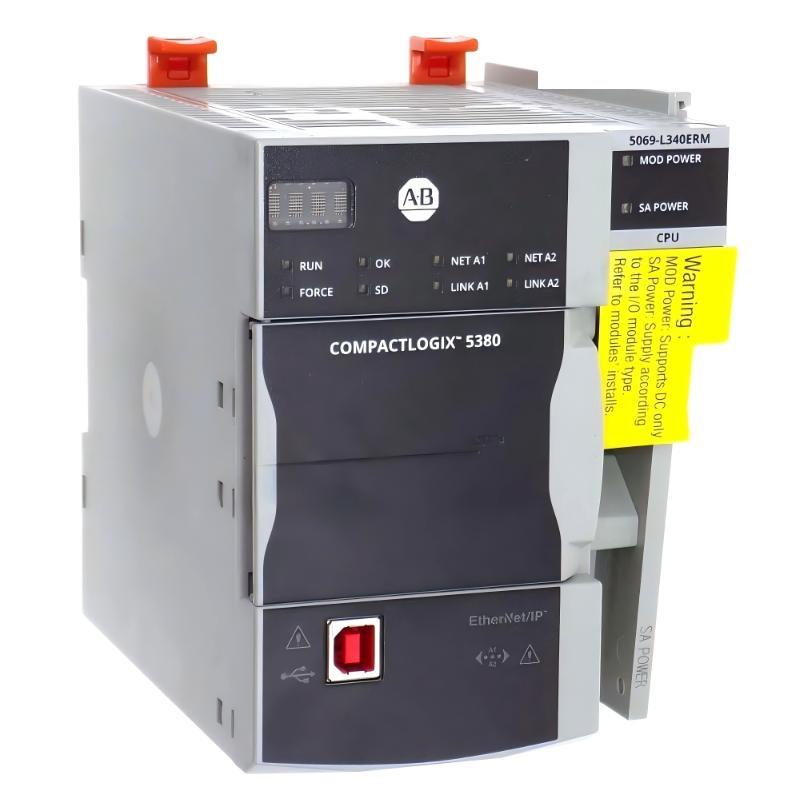

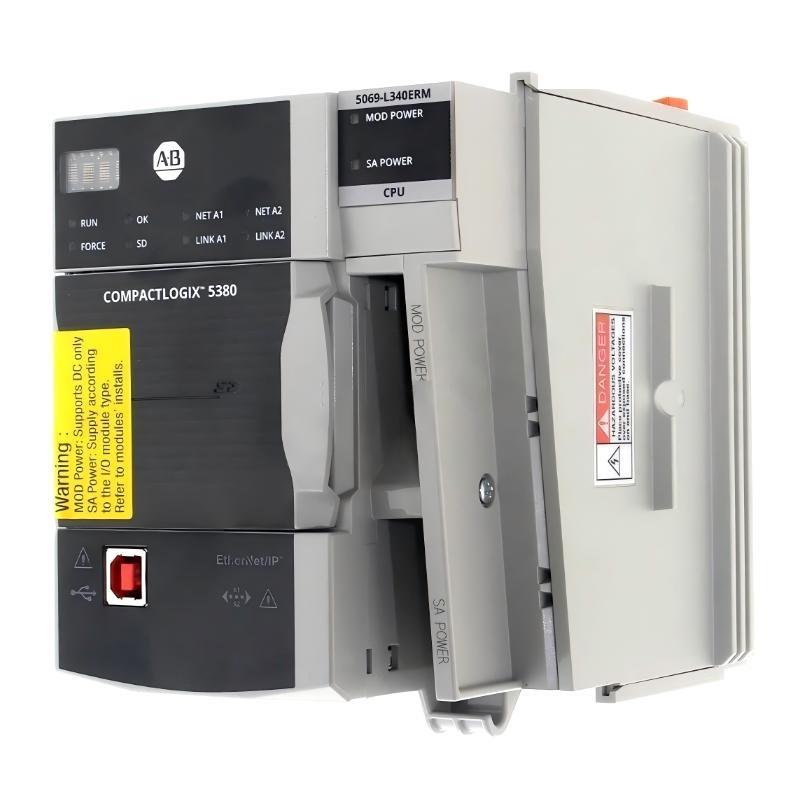

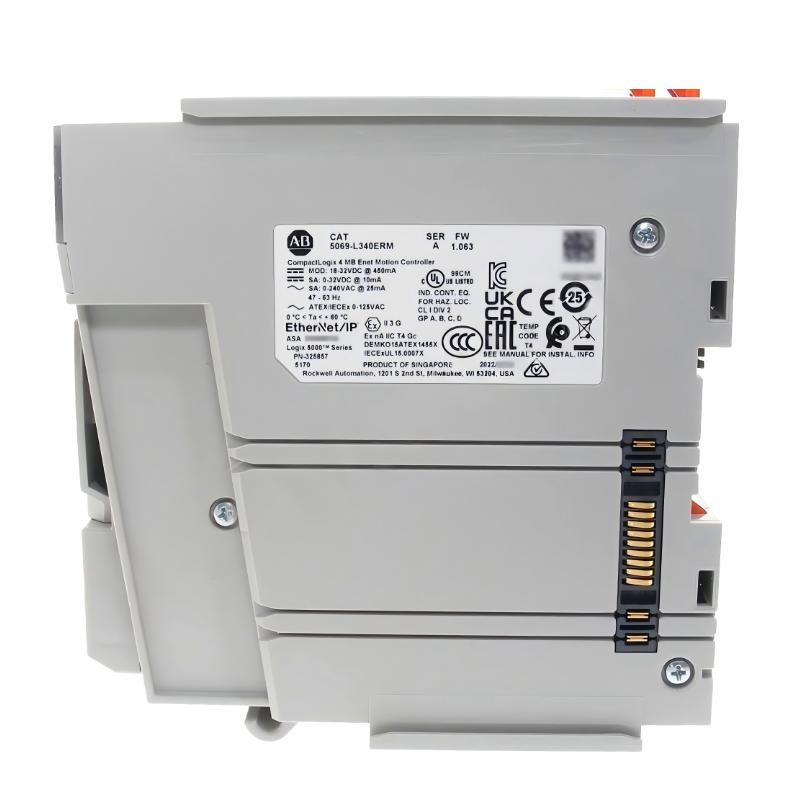

The Allen Bradley 5069-L340ERM CompactLogix 5380 Controller is a powerful motion-enabled controller designed for high-performance industrial automation systems requiring precise multi-axis control. As part of the CompactLogix 5380 family, this model integrates standard control and advanced motion capabilities into a single platform, making it ideal for complex machine applications.
With 4 MB of user memory, the controller provides sufficient capacity for sophisticated control algorithms, motion coordination, and real-time data processing. Its dual-channel EtherNet/IP communication ensures reliable, high-speed connectivity for distributed automation architectures.
Supporting up to 20 axes of integrated motion, the 5069-L340ERM is well suited for applications that demand synchronized motion control. In addition, it allows expansion with up to 31 local I/O modules and supports up to 55 EtherNet/IP nodes, offering flexibility and scalability for growing systems. The compact DIN rail mounting design ensures easy integration into control cabinets.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 5069-L340ERM |
| Series | CompactLogix 5380 |
| Controller Type | Motion Controller (Integrated Standard + Motion) |
| User Memory | 4 MB |
| Integrated Motion | Up to 20 Axes |
| Communication Ports | Dual EtherNet/IP |
| Maximum EtherNet/IP Nodes | Up to 55 Nodes |
| Local I/O Expansion | Up to 31 Modules |
| Power Supply Voltage | 18–32 VDC |
| Mounting Type | DIN Rail Mount |
| Isolation | Integrated System Isolation |
| Dimensions | 143.97 x 101.66 x 136.81 mm |
| Weight | 0.768 kg |
Applications
• Multi-Axis Motion Systems such as packaging, labeling, and printing machines
• Robotics and Automated Equipment requiring precise synchronized motion control
• Material Handling Systems with coordinated conveyors and actuators
• Assembly Lines demanding high-speed and accurate positioning
• OEM Machine Building for advanced automation solutions
Advantages
• Integrated Motion Control supporting up to 20 axes, reducing the need for separate motion controllers
• High Memory Capacity (4 MB) for complex logic and motion programs
• Dual EtherNet/IP Ports for improved network reliability and topology flexibility
• Scalable System Architecture with up to 31 local I/O modules
• Strong Network Capability supporting up to 55 EtherNet/IP nodes
• Compact and Robust Design for efficient panel installation
