Product Introduction

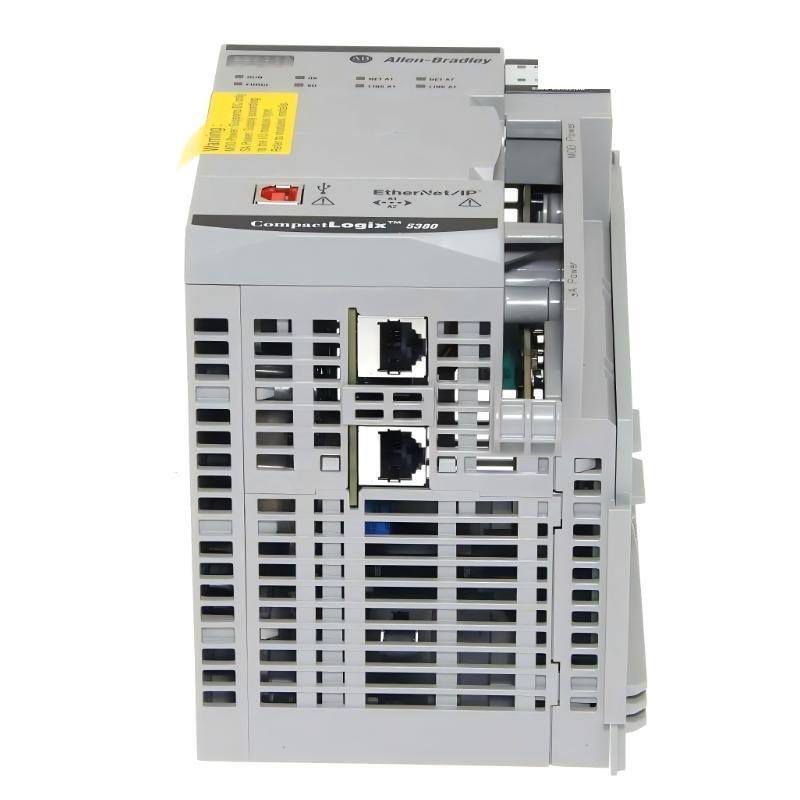

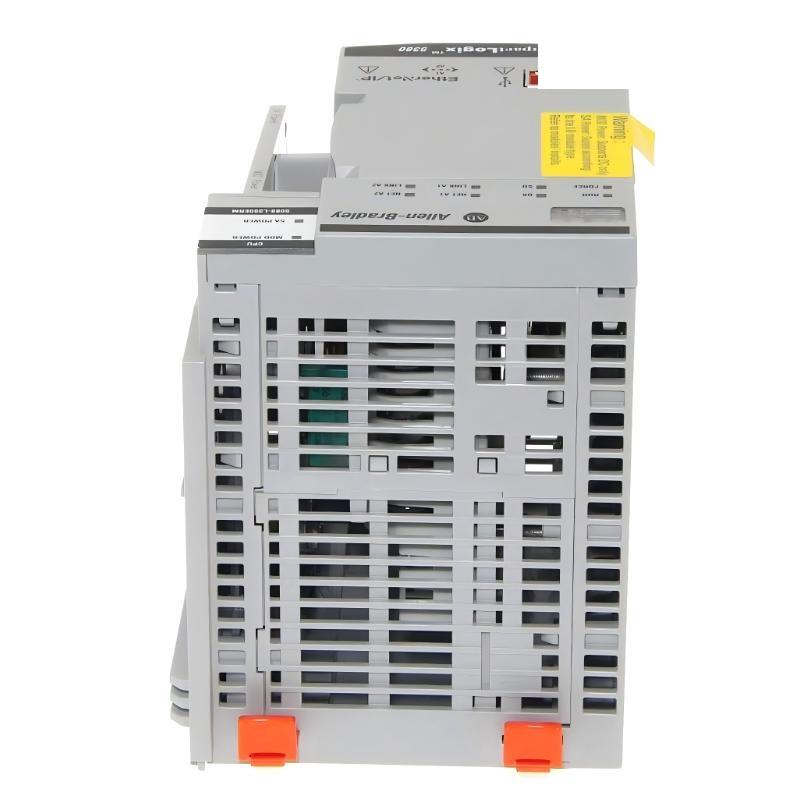

The Allen Bradley 5069-L330ERM CompactLogix 5380 Controller is a high-performance motion-enabled controller designed for advanced industrial automation systems that require precise multi-axis coordination, large-scale I/O integration, and reliable communication. As part of the CompactLogix 5380 series, this model combines standard control capabilities with powerful integrated motion functionality, making it suitable for complex machine architectures.
Equipped with 3 MB of user memory, the controller is capable of handling sophisticated control logic, motion algorithms, and large data sets. Its support for up to 16 axes of integrated motion allows accurate synchronization and coordination across multiple motion devices, significantly improving machine performance and efficiency.

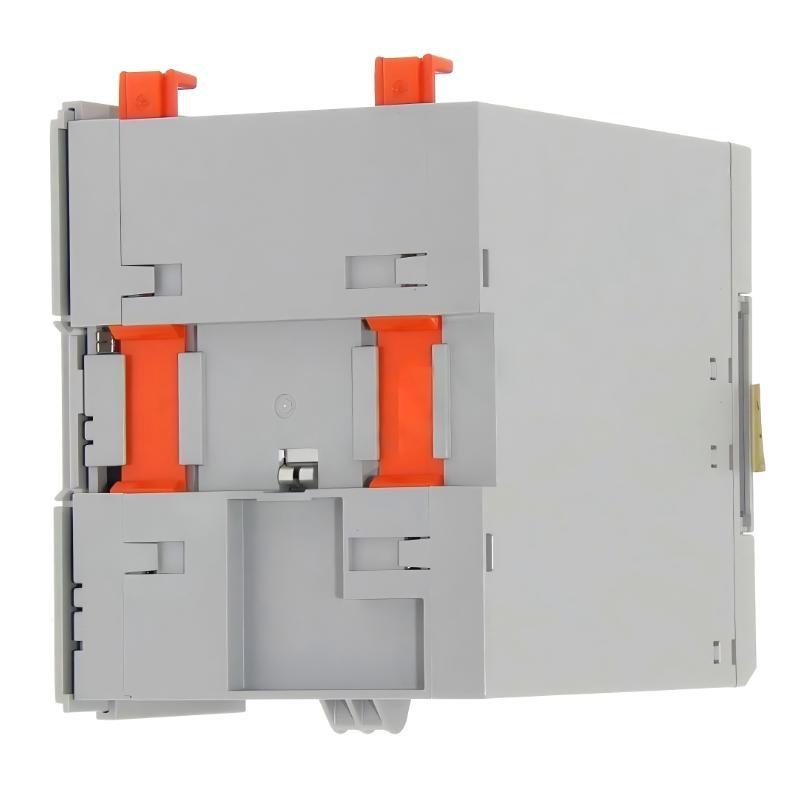

With dual-channel EtherNet/IP communication and support for up to 50 nodes, the controller enables seamless integration into distributed industrial networks. Additionally, the ability to expand up to 31 local I/O modules provides excellent scalability for growing system requirements. Its compact DIN rail mounting design ensures easy installation while maintaining high reliability in industrial environments.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 5069-L330ERM |
| Series | CompactLogix 5380 |
| Controller Type | Motion-Enabled Dual Channel EtherNet/IP Controller |
| User Memory | 3 MB |
| Integrated Motion | Up to 16 Axes |
| Communication Ports | Dual EtherNet/IP |
| Maximum Ethernet/IP Nodes | Up to 50 Nodes |
| Local I/O Expansion | Up to 31 Modules |
| Power Supply Voltage | 18–32 VDC |
| Mounting Type | DIN Rail Mount |
| Controller Class | Standard |
| Isolation | Integrated System Isolation |
| Dimensions | 143.97 x 101.66 x 136.81 mm |
| Weight | 0.768 kg |
Applications
• Multi-Axis Motion Systems such as packaging, printing, and converting machines requiring precise synchronization
• High-Speed Manufacturing Lines where coordinated motion and fast control response are essential
• Robotics and Automated Handling Systems involving complex motion paths and positioning control
• OEM Equipment Development for scalable machines integrating motion and logic control in one platform
• Advanced Production Systems that require high I/O density and distributed communication
Advantages
• High Motion Capability supports up to 16 axes, enabling complex synchronized motion applications
• Large Memory Capacity with 3 MB allows execution of advanced control and motion algorithms
• Extensive I/O Scalability with up to 31 local modules for large system configurations
• Dual Ethernet/IP Communication enhances network flexibility and system reliability
• Integrated Control and Motion reduces system complexity and hardware requirements
• Compact Industrial Design ensures efficient panel installation and long-term operational stability
