Product Introduction

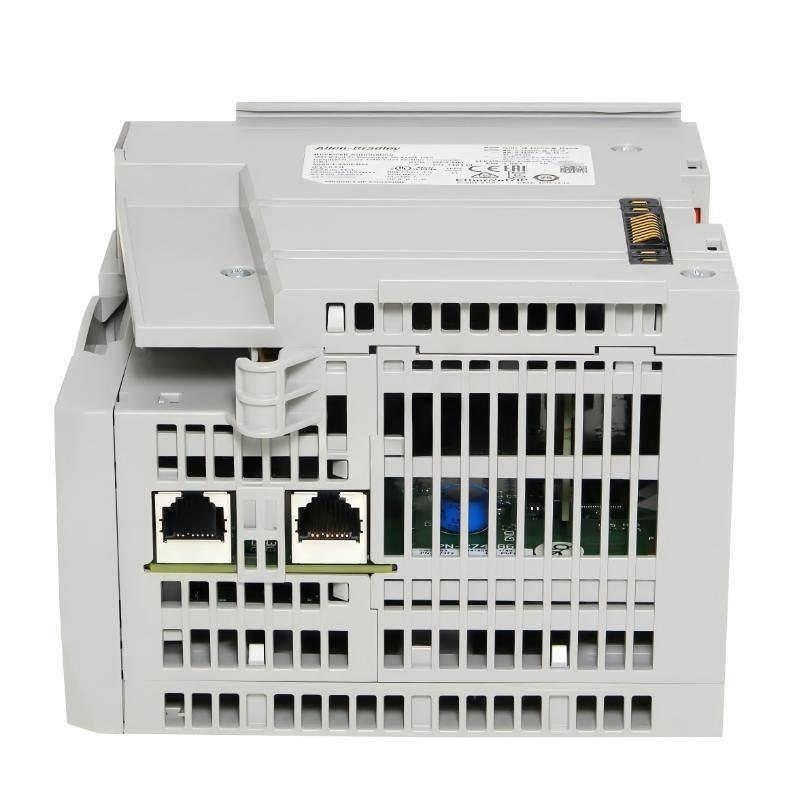

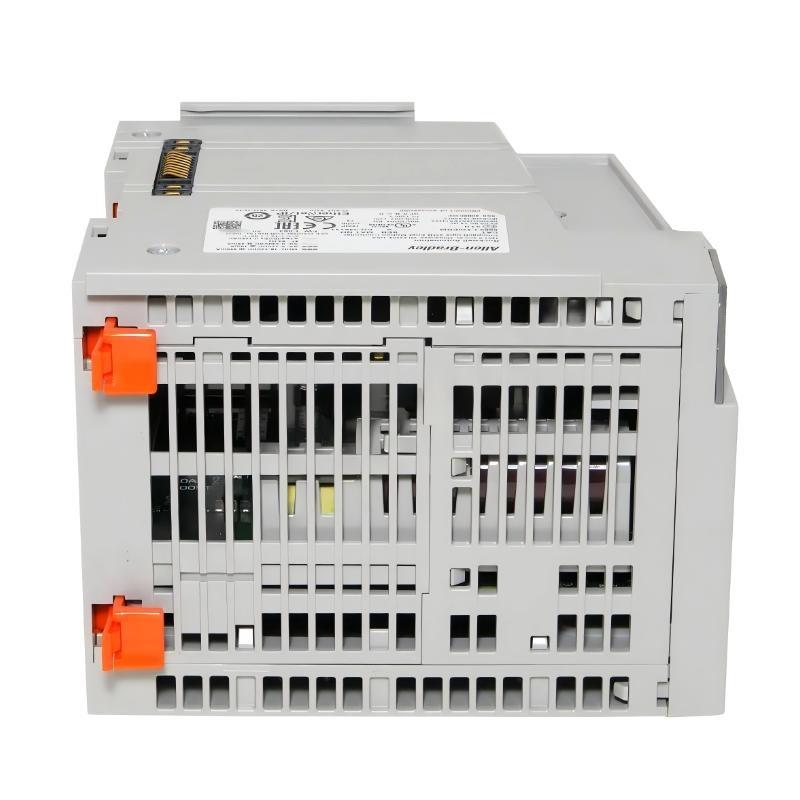

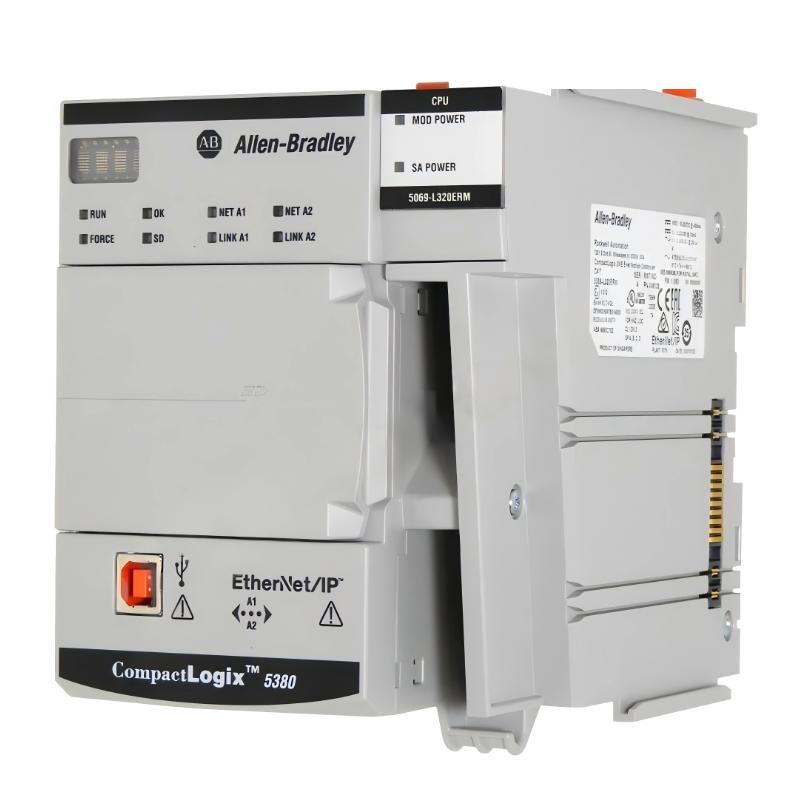

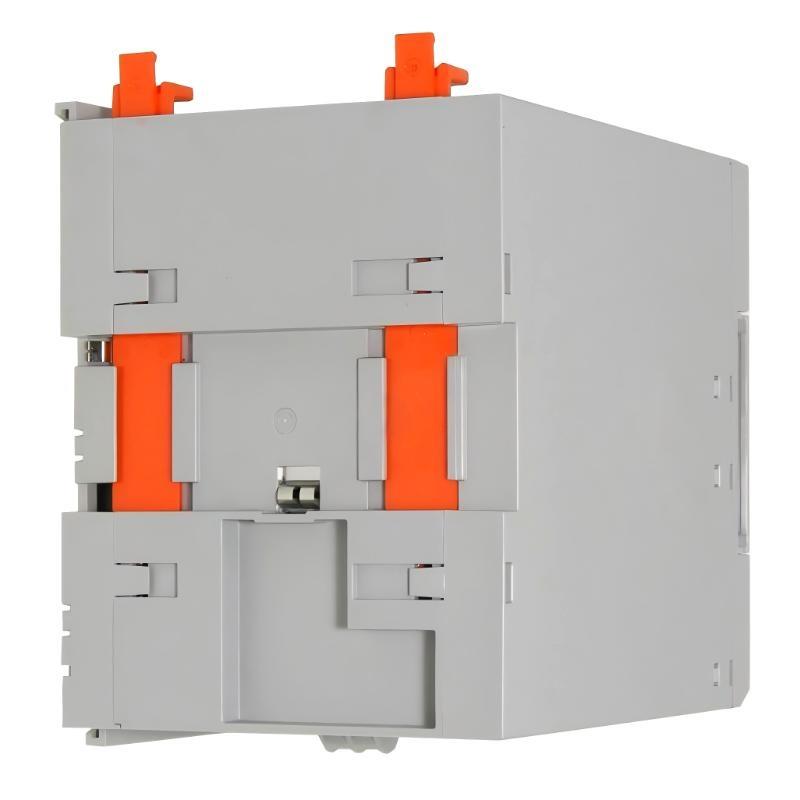

The Allen Bradley 5069-L320ERM CompactLogix 5380 Controller is a motion-capable programmable automation controller designed for high-performance industrial applications that require precise synchronization, advanced motion control, and scalable system architecture. As a member of the CompactLogix 5380 series, this controller integrates standard control functions with embedded motion capabilities, making it suitable for both discrete and coordinated motion systems.
With support for up to 8 axes of integrated motion, the controller enables accurate positioning, speed control, and coordinated movement across multiple devices. Its 2 MB user memory provides sufficient capacity for complex automation programs, including motion profiles, logic execution, and system diagnostics.
The controller supports up to 16 local I/O expansion modules, allowing flexible system configuration. Equipped with EtherNet/IP communication supporting up to 40 nodes, it ensures seamless integration with distributed devices. Its DIN rail mounting design and compact footprint make it ideal for installation in modern control panels where efficiency and performance are equally important.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 5069-L320ERM |
| Series | CompactLogix 5380 |
| Controller Type | Motion-Enabled Ethernet/IP Controller |
| User Memory | 2 MB |
| Integrated Motion | Up to 8 Axes |
| Communication Protocol | EtherNet/IP |
| Maximum Ethernet/IP Nodes | 40 Nodes |
| Local I/O Expansion | Up to 16 Modules |
| Power Supply Voltage | 18–32 VDC |
| Mounting Type | DIN Rail Mount |
| Controller Class | Standard |
| Isolation | Integrated System Isolation |
| Dimensions | 143.97 x 101.66 x 136.81 mm |
| Weight | 0.768 kg |
Applications
• Multi-Axis Motion Control Systems in packaging, printing, and assembly machines requiring synchronized movement
• High-Speed Production Lines where precise positioning and timing are critical for efficiency
• Robotics and Material Handling systems that demand coordinated motion across multiple axes
• OEM Machine Building for modular, scalable equipment with integrated control and motion
• Automated Manufacturing Cells combining logic control and motion control in a single platform
Advantages
• Integrated Motion Capability supports up to 8 axes, reducing the need for separate motion controllers
• High Performance Processing ensures smooth execution of motion profiles and complex logic
• Scalable System Design with up to 16 local I/O modules for flexible expansion
• Efficient Network Integration with support for 40 EtherNet/IP nodes across distributed systems
• Compact and Modular Design optimizes panel space and simplifies installation
• Unified Programming Platform allows both motion and standard control within a single environment
