Product Introduction

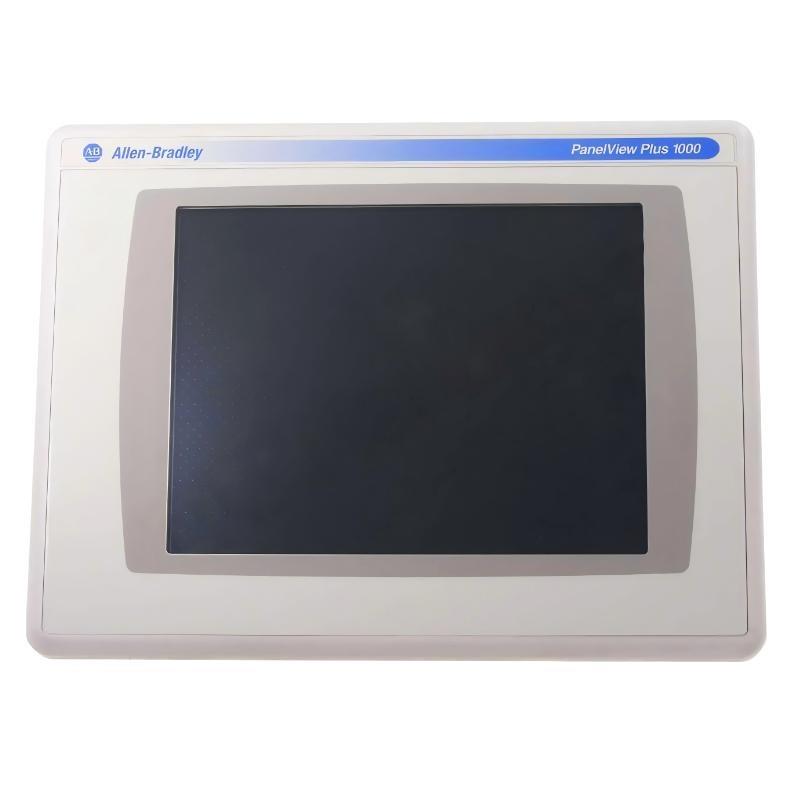

The Allen-Bradley 2711P-T10C15D1 PanelView Plus 1000 Operator Interface is an advanced display unit designed for human-machine interface (HMI) applications in industrial automation systems. Manufactured by Rockwell Automation under the Allen-Bradley brand, it is built for seamless integration into industrial control systems, providing an intuitive and efficient user interface.
This 10.4-inch Active Matrix TFT display offers 18-bit color graphics with a resolution of 640 x 480, ensuring clear and detailed visualizations for process monitoring and control. The analog resistive touch screen allows for reliable user input even in harsh industrial environments. With 64 MB of Flash memory and 64 MB of RAM, the unit ensures fast processing speeds and ample storage for applications, enhancing operational efficiency.
The display supports multiple communication protocols, including ControlNet, Ethernet, and RS-232, allowing for flexible integration with existing industrial networks. The FactoryTalk View Studio software is compatible for both Machine Edition and Enterprise Series, making it easy to design, develop, and deploy HMI applications.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711P-T10C15D1 |
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Display Size | 10.4 inch |
| Display Type | Color Active Matrix TFT |
| Resolution | 640 x 480 |
| Touch Technology | Analog resistive touch screen |
| Memory (RAM) | 64 MB |
| Memory (Flash) | 64 MB |
| Communication Ports | ControlNet, Ethernet, RS-232, 2 USB |
| Software | FactoryTalk View Studio (Machine Edition or Enterprise Series) |
| Input Voltage | 18-32V DC (24V DC nominal) |
| Power Consumption | 70 W (2.9 A at 24V DC) |
| Operating Temperature | 0-55 °C (32-131 °F) |
| Dimensions | 329 x 55 x 248 mm |
| Weight | 2.6 kg |
Applications
• Used for industrial automation control systems, offering a user-friendly interface for operators to monitor and control machinery and processes
• Widely deployed in manufacturing plants, enabling real-time process visualization and interaction for improved control and troubleshooting
• Ideal for machine and process control applications, providing intuitive touch-based control in environments requiring consistent system interaction
• Applied in control rooms where operators need to manage complex systems from a centralized, easy-to-use interface
• Used in packaging, assembly, and production lines, helping streamline operations and maintain production efficiency
• Commonly employed in energy management systems, where operators need quick access to data and system adjustments
Advantages
• High-resolution display with vibrant 18-bit color graphics, enhancing the visual clarity of critical process information and improving operator decision-making
• Durable resistive touch screen designed for industrial use, ensuring consistent performance even under harsh environmental conditions
• Multiple communication ports (ControlNet, Ethernet, RS-232) provide flexible and easy integration into a wide range of control systems
• FactoryTalk View Studio compatibility makes creating, deploying, and managing HMI applications straightforward, increasing operational flexibility
• Compact design allows for easy installation in standard industrial control panels, offering space efficiency without compromising functionality
• Wide temperature tolerance of 0-55 °C (32-131 °F), allowing operation in diverse and challenging industrial environments
• Low power consumption (70 W) ensures energy-efficient operation, reducing operational costs over time
