Introduction / Quick Summary

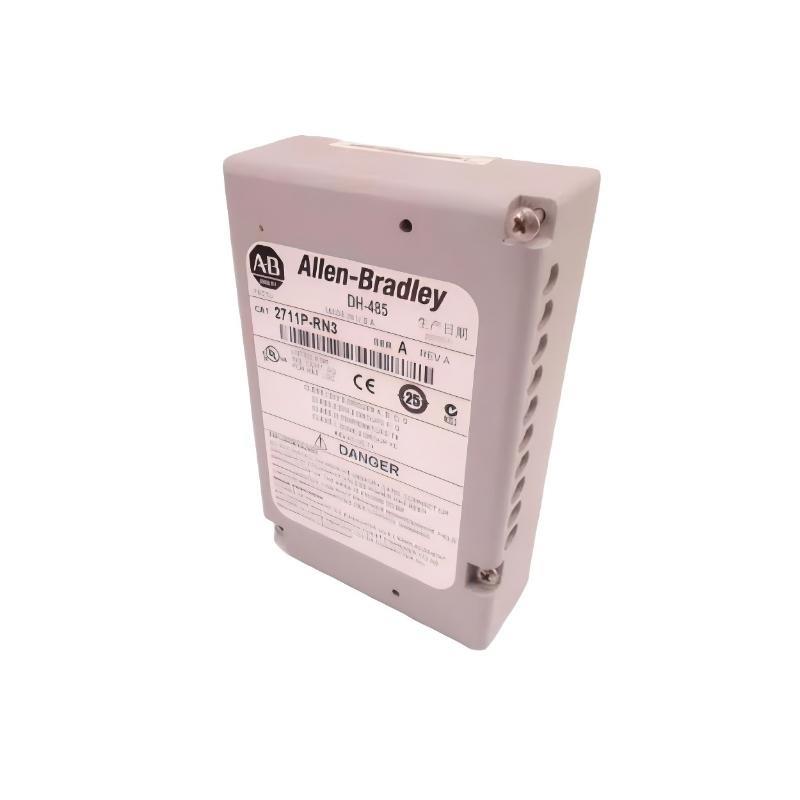

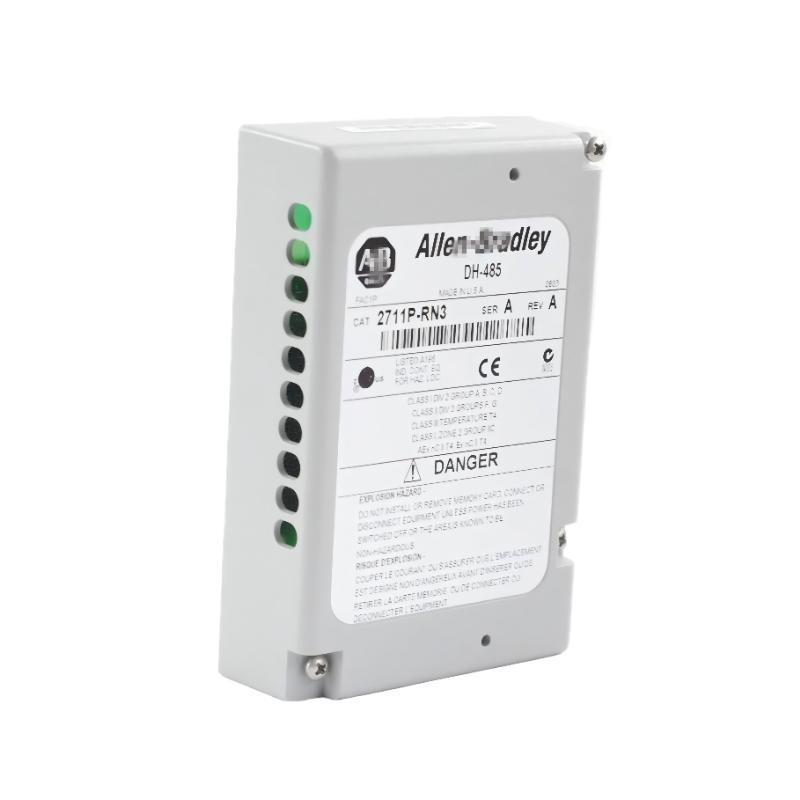

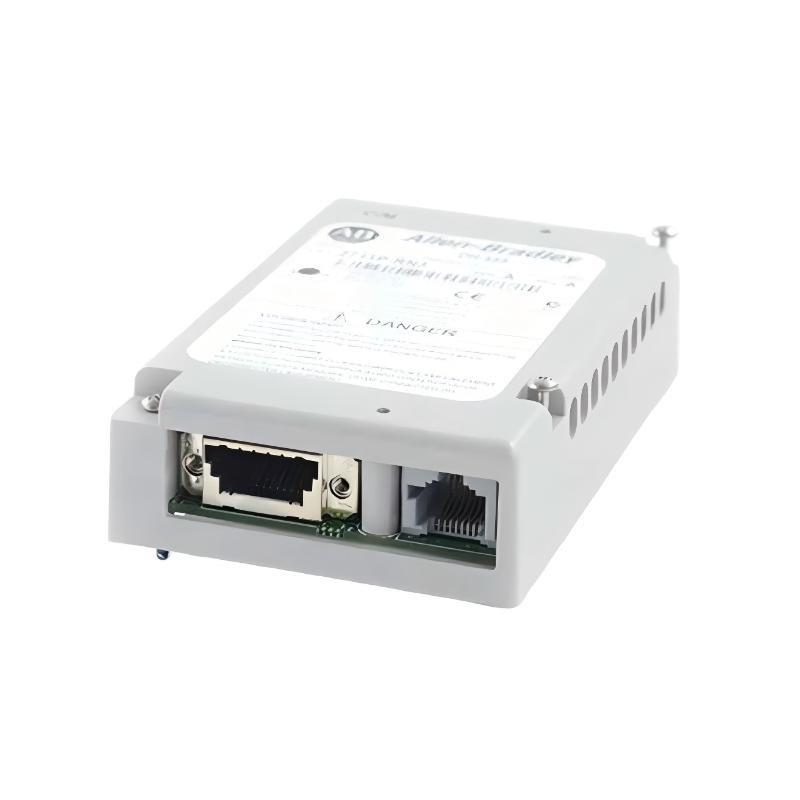

The Allen Bradley 2711P-RN3 is a DH-485 communication module designed to add legacy serial network connectivity to PanelView Plus operator terminals. It provides a compact, field-serviceable interface that allows PanelView units to talk to SLC and MicroLogix controllers over the DH-485 serial network, enabling HMI screens, alarms and operator interactions on older automation architectures.
Technical Specifications (Key Parameters — includes size & weight)
| Parameter | Specification |
|---|---|
| Product Type | Communication Module (DH-485 Interface) |
| Model Number | 2711P-RN3 |
| Primary Function | DH-485 serial network interface for PanelView Plus 400/600 |
| Compatible HMI Models | PanelView Plus 400 / PanelView Plus 600 |
| Protocol | DH-485 (serial multidrop) |
| Physical Connection | 9-pin D-sub (or manufacturer terminal block per terminal variant) |
| Baud Rates Supported | Typical DH-485 speeds (configurable) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% – 95% non-condensing |
| Enclosure Rating | Mounted in HMI — conforms to PanelView enclosure rating (IP20/NEMA Type 1 inside cabinet) |
| Mounting | Plug-in communication slot on PanelView backplane |
| Dimensions (H × W × D) | 60 × 90 × 25 mm (2.36 × 3.54 × 0.98 in) (module only, approximate) |
| Weight | 0.07 kg (0.15 lb) (module only, approximate) |
| Status | Legacy / discontinued in many ranges — plan migration for new projects |
Applications & Typical Use Cases
-
Restoring or maintaining HMI connectivity on legacy DH-485 networks.
-
Retrofitting PanelView Plus terminals into older SLC/MicroLogix based systems.
-
Small-scale plants where Ethernet migration is deferred and serial networks persist.
-
Diagnostic and commissioning tasks that require direct HMI-to-controller serial communication.
Advantages & Field Considerations
-
Simple plug-in installation into PanelView backplane with captive screws.
-
Keeps existing DH-485 infrastructure operational without replacing panels.
-
Minimal footprint and negligible weight — no additional cabinet space required.
-
Familiar configuration flow on PanelView for node address and baud rate.
-
Useful during staged migrations where a gradual transition to Ethernet is planned.
-
Low electrical impact; module draws minimal power from host terminal.
-
Enables legacy alarm, recipe, and operator interaction functionality to remain intact.
-
Because many units are legacy/discontinued, spare planning is recommended.
-
Works best when cable lengths and network topology conform to DH-485 recommendations.
-
Straightforward diagnostic LED indications on the host terminal simplify commissioning.
