Product Introduction

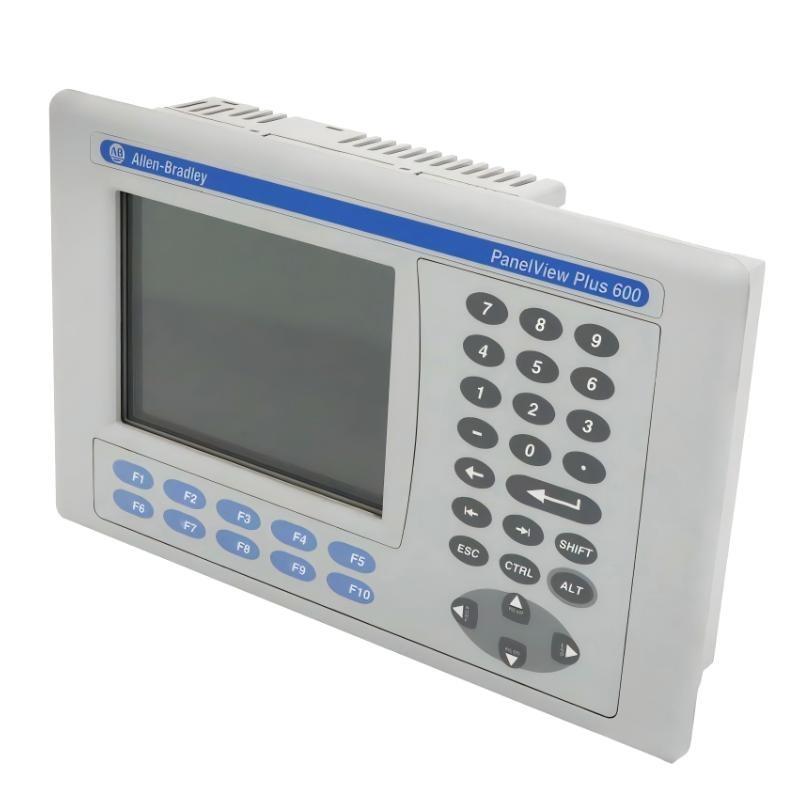

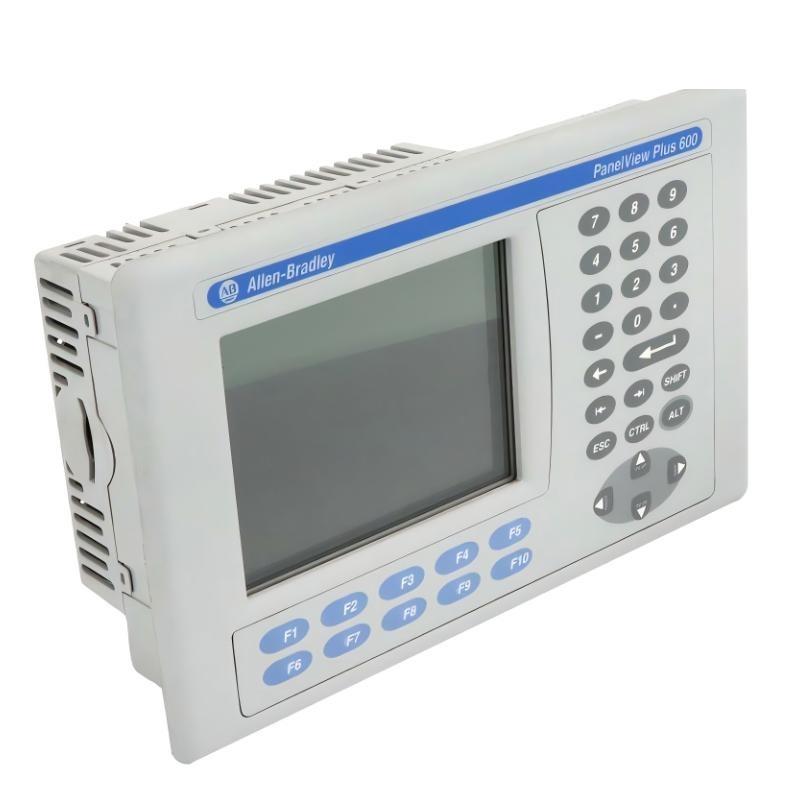

The Allen-Bradley 2711P-B6C5A8 PanelView Plus 6 600 Operator Interface is a compact industrial HMI designed for reliable machine-level monitoring and control. As part of the PanelView Plus 6 600 series, it provides a practical balance between functionality and size, making it suitable for a wide range of small to medium industrial automation applications.
This model features a 5.7-inch color display with 320 × 240 resolution, offering clear visualization of process data, machine status, and basic control screens. It operates on Windows CE 6, providing a stable embedded platform for industrial HMI applications and ensuring consistent runtime performance.
Powered by a 100–240 VAC universal input, the unit is flexible for global installations without the need for separate voltage adaptation. With RS-232 and USB communication ports, it supports straightforward connectivity to PLC systems, data transfer devices, and maintenance tools. Its compact structure makes it suitable for OEM machinery and control panels where space efficiency is important.
Product Specifications
| Parameter | Value |
|---|---|
| Product Model | 2711P-B6C5A8 |
| Series | PanelView Plus 6 600 |
| Display Size | 5.7 Inch |
| Resolution | 320 × 240 Pixels |
| Display Type | Color Display |
| Input Method | Keypad and Touch |
| Operating System | Windows CE 6 |
| Input Voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Communication Ports | RS-232, USB |
| Mounting Type | Panel Mount |
| Memory Type | Embedded Flash / RAM |
| Cooling Method | Passive Cooling |
| Dimensions | 226 × 68 × 167 mm |
| Weight | 0.728 kg |
Applications
• Compact Machinery Control
Used in small industrial machines where operators need simple and reliable interface functions for monitoring and basic control.
• Packaging Systems
Provides clear visualization and basic operation control for light and medium packaging equipment.
• Pump and Motor Control Panels
Suitable for controlling and monitoring pumps, fans, and small motor-driven systems.
• OEM Equipment Integration
Commonly used by equipment manufacturers requiring a compact and cost-efficient HMI solution.
• Utility and Auxiliary Systems
Supports basic monitoring of auxiliary systems such as water circulation, ventilation, and support equipment.
Advantages
• Compact Industrial Design
Space-efficient structure allows installation in small control panels and machine enclosures.
• Stable Embedded Operating System
Windows CE 6 ensures consistent and reliable operation for industrial applications.
• Wide Power Compatibility
100–240 VAC input supports global deployment without additional power conversion equipment.
• Simple Communication Options
RS-232 and USB interfaces provide straightforward connectivity for common industrial setups.
• Clear Operator Interface
5.7-inch color display ensures readable process information and intuitive navigation.
• Reliable Continuous Operation
Designed for stable performance in typical industrial environments with minimal maintenance requirements.
