Product Introduction

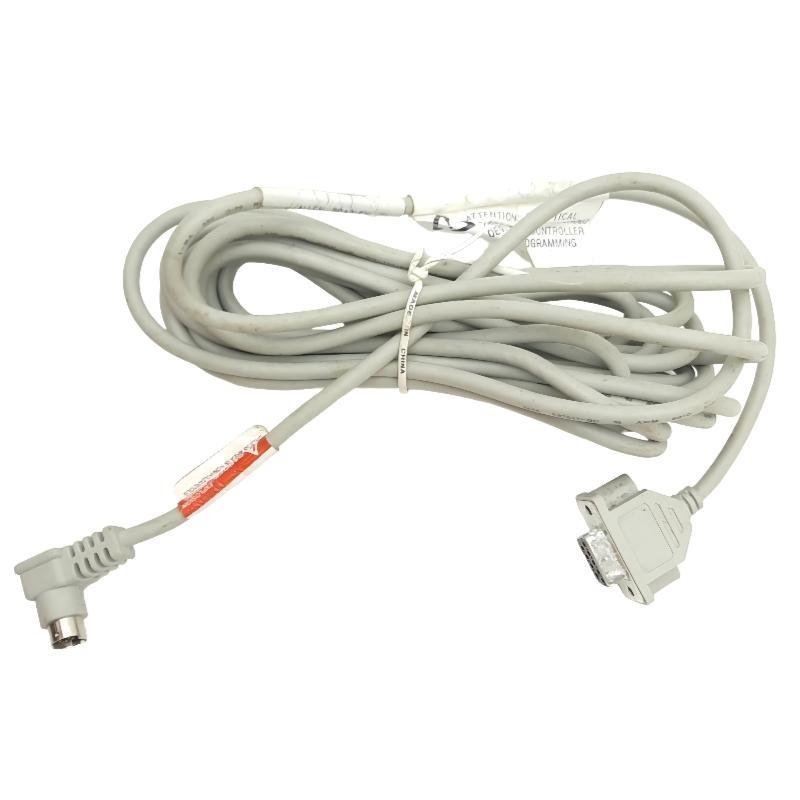

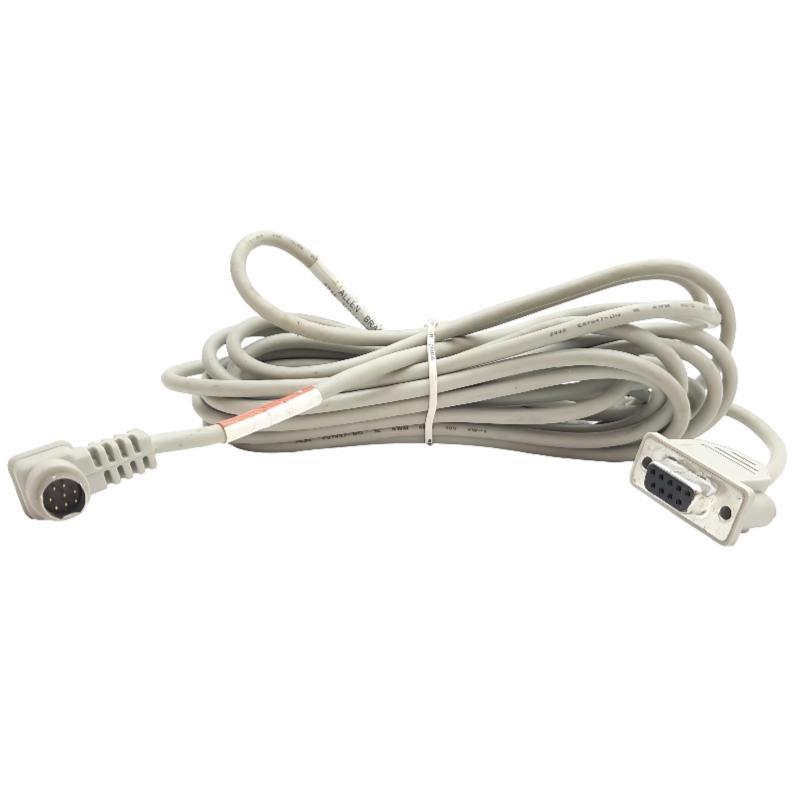

The Allen-Bradley 2711-NC21 RS-232 Operating Cable is a specialized communication cable designed for connecting PanelView operator interfaces to MicroLogix controllers and AIC+ devices. This cable provides reliable RS-232 communication for programming, monitoring, and data transfer tasks between operator interfaces and PLC systems.

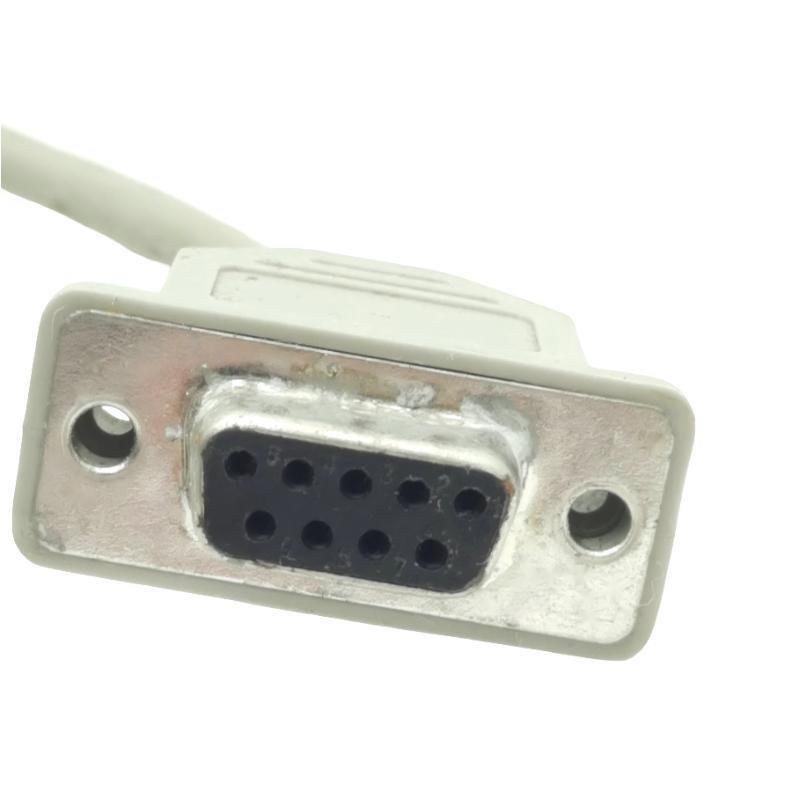

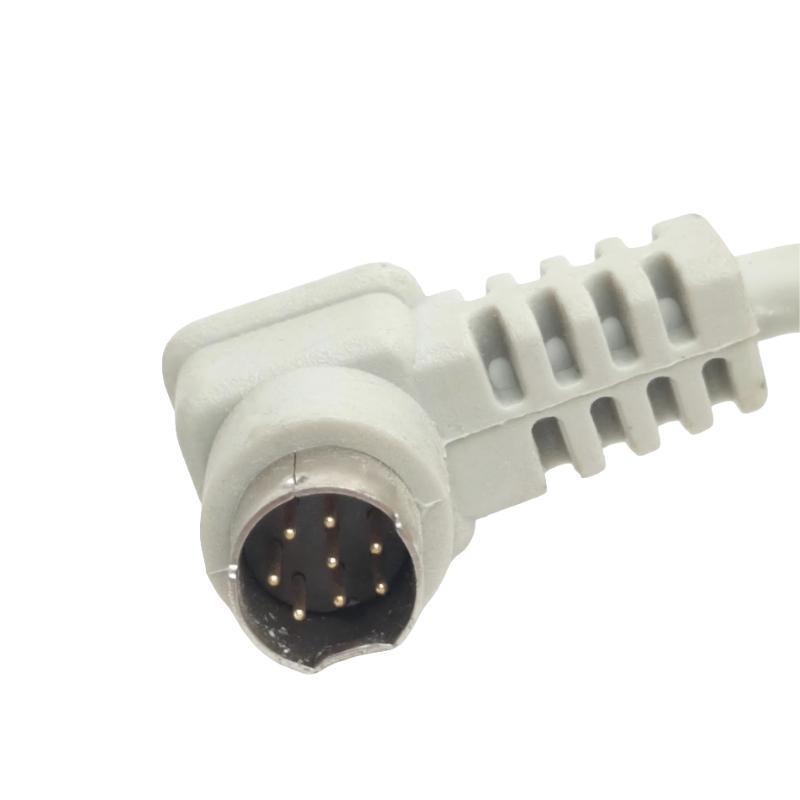

Designed for industrial use, the 2711-NC21 features a 9-pin D-shell connector on the PanelView side and an 8-pin mini-DIN connector on the MicroLogix or AIC+ side. With a length of 5 meters (16.4 ft), it offers flexible installation options while maintaining signal integrity over moderate distances. The cable is suitable for both new installations and retrofit projects, ensuring secure and stable data communication in industrial automation environments.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 2711-NC21 |
| Cable Type | RS-232 Operating Cable |
| Connector Type (PanelView Side) | 9-pin D-shell |
| Connector Type (Controller Side) | 8-pin Mini-DIN |
| Supported Devices | PanelView to MicroLogix and AIC+ |
| Cable Length | 5 m (16.4 ft) |
| Operating Voltage | Standard RS-232 levels |
| Cable Weight | 3 kg |
| Application | Data transfer, programming, monitoring |
| Environment | Industrial automation |
Applications
● Connects PanelView operator interfaces to MicroLogix PLCs
● Enables RS-232 communication for AIC+ devices
● Used in programming, data monitoring, and HMI-to-PLC communication
● Ideal for retrofit and upgrade projects requiring standard RS-232 connections
● Supports industrial automation installations with moderate cable lengths
● Suitable for PanelView configuration, testing, and maintenance tasks
Advantages
● Reliable RS-232 interface ensures stable communication between HMI and PLC
● Standard 9-pin D-shell to 8-pin Mini-DIN connectors provide plug-and-play compatibility
● 5-meter length allows flexible installation within control panels
● Compact and durable design ensures long-term performance in industrial environments
● Compatible with MicroLogix and AIC+ systems, enabling versatile applications
● Simplifies system setup, maintenance, and programming tasks
● Industrial-grade construction ensures robust operation under standard factory conditions
