Product Introduction

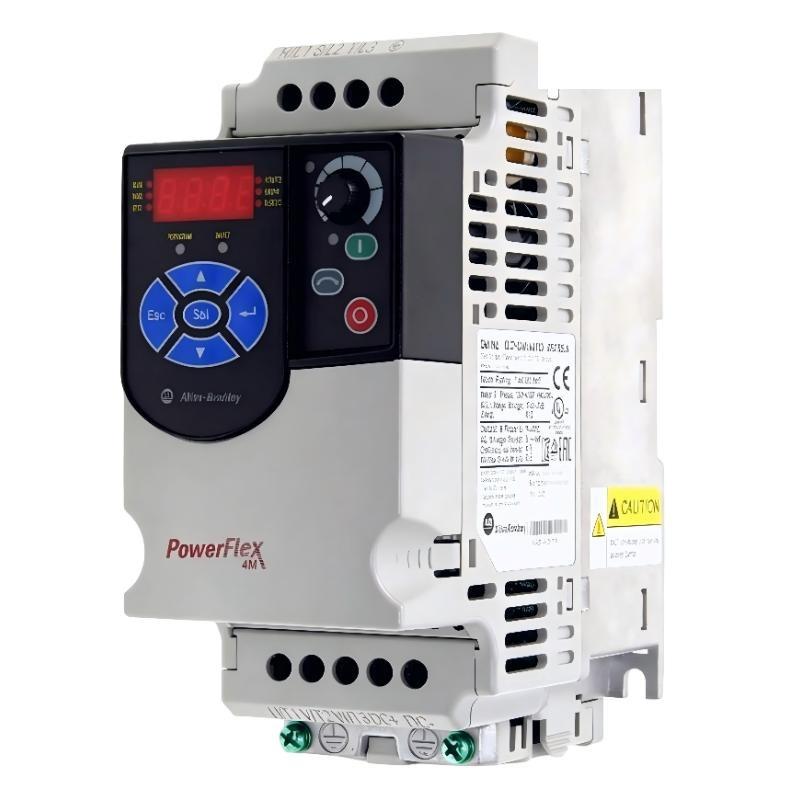

The Allen-Bradley 22F-D4P2N103 PowerFlex 4M AC Drive is a compact variable frequency drive designed for efficient and reliable motor control in small to medium light-duty industrial applications. As part of the PowerFlex 4M series, this model focuses on simplicity, space-saving installation, and dependable performance, making it ideal for OEM equipment and compact control systems.
Operating on a three-phase 480V AC supply, the drive is rated for 2 HP motors and provides stable speed control with smooth acceleration and deceleration characteristics. It is engineered to deliver consistent motor behavior under varying load conditions while maintaining a straightforward configuration process.

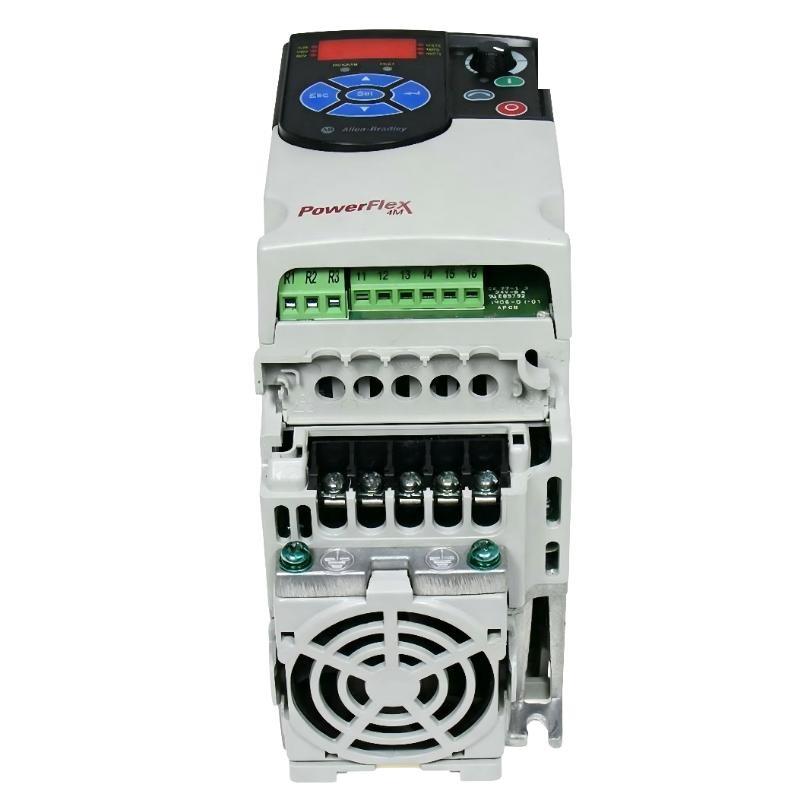

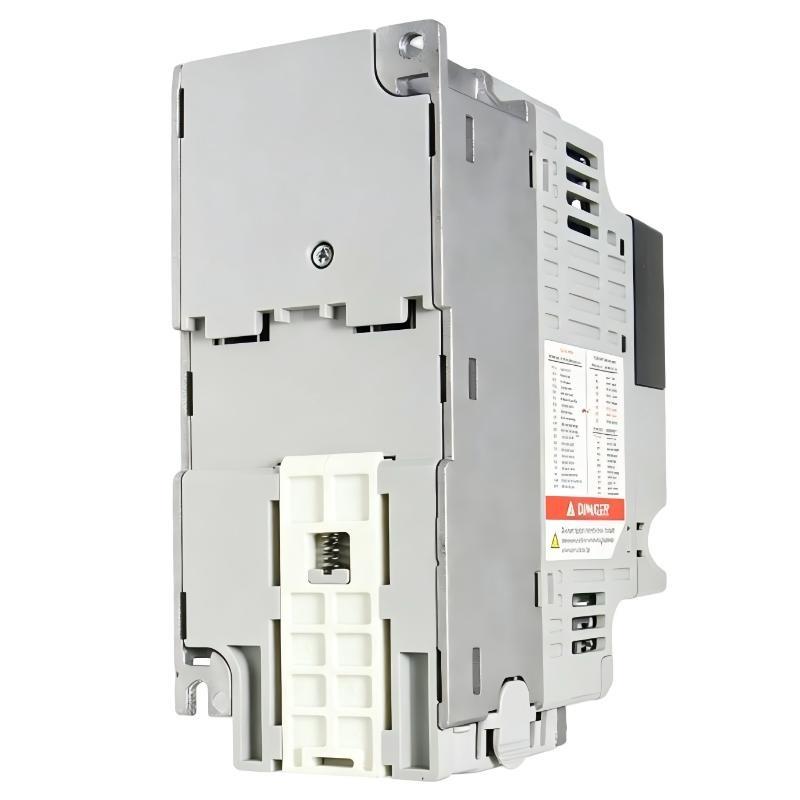

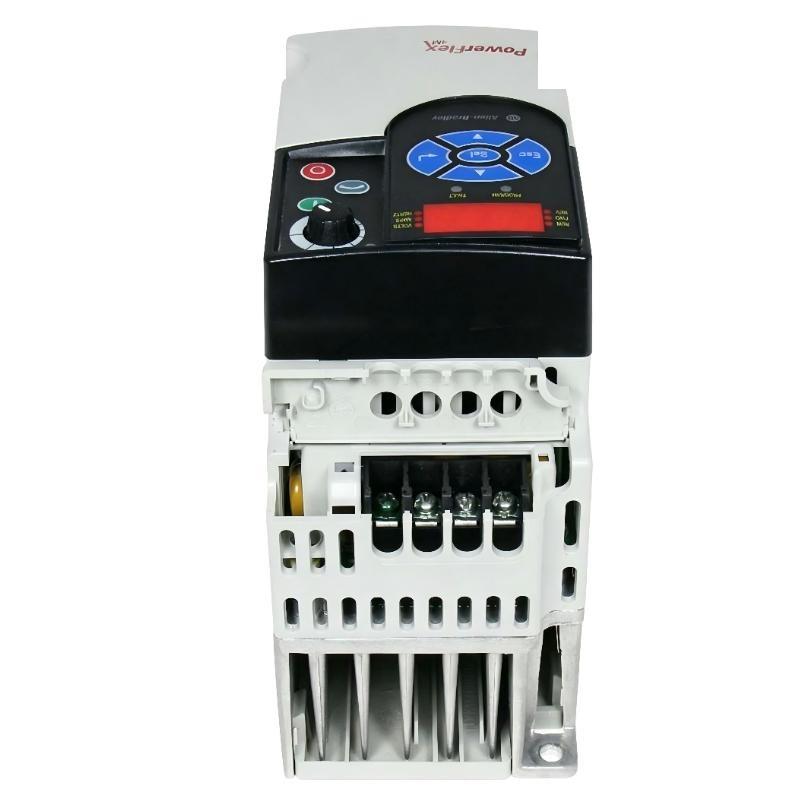

The unit features a Frame Size A design, making it highly suitable for installations with limited panel space. The LED display and fixed digital keypad allow easy local monitoring and parameter adjustment. With a non-filtered and no brake drive configuration, it offers a simplified structure for applications that do not require advanced braking or EMC filtering.
Product Specifications
| Parameter | Value |
|---|---|
| Model | 22F-D4P2N103 |
| Series | PowerFlex 4M |
| Input Voltage | 480V AC |
| Phase | 3-Phase |
| Output Current | 4.2 A |
| Power Rating | 1.5 kW / 2 HP |
| Frame Size | A |
| Mounting Type | Panel Mount |
| Enclosure Type | IP20 (Open) |
| Display Type | LED Display |
| Keypad | Fixed Digital Keypad |
| Communication | RS485 |
| Filter | No CE Compliant Filter |
| Brake Type | No Brake Drive |
| Control Method | V/Hz Control |
| Cooling Method | Natural / Forced Air Cooling |
| Protection Features | Overcurrent, Overvoltage, Undervoltage, Thermal Protection |
| Operating Temperature | 0°C to 50°C (typical, no derating) |
| Dimensions | 174 × 72 × 136 mm |
| Weight | 1.6 kg |
Applications
● Compact Conveyor Systems
Provides smooth and consistent speed control for small material handling applications.
● Fan and Ventilation Equipment
Enables efficient airflow adjustment, improving energy usage in small HVAC setups.
● Light-Duty Pump Systems
Supports stable flow control in compact fluid handling systems.
● Packaging and Assembly Machines
Ensures repeatable motor performance for small automated processes.
● Small Machinery and OEM Equipment
Ideal for space-constrained installations requiring reliable motor control.
● General Purpose Applications
Suitable for basic industrial automation tasks with moderate performance requirements.
Advantages
● Ultra-Compact Frame Size A Design
Optimized for tight installation spaces, reducing cabinet footprint.
● Simple and Intuitive Operation
The LED display and fixed keypad allow quick parameter setup and monitoring.
● Reliable Basic Motor Control
Provides stable V/Hz control, ensuring smooth and predictable operation.
● Cost-Effective Configuration
The no filter and no brake design simplifies the system and reduces overall cost.
● Flexible Integration Capability
Supports RS485 communication, enabling connection with external control systems.
● Low Maintenance Requirement
Designed for long-term stable operation with minimal servicing needs.
