Product Introduction

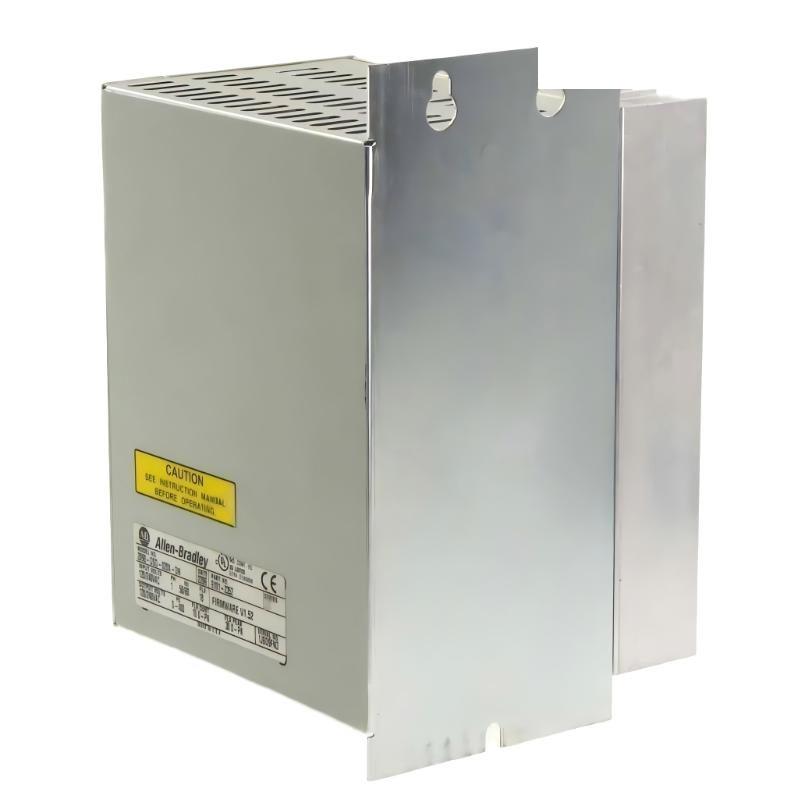

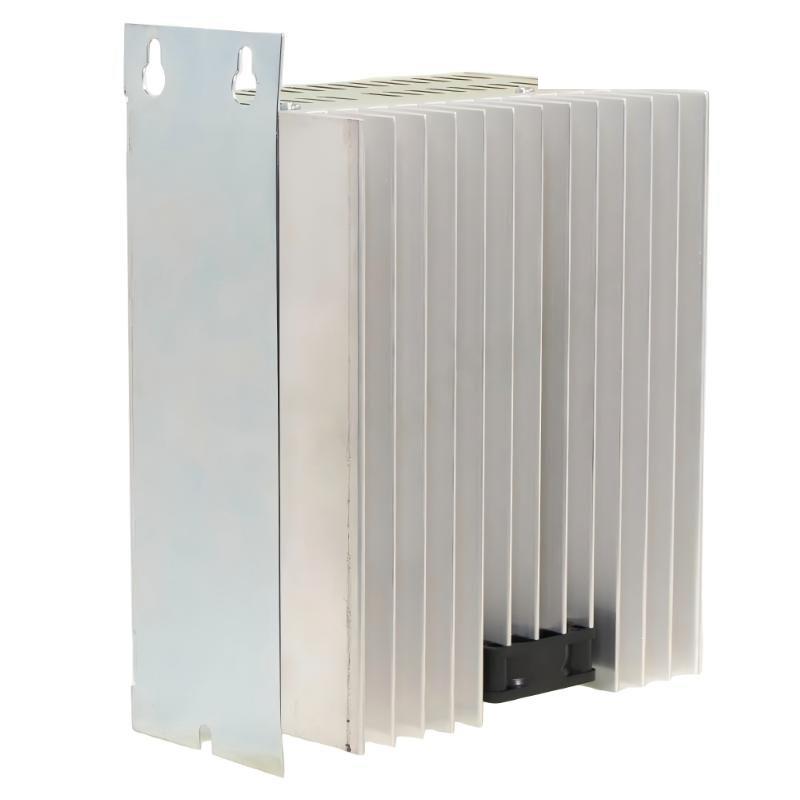

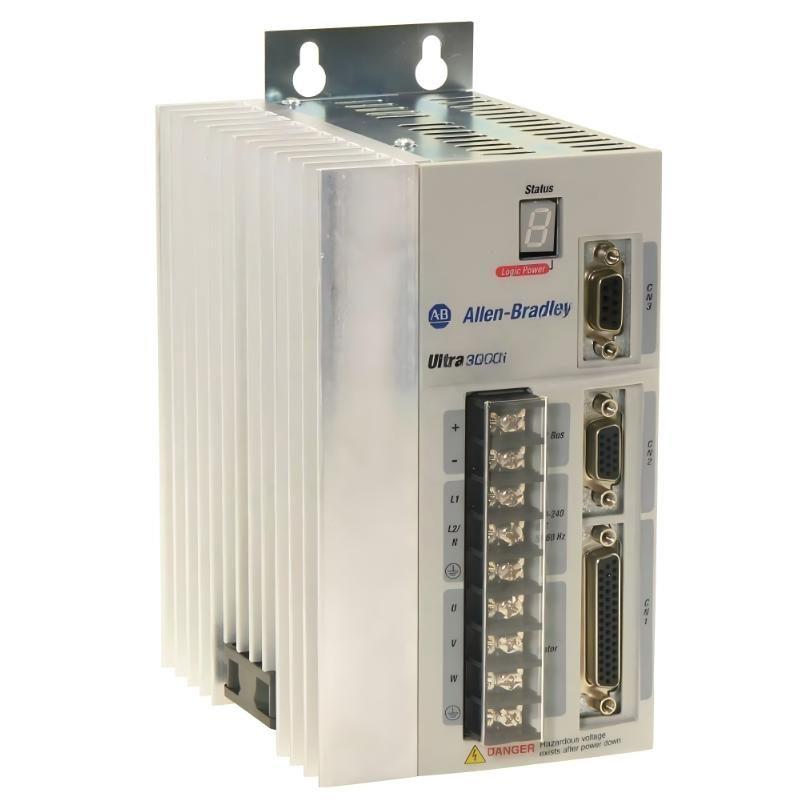

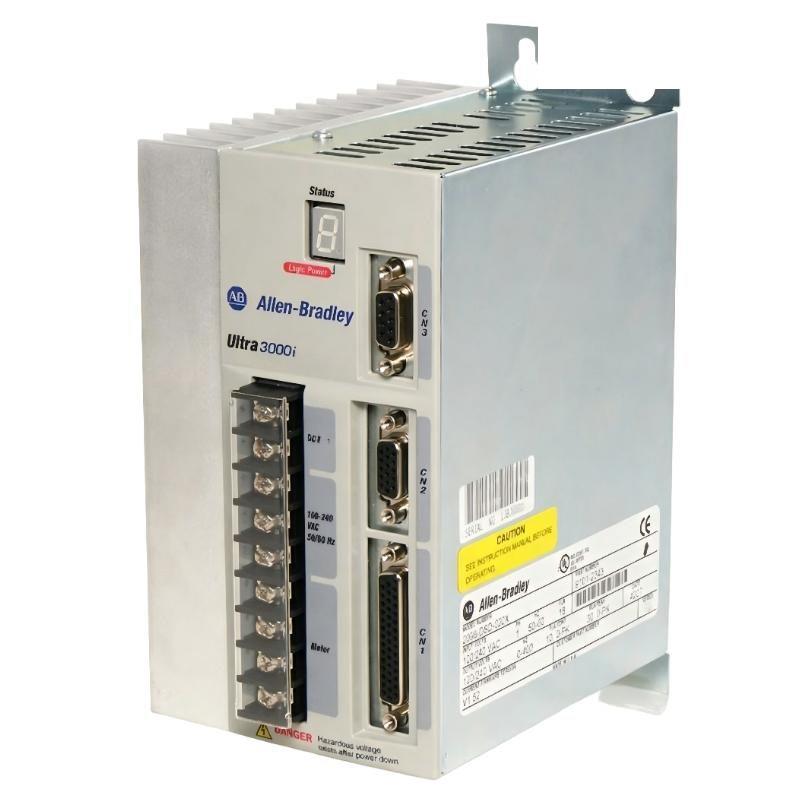

The Allen Bradley 2098-DSD-020X Ultra3000i Digital Servo Drive is a compact, high-performance motion control solution designed for precise single-axis positioning and indexing applications in industrial automation systems. As part of the Ultra3000 family, this drive delivers accurate digital servo control with fast response and stable operation, making it suitable for machines that require repeatable motion and high positioning accuracy.
It operates on a wide 100–240 VAC input range with a dedicated 12/24 VDC control supply, ensuring stable control performance even in complex industrial environments. With a 2 kW power rating and support for 10–30 AMP operation, the drive is optimized for medium-duty servo applications. The integrated indexing functionality allows pre-programmed motion profiles, making it ideal for automated production lines, packaging systems, CNC auxiliary axes, and material handling equipment where repeatability and precision are critical.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 2098-DSD-020X |
| Series | Ultra3000i |
| Type | Digital Servo Drive |
| Function | Indexing Servo Drive |
| Communication | SERCOS Interface |
| Input Voltage | 100–240 VAC |
| Frequency | 50/60 Hz |
| Control Supply Voltage | 12/24 VDC |
| Power Rating | 2 kW |
| Current Range | 10–30 AMP |
| Control Modes | Position, Velocity, Torque, Indexing |
| Indexing Capability | Built-in motion indexing profiles |
| Motor Compatibility | Allen-Bradley Servo Motors |
| Protection Features | Overcurrent, Overvoltage, Fault Detection |
| Cooling Method | Forced Air Cooling |
| Environmental Rating | IP20 |
| Dimensions | 198.12 × 65.02 × 144.27 mm |
| Weight | 2.1 kg |
Applications
• Automated packaging systems, where precise indexing is required for filling, labeling, and sealing operations.
• CNC auxiliary axis control, supporting accurate repetitive positioning tasks in machine tools.
• Material handling equipment, including conveyors and pick-and-place systems requiring synchronized motion.
• Industrial automation lines, where repeatable indexing improves production consistency and efficiency.
• Assembly machines, enabling precise component placement and controlled step-by-step motion sequences.
Advantages
• Built-in indexing function allows pre-programmed motion sequences for repeatable and efficient operation.
• High-precision digital servo control ensures accurate positioning and stable motion performance.
• Wide voltage compatibility (100–240 VAC) provides flexible installation across different industrial environments.
• Compact design (65.02 mm width) saves valuable control cabinet space while maintaining performance capability.
• Stable dual control supply (12/24 VDC) improves system reliability and control consistency.
• Strong fault protection system enhances operational safety and reduces downtime risks.
