Product Introduction

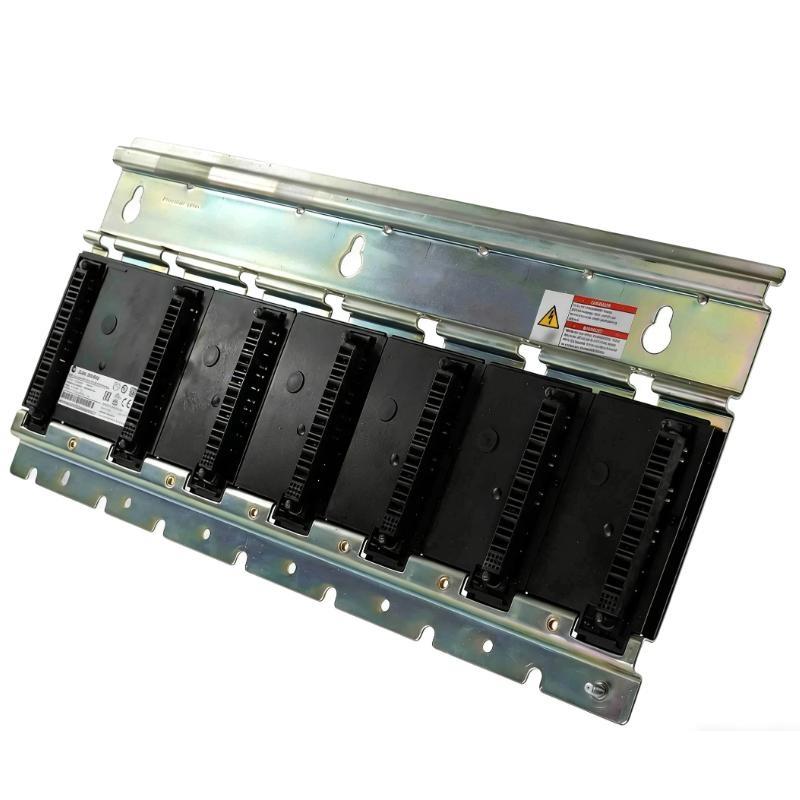

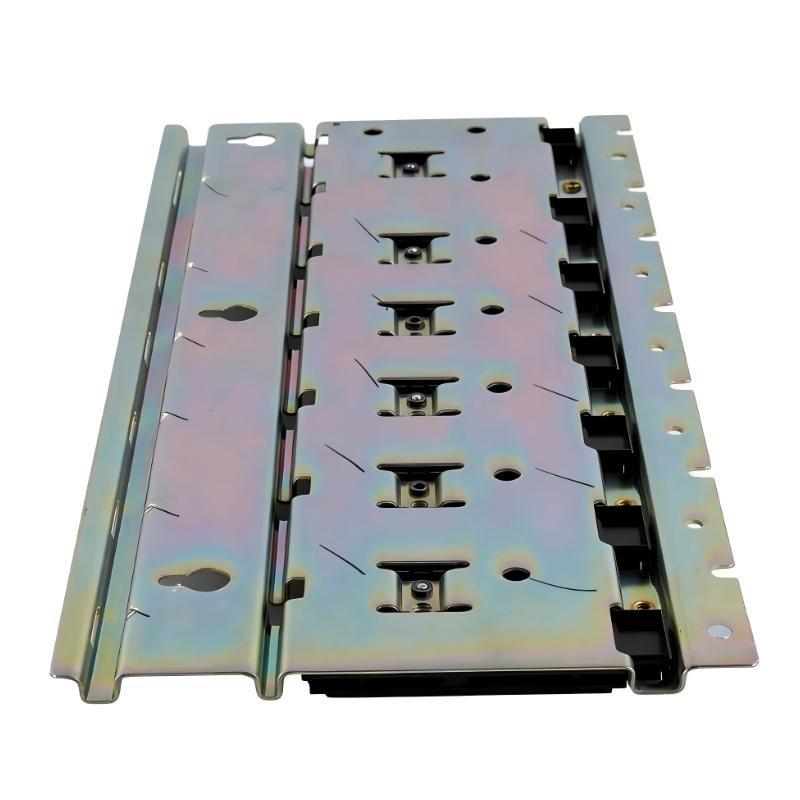

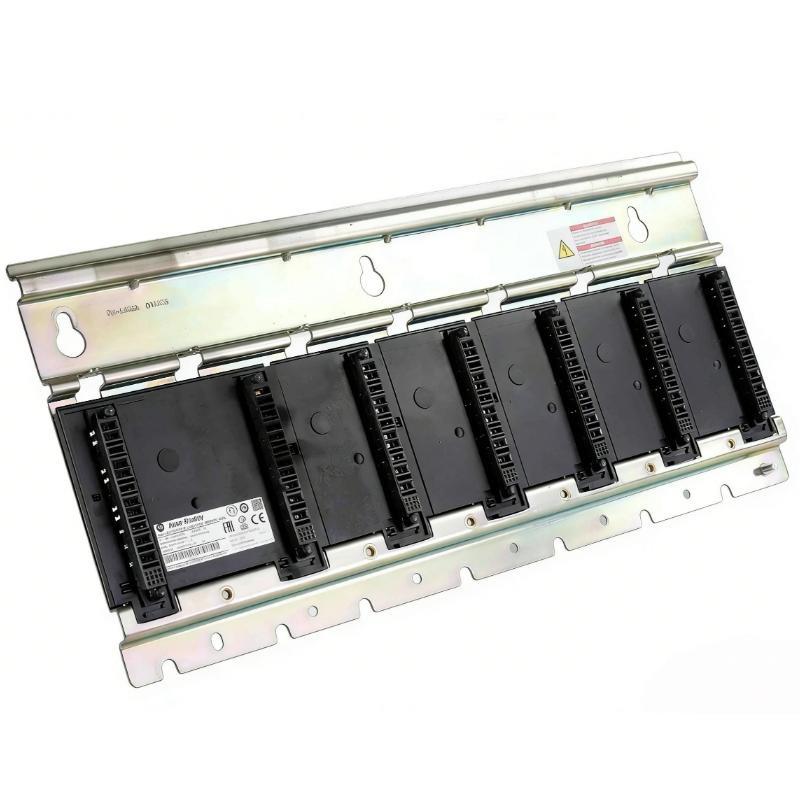

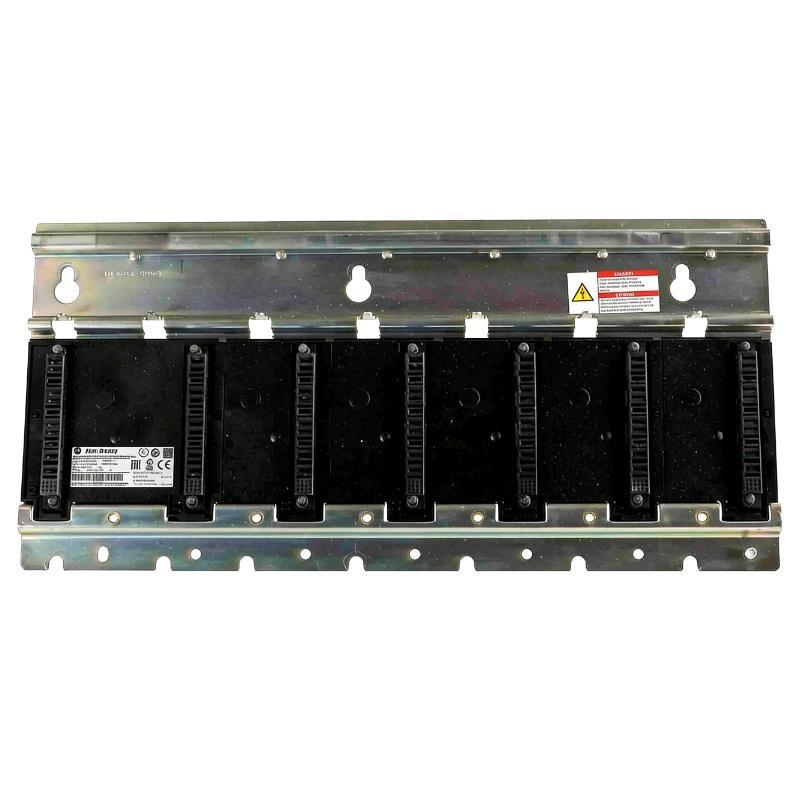

The Allen-Bradley 2094-PRS6 is a slim power rail developed for the Kinetix 6000 multi-axis servo drive platform, designed to provide a unified mechanical and electrical backbone for motion control systems. It enables efficient integration of multiple servo modules within a compact footprint, making it suitable for high-density control cabinets.
This model supports a 6-axis configuration, allowing the installation of one Integrated Axis Module (IAM) and up to five additional axis modules. With compatibility for both 230V and 460V drive systems, the 2094-PRS6 offers flexibility across different industrial voltage standards while maintaining stable and reliable power distribution.
By combining DC bus power transmission and module interconnection into a single rail structure, the 2094-PRS6 significantly reduces wiring complexity, installation time, and potential points of failure. It is an essential component in applications where synchronized multi-axis motion and space optimization are critical.
Product Specifications
| Parameter | Value |
|---|---|
| Product Name | Kinetix 6000 Slim Power Rail |
| Model Number | 2094-PRS6 |
| Manufacturer | Allen-Bradley |
| Series | Kinetix 6000 |
| Supported Voltage | 230V / 460V AC Drive Systems |
| Axis Support | 1 IAM + up to 5 additional modules (6-axis system) |
| Mounting Type | Panel-mounted rail system |
| Function | Power distribution and module interconnection |
| Compatibility | Kinetix 6000 multi-axis servo drives |
| Material | Industrial-grade conductive and structural alloy |
| Thermal Design | Passive heat dissipation through rail structure |
| Installation Method | Direct panel installation with module alignment |
| Dimensions | 490.2 x 25.4 x 231 mm |
| Weight | 3.55 kg |
Applications
• High-axis-count motion control systems where multiple servo drives must operate in precise synchronization
• Automated production lines, especially in industries requiring coordinated multi-point motion
• Packaging and labeling equipment, enabling smooth and accurate multi-axis coordination
• Robotic systems and articulated arms, supporting extended axis configurations
• CNC machinery and advanced manufacturing systems, where space-saving layouts are required
• Material handling and conveyor systems, improving efficiency in multi-zone transport processes
Advantages
• Supports up to 6-axis configurations, allowing higher system scalability within a single rail
• Slim and compact design reduces panel space requirements and improves cabinet layout efficiency
• Integrated DC bus system minimizes external wiring and simplifies system architecture
• Fast and efficient installation through modular rail-based mounting
• Improved system reliability by reducing connection points and potential wiring errors
• Excellent compatibility with Kinetix 6000 servo modules for seamless integration
• Passive thermal management enhances durability without additional cooling components
