Product Introduction

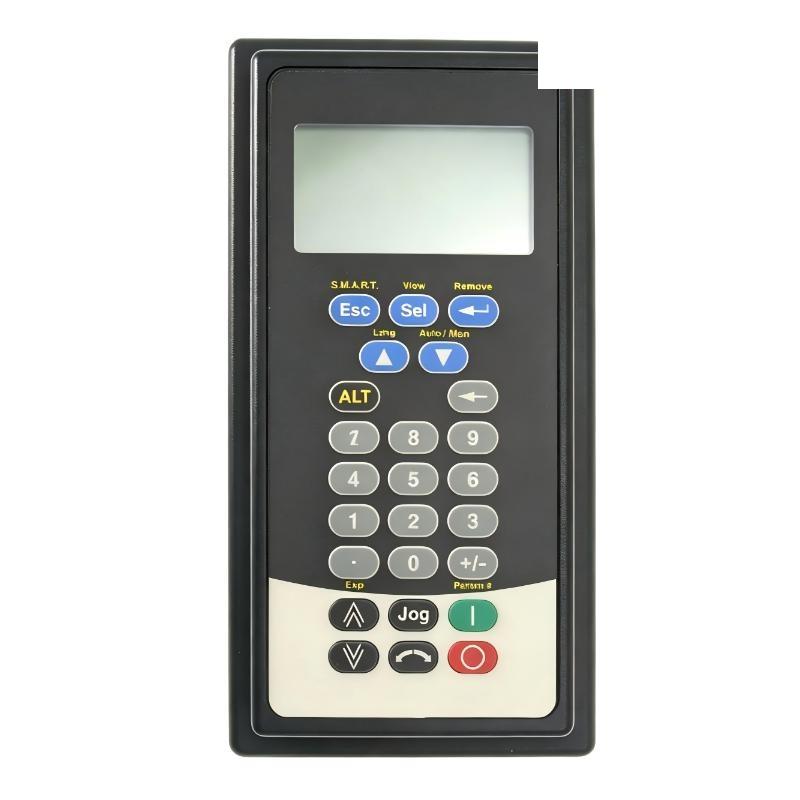

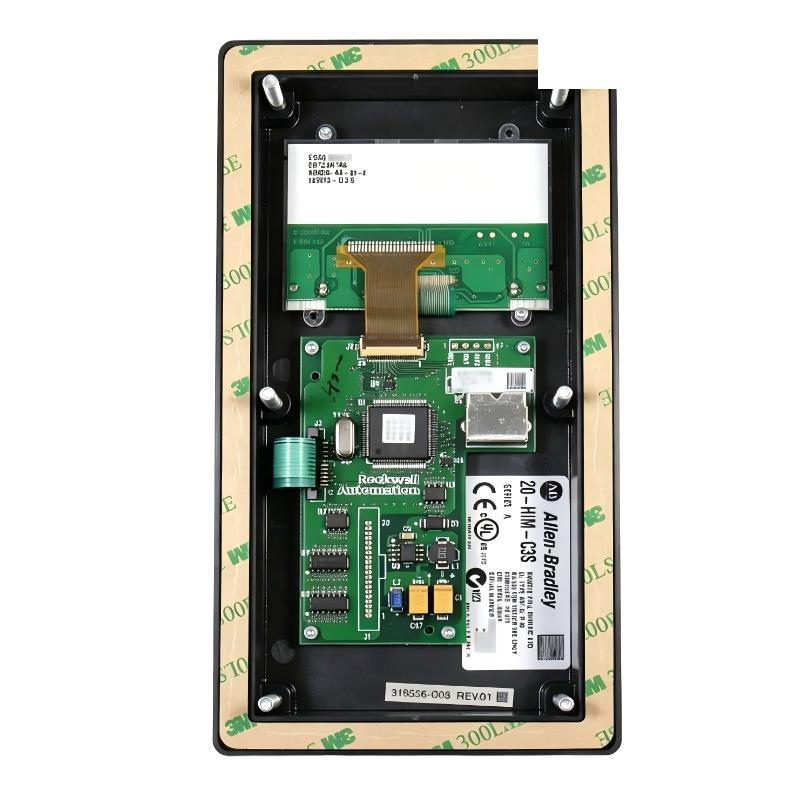

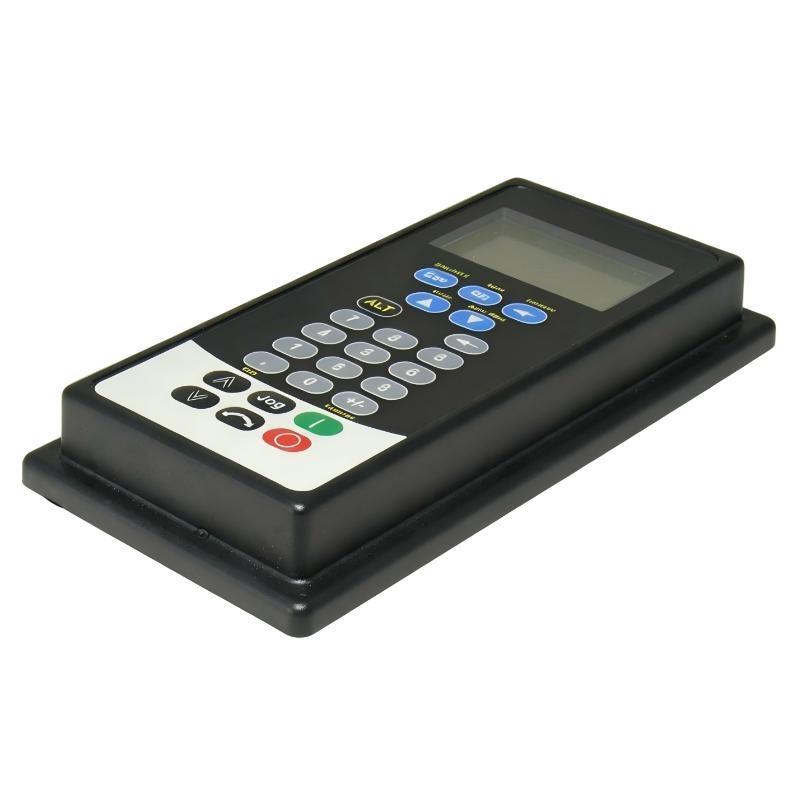

The Allen-Bradley 20-HIM-C3S PowerFlex Human Interface Module is a remote-mounted operator interface designed to provide full control and monitoring capabilities for PowerFlex drive systems. Equipped with an LCD display and a full numeric keypad, it allows users to access parameters, adjust settings, and monitor system status directly from a convenient panel location.
This module is intended for installation on control cabinet doors or external panels, enabling operators to interact with the drive without opening the enclosure. This improves operational safety and simplifies routine tasks such as commissioning, troubleshooting, and parameter adjustments.
With its NEMA 4X/12 and IP66 enclosure ratings, the 20-HIM-C3S is well suited for demanding industrial environments, including areas exposed to dust, moisture, or washdown conditions. It combines durability with ease of use, making it a practical interface solution for both standard and harsh applications.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 20-HIM-C3S |
| Manufacturer | Rockwell Automation (Allen-Bradley) |
| Product Type | Human Interface Module (HIM) |
| Display Type | LCD display |
| Keypad Type | Full numeric keypad |
| Mounting Type | Panel / door-mounted |
| Protection Rating | IP66 |
| Enclosure Type | NEMA 4X / 12 |
| Function | Drive configuration, monitoring, control |
| Application Role | Remote operator interface |
| Compatibility | PowerFlex drive systems |
| Dimensions | 180 × 25 × 93 mm |
| Weight | 0.173 kg |
Applications
● Industrial control panels
Provides a remote interface for PowerFlex drives installed inside enclosures.
● Harsh environment automation systems
Suitable for applications requiring high protection against dust and water.
● Machine operation and monitoring
Allows operators to view system status and adjust parameters during operation.
● Commissioning and diagnostics
Supports quick setup, parameter tuning, and troubleshooting tasks.
● Remote access to drive systems
Enables control of drives located in restricted or hard-to-reach locations.
Advantages
● Full keypad control interface
Includes a numeric keypad and LCD display for precise and efficient operation.
● Remote mounting flexibility
Allows installation on cabinet doors, improving accessibility and reducing exposure to internal components.
● High environmental protection
Rated IP66 and NEMA 4X/12, suitable for demanding industrial conditions.
● Improved safety and convenience
Enables operation without opening enclosures, minimizing risk during use.
● Robust industrial construction
Designed to withstand harsh environments including moisture, dust, and vibration.
● Seamless compatibility
Works directly with PowerFlex drive systems for efficient integration.
