Product Introduction

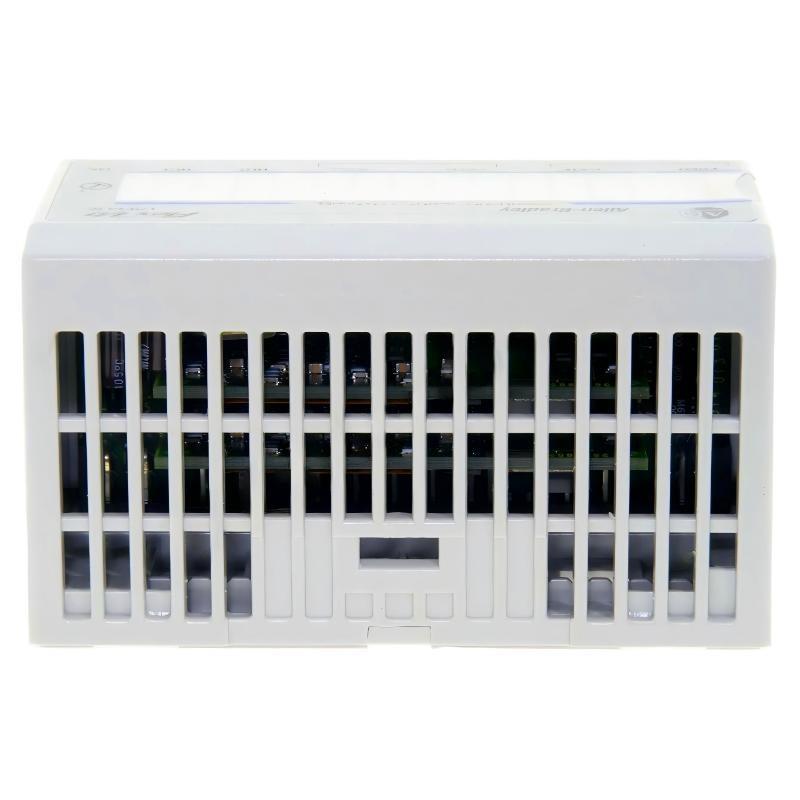

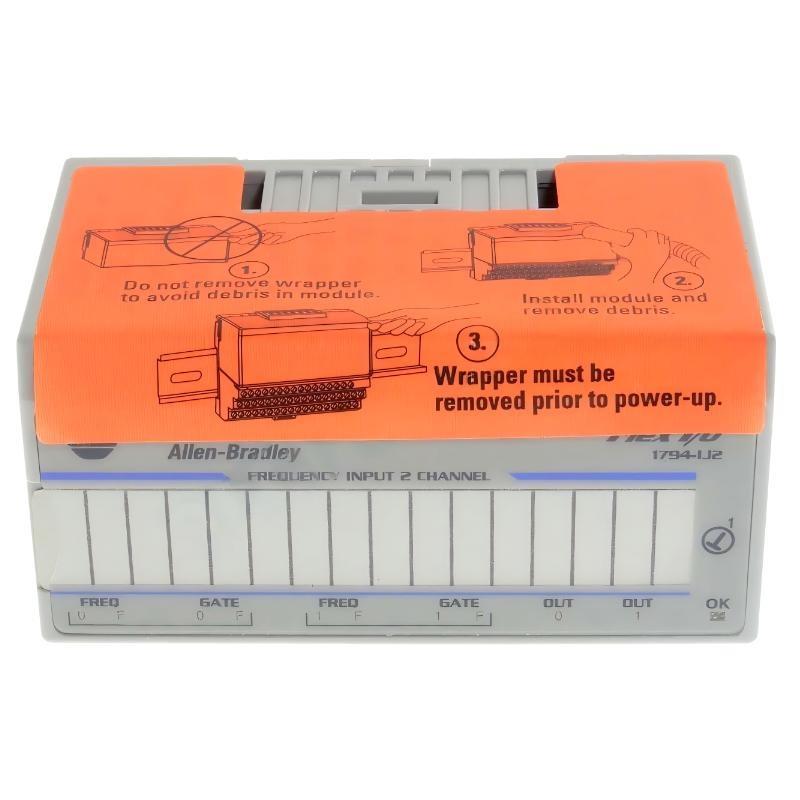

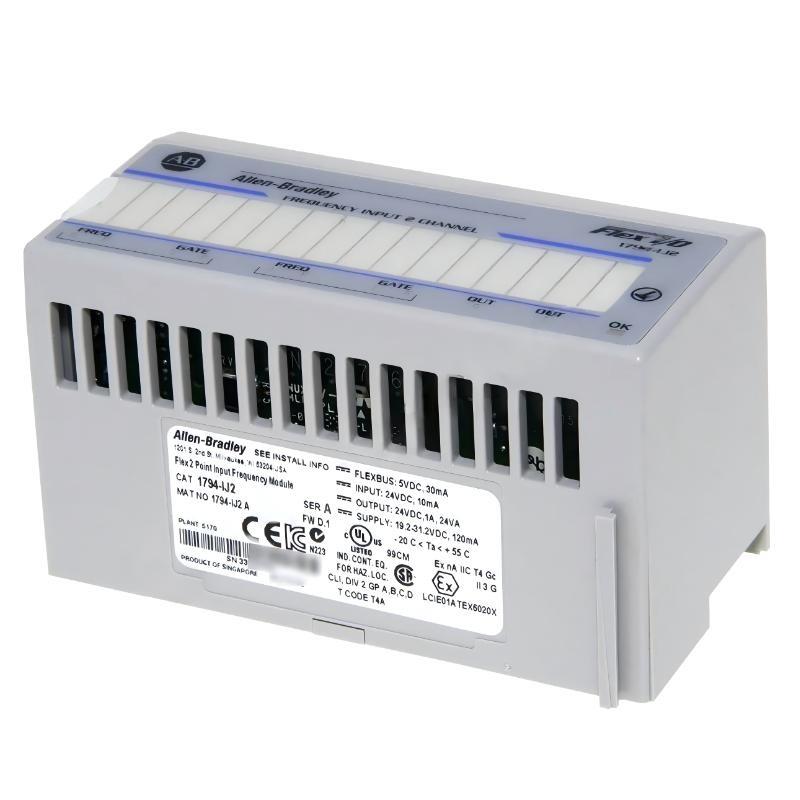

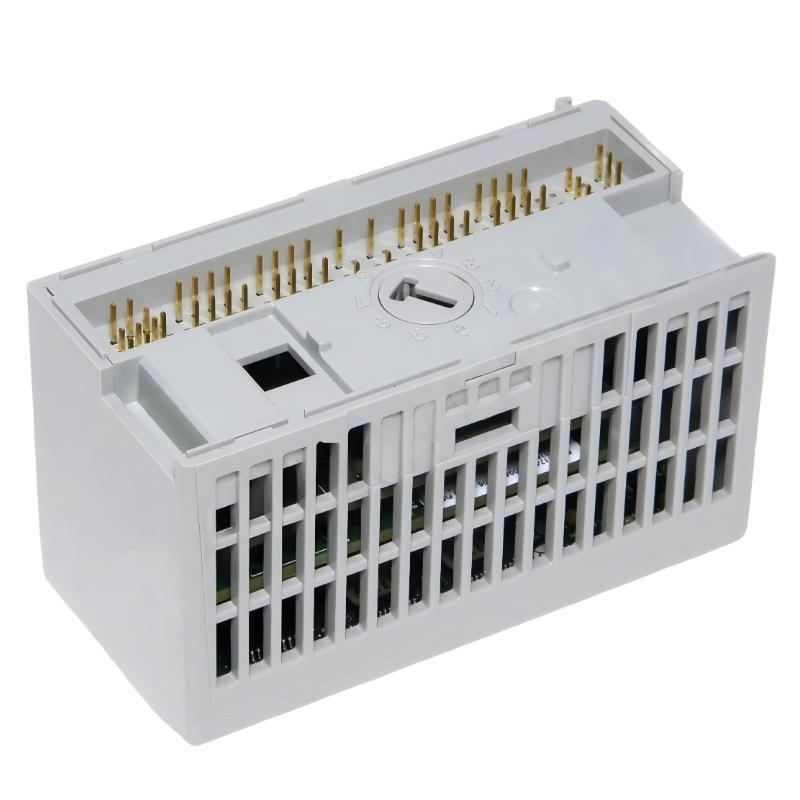

The Allen-Bradley 1794-IJ2 FLEX I/O Input Frequency Module is a specialized high-resolution input module designed for accurate frequency signal measurement in distributed industrial control systems. As part of the FLEX I/O platform, it enables precise acquisition of pulse and frequency-based signals from field devices such as flow meters, encoders, and speed sensors.
This module features 2 independent input channels, each capable of handling high-resolution frequency signals. It is optimized for applications where precise timing and signal accuracy are critical, ensuring reliable data acquisition for control and monitoring processes.
With its compact open-style design and DIN rail mounting capability, the 1794-IJ2 integrates seamlessly into FLEX I/O distributed architectures. It provides a practical solution for systems requiring high-performance frequency measurement in a modular and scalable configuration.
Product Specifications
| Parameter | Description |
|---|---|
| Product Model | 1794-IJ2 |
| Product Type | FLEX I/O Input Frequency Module |
| Number of Channels | 2 Points |
| Signal Type | Frequency / Pulse Input |
| Resolution | High Resolution |
| Measurement Type | Frequency Counting |
| System Compatibility | FLEX I/O |
| Mounting Type | DIN Rail Mounted |
| Design Type | Open Style |
| Application Type | Frequency Signal Acquisition |
| Dimensions | 94 × 46 × 53 mm |
| Weight | 0.2 kg |
Applications
• Speed Monitoring Systems
Measures signals from encoders and tachometers for accurate speed detection.
• Flow Measurement Applications
Captures pulse outputs from flow meters, enabling precise flow rate calculation.
• Industrial Automation Systems
Integrates frequency-based inputs into PLC and distributed control systems.
• Packaging and Conveyor Systems
Used for monitoring belt speed and machine cycle rates.
• Energy and Utilities
Supports measurement of rotational equipment and turbine speeds.
• Distributed I/O Architectures
Ideal for FLEX I/O systems requiring remote frequency signal acquisition.
Advantages
• High-Resolution Measurement
Provides accurate frequency detection for precision control and monitoring applications.
• Dual-Channel Input
Supports two independent inputs, enabling simultaneous measurement of multiple signals.
• Flexible Integration
Seamlessly integrates into FLEX I/O systems for distributed control architectures.
• Compact Design
Saves space in control panels and supports high-density installations.
• Reliable Signal Processing
Ensures stable and consistent measurement of frequency signals.
• Easy Installation
DIN rail mounting simplifies installation and maintenance.
• Scalable System Expansion
Supports modular expansion in complex automation systems.
