Product Introduction

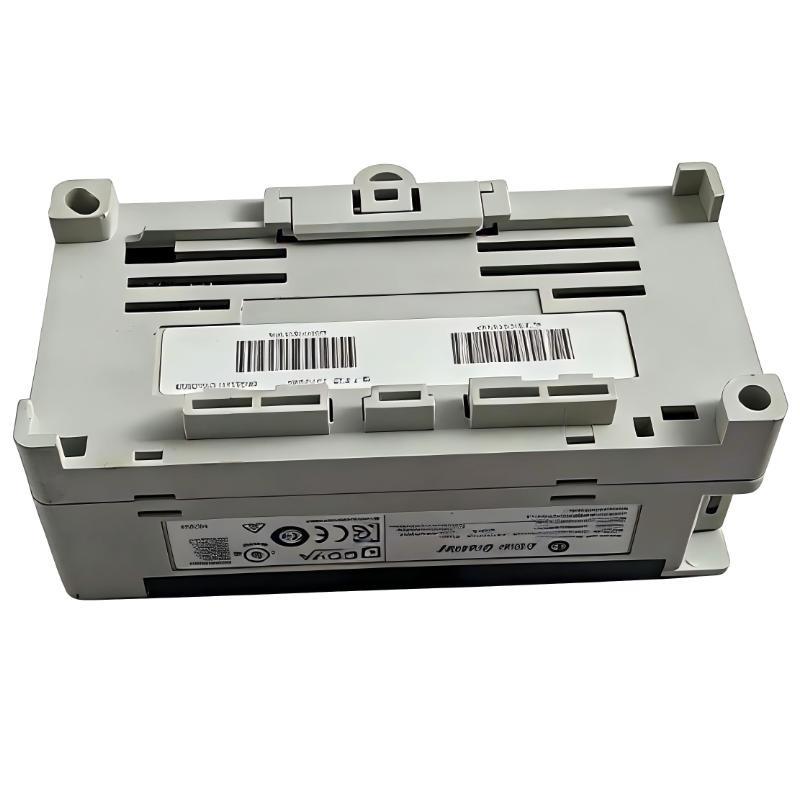

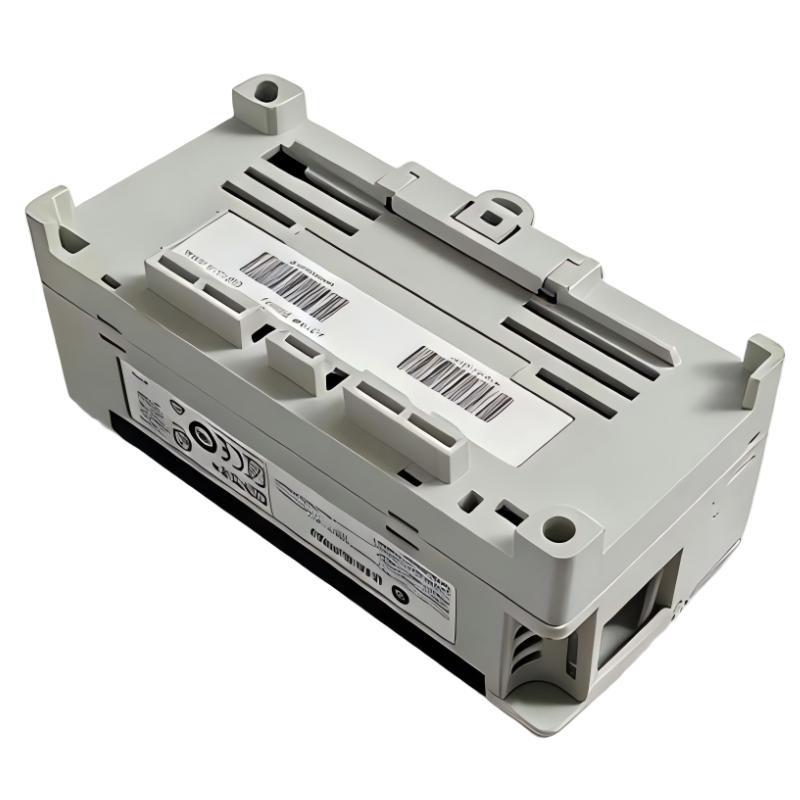

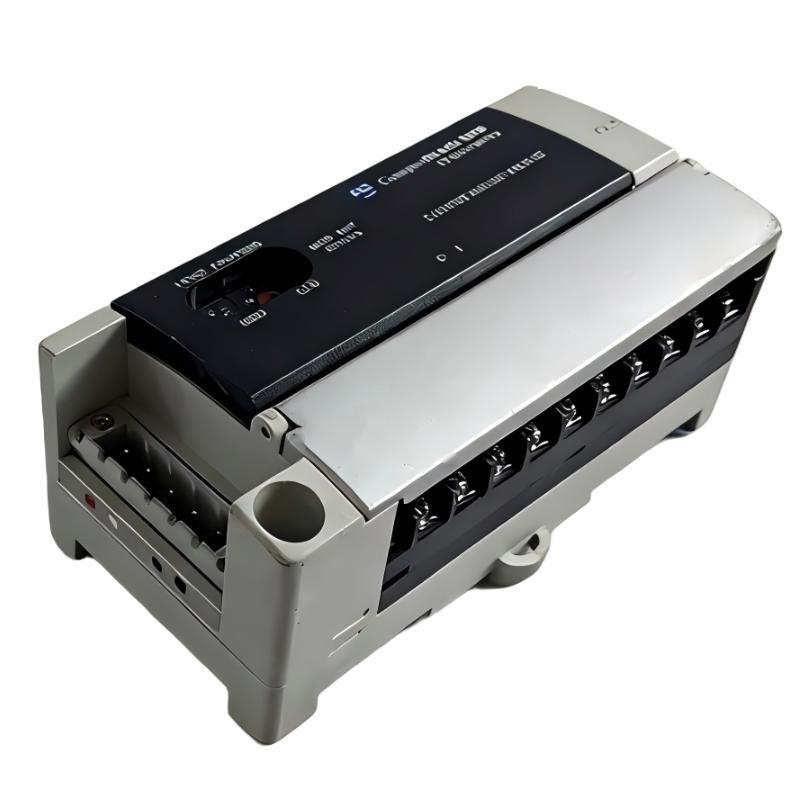

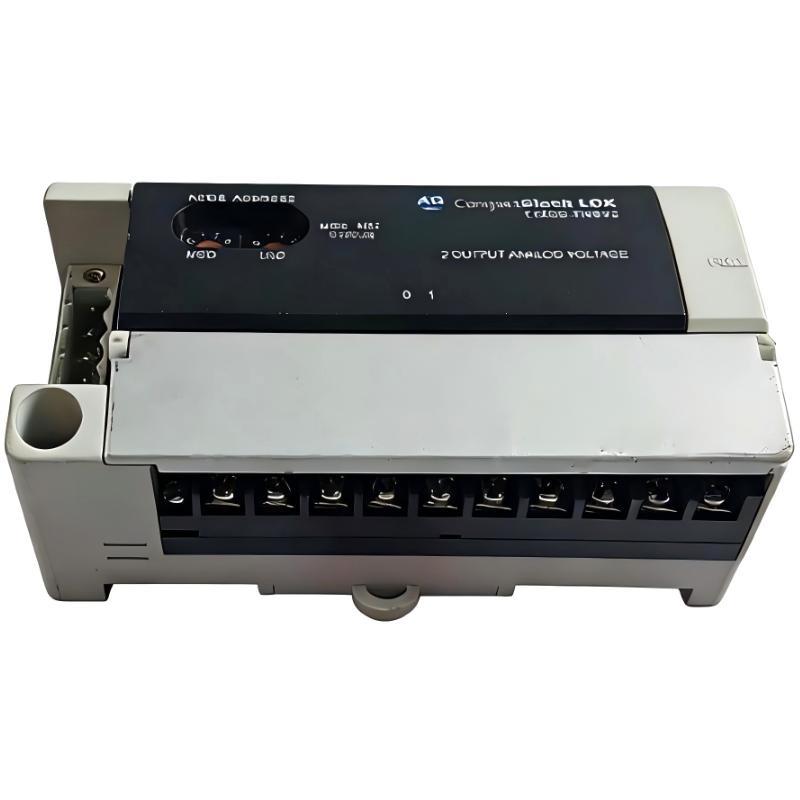

The Allen-Bradley 1790D-TN0V2 CompactBlock LDX I/O Base Block Module is a compact analog output module designed for distributed industrial automation systems. Manufactured by Rockwell Automation under the Allen-Bradley product line, it belongs to the CompactBlock LDX series and provides reliable analog signal control at the machine level.
The module features 2 single-ended analog output channels, which allow the control system to send 0–10 VDC signals to actuators, valves, or other analog devices. Designed for DeviceNet distributed networks, the 1790D-TN0V2 enables analog outputs to be managed close to the equipment, reducing long wiring runs and improving installation efficiency.
Its open-style construction with an IP20 rating makes it suitable for mounting inside industrial control cabinets. With its compact size and integrated analog output functionality, the module provides a practical solution for controlling analog devices in machine automation and process control applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | Allen-Bradley 1790D-TN0V2 |
| Product Type | CompactBlock LDX I/O Base Block Module |
| Analog Outputs | 2 Channels |
| Output Configuration | Single-Ended Voltage Output |
| Output Range | 0–10 VDC |
| Communication Protocol | DeviceNet |
| Module Style | Open Style |
| Mounting Method | Panel Mount |
| Enclosure Rating | IP20 |
| Application Environment | Industrial automation systems |
| Dimensions | 104 × 42 × 52 mm |
| Weight | 0.1 kg |
Applications
• Industrial Process Control
Provides analog control signals to valves, actuators, and proportional devices in process systems.
• Machine Automation Systems
Controls analog devices such as motors, positioning drives, and variable equipment.
• DeviceNet Distributed I/O Networks
Integrates analog output functions into decentralized automation architectures.
• OEM Industrial Equipment
Installed in machine control panels to deliver precise analog outputs close to equipment.
• Factory Automation Lines
Used to manage analog actuation for automated production equipment.
• Laboratory or Test Systems
Provides analog output control in measurement and experimental setups.
Advantages
• Compact Mechanical Design
Small footprint allows installation in limited panel space.
• Reliable Analog Output Control
Two analog output channels provide precise 0–10 VDC control signals.
• DeviceNet Network Compatibility
Integrates seamlessly with DeviceNet distributed automation systems.
• Reduced Wiring Requirements
Outputs are located near the equipment, reducing long analog cable runs.
• Flexible Industrial Applications
Compatible with a variety of actuators and analog control devices.
• Stable Industrial Performance
Designed for continuous operation in industrial environments.
