Product Introduction

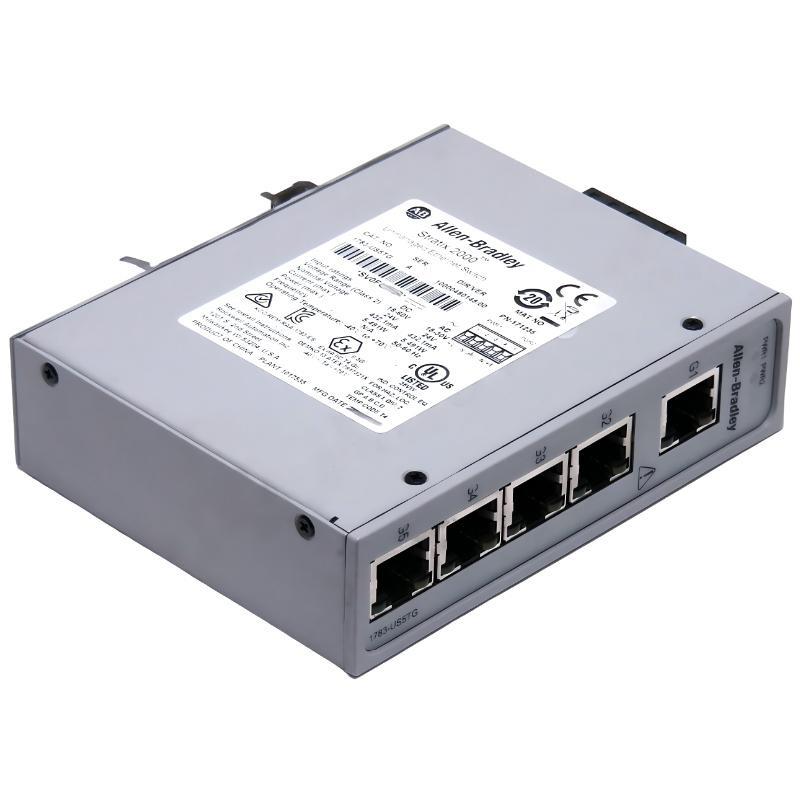

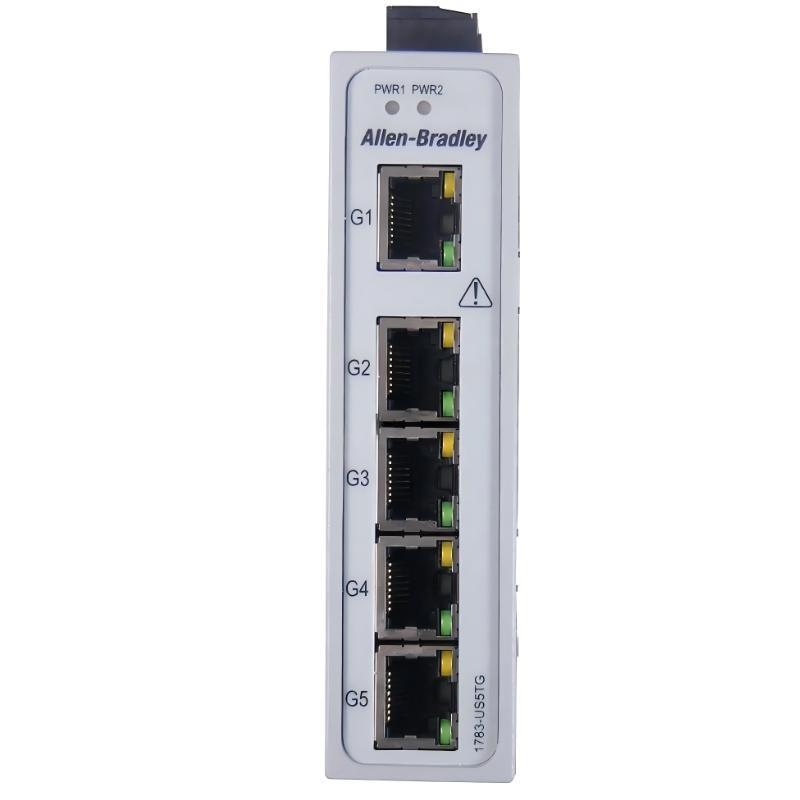

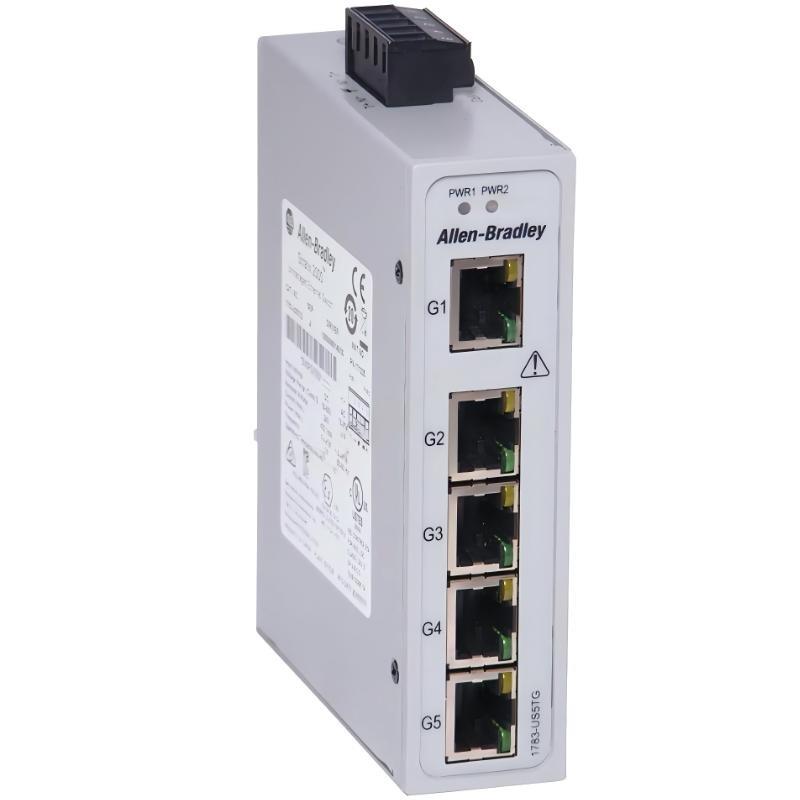

The Allen-Bradley 1783-US5TG Stratix 2000 Unmanaged EtherNet Switch is an industrial unmanaged Ethernet switch designed for high-speed small-to-medium-scale automation networks. Part of the Allen-Bradley Stratix 2000 Ethernet Switch Series, it provides five copper Gigabit ports with autonegotiation, supporting both full and half-duplex communication for reliable industrial connectivity.
This switch is suitable for machine-level networks, small automation cells, and control cabinet installations, offering plug-and-play functionality without configuration. Its wide input voltage range (10–24 V AC or 10–35 V DC) and low power consumption make it energy-efficient and adaptable to various industrial power environments. The 1783-US5TG also meets IP20 enclosure rating, providing protection for indoor industrial applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1783-US5TG |
| Brand | Allen-Bradley |
| Product Type | Unmanaged Industrial Ethernet Switch |
| Series | Stratix 2000 |
| Copper Ports | 5 × 10/100/1000 Mbps (Full/Half Duplex, Auto-negotiation) |
| Input Power Range | 10–24 V AC, 10–35 V DC |
| Power Requirements | 20 V AC / 24 V DC |
| Inrush Current (Max) | 2.2 A |
| Maximum Power Consumption | 4 W (6 VA) |
| Maximum Current | 400 mA at 10 V DC |
| Enclosure Rating | IP20 |
| Mounting Method | DIN Rail or Panel Mount |
| Application Type | Small-to-medium industrial Ethernet networks |
| Dimensions | 114.5 × 29.6 × 76.8 mm |
| Weight | 0.44 kg |
Applications
• Machine-level automation networks
Connects PLCs, HMIs, drives, and other Ethernet-enabled devices in small automation cells.
• High-speed industrial networking
Supports Gigabit communication for reliable data transfer in industrial applications.
• Control cabinet installation

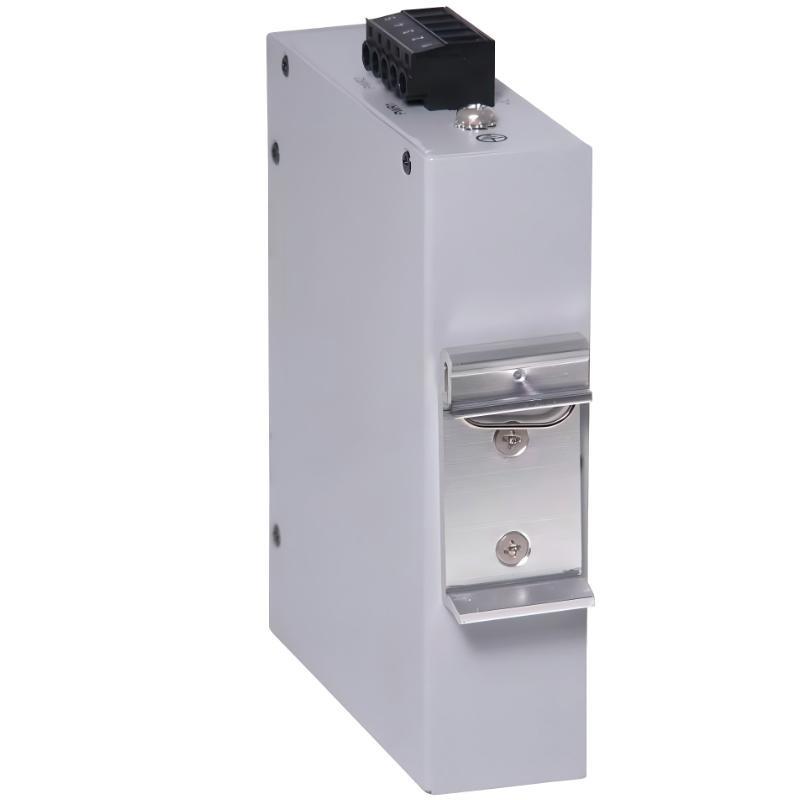

Compact DIN rail mounting design allows integration in automation panels.
• Plug-and-play industrial Ethernet
Unmanaged design enables quick deployment without configuration.
• Indoor industrial environments
IP20-rated enclosure provides suitable protection for indoor installations.
Advantages
• Gigabit Ethernet support
Five copper ports provide 10/100/1000 Mbps speeds with auto-negotiation, ensuring fast and flexible networking.
• Wide voltage compatibility
Operates on 10–24 V AC or 10–35 V DC, supporting various industrial power sources.
• Energy-efficient design
Low maximum power consumption of 4 W and max current of 400 mA.
• Compact industrial footprint
Small size enables installation in tight control cabinets and machine panels.
• Plug-and-play operation
Unmanaged design ensures instant connectivity without configuration.
• Reliable industrial performance
Meets IP20 enclosure rating, providing protection in indoor industrial environments.
