Product Introduction

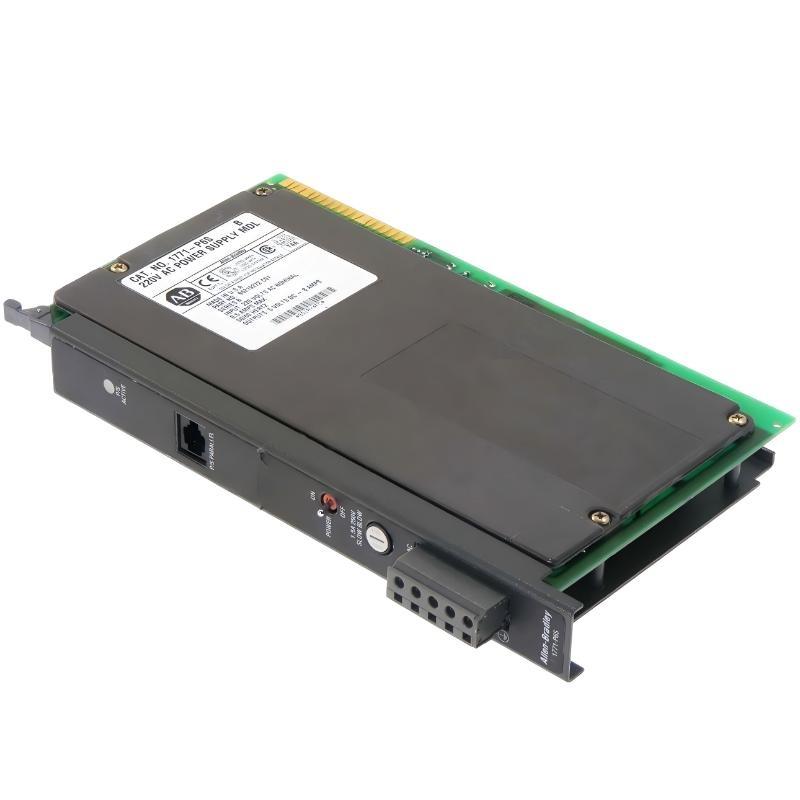

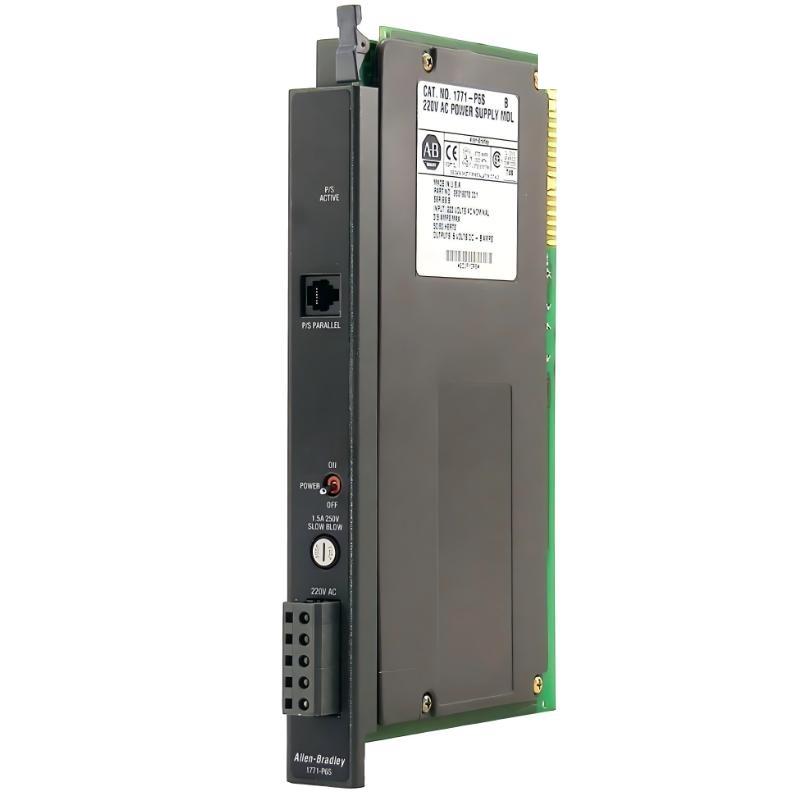

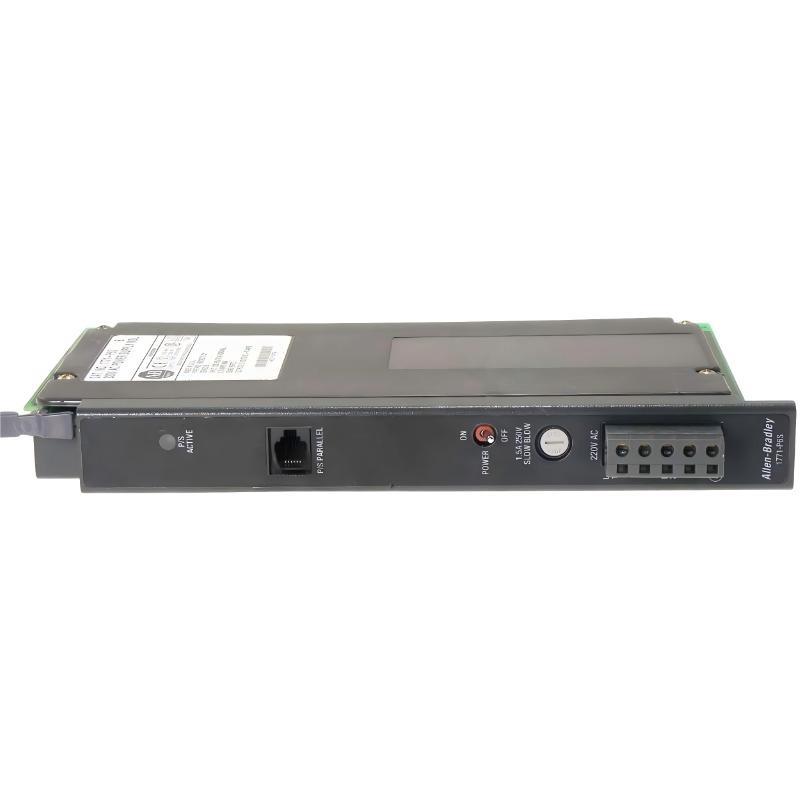

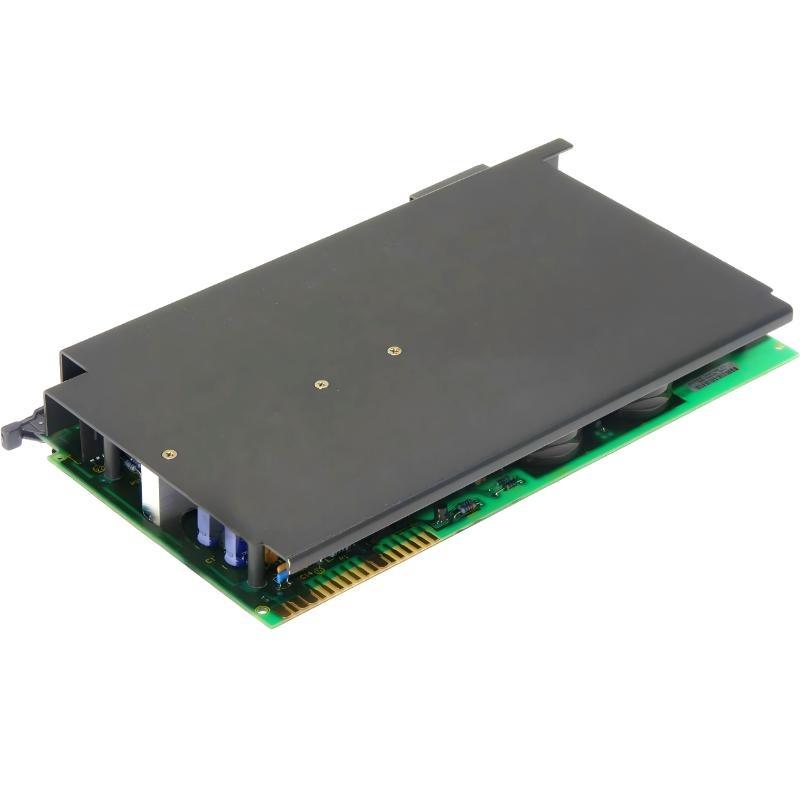

The Allen-Bradley 1771-P6S Power Supply Module is a rack-mounted power module designed for use within the Allen-Bradley 1771 PLC-5 I/O System. Its primary function is to convert AC input power into regulated DC power that supplies the PLC backplane and all installed I/O modules.
The module accepts 220 VAC input power and converts it into a stable 5 VDC output with a current capacity of up to 8 amperes. This power is distributed through the system backplane, allowing digital, analog, and communication modules in the same rack to operate reliably.
Designed for industrial automation environments, the 1771-P6S ensures consistent power delivery for PLC systems controlling machinery, production processes, and monitoring equipment. Its rack-integrated design simplifies installation while maintaining compatibility with existing PLC-5 control architectures.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | 1771-P6S |
| Brand | Allen-Bradley |
| Module Type | Power Supply Module |
| Series | 1771 PLC-5 I/O Series |
| Input Voltage | 220 VAC |
| Input Frequency | 50 / 60 Hz |
| Input Current | 0.5 A |
| Output Voltage | 5 VDC |
| Output Current | 8 A |
| Power Distribution Method | Backplane Power Supply |
| Installation Method | 1771 I/O Chassis Mount |
| Application Type | PLC Rack Power Supply |
| Dimensions | 165 × 51 × 89 mm |
| Weight | 0.9 kg |
Applications
• PLC backplane power supply
The module provides stable 5 VDC power to the 1771 chassis backplane, ensuring that all installed I/O modules receive consistent operating power.
• Industrial automation control systems
Manufacturing equipment and automated production lines rely on PLC racks powered by this module to operate sensors, actuators, and machine control devices.
• Process control environments
Industries such as chemical processing and oil refining use PLC power supplies to support valve control, pump monitoring, and process instrumentation.
• Energy and power generation facilities
Power plants often use PLC-based systems to monitor and control auxiliary equipment, turbine support systems, and safety monitoring devices.
• Infrastructure and utility systems
Water treatment plants and municipal automation systems rely on PLC racks powered by modules like the 1771-P6S to maintain continuous monitoring and operational control.
Advantages
• Stable DC backplane output
The module provides regulated 5 VDC output with an 8-amp capacity, ensuring reliable power delivery to multiple I/O modules.
• Reliable AC-to-DC power conversion
Its internal circuitry converts AC input power into stable DC output, supporting consistent PLC system operation.
• Industrial-grade design
The module is designed for environments where electrical noise, load variation, and environmental stress are common.
• Direct rack integration
The unit installs directly into the PLC rack and distributes power through the system backplane without additional wiring complexity.
• Supports multiple module configurations
With its output capacity, the module can power several digital and analog I/O modules within a single rack.
• Compatibility with PLC-5 control systems
The module integrates seamlessly into the 1771 PLC-5 platform, making it suitable for system maintenance, upgrades, and long-term operation.
