Product Introduction

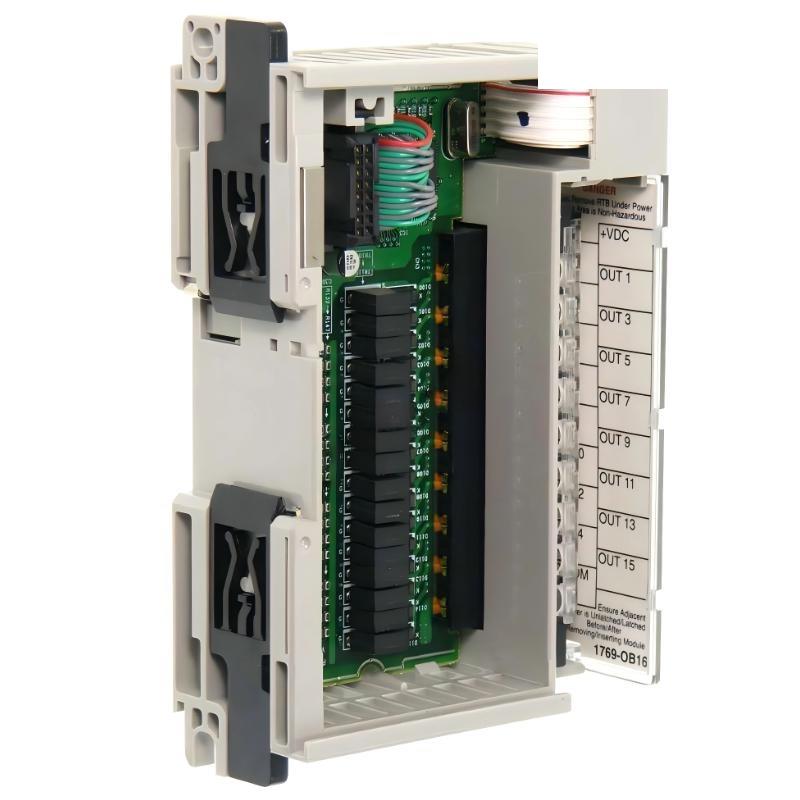

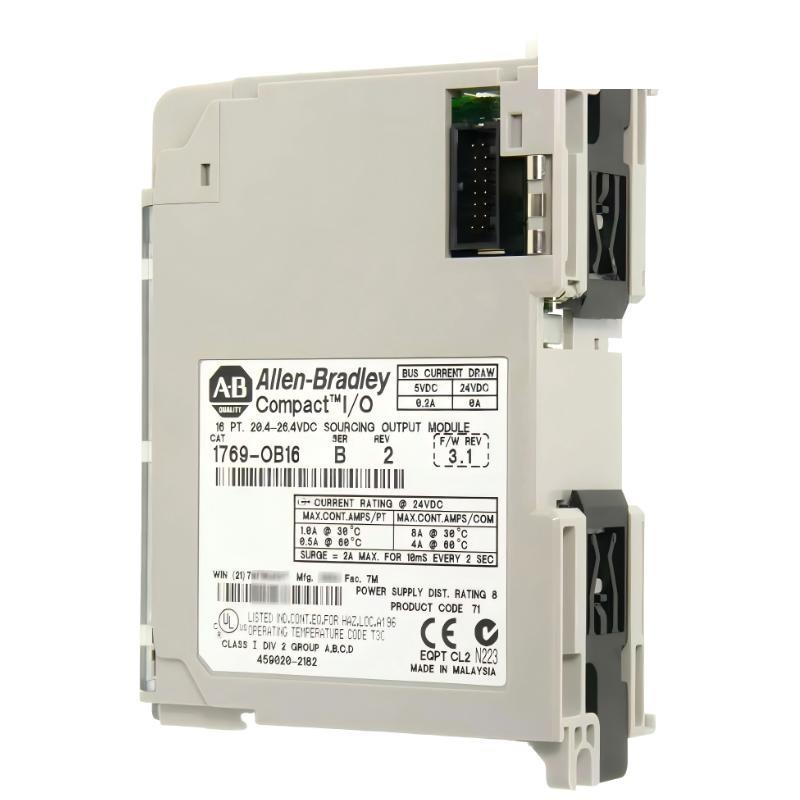

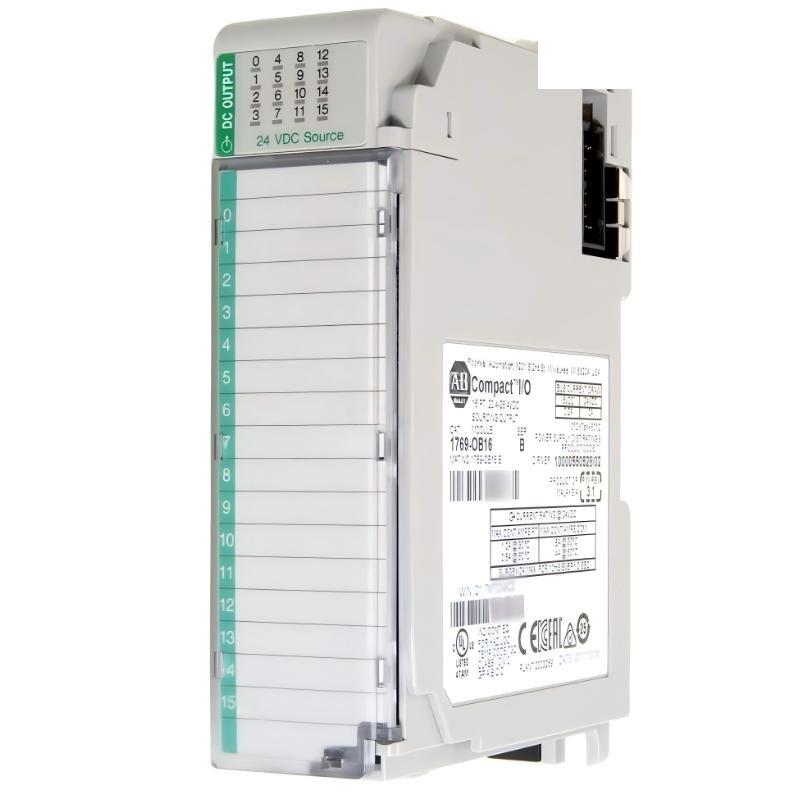

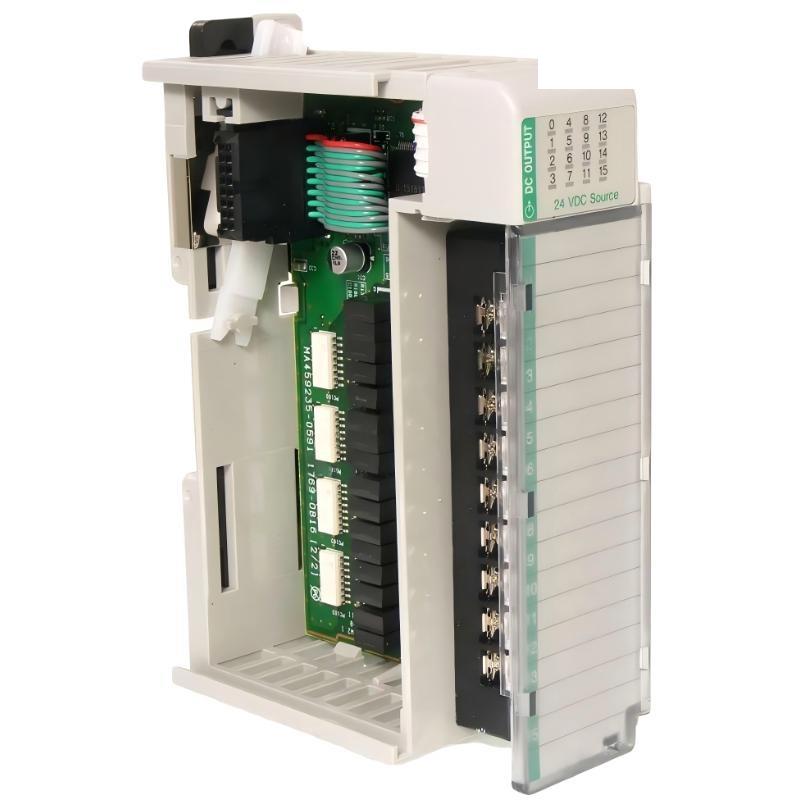

The Allen Bradley 1769-OB16 CompactLogix 16 Point Sourcing Output Module is a high-performance discrete DC output module designed for the CompactLogix control platform. It provides 16 sourcing digital output channels, enabling the controller to drive various field devices such as relays, contactors, solenoid valves, and indicator lights. The module is widely used in machine automation and industrial control systems where stable and fast DC switching is required.
This module operates at a nominal voltage of 24 VDC with an allowable operating range of 20.4 to 26.4 VDC, ensuring compatibility with common industrial power supplies. Each output point is capable of delivering up to 1.0 A at 30 °C or 0.5 A at 60 °C, allowing it to control a wide range of DC loads. With extremely fast switching characteristics, the module features an output ON delay of 0.1 ms and OFF delay of 1.0 ms, supporting applications where rapid response is important.
The 1769-OB16 is designed for seamless integration with CompactLogix controllers and other 1769 I/O modules. Its efficient design minimizes power consumption, drawing a maximum of 200 mA from the backplane, while maintaining low heat dissipation. These characteristics make it a reliable solution for compact automation systems requiring multiple DC outputs.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1769-OB16 |
| Product Type | CompactLogix DC Sourcing Output Module |
| Number of Outputs | 16 |
| Operating Voltage | 20.4–26.4 VDC (24 VDC nominal) |
| Current per Point | 1.0 A at 30 °C; 0.5 A at 60 °C |
| Output Delay (On) | 0.1 ms |
| Output Delay (Off) | 1.0 ms |
| Backplane Current Draw (Max) | 200 mA |
| Heat Dissipation | 2.11 W |
| Wire Size | 22–14 AWG |
| Mounting Method | DIN Rail / Panel Mount |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.28 kg |
Applications
• Machine automation control
Used to control solenoid valves, relays, and contactors in automated production machinery.
• Conveyor and material handling systems
Provides reliable switching for motors, actuators, and signaling devices in logistics and conveyor systems.
• Packaging and assembly equipment
Supports high-speed control of pneumatic valves and electromechanical components used in packaging lines.
• Industrial process control
Allows precise digital output control for pumps, actuators, and field devices within process automation systems.
• OEM equipment integration
Ideal for machine builders requiring compact, reliable DC output modules in modular control architectures.
Advantages
• High channel density
Provides 16 discrete sourcing outputs in a single compact module, reducing panel space and system complexity.
• Fast switching performance
Very short output delays (0.1 ms ON / 1.0 ms OFF) support high-speed automation processes.
• Stable DC operation
Operates within a wide 24 VDC industrial voltage range, ensuring compatibility with common power supplies.
• Efficient power consumption
Low backplane current draw reduces load on the CompactLogix controller and improves system efficiency.
• Reliable industrial design
Built for continuous operation in industrial environments, ensuring long-term stability and consistent performance.
