Product Introduction

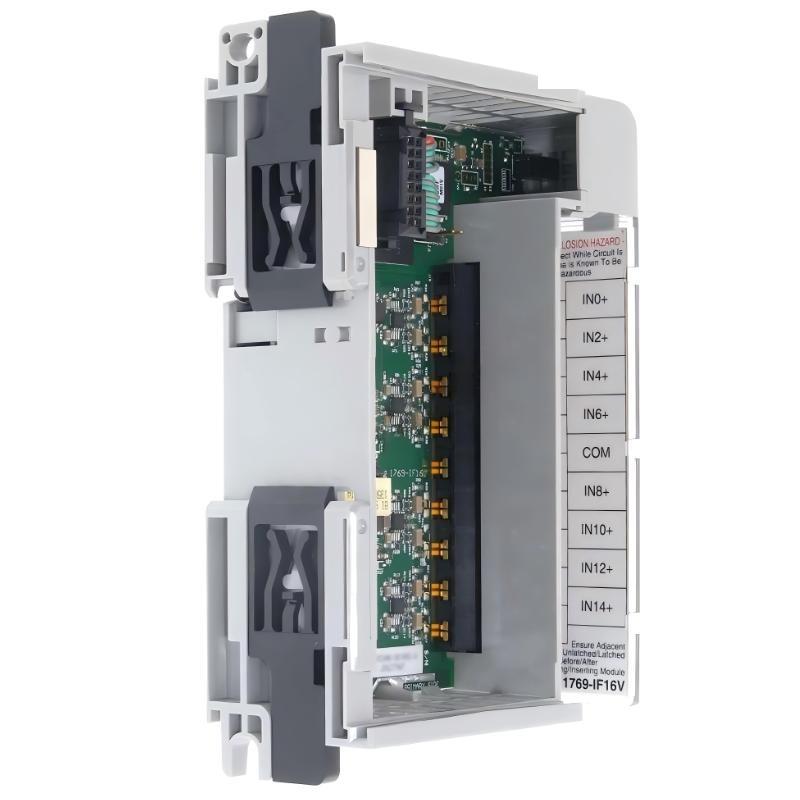

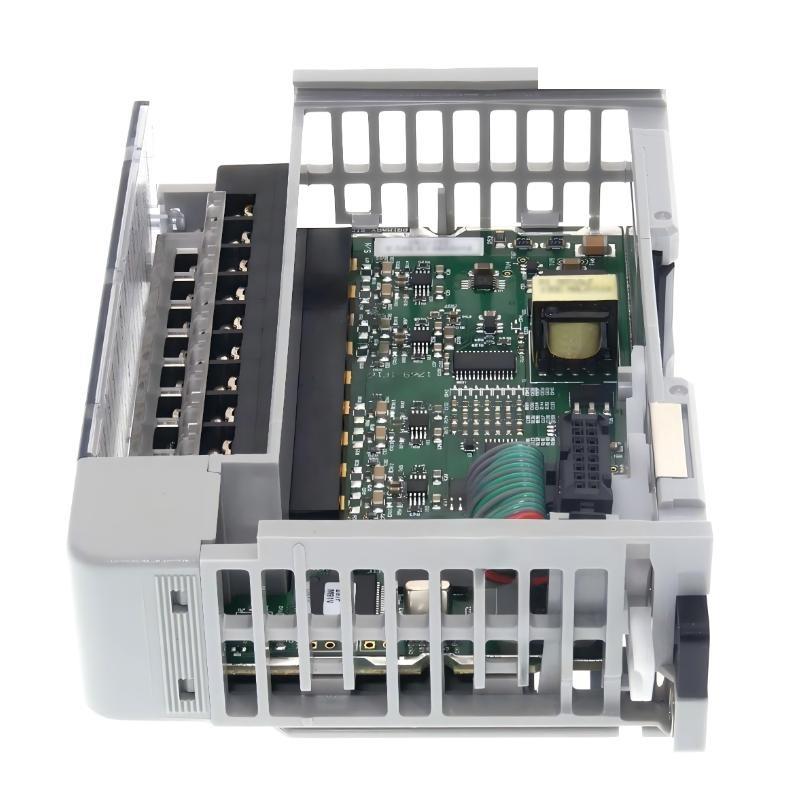

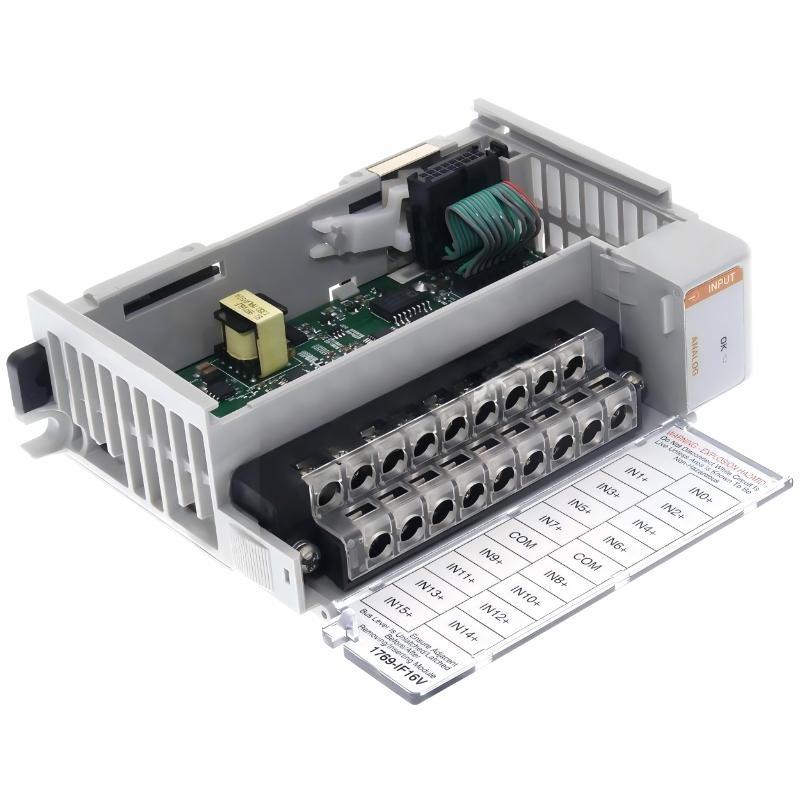

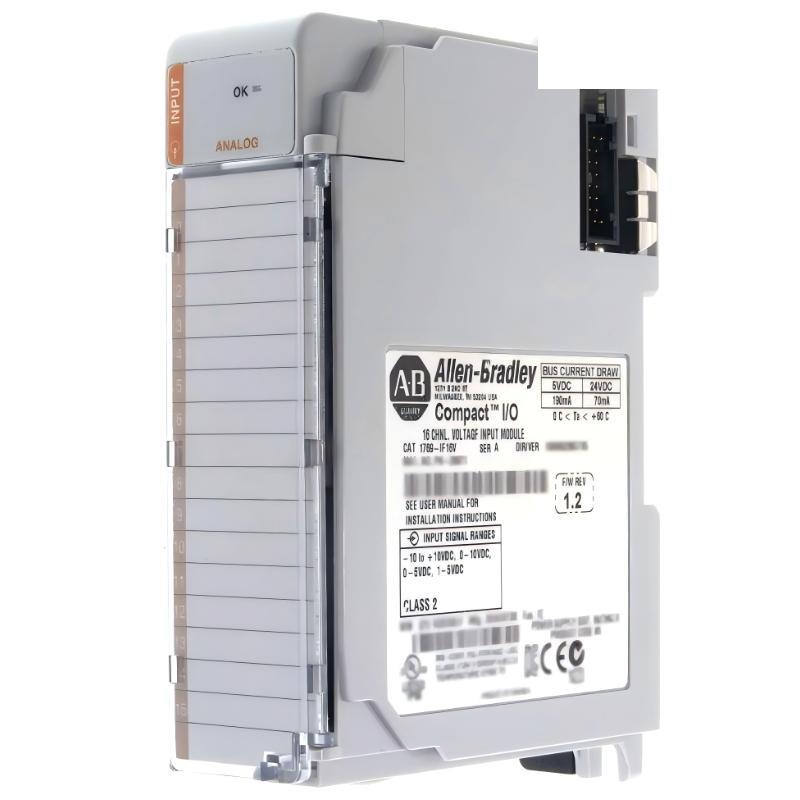

The Allen Bradley 1769-IF16V CompactLogix High-Density Analog Voltage Input Module is a 16-channel voltage input module designed for the 1769 Compact I/O platform. This module is optimized for applications requiring multiple analog voltage inputs within a compact form factor, allowing high-density signal acquisition without increasing panel space.
Each of the 16 channels provides 16-bit resolution, ensuring precise measurement and conversion of analog voltage signals for the CompactLogix controller. The 1769-IF16V supports input voltages up to 30 VAC/DC, making it suitable for a wide range of low-voltage industrial sensors, transducers, and measurement devices.
Engineered for reliability in industrial automation, this module allows high-speed data acquisition and seamless integration with other 1769 Compact I/O modules. It is ideal for applications such as process monitoring, machine control, manufacturing lines, and distributed analog measurement systems, where multiple voltage signals must be captured accurately and processed efficiently by the controller.
The compact design enables easy installation in dense control cabinets, while maintaining robust backplane communication with the controller. Its high channel count reduces the need for multiple smaller modules, minimizing wiring complexity and improving system organization.
Product Specifications
| Parameter | Description |
|---|---|
| Manufacturer | Allen Bradley |
| Model | 1769-IF16V |
| Product Type | High-Density Analog Voltage Input Module |
| Series | CompactLogix 1769 I/O |
| Number of Channels | 16 Channels |
| Input Type | Voltage only |
| Voltage Range | Up to 30 VAC/DC |
| Resolution | 16 Bit |
| Data Conversion | High-precision A/D conversion |
| Power Supply | 24 VDC |
| Isolation Voltage | 30 V Continuous |
| Mounting | CompactLogix / DIN Rail |
| Communication | Compact I/O Bus |
| Operating Temperature | 0–60 °C |
| Dimensions | 118 × 35 × 87 mm |
| Weight | 0.281 kg |
Applications
• High-density voltage acquisition – Captures up to 16 analog voltage signals in a single module.
• Process monitoring – Interfaces with sensors measuring pressure, temperature, flow, and level.
• Machine automation systems – Monitors analog voltage signals from actuators and control devices.
• Manufacturing production lines – Provides accurate analog voltage data for real-time control of machinery.
• Distributed I/O systems – Integrates multiple high-density modules in CompactLogix networks for complex signal acquisition.
• Energy and utilities monitoring – Measures analog voltage from instrumentation in power distribution and process systems.
Advantages
• High channel density – 16 analog voltage inputs reduce the need for multiple modules.
• Precise 16-bit resolution – Ensures accurate measurement and signal processing.
• Voltage-only design – Simplifies installation for voltage-based sensors and devices.
• Compact form factor – Fits efficiently in control cabinets with limited space.
• Seamless integration – Fully compatible with CompactLogix 1769 I/O systems.
• Reliable industrial operation – Supports stable analog input acquisition in standard industrial conditions.
• Reduced wiring complexity – High-density input reduces panel wiring and improves organization.
