Introduction

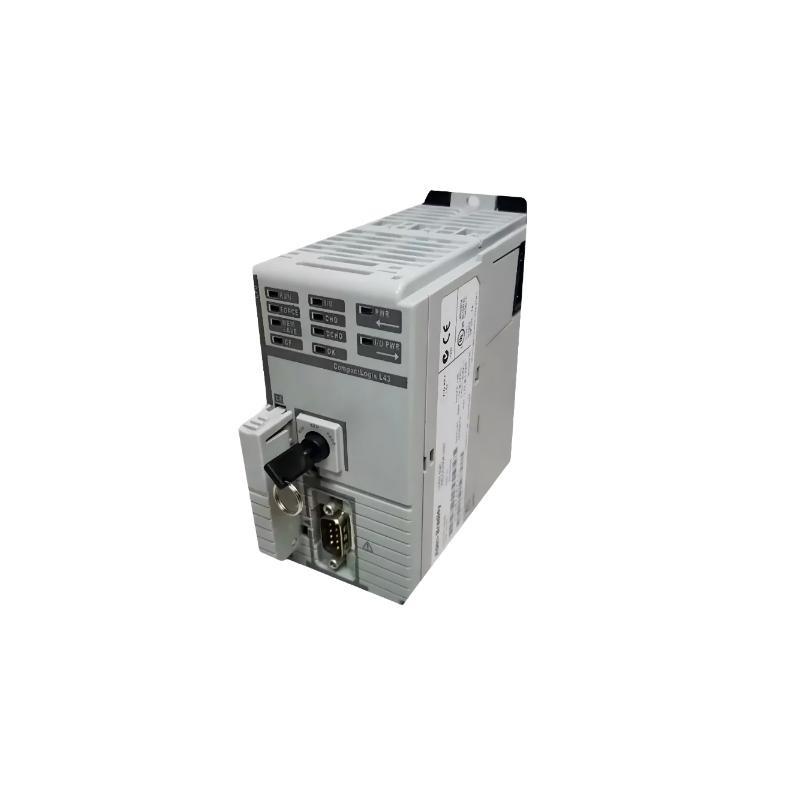

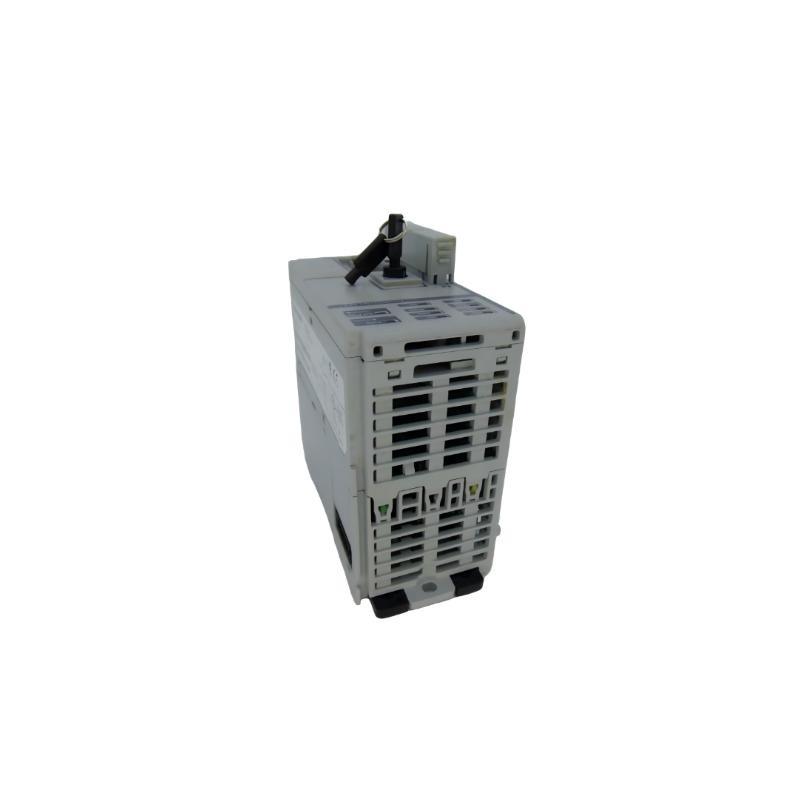

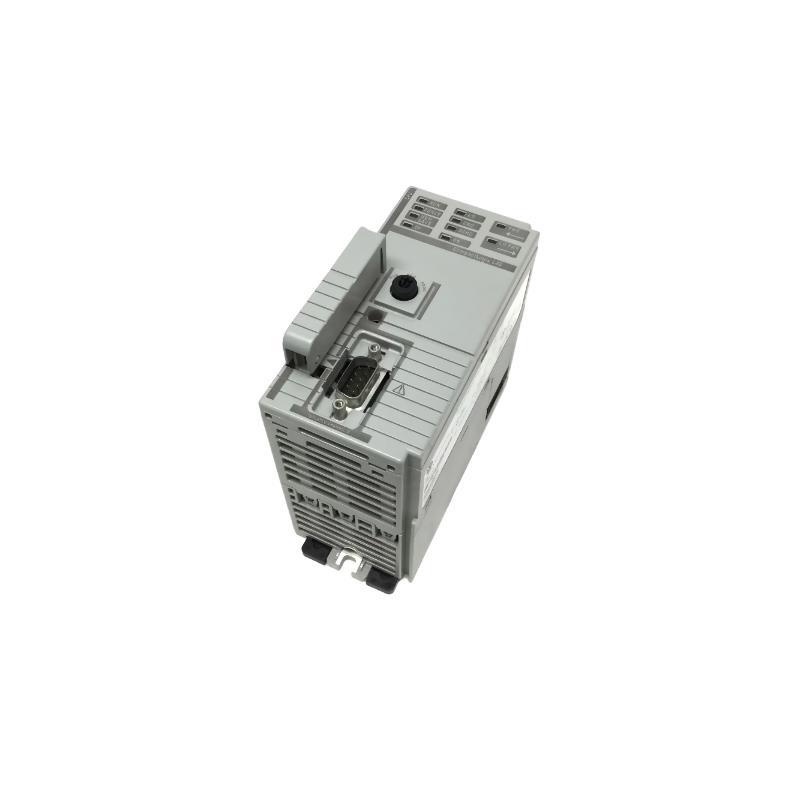

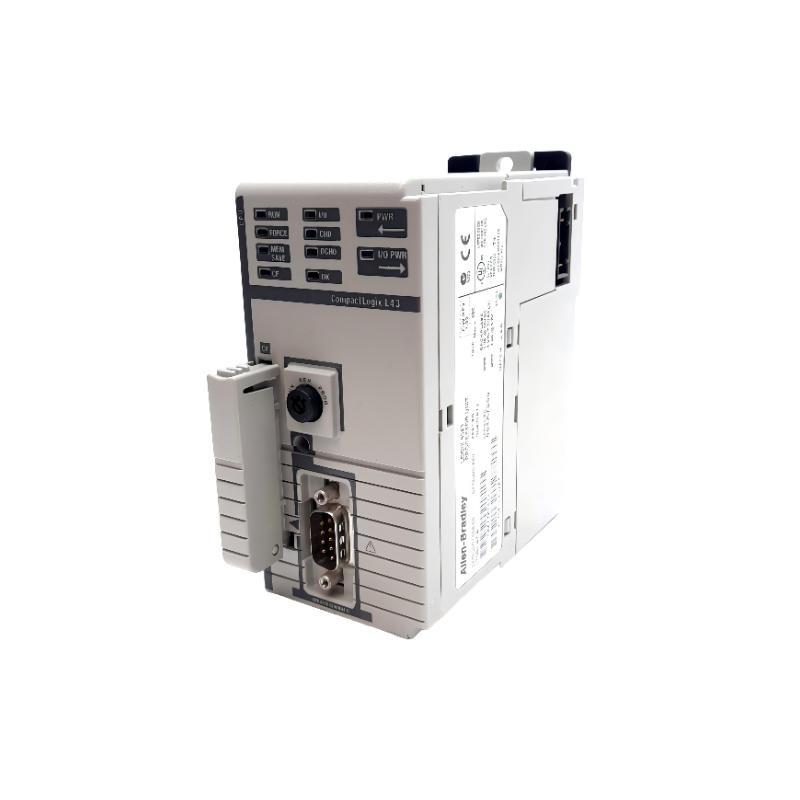

The Allen Bradley 1768-L43 is a CompactLogix L43 processor module designed to deliver high-speed performance, flexible communication, and motion control capabilities within mid-sized automation systems. This controller integrates 1768-series communication modules and 1769 I/O modules, providing a scalable architecture suitable for both standalone machines and distributed control networks.
Engineered for applications that demand precision, speed, and modularity, the 1768-L43 serves as a powerful bridge between CompactLogix and ControlLogix platforms, supporting motion, safety, and network integration in a single control environment.
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Processor Type | CompactLogix L43 | Mid-range programmable automation controller (PAC) |
| User Memory | 2 MB | Provides large program and data storage for advanced applications |
| Nonvolatile Memory | 1784-CF64 (64 MB CompactFlash card) | Optional memory for data retention |
| Communication Ports | 1 × RS-232 / RS-485, 1 × Ethernet, 1 × USB | Multi-protocol connectivity for devices and networks |
| Motion Control Support | Yes (up to 4 axes via 1768-M modules) | Integrated motion synchronization |
| Programming Software | RSLogix 5000 / Studio 5000 | Supports modern programming environments |
| Communication Protocols | EtherNet/IP, DF1, ASCII | Enables flexible and open communication |
| I/O Module Support | 1769 Compact I/O modules | Supports up to 16 local I/O modules |
| Task Execution Rate | 0.5 ms typical | High-speed logic scan for real-time control |
| Power Supply | 24 V DC | External power input through the 1768-PA3 supply |
| Current Draw (5 V DC) | 1.0 A typical | Consumed via the 1768 backplane |
| Operating Temperature | 0°C to +60°C (32°F to 140°F) | Industrial operating range |
| Storage Temperature | -40°C to +85°C (-40°F to 185°F) | Non-operational storage limit |
| Humidity | 5%–95% non-condensing | Designed for harsh factory conditions |
| Shock Resistance | 30 g operational | Complies with IEC 60068-2-27 |
| Vibration Resistance | 5–2000 Hz @ 1 g | Meets industrial durability standards |
| Dimensions (H × W × D) | 140 mm × 90 mm × 110 mm (5.5″ × 3.5″ × 4.3″) | Compact modular design |
| Weight | 0.65 kg (≈1.43 lbs) | Lightweight and easy to install |
Applications
The 1768-L43 CompactLogix controller is tailored for applications requiring high-speed control, motion coordination, and flexible network communication. Common use cases include:
-
Motion Control Systems – Ideal for packaging, printing, and assembly lines requiring multi-axis synchronization.
-
Machine Automation – Handles complex sequencing, interlocks, and real-time feedback for discrete machines.
-
Material Handling Systems – Coordinates conveyors, sensors, and actuators across Ethernet networks.
-
Process Control – Manages analog I/O for batch or continuous process systems.
-
OEM Equipment Integration – Offers compact design and open communication protocols for easy machine integration.
-
SCADA Integration – Communicates directly with HMIs, data loggers, and SCADA systems via EtherNet/IP.
Advantages
-
High-Speed Logic and Motion Control: Executes logic in sub-millisecond intervals and integrates up to 4 motion axes.
-
Dual-Bus Architecture: Supports 1768 and 1769 modules simultaneously for flexible I/O and communication expansion.
-
Open Communication: EtherNet/IP and serial ports allow integration with third-party devices and remote systems.
-
Compact Modular Design: Small footprint saves panel space while maintaining expandability.
-
Data Security and Backup: Optional CompactFlash card enables program storage and easy replacement.
-
Advanced Programming: Compatible with Studio 5000 for structured programming, tag-based addressing, and diagnostics.
-
Energy Efficient: Low power consumption with wide operating voltage and thermal tolerance.
-
Seamless Integration: Part of Rockwell Automation’s Logix architecture for unified control solutions.
