Product Introduction

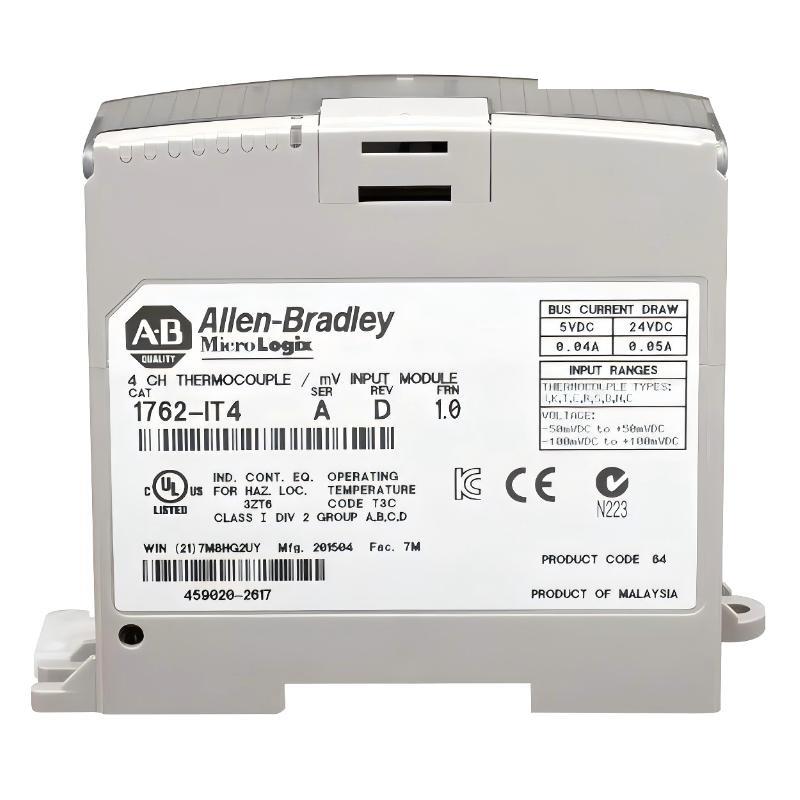

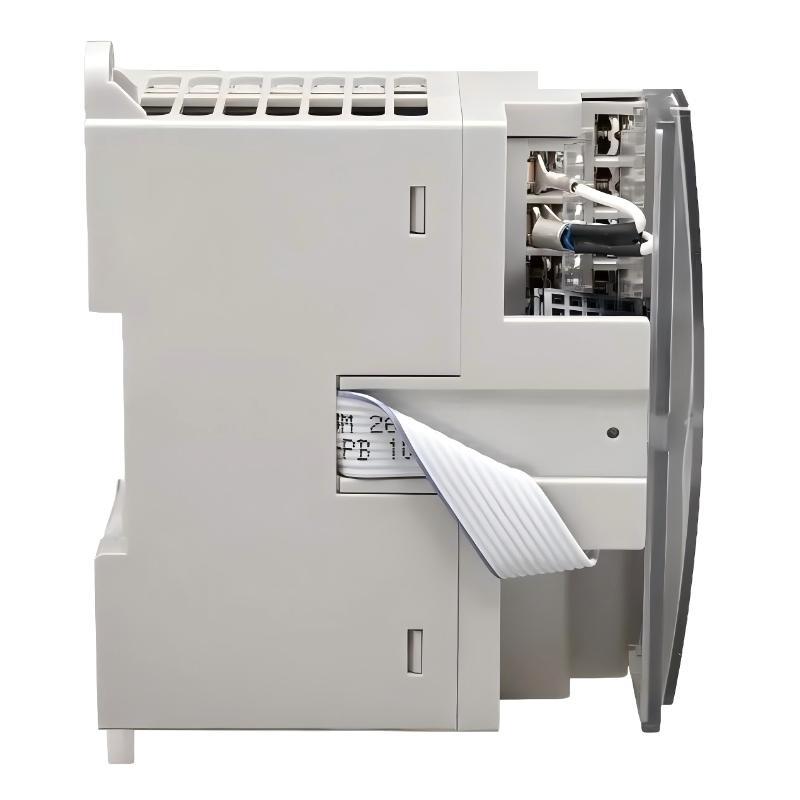

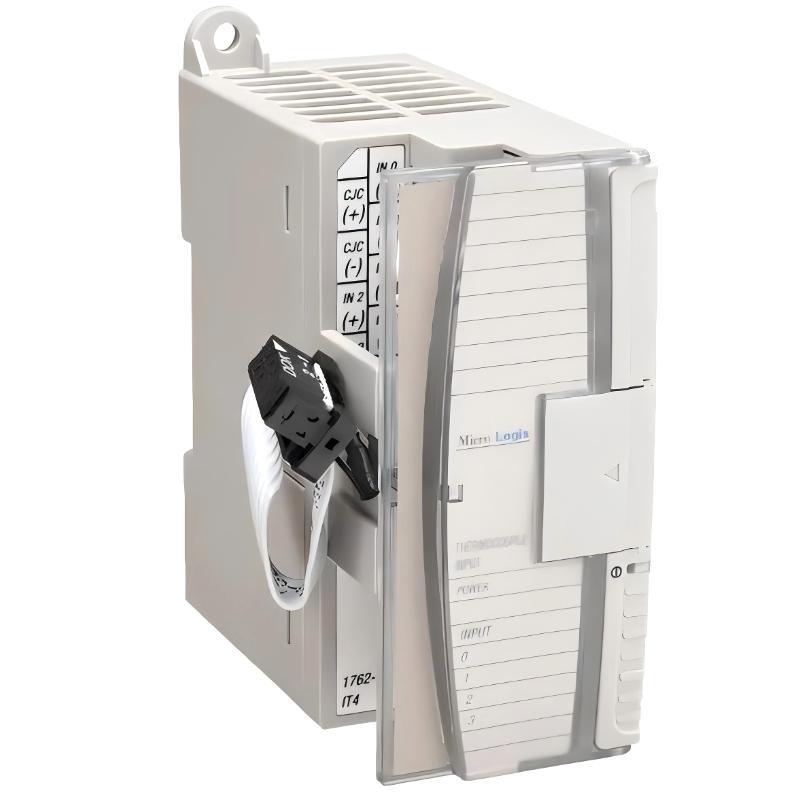

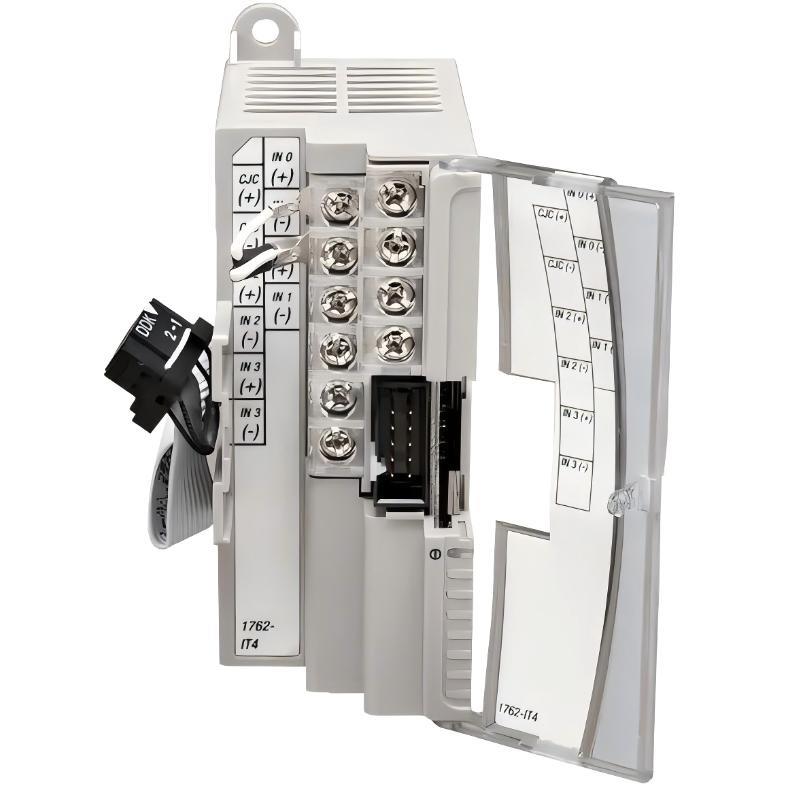

The Allen Bradley 1762-IT4 MicroLogix 1200 Thermocouple/MV Input Module is a specialized analog input module designed for MicroLogix controllers. Manufactured by Allen-Bradley, this module provides four high-resolution channels capable of measuring thermocouple and millivolt (mV) signals, allowing precise temperature monitoring and process measurement.
The 1762-IT4 is ideal for applications requiring accurate thermal data acquisition and analog output control. Each channel features 15-bit resolution for high precision, and the module supports integration with 4 analog outputs for downstream process control. Its compact DIN rail-mounted design ensures easy installation and seamless integration with MicroLogix 1200 systems.
With robust industrial construction and a reliable operating temperature range, the module is suitable for process control, laboratory automation, and industrial machinery requiring accurate temperature monitoring.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Thermocouple / mV Input Module |
| Number of Channels | 4 |
| Input Type | Thermocouple or millivolt signals |
| Module Resolution | 15-bit |
| Analog Outputs | 4 |
| Operating Voltage | 5/24 VDC |
| Operating Temperature | 0–55 °C |
| Mounting | DIN Rail |
| Dimensions | 90 x 87 x 40 mm |
| Weight | 0.22 kg |
Applications
• Temperature Monitoring – Measures process and machine temperatures using thermocouples.
• Industrial Process Control – Provides high-resolution analog input for precise process adjustments.
• Laboratory Automation – Monitors thermal conditions in test and experimental setups.
• OEM Machinery – Integrates temperature and millivolt signal measurement in compact control systems.
• Analog Output Control – Supports four analog outputs for actuating process devices based on measured values.
Advantages
• High Precision Measurement – 15-bit resolution ensures accurate readings from thermocouples and mV sensors.
• Multi-Channel Capability – Four independent input channels allow simultaneous monitoring.
• Analog Output Integration – Supports four outputs for control applications.
• Compact DIN Rail Design – Saves panel space and simplifies installation.
• Reliable Industrial Performance – Operates effectively in 0–55 °C environments.
• Seamless MicroLogix Integration – Compatible with MicroLogix 1200 control systems.
