Product Introduction

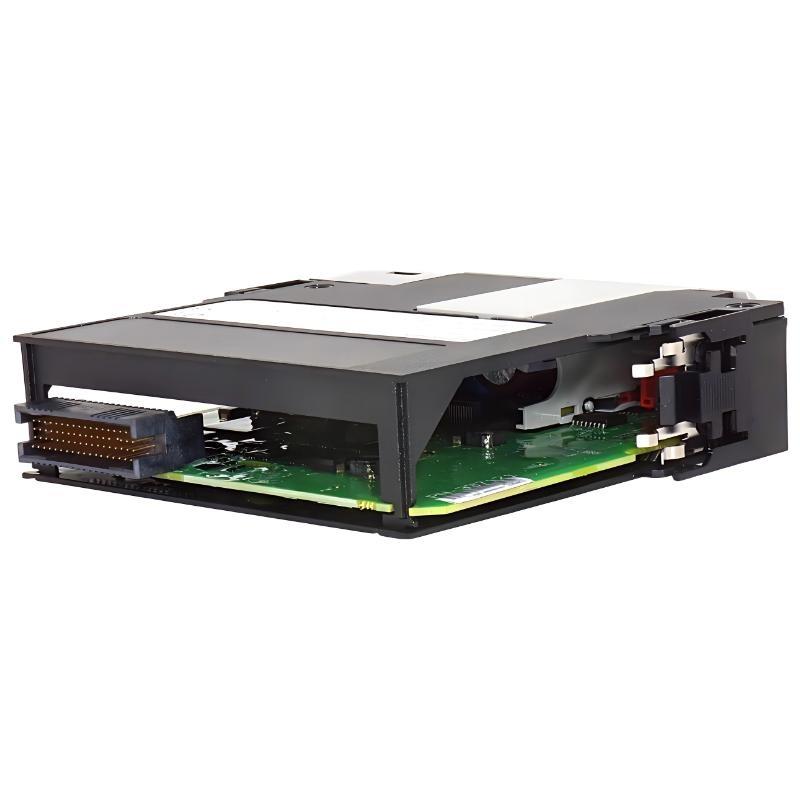

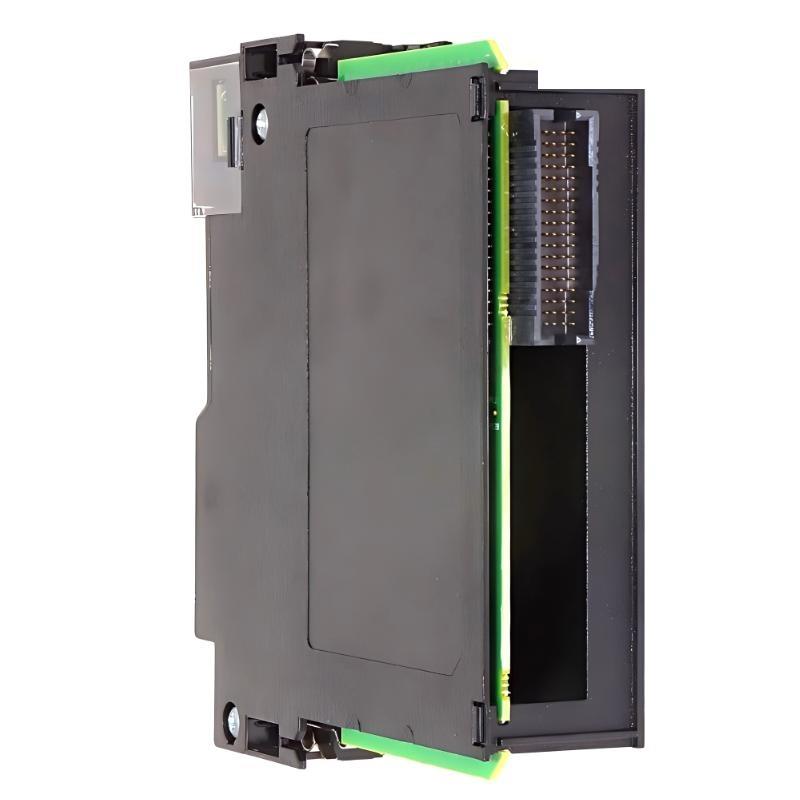

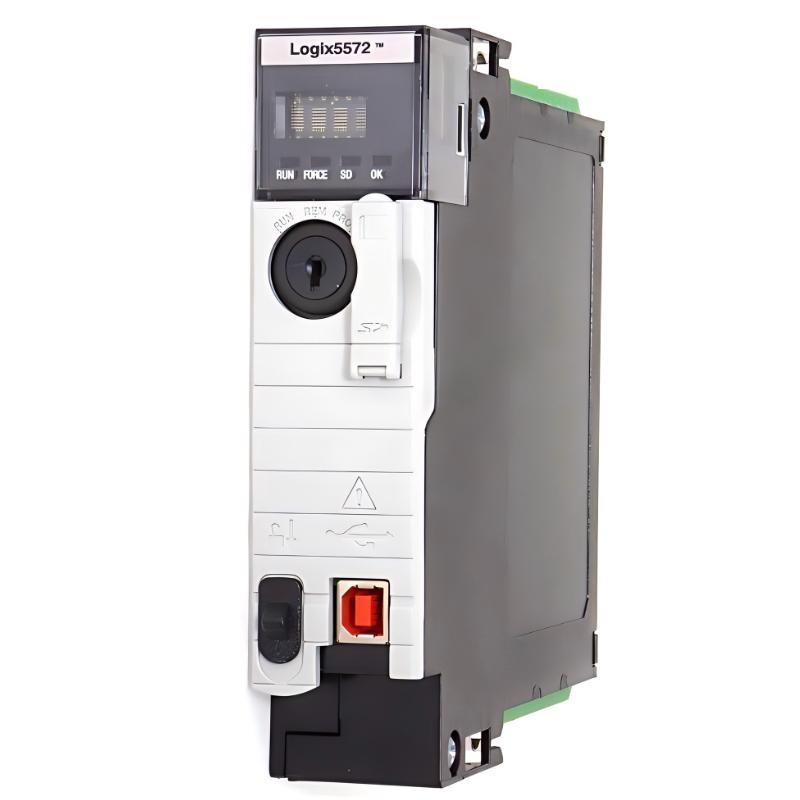

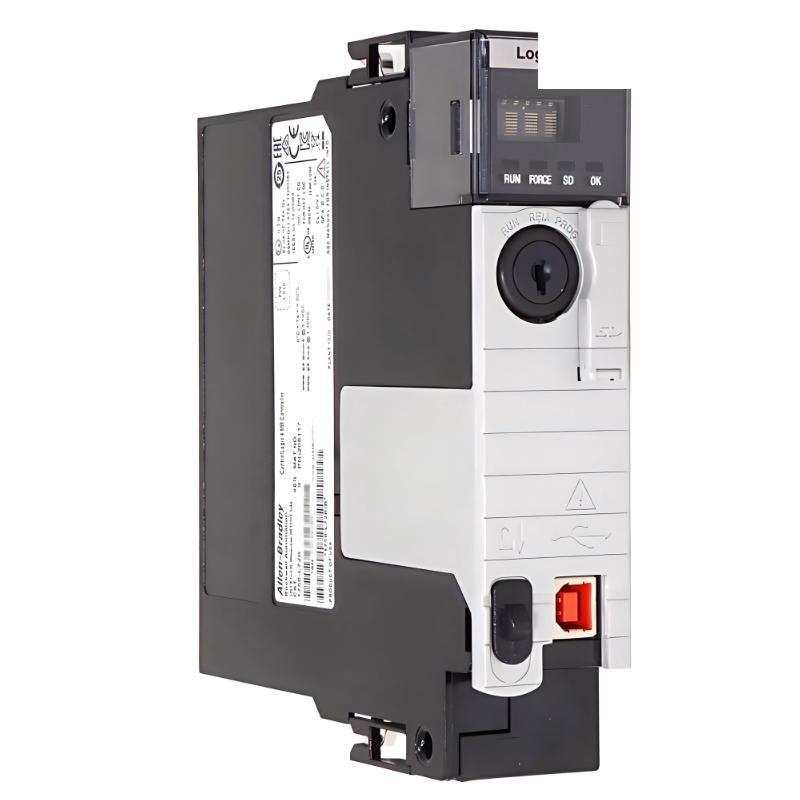

The Allen-Bradley 1756-L72K ControlLogix Logix5572 Processor is a high-performance industrial controller designed for complex automation systems that require advanced processing capabilities, high communication capacity, and enhanced environmental durability. As part of the Logix5570 series, it offers improved performance, expanded memory, and flexible system integration.
This processor is equipped with 4 MB of user memory and 0.98 MB of I/O memory, enabling it to efficiently manage large control programs and high volumes of I/O data. It supports up to 500 controller connections, making it ideal for distributed and network-intensive automation architectures.
The 1756-L72K features conformal coating for increased resistance to harsh environmental conditions such as humidity, dust, and corrosive atmospheres. It also includes a built-in USB port for fast programming and configuration, along with a 4-character alphanumeric display for quick status monitoring and diagnostics. Fully compatible with the ControlLogix platform, it ensures reliable operation in demanding industrial applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1756-L72K |
| Brand | Allen-Bradley |
| Product Type | ControlLogix Logix5572 Processor |
| User Memory | 4 MB |
| I/O Memory | 0.98 MB |
| Maximum Controller Connections | 500 |
| Display | 4-character alphanumeric display |
| Programming Interface | 1 × USB port |
| Coating Type | Conformal coated |
| Backplane Current (1.2 VDC) | 5 mA |
| Backplane Current (5.1 VDC) | 800 mA |
| Controller Platform | Logix5572 |
| System Integration | ControlLogix chassis |
| Operating Temperature | 0 to 60°C |
| Dimensions | 145.2 × 34.6 × 139.6 mm |
| Weight | 0.25 kg |
Applications
● Large-scale distributed control systems
Used in systems requiring extensive communication between multiple controllers and devices.
● High-performance manufacturing systems
Suitable for complex production lines with large program sizes and high I/O demands.
● Process automation industries
Ensures reliable control in continuous processes such as chemical, oil & gas, and power generation.
● Harsh industrial environments
Ideal for applications exposed to dust, humidity, and corrosive conditions due to conformal coating.
● Network-intensive automation architectures
Supports high numbers of controller connections for advanced system integration and data exchange.
Advantages
● High memory capacity
4 MB user memory supports large-scale and complex control applications.
● Strong communication capability
Supports up to 500 controller connections, enabling extensive network integration.
● Enhanced environmental protection
Conformal coating ensures reliable operation in harsh industrial environments.
● Built-in USB interface
Simplifies programming and maintenance with fast and direct connectivity.
● Integrated diagnostic display
4-character display provides quick status feedback and troubleshooting information.
● Efficient system performance
Optimized for high-speed processing and stable execution in demanding automation systems.
