Product Introduction

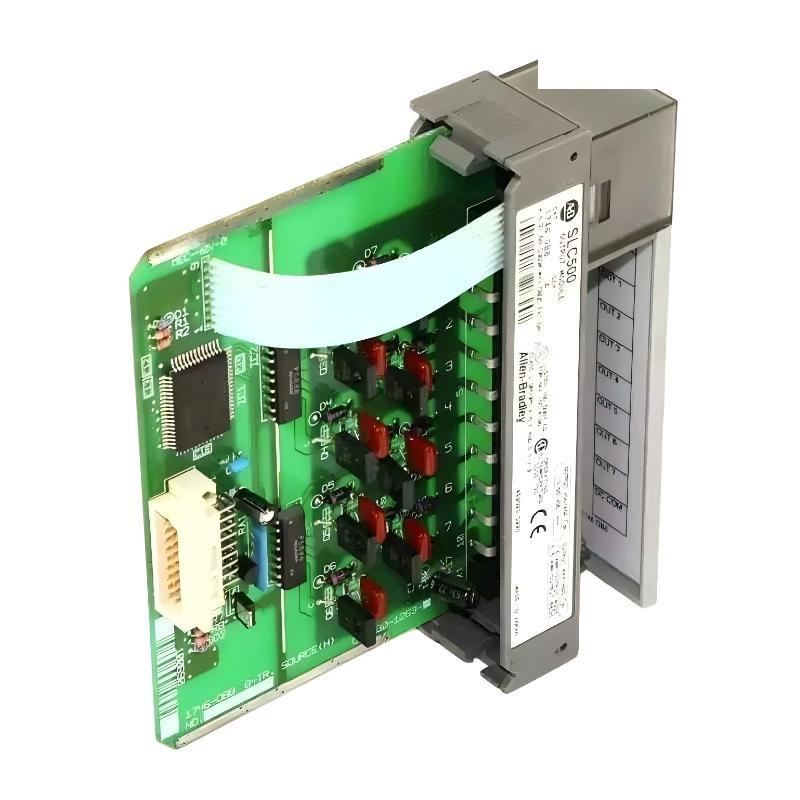

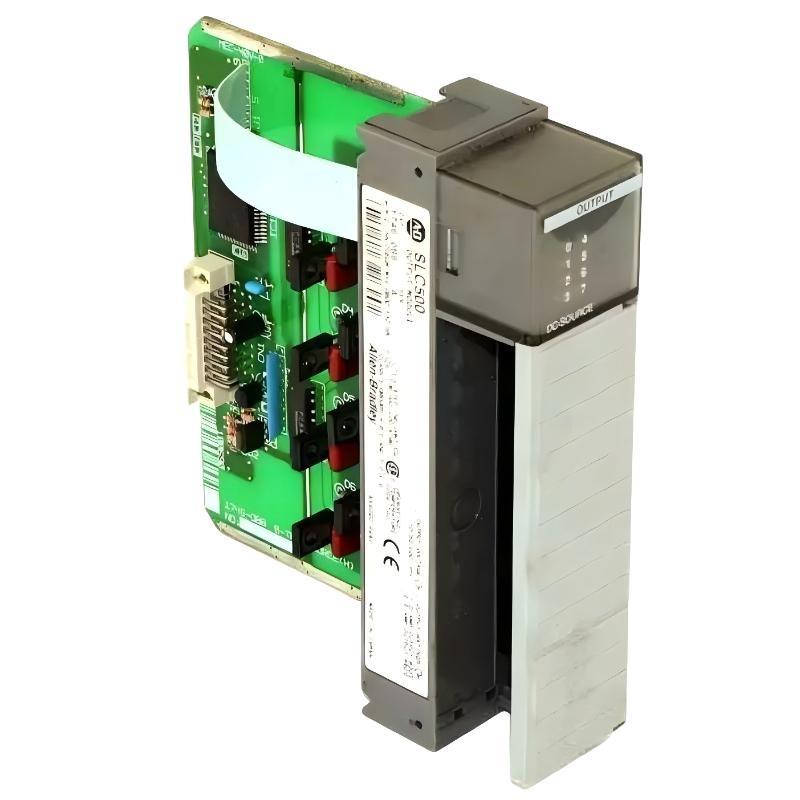

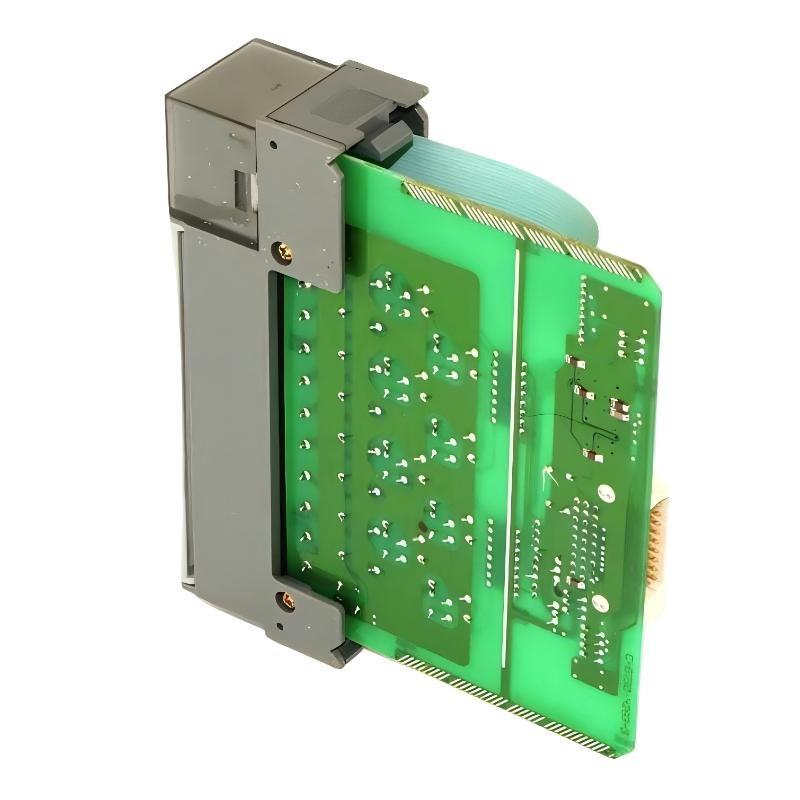

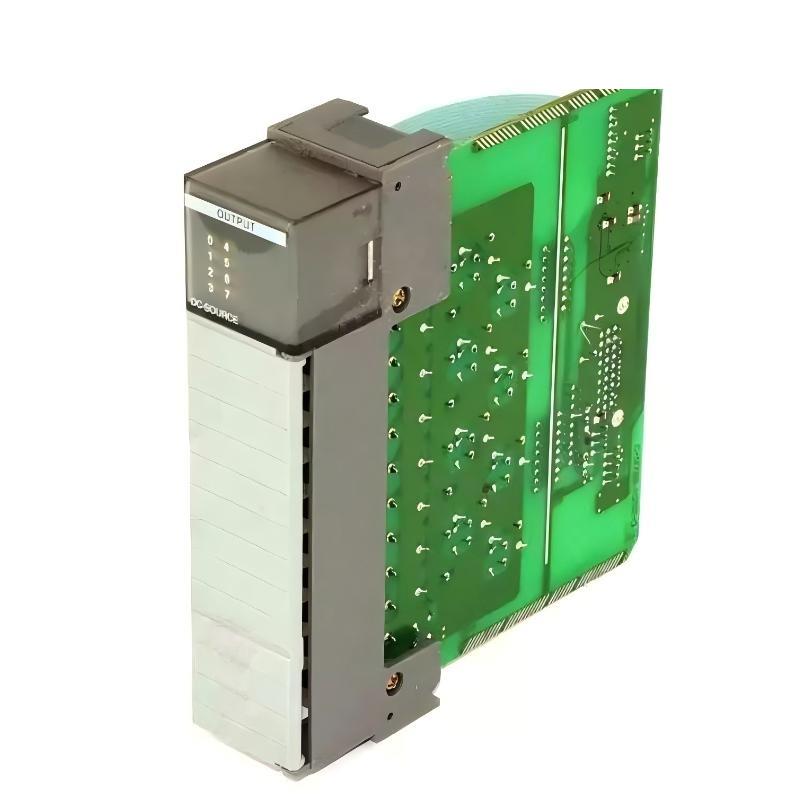

The Allen Bradley 1746-OB8 Output Module is a digital DC output module designed for use within the SLC 500 control system. It provides current sourcing digital outputs, enabling reliable control of external loads such as relays, solenoids, indicators, and actuators in industrial automation environments.
This module features 8 independent output channels, allowing flexible and efficient signal distribution from the controller to field devices. Designed for open-style chassis installation, the 1746-OB8 integrates seamlessly into SLC 500 racks and supports stable operation across a wide range of DC control applications.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | Digital Output Module |
| Series | SLC 500 |
| Model Number | 1746-OB8 |
| Output Type | Current Sourcing |
| Number of Channels | 8 |
| Signal Type | Digital |
| Rated Output Voltage | 10–50 VDC |
| Chassis Type | Open Style Chassis |
| Isolation Method | Channel-to-backplane isolation |
| Output Control | Individual channel control |
| Mounting Method | SLC 500 chassis backplane |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.181 kg |
Applications
• Digital output control for relays, contactors, and solenoid valves
• Industrial automation systems using Allen Bradley SLC 500 PLCs
• Manufacturing lines requiring reliable DC output switching
• Process control environments with multiple discrete actuators
• Machine control systems needing compact multi-channel output modules
• Panel-mounted control cabinets with open-style chassis architecture
Advantages
• Eight independent output channels enabling compact and efficient system design
• Current sourcing architecture suitable for a wide range of DC field devices
• Wide DC voltage range, supporting diverse industrial control requirements
• Open-style chassis compatibility, ensuring seamless integration with SLC 500 systems
• Reliable electrical isolation, improving system stability and fault tolerance
• Proven Allen Bradley design, offering long-term reliability in industrial environments
