Product Introduction

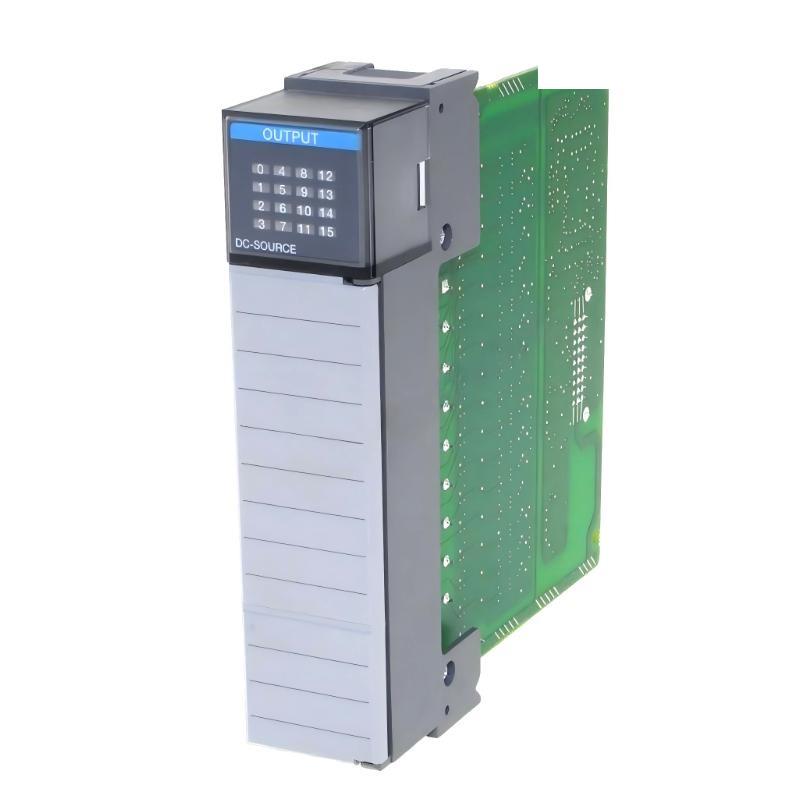

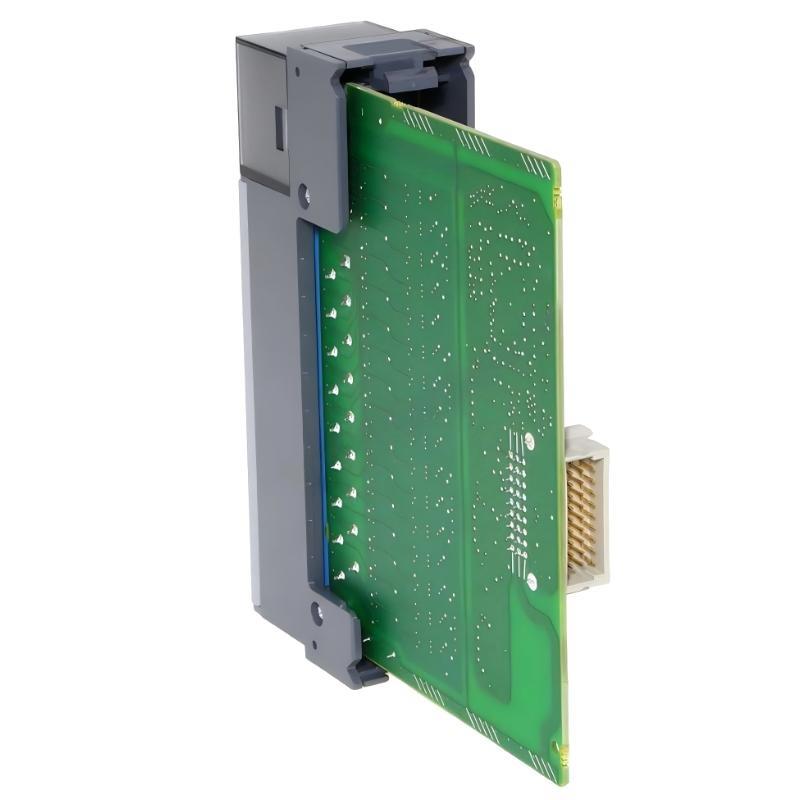

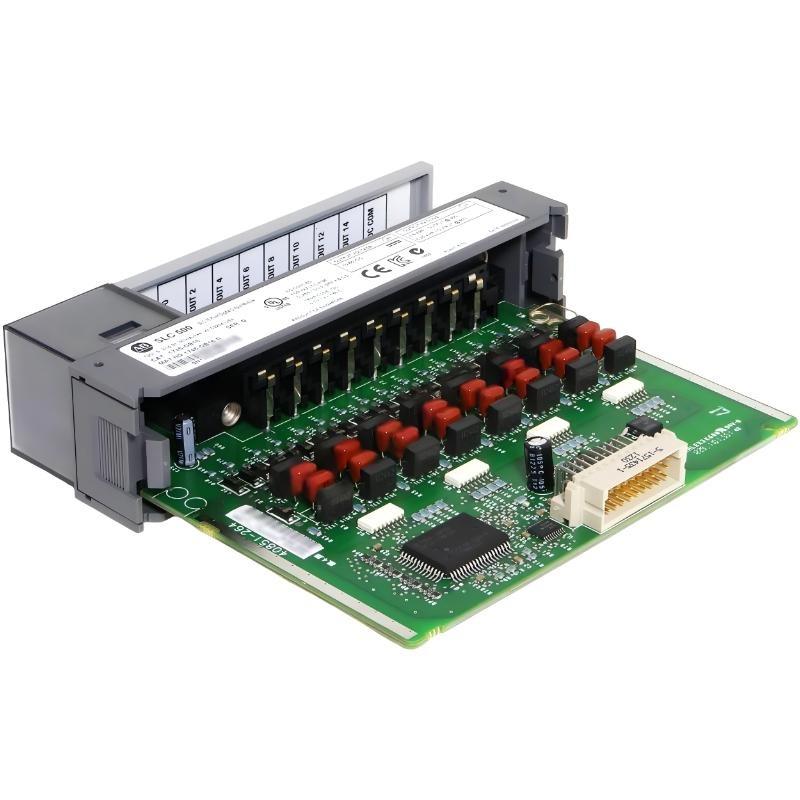

The Allen-Bradley 1746-OB16 is a digital DC output module designed for the SLC 500 programmable controller platform. It provides reliable control of DC-powered field devices in industrial automation systems where stable switching performance and predictable electrical behavior are required.
This module offers 16 independent DC output points, enabling high output density within a single SLC 500 I/O slot. Operating within a 10–30 VDC voltage range and supporting a total output capacity of 8 A, the 1746-OB16 is suitable for driving solenoids, relays, indicators, and other DC loads commonly found in industrial control panels.
Built for continuous industrial operation, the 1746-OB16 emphasizes electrical robustness, consistent output behavior, and seamless integration with SLC 500 processors. Its design supports efficient wiring practices and dependable long-term operation in both new installations and legacy control systems.
Product Specifications
| Parameter | Description |
|---|---|
| Module Type | Digital DC Output Module |
| Series | SLC 500 |
| Number of Output Points | 16 points |
| Output Voltage Range | 10–30 VDC |
| Total Output Current | 8 A (module total) |
| Output Configuration | DC output for industrial field devices |
| Output Control | Individual point control via SLC 500 processor |
| Electrical Isolation | Output-to-backplane isolation |
| Load Compatibility | Suitable for resistive and inductive DC loads |
| Switching Technology | Solid-state DC switching |
| Response Time | Fast and repeatable switching performance |
| Backplane Interface | Direct connection to SLC 500 I/O chassis |
| Module Placement | Any compatible SLC 500 I/O slot |
| Operating Mode | Continuous industrial operation |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.272 kg |
Applications
• Industrial machine control, driving DC solenoids, contactors, and pilot devices
• Material handling systems, controlling sensors, actuators, and DC indicators
• Manufacturing production lines, enabling reliable output control for automation equipment
• Process automation panels, switching DC loads under PLC control
• Packaging and assembly machinery, supporting fast and repeatable output switching
• Legacy SLC 500 installations, expanding DC output capacity without system redesign
Advantages
• High point density, providing 16 DC outputs in a single module
• Wide DC voltage range, allowing compatibility with common industrial power supplies
• High total current capacity, supporting multiple loads from one module
• Solid-state output design, reducing mechanical wear and maintenance
• Electrical isolation, protecting the controller from field-side disturbances
• Stable and predictable switching behavior, ensuring reliable machine operation
• Seamless SLC 500 integration, simplifying configuration and system expansion
