Product Introduction

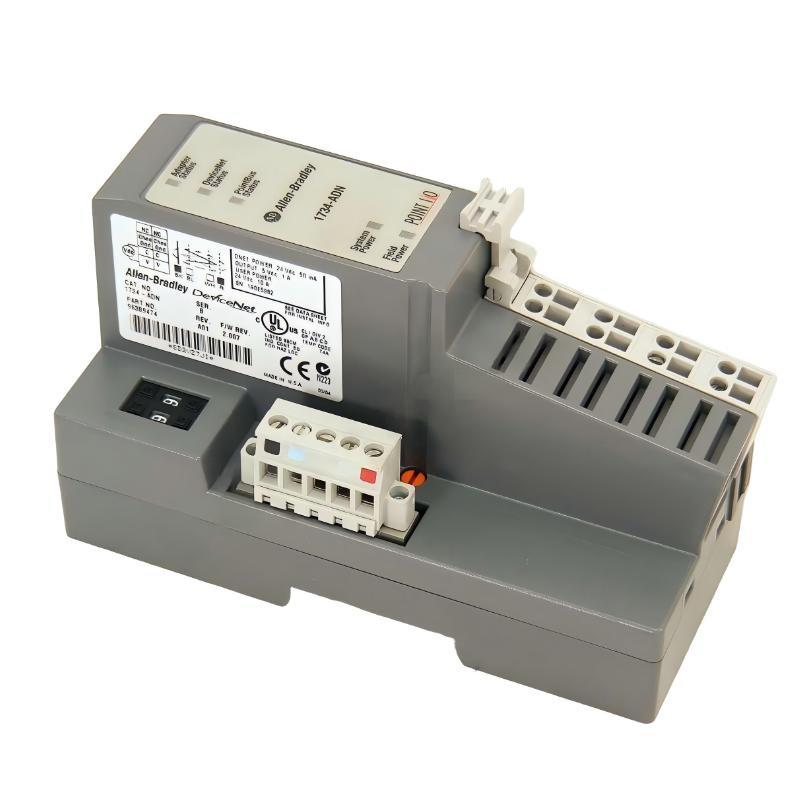

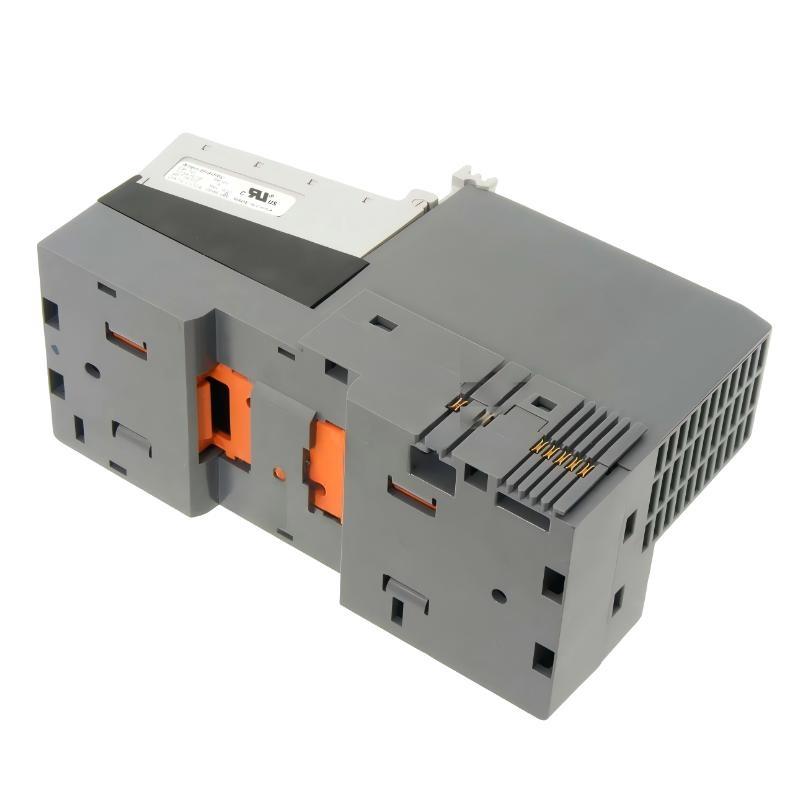

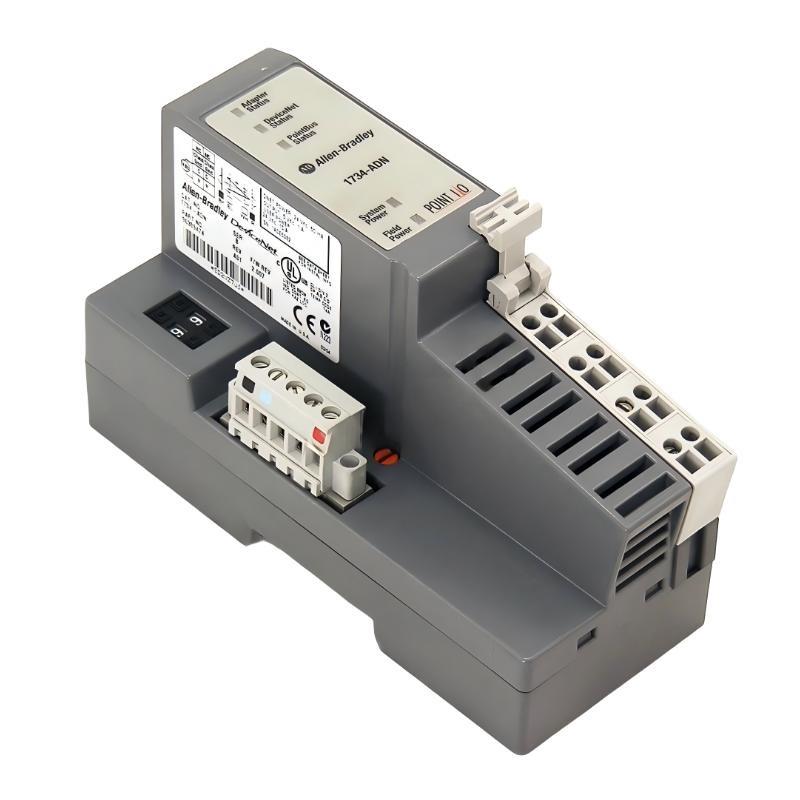

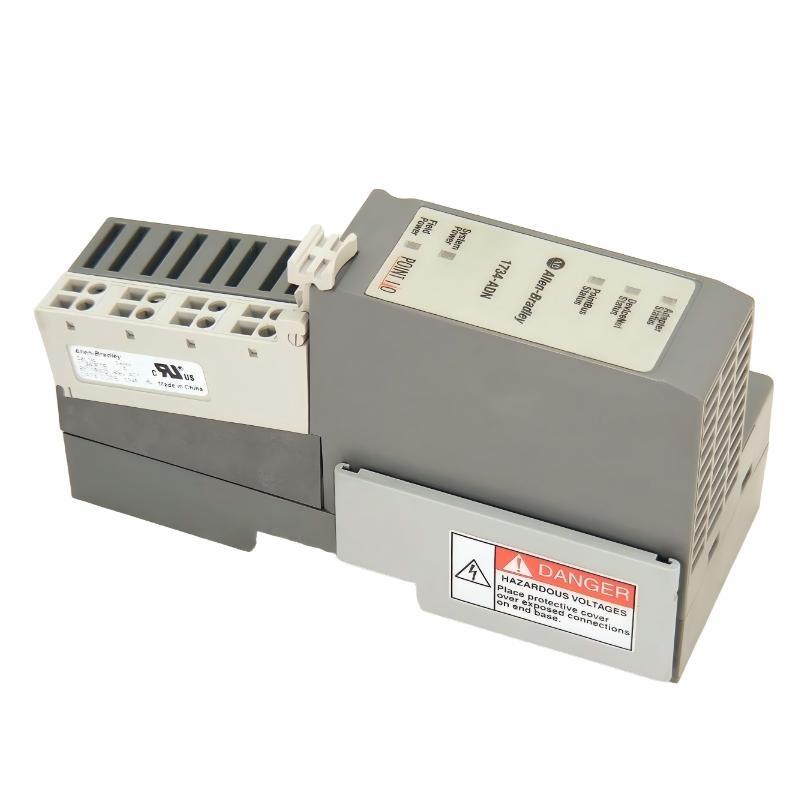

The Allen-Bradley 1734-ADN I/O ControlNet Network Adapter is a high-performance communication module designed to connect Point I/O modules to DeviceNet networks.
This module enables deterministic and reliable communication between Point I/O systems and DeviceNet controllers, supporting both peer-to-peer and slave operations. It is ideal for industrial automation applications that require real-time monitoring, control, and integration of distributed I/O modules.
The 1734-ADN is built for industrial reliability, offering robust protection, wide operating temperature range, and high humidity tolerance. Its compact design allows efficient installation in control panels, making it suitable for both system expansions and retrofit applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Series | Point I/O (Bul. 1734) |
| Component Type | Communications Module |
| Communications Ports (On Board) | DeviceNet Peer to Peer / Slave |
| Communication Port Speed (Min.) | 125 kbit/s |
| Communication Port Speed (Max.) | 500 kbit/s |
| Communications Protocols | DeviceNet |
| Power Supply | 24 V DC |
| Operating Temperature, Max | 55 °C |
| Operating Temperature, Min | -20 °C |
| Storage Temperature, Max | 85 °C |
| Storage Temperature, Min | -40 °C |
| Relative Humidity, Max | 95 %RH |
| Dimensions | 76.2 × 54.9 × 133.4 mm |
| Weight | 0.26 kg |
Applications
• DeviceNet network integration, connecting Point I/O modules to DeviceNet controllers for real-time control
• Industrial automation, providing reliable peer-to-peer or slave communication for distributed I/O
• Process control and monitoring, enabling centralized control of multiple I/O modules
• System expansion, allowing additional Point I/O modules to be added to DeviceNet networks without replacing existing infrastructure
• Machine automation, supporting synchronization and fast data exchange for industrial machinery
• Retrofit projects, upgrading legacy Point I/O systems to communicate over DeviceNet networks
Advantages
• Reliable DeviceNet communication, supporting both peer-to-peer and slave modes for flexible system design
• Wide communication speed range, from 125 kbit/s to 500 kbit/s, for various network requirements
• Industrial-grade durability, operating in high temperatures and high-humidity environments without performance loss
• Compact and modular, minimizing panel space while supporting multiple distributed I/O modules
• Seamless integration, allowing Point I/O modules to communicate efficiently with DeviceNet controllers
• Low maintenance, designed for continuous industrial operation without frequent servicing
• Flexible network expansion, enabling easy addition of modules to meet growing control needs
