Product Introduction

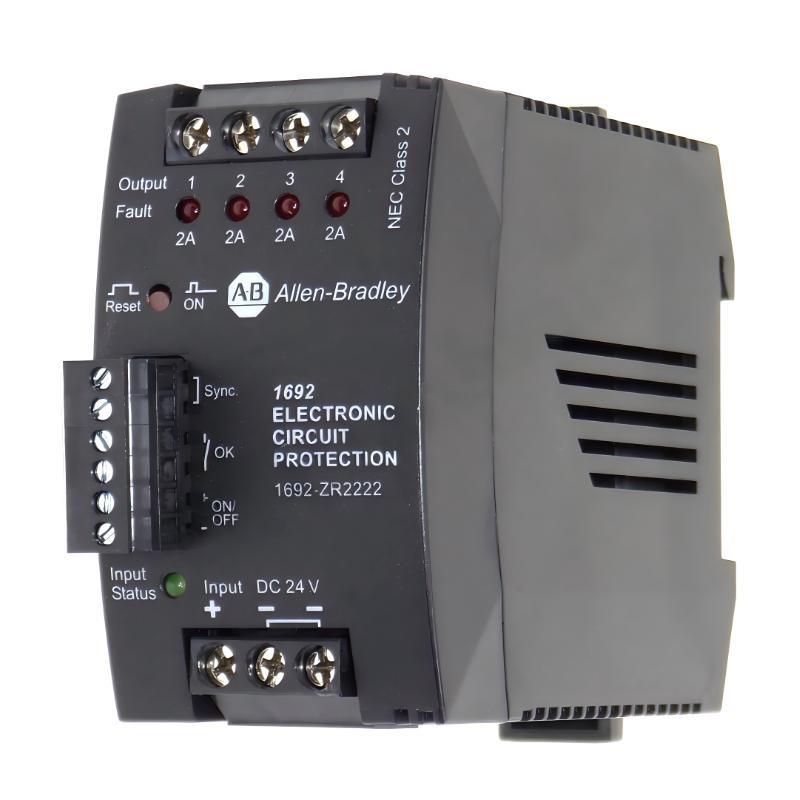

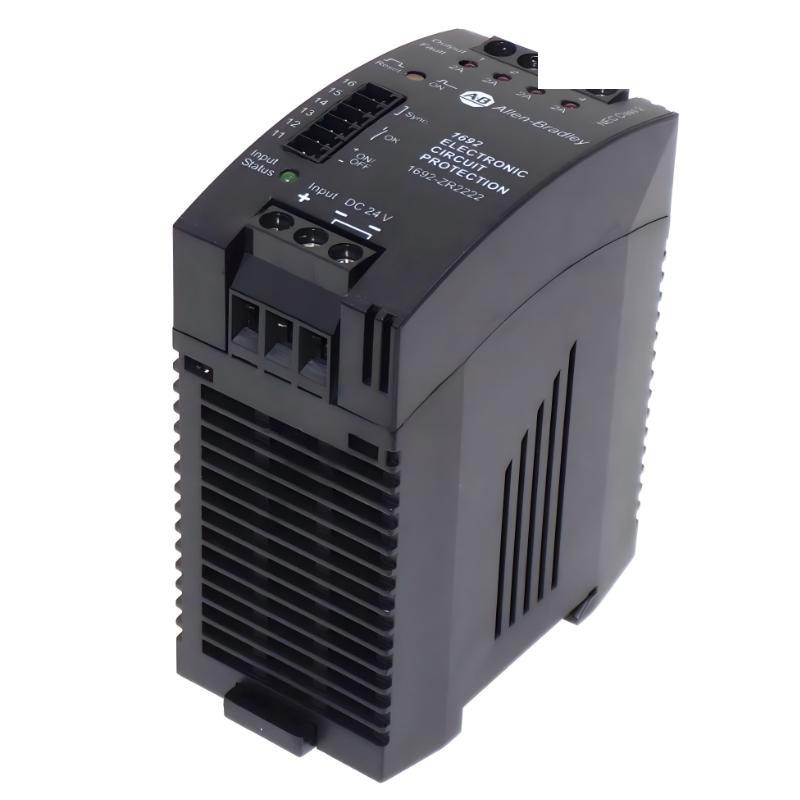

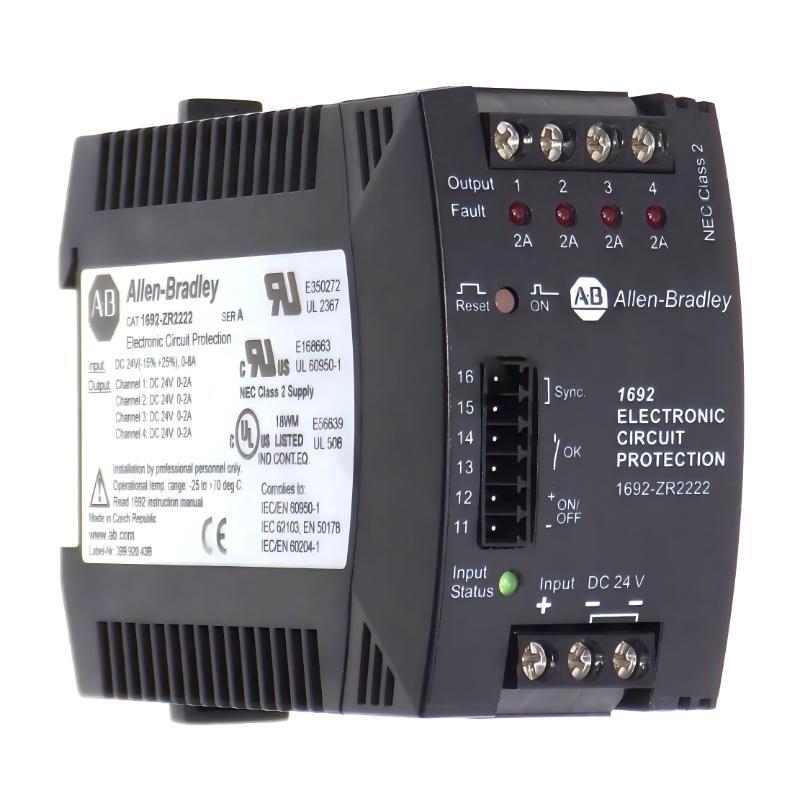

The Allen Bradley 1692-ZR2222 Electronic Circuit Protection Module is a compact and intelligent protection device designed to safeguard 24V DC control circuits in industrial automation systems. Developed by Allen-Bradley, this module provides electronic circuit protection for multiple channels, replacing traditional fuses and circuit breakers with faster, more precise protection technology.
Featuring four independently protected 2A channels, the 1692-ZR2222 ensures reliable operation by detecting overloads and short circuits and disconnecting only the affected circuit. This selective protection minimizes downtime and improves system availability in critical control applications.
Product Specifications
| Parameter | Description |
|---|---|
| Model | 1692-ZR2222 |
| Product Type | Electronic Circuit Protection Module |
| Function | Module-level circuit protection |
| Input Voltage | 24 V DC |
| Number of Circuits | 4 Channels |
| Output Current per Channel | 2 A |
| Total Configuration | 4 × 2 A circuits |
| Protection Type | Electronic overload and short-circuit protection |
| Class Rating | Class 2 |
| Mounting Type | DIN Rail |
| Application Level | Control circuit protection |
| Dimensions | 104 x 45 x 75 mm |
| Weight | 0.12 kg |
Applications
• 24V DC control systems requiring reliable circuit protection
• PLC and I/O systems in industrial automation panels
• Machine building applications where selective circuit protection is critical
• Process control systems needing reduced downtime and fault isolation
• Distributed control panels with multiple protected output channels
Advantages
• Selective protection per channel prevents total system shutdown
• Electronic protection technology offers faster response than traditional fuses
• Compact design saves space in control cabinets
• Four independent 2A outputs increase flexibility in circuit design
• Improved system uptime through quick fault isolation

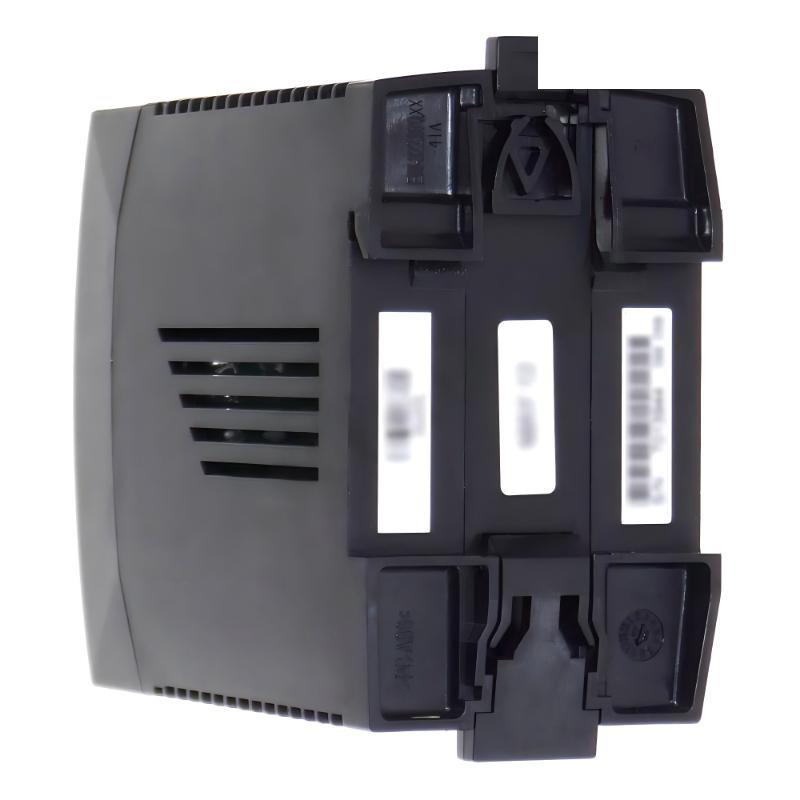

• DIN rail mounting ensures easy installation and integration
