Product Introduction

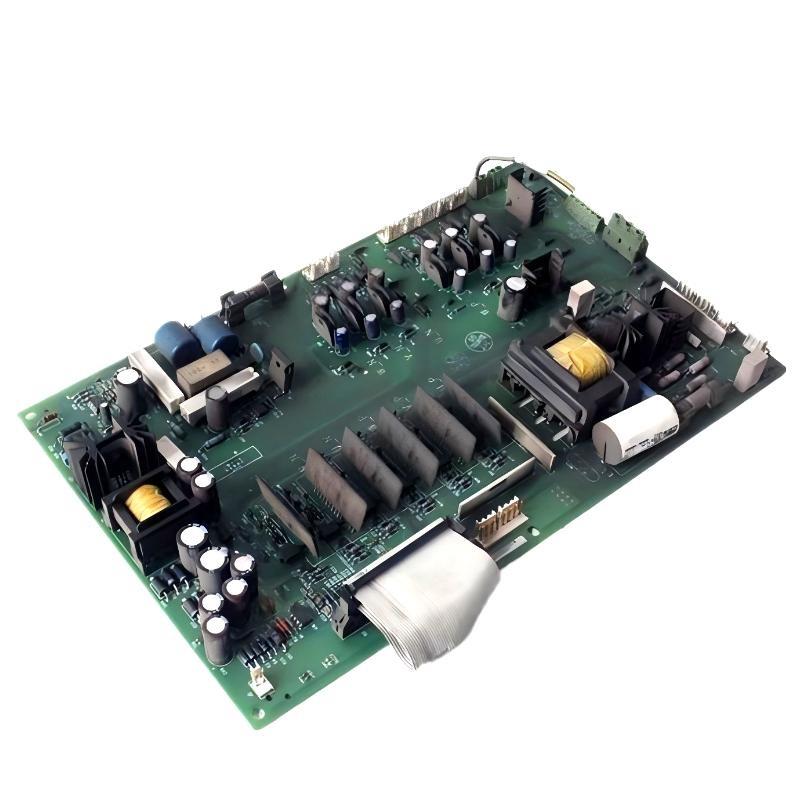

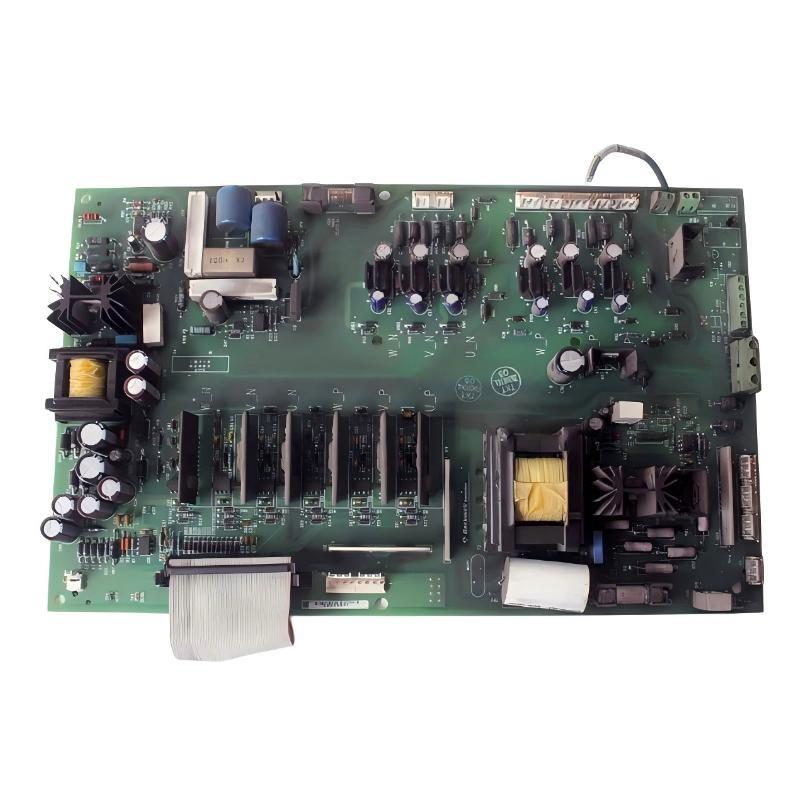

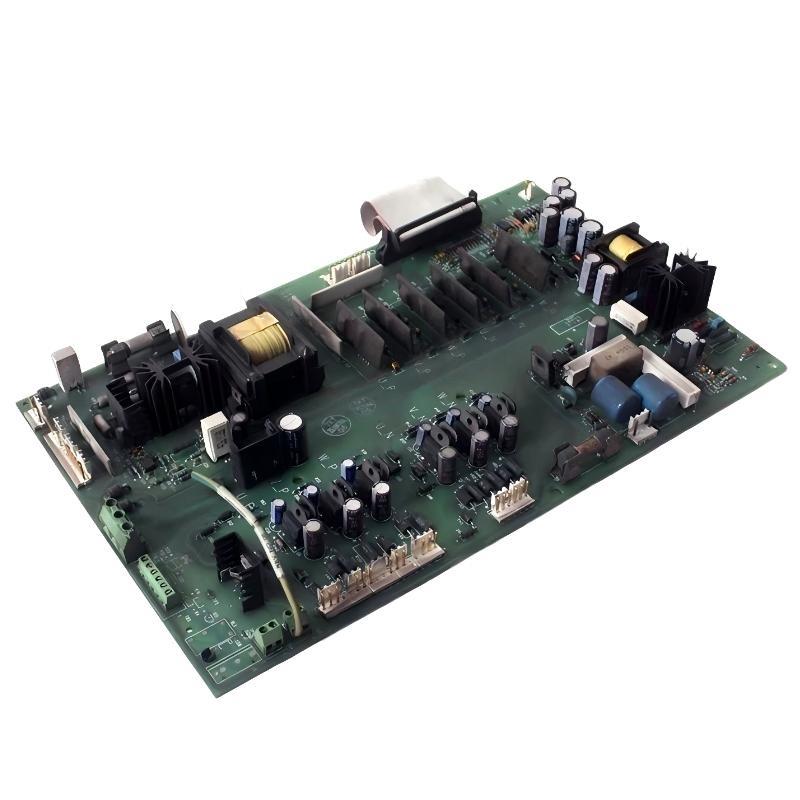

The Allen-Bradley 1336-BDB-SP76D Gate Driver is a high-performance module designed to control power semiconductor devices in Allen-Bradley 1336 series motor drives. It ensures precise gate signal amplification, protection, and isolation for IGBTs or similar power devices, enabling efficient and safe operation of industrial motor drives.
Engineered for continuous industrial operation, the module maintains reliable performance under harsh electrical and thermal conditions. It supports fast switching, fault protection, and integration with drive control systems for optimized motor performance.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Gate Driver |

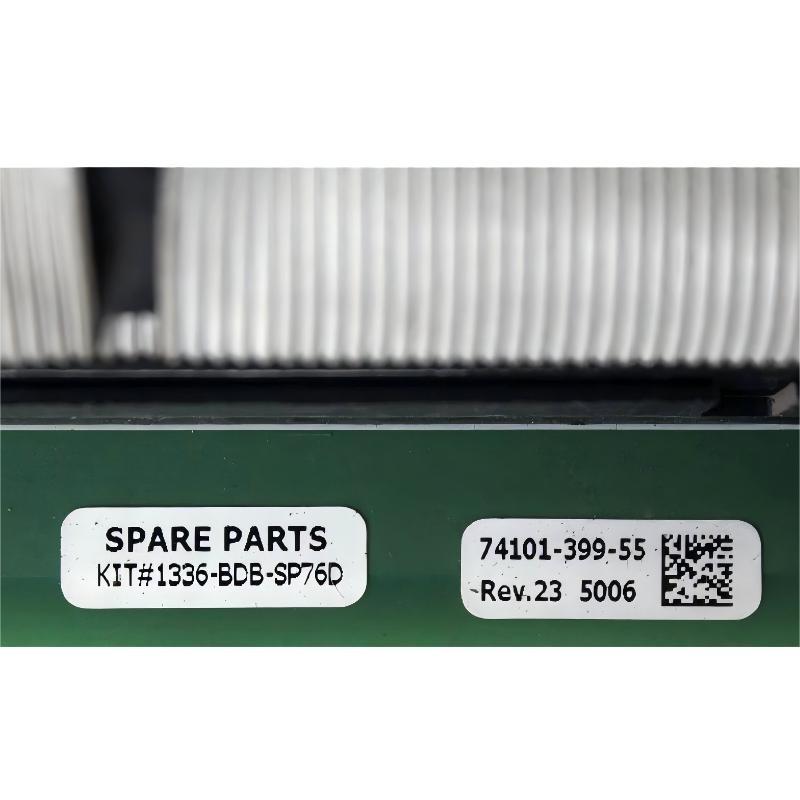

| Model | 1336-BDB-SP76D |
| Category | Gate Driver Module |
| Functionality | Provides gate drive signals for IGBTs and other power semiconductor devices |
| System Compatibility | Allen-Bradley 1336 series motor drives |
| Power Supply | As required by the drive system |
| Mounting | Panel or DIN rail as specified by drive design |
| Protection Features | Overcurrent, undervoltage, fault detection, short-circuit protection |
| Operating Mode | Continuous industrial operation |
| Environmental Rating | Industrial temperature, vibration, and EMI tolerant |
| Dimensions | 150 × 100 × 50 mm |
| Weight | 0.5 kg |
Product Applications
• Driving IGBTs or other power semiconductor devices in Allen-Bradley 1336 series drives
• Industrial motor control in manufacturing, material handling, and process automation
• Fault-protected, high-speed switching for power devices
• Integration into drive systems to enhance motor performance and efficiency
• Modular replacement or upgrade for existing 1336 series drives
Product Advantages
• Provides precise, safe, and reliable gate signals for power devices
• Reduces switching losses and improves drive efficiency
• Designed for industrial conditions with high vibration and EMI tolerance
• Modular form factor enables easy replacement and system upgrade
• Seamless integration with 1336 series motor drives for optimal performance
