Product Overview

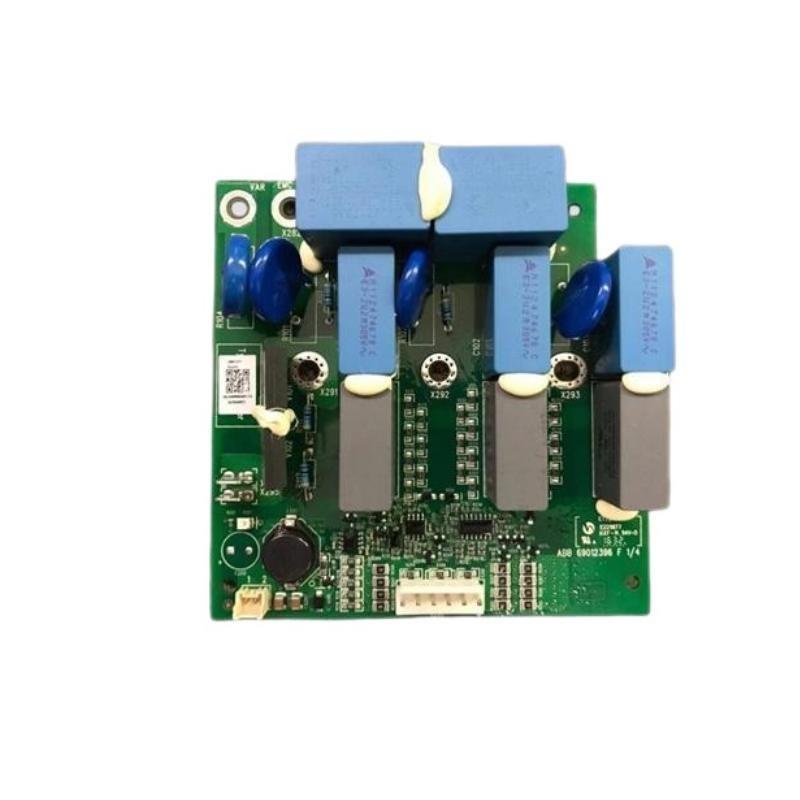

The ABB ZINP-571 3AUA0000050511 Interface Board is a robust, industrial-grade signal and communication interface designed to expand the functionality and connectivity of ABB inverter and drive systems. It serves as a critical link between the control system and field devices, enabling reliable signal exchange, data processing, and system integration across various industrial applications.
Engineered with high-quality components and ABB’s stringent industrial standards, the ZINP-571 Interface Board ensures stable communication, enhanced control accuracy, and system safety. It is designed to withstand harsh industrial environments, making it suitable for demanding applications in energy, manufacturing, and process automation.
Key Features
-
Industrial-grade signal and communication interface
-
Seamless integration with ABB inverter and control platforms
-
Supports various analog and digital signal connections
-
High electromagnetic compatibility (EMC) for reliable operation
-
Galvanic isolation for enhanced system protection
-
Compact design for easy installation in control panels or inverter enclosures
-
Built-in diagnostic functions for real-time status monitoring
-
Rugged construction suitable for harsh industrial environments
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | ZINP-571 3AUA0000050511 |
| Product Type | Signal and Communication Interface Board |
| Compatible Systems | ABB Inverters, Drives, and Control Platforms |
| Signal Types Supported | Analog and Digital Signals (Voltage/Current/Discrete) |
| Input Voltage Range | System dependent (Refer to ABB inverter specs) |
| Electrical Isolation | Galvanic Isolation Between Channels |
| Data Processing Capability | Supports Signal Conversion and Conditioning |
| Diagnostic Features | Integrated LEDs for Status and Fault Indication |
| Power Supply | Supplied from Inverter Main Control Circuit |
| Power Consumption | < 5 W |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| EMC/EMI Compliance | IEC 61000-4 Standards |
| Shock and Vibration Resistance | IEC 60068-2 Standards |
| Installation Type | Cabinet or Inverter Enclosure Mounting |
| Dimensions | 180 x 100 x 25mm |
| Weight | 1.0kg |
Product Advantages
-
Reliable Communication: Facilitates stable signal transmission between control systems and field devices
-
Enhanced Safety: Galvanic isolation prevents signal interference and protects system components
-
Versatile Signal Handling: Supports both analog and digital signals for broad application compatibility
-
Compact Design: Space-saving module fits efficiently within control cabinets or inverter housings
-
Improved Diagnostics: Integrated status indicators simplify maintenance and fault identification
-
Industrial Durability: Designed to resist vibration, electrical noise, and environmental extremes
-
Quick Integration: Plug-and-play compatibility with ABB inverter systems reduces setup time
-
Flexible Application Range: Suitable for various industries requiring reliable control signal interfaces
Typical Applications
-
Industrial Automation: Signal interfacing for precise control of drives and process equipment
-
Energy Sector: Integration of inverters and drives in power generation and distribution systems
-
Manufacturing Plants: Facilitates reliable control and monitoring of motors, conveyors, and production lines
-
Water and Wastewater Management: Ensures stable operation of pumps and flow control systems
-
Oil & Gas Industry: Secure signal processing in hazardous or remote control installations
-
Marine and Offshore Applications: Stable communication in demanding maritime environments
-
Building Automation: Signal management for HVAC systems and energy efficiency controls
Frequently Asked Questions (FAQ)
-
What is the primary function of the ABB ZINP-571 Interface Board?
It serves as a signal and communication interface, enabling reliable connection between ABB inverters and control systems. -
Which ABB systems are compatible with the ZINP-571?
The board is designed for use with ABB inverter platforms and compatible control systems. -
Does the ZINP-571 support analog and digital signals?
Yes, it supports various analog (voltage/current) and digital (discrete) signal types. -
Is electrical isolation provided for the signals?
Yes, the board features galvanic isolation to enhance safety and signal integrity. -
What diagnostic features are included?
Integrated LED indicators provide real-time status and fault information. -
Can the ZINP-571 operate in high-temperature environments?
Yes, the module operates reliably between -25°C to +70°C. -
Is external power required for the board?
No, it receives power directly from the inverter’s main control circuit. -
How is the module installed?
It can be mounted within control cabinets or inverter enclosures. -
What are the physical dimensions and weight of the board?
The board measures 180 x 100 x 25mm and weighs approximately 1.0kg. -
Is the board suitable for harsh industrial conditions?
Yes, it meets IEC standards for vibration, EMC, and environmental resistance.
Recommended Related Models (Same Series or Function)
| Model | Description |
|---|---|
| ZINP-570 3AUA0000050501 | ABB Interface Board for Inverter Systems |
| ZINP-572 3AUA0000050521 | ABB Enhanced Signal Interface Board |
| ZINP-573 3AUA0000050531 | ABB Industrial Signal Processing Interface |
| ZCU-14 3AXD50000182992 | ABB Communication and Control Expansion Unit |
| ZCU-13 3AXD5000005163 | ABB Control Expansion for Drive Systems |
| ZCU-12 3AXD5000005162 | ABB Inverter Communication Interface Unit |
Popular ABB Models (Same Brand Hot-Selling Products)
| Model | Description |
|---|---|
| PM866K02 | ABB AC800M High-Performance Redundant CPU |
| CI854AK01 | ABB PROFIBUS DP Communication Interface |
| AI810 | ABB S800 Analog Input Module, 8 Channels |
| AO810 | ABB S800 Analog Output Module, 8 Channels |
| TU830V1 | ABB S800 I/O Compact Terminal Unit |
| ACS880-07 | ABB Cabinet-built Drive for High-power Applications |
