Product Overview

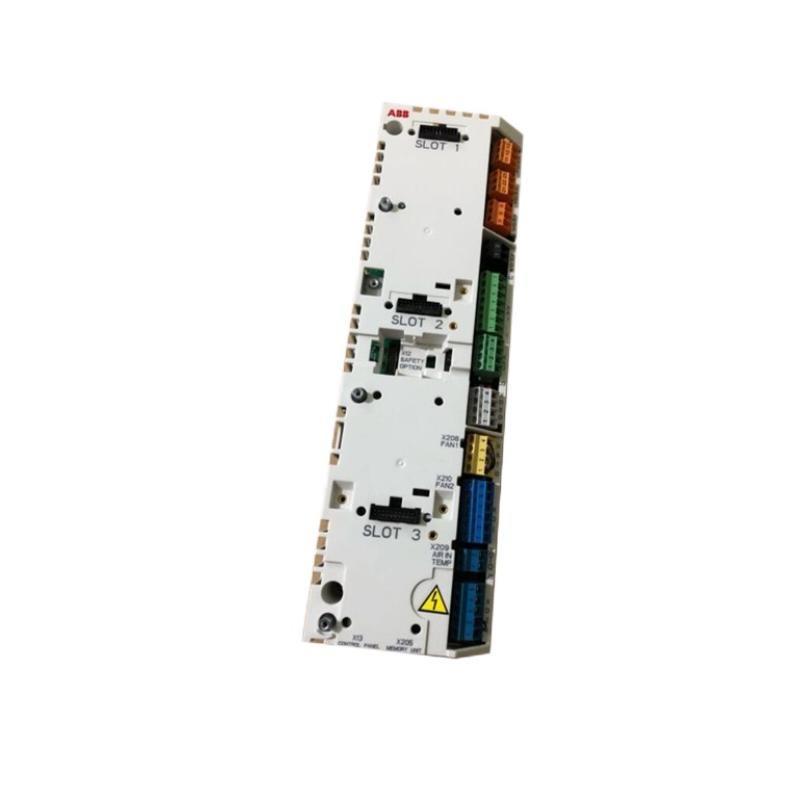

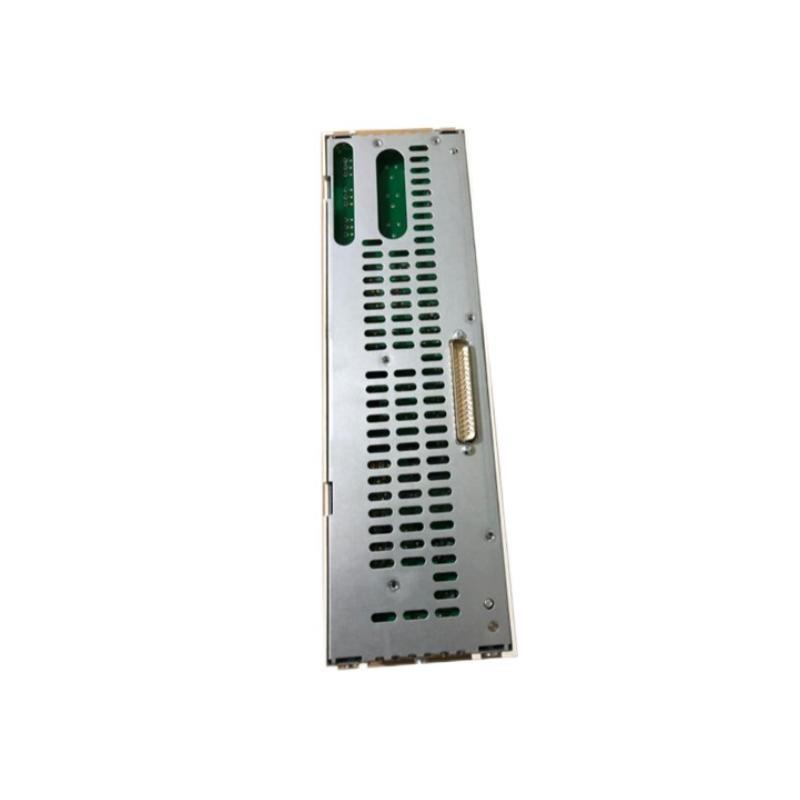

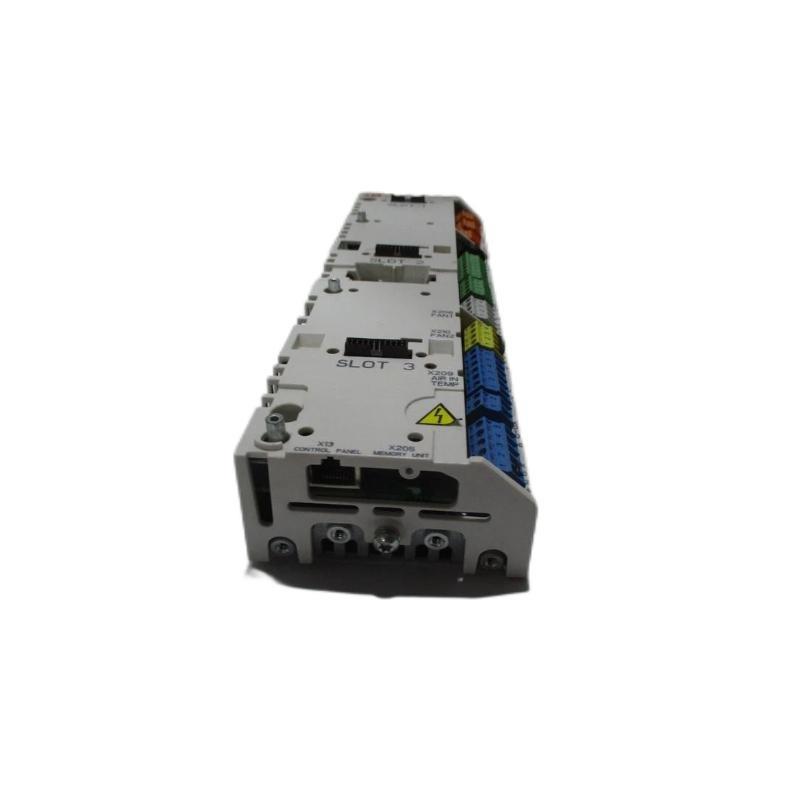

The ABB ZCU-14 3AXD50000182992 is a dedicated accessory designed to expand the control, monitoring, and communication functions of ABB low-voltage inverters. It plays a critical role in enhancing the operational flexibility and connectivity of ABB drive systems, ensuring reliable motor control and energy efficiency in complex industrial environments.
This module integrates seamlessly with ABB’s inverter families, providing users with advanced configuration options, improved system diagnostics, and the ability to connect with various industrial communication protocols. Engineered to ABB’s strict industrial standards, the ZCU-14 3AXD50000182992 offers exceptional durability and consistent performance in harsh operating conditions.
Key Features
-
Compatible with ABB inverter systems (ACS, ACS880 series)*
-
Expands communication and control functionalities
-
Supports integration with industrial networks (Modbus, Fieldbus, Ethernet)**
-
High electromagnetic compatibility (EMC) for stable operation
-
Compact, space-efficient design for easy cabinet integration
-
Enhanced system monitoring and diagnostic feedback
-
Industrial-grade construction for demanding applications
-
Simple installation with ABB’s plug-and-play connectivity
* Specific compatibility may depend on inverter configuration
** Communication protocols vary by system setup
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | ZCU-14 3AXD50000182992 |
| Product Type | Inverter Communication & Control Accessory |
| Compatible ABB Series | ACS, ACS880 Low Voltage Drives |
| Supported Communication | Modbus, Profibus, Fieldbus, Ethernet (per configuration) |
| Main Functions | Control expansion, communication interface, system diagnostics |
| Power Supply | Supplied via inverter control circuit |
| Power Consumption | < 5 W |
| Installation Type | Inside control cabinet or inverter enclosure |
| Protection Class | IP20 (installed within cabinet) |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% (non-condensing) |
| EMC/EMI Compliance | IEC 61000-4 standards |
| Shock & Vibration Resistance | Meets IEC 60068-2 requirements |
| Dimensions | 230 x 120 x 40mm |
| Weight | 0.8kg |
Product Advantages
-
System Expansion: Adds advanced communication and control capabilities to ABB inverter systems
-
Network Connectivity: Enables integration with common industrial communication protocols
-
Reliable Performance: Built to operate in demanding environments with electrical noise and temperature fluctuations
-
Compact & Efficient: Space-saving design fits easily within control cabinets or inverter housings
-
Enhanced Diagnostics: Provides real-time system status and fault detection for improved maintenance planning
-
Simplified Integration: Plug-and-play compatibility reduces installation time and system complexity
-
Industrial Durability: Resists vibration, dust, and humidity for long-term stable operation
-
Flexible Application: Supports broad industrial sectors including manufacturing, energy, and infrastructure
Typical Applications
-
Industrial Automation: Expands inverter functionality for precise motor and process control
-
Pumps & Fans: Enhances control capabilities in HVAC, water treatment, and industrial ventilation systems
-
Oil & Gas Industry: Provides reliable communication for drives in hazardous or remote locations
-
Energy Sector: Used in renewable energy installations for inverter monitoring and control
-
Manufacturing Processes: Ensures consistent drive operation in conveyors, mixers, and assembly lines
-
Marine & Offshore Systems: Supports robust communication in demanding marine environments
-
Infrastructure Projects: Integrated in transport systems for energy-efficient motor control
Frequently Asked Questions (FAQ)
-
What is the ABB ZCU-14 3AXD50000182992 used for?
It is an inverter accessory that enhances communication, control, and monitoring functions for ABB drives. -
Which inverter series is compatible with the ZCU-14?
The module is compatible with ABB ACS, ACS880, and other selected low-voltage inverter models. -
Does this accessory support industrial communication protocols?
Yes, it supports Modbus, Profibus, Fieldbus, or Ethernet, depending on system configuration. -
Can the ZCU-14 be installed in environments with electrical noise?
Yes, it complies with IEC 61000-4 EMC standards for reliable operation in noisy industrial settings. -
Is external power required for this module?
No, it is powered directly from the inverter’s internal control circuit. -
What type of installation is recommended?
It should be installed inside a control cabinet or within the inverter enclosure to maintain IP20 protection. -
Can the module operate in high-humidity environments?
Yes, it functions reliably in up to 95% non-condensing humidity conditions. -
What diagnostic functions does the ZCU-14 offer?
It provides system status feedback and fault detection, improving system reliability and maintenance. -
What are the physical dimensions and weight of the module?
The dimensions are 230 x 120 x 40mm, and the weight is approximately 0.8kg. -
Is the ZCU-14 designed for harsh environments?
Yes, it meets international standards for shock, vibration, and temperature resilience.
Recommended Related Models (Same Series or Function)
| Model | Description |
|---|---|
| ZCU-12 3AXD5000005162 | ABB Communication Unit for Inverters |
| ZCU-13 3AXD5000005163 | ABB Control Expansion Unit for Drive Systems |
| ACS880-01 | ABB Single Drive Low Voltage Inverter |
| ACS880-04 | ABB Wall-mounted Frequency Converter |
| ACS355-03E-07A5-4 | ABB Compact Drive for General Applications |
| ACS580-01-07A6-4 | ABB All-compatible General Purpose Drive |
Popular ABB Models (Same Brand Hot-Selling Products)
| Model | Description |
|---|---|
| PM866K02 | ABB AC800M High-Performance Redundant CPU |
| CI854AK01 | ABB PROFIBUS DP Communication Interface |
| AI810 | ABB S800 Analog Input Module, 8 Channels |
| AO810 | ABB S800 Analog Output Module, 8 Channels |
| TU830V1 | ABB S800 I/O Compact Terminal Unit |
| ACS880-07 | ABB Cabinet-built Drive for High-power Applications |
