Product Introduction

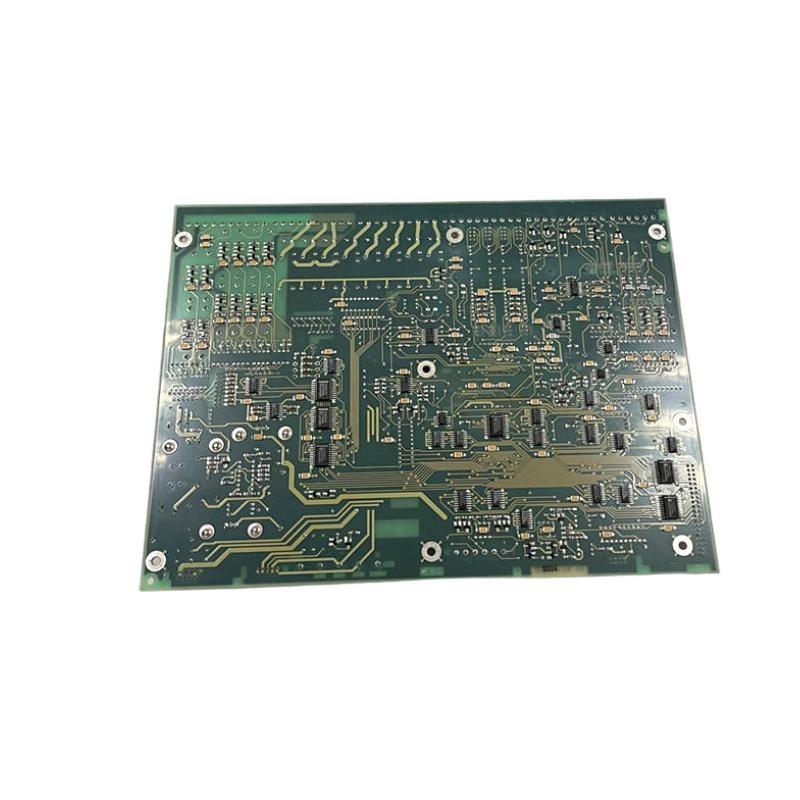

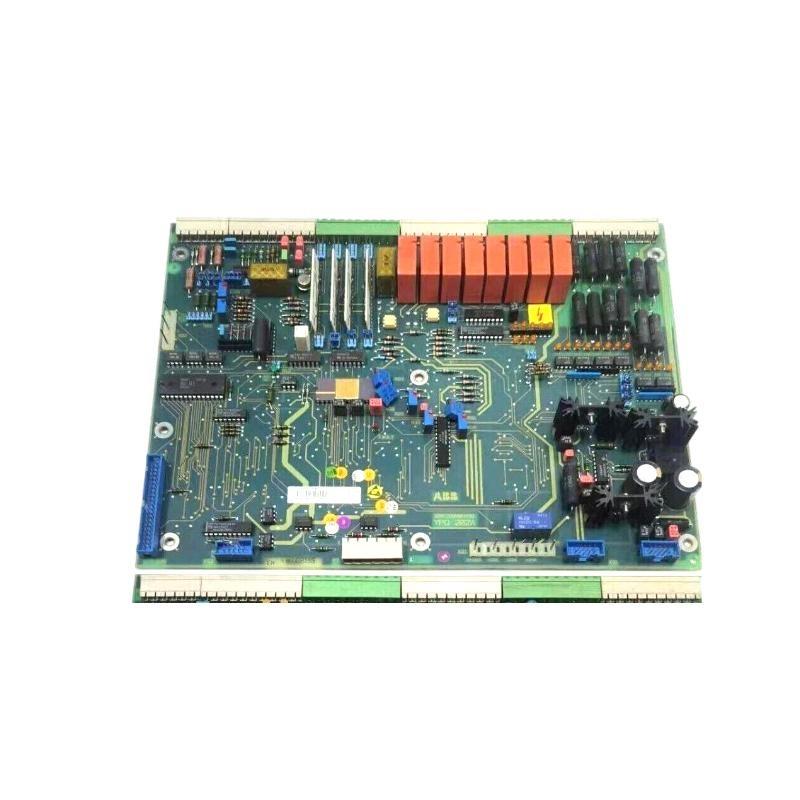

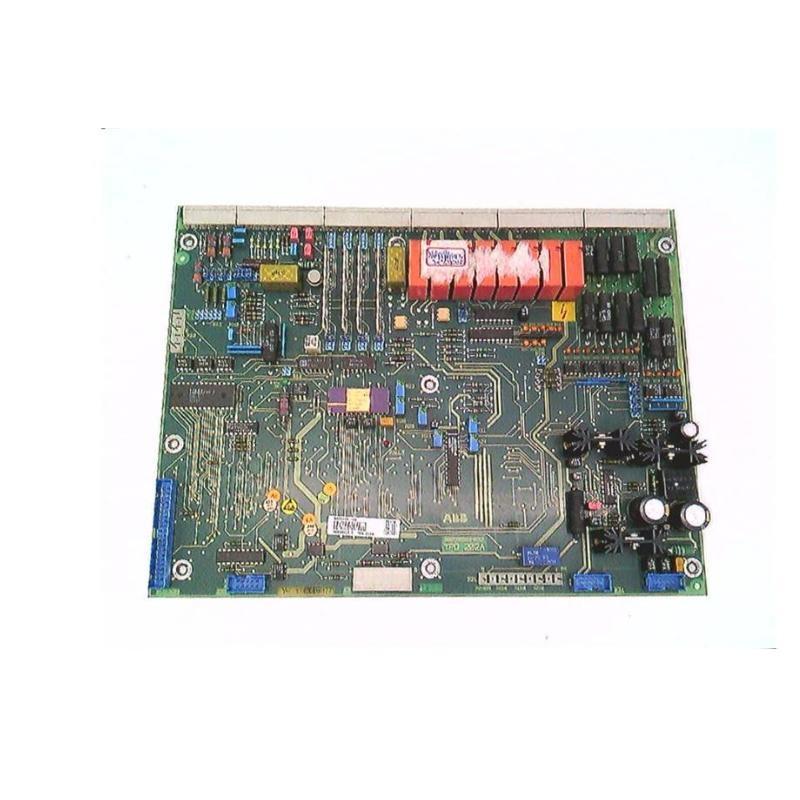

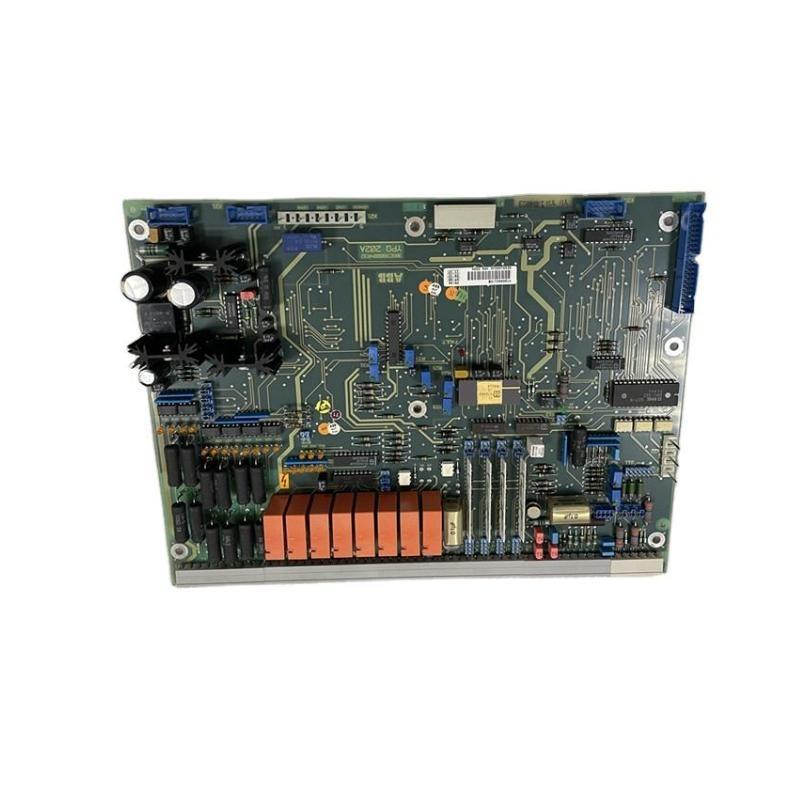

The ABB YPQ 202A YT204001-KB I/O board is a high-performance input/output module designed for use in industrial automation and control systems. This I/O module provides reliable data transfer between devices in real-time, ensuring smooth communication in a variety of industrial applications. With a robust design and advanced features, the YPQ 202A is engineered to deliver consistent performance in environments where precision and uptime are critical. It is widely used across multiple industries for controlling machinery, monitoring processes, and integrating field devices with control systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | YPQ 202A YT204001-KB |
| Type | I/O Module |
| Dimensions (W x H x D) | 158 x 85 x 30 mm |
| Weight | 0.535 kg |
| Input Voltage | 24 VDC |
| Current Consumption | 150 mA |
| Operating Temperature Range | -20°C to +60°C |
| Communication Interface | Modbus RTU, Profibus DP |
| Output Channels | 8 Digital Outputs |
| Input Channels | 8 Digital Inputs |
| Mounting Type | DIN Rail Mountable |
Product Applications
The ABB YPQ 202A YT204001-KB I/O board is used in a variety of applications across industries, where reliable and fast data exchange is necessary. Its primary functions include:
-
Industrial Automation: Used in systems that require real-time control and monitoring of machinery and field devices.
-
Process Control: Integrates with process control systems to manage data flows, ensuring optimal performance and efficiency.
-
Energy Management: Plays a vital role in energy monitoring systems, controlling electrical power and optimizing usage.
-
Remote Monitoring and Control: Used in systems that require remote access, such as SCADA (Supervisory Control and Data Acquisition) systems.
-
Machine Control: Ideal for controlling complex machinery inputs and outputs in automated environments.
Product Advantages
-
High Performance: The YPQ 202A is optimized for high-speed data transmission, ensuring quick and reliable control and monitoring of industrial processes.
-
Compact Design: The compact size (158 x 85 x 30 mm) allows for easy integration in systems where space is limited, without compromising on functionality.
-
Wide Operating Temperature Range: With a temperature range of -20°C to +60°C, the module can be used in environments with varying temperature conditions.
-
Flexible Communication: Supports both Modbus RTU and Profibus DP, offering enhanced compatibility and communication flexibility across a wide range of control systems.
-
Energy Efficient: The board’s low current consumption of just 150 mA helps reduce energy costs while maintaining high operational efficiency.
-
Reliable I/O Functions: The YPQ 202A supports 8 digital inputs and 8 digital outputs, providing versatility in industrial automation and control systems.
-
DIN Rail Mountable: The module is designed to be mounted on a DIN rail, ensuring easy installation and space-saving in control panels.
Frequently Asked Questions (FAQ)
Q1: What power supply is required for the ABB YPQ 202A YT204001-KB I/O board?
A1: The YPQ 202A requires a 24 VDC power supply.
Q2: How many digital inputs and outputs does the module have?
A2: The module provides 8 digital inputs and 8 digital outputs.
Q3: What are the operating temperature conditions for this module?
A3: The YPQ 202A operates efficiently within a temperature range of -20°C to +60°C.
Q4: What communication protocols are supported by this module?
A4: The module supports Modbus RTU and Profibus DP protocols.
Q5: How is the YPQ 202A mounted?
A5: The YPQ 202A can be easily mounted on a DIN rail, making installation simple and secure.
Q6: What is the current consumption of the YPQ 202A?
A6: The YPQ 202A consumes 150 mA of current.
Q7: What are the dimensions of the YPQ 202A I/O board?
A7: The dimensions of the board are 158 x 85 x 30 mm.
Q8: Can the YPQ 202A be used in harsh environments?
A8: Yes, it is designed to function in a variety of industrial environments, withstanding temperatures ranging from -20°C to +60°C.
Q9: Is the YPQ 202A compatible with other ABB automation products?
A9: Yes, it is designed for seamless integration with other ABB products in automation and control systems.
Q10: What type of I/O capabilities does the YPQ 202A offer?
A10: The YPQ 202A offers 8 digital inputs and 8 digital outputs, making it versatile for a wide range of industrial applications.
Recommended Related Models (Same Series or Related)
| Model | Description | Input/Output Channels | Communication | Mounting |
|---|---|---|---|---|
| YPQ 203A | Advanced I/O module for complex systems | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 204A | High-performance I/O for fast applications | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 201A | I/O module with extended input/output options | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 205A | Modular I/O solution for large-scale systems | 16 Digital Inputs, 16 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 206A | Compact I/O with flexible communication | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
| YPQ 207A | Versatile I/O board for various control systems | 8 Digital Inputs, 8 Digital Outputs | Modbus RTU, Profibus DP | DIN Rail Mount |
