Product Introduction

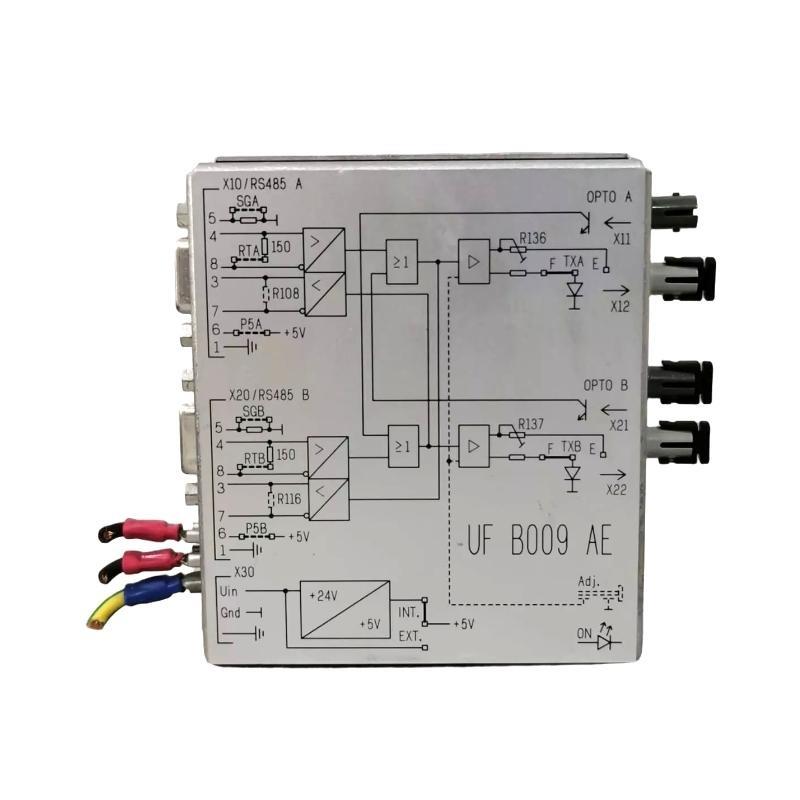

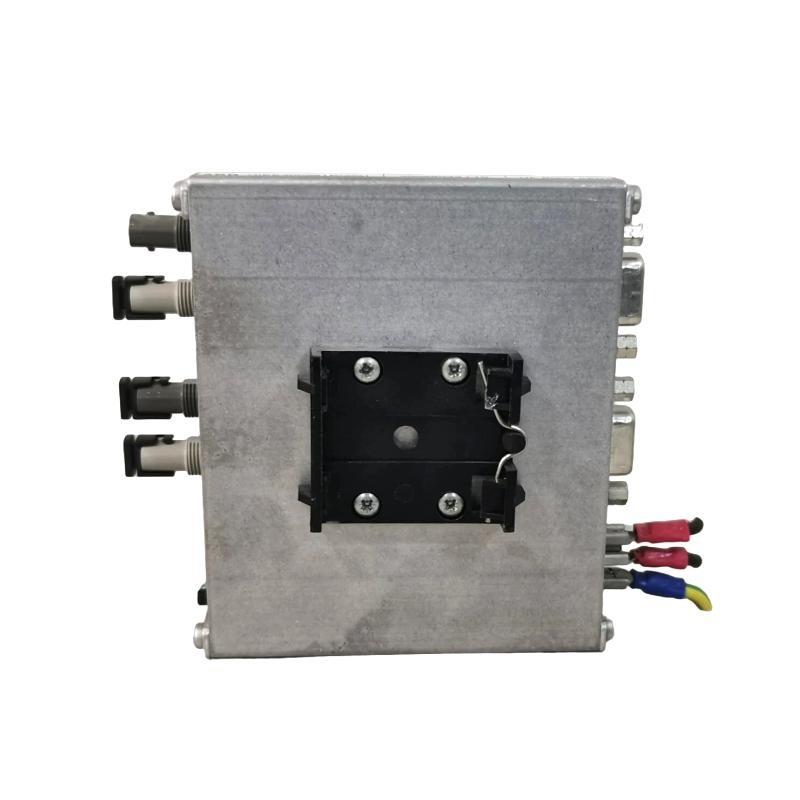

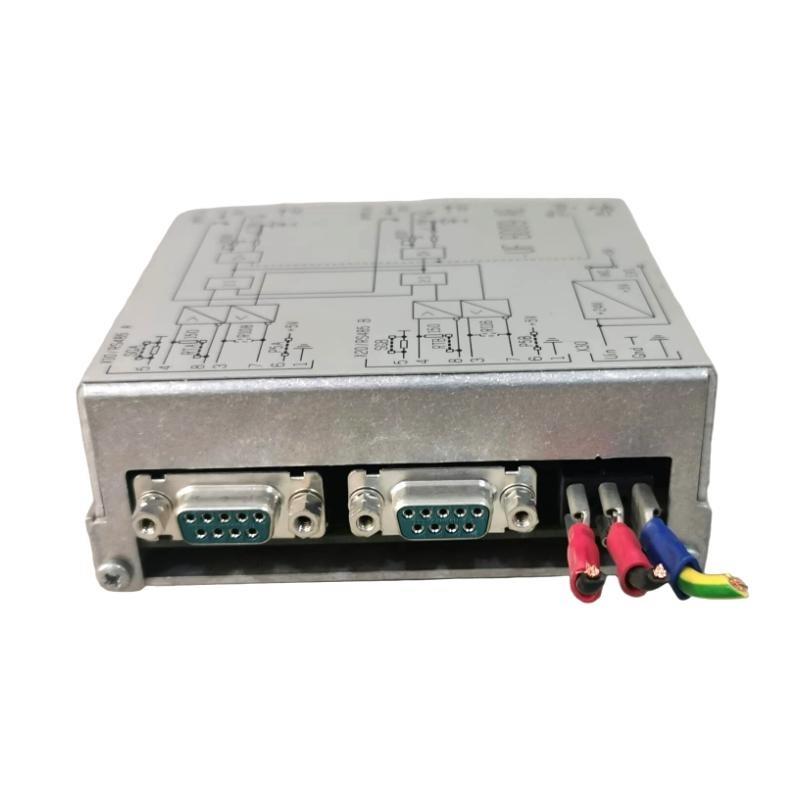

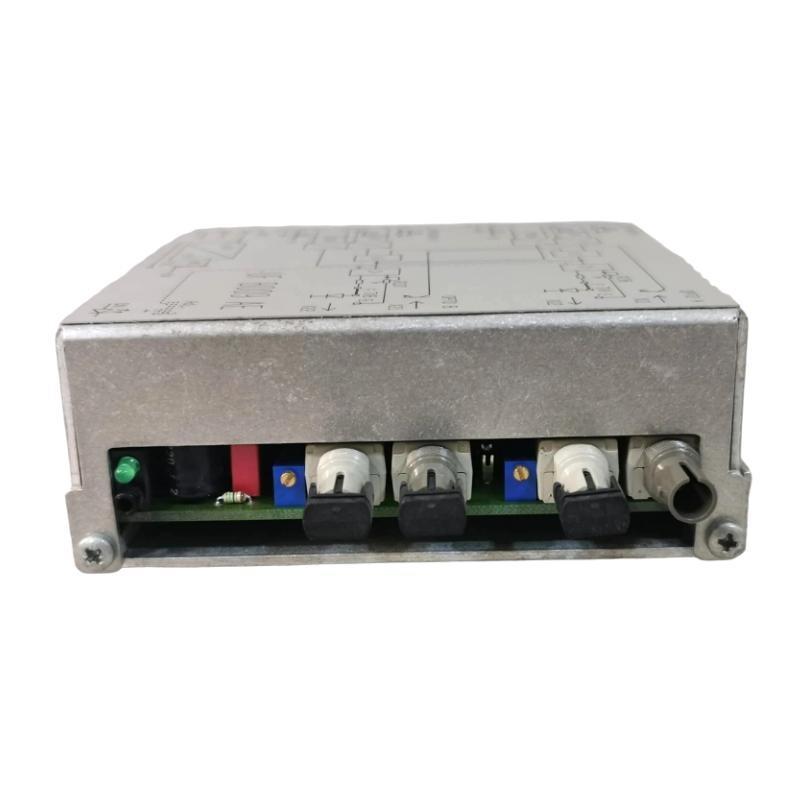

The ABB UFB009AE01 HIEE400961R1 HI906153-860-023 is an industrial-grade power supply unit designed for ABB’s control and automation systems, particularly within the Symphony, Advant, and Freelance series. This power module ensures the delivery of stable and regulated DC voltage to control processors, I/O modules, and communication units, forming the backbone of distributed control systems (DCS) and safety-critical applications.
Engineered to meet rigorous industrial standards, this power supply integrates advanced protection features, high efficiency, and wide input compatibility. With robust construction and reliable electrical performance, it guarantees uninterrupted operation in demanding environments such as power generation plants, chemical refineries, and heavy manufacturing facilities.
Product Specifications
| Parameter | Value |
|---|---|
| Model Number | UFB009AE01 HIEE400961R1 HI906153-860-023 |
| Manufacturer | ABB |
| Product Type | Industrial Power Supply Unit |
| Series Compatibility | ABB Symphony / Advant / Freelance DCS |
| Input Voltage Range | 85–264 VAC / 100–300 VDC |
| Input Frequency | 47–63 Hz |
| Output Voltage | 24 VDC (regulated) |
| Output Current | 5 A continuous |
| Output Power | 120 W nominal |
| Efficiency | ≥ 88% |
| Ripple and Noise | < 50 mVpp |
| Isolation Voltage | 3 kV AC (input to output) |
| Protection Features | Over-voltage, Over-current, Short-circuit, Thermal |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Cooling Method | Convection (fanless design) |
| EMC Compliance | EN 61000-6-2 / EN 61000-6-4 |
| Certifications | CE, UL, RoHS |
| Mounting Type | Rack-mount / DIN rail compatible |
| Dimensions (W × H × D) | 50 × 150 × 180 mm |
| Weight | 1.1 kg |
Product Applications
The ABB UFB009AE01 HIEE400961R1 HI906153-860-023 power supply is widely deployed in industrial automation and critical control systems, including:
-
Power Generation Plants: Powers DCS modules for turbine control, breaker logic, and process safety systems.
-
Oil & Gas Operations: Provides stable energy for compressor stations, wellhead control units, and SCADA systems.
-
Chemical Processing Facilities: Supplies power to process controllers and emergency shutdown logic.
-
Manufacturing Automation: Ensures uninterrupted power to PLCs, HMIs, and I/O networks.
-
Water and Wastewater Treatment: Supports pump control systems, sensor modules, and process automation nodes.
-
Heavy Industry and Mining: Provides reliable power to furnace control panels, conveyor systems, and motor control units.
Product Advantages
-
Stable Output Performance: Maintains regulated 24 VDC output with minimal ripple for sensitive electronic systems.
-
Wide Input Compatibility: Operates on both AC and DC inputs, providing flexibility in diverse installations.
-
Comprehensive Protection: Built-in over-voltage, over-current, and thermal protections ensure safe operation.
-
High Energy Efficiency: Reduces power losses and heat generation, increasing overall system reliability.
-
Fanless Cooling Design: Convection-based cooling eliminates moving parts, enhancing longevity and reducing maintenance.
-
Industrial-Grade Build: Designed to withstand electrical noise, temperature variations, and mechanical stress.
-
Seamless Integration: Fully compatible with ABB Symphony, Advant, and Freelance control architectures.
-
Compact & Modular: Space-saving design allows easy installation in control racks and cabinets.
FAQ
-
What is the regulated output voltage of the UFB009AE01 power supply?
The unit provides a stable 24 VDC output with tight regulation for industrial control systems. -
Can this power supply operate with both AC and DC input sources?
Yes, it supports 85–264 VAC and 100–300 VDC input ranges. -
What type of isolation is provided between input and output?
It offers 3 kV AC galvanic isolation to ensure safety and noise immunity. -
Does the module include redundancy support?
Yes, it can be configured in parallel for redundant power supply setups. -
What is the maximum continuous output current?
It supports up to 5 A continuous output at 24 VDC. -
What built-in protections are available?
Over-voltage, over-current, short-circuit, and thermal shutdown protections are integrated. -
Is this power supply hot-swappable in ABB systems?
No, it is recommended to power down the system before replacement. -
What is the typical efficiency rating of the unit?
The module achieves 88% or higher efficiency under nominal load conditions. -
Is this power supply compatible with ABB Symphony Plus systems?
Yes, it is compatible with Symphony Plus, Advant, and Freelance DCS platforms. -
How is cooling handled in this power supply?
The unit uses a fanless convection design for silent, maintenance-free operation.
Recommended Related Models (Same Series or Functional Equivalents)
| Model Number | Description | Key Features |
|---|---|---|
| UFB010AE01 HIEE400962R0001 | Power Supply Module | Higher current output, redundant capability |
| UFB007AE01 HIEE400960R0001 | Compact Power Supply | Smaller size, 24 VDC regulated output |
| UFB011AE01 HIEE400963R0001 | Redundant Power Supply | Designed for dual-channel critical systems |
| UFB012AE01 HIEE400964R0001 | High-Capacity Power Supply | Extended power range for heavy loads |
| CP451 HIEE300770R0001 | ABB DCS Power Module | Integrated control rack PSU |
| PM630 Power Module | Power Distribution Unit for CS Series | Designed for ABB Symphony and Advant systems |
Recommended Popular ABB Models
| Model Number | Description | Main Application |
|---|---|---|
| PM864AK01 | AC 800M Controller CPU | Central processing for ABB automation |
| CI854AK01 | Profibus DP Communication Module | Fieldbus connectivity for DCS systems |
| AI810 | Analog Input Module 8 ch 0–10 V | High-accuracy process signal acquisition |
| DO810 | Digital Output Module 16 ch 24 VDC | Digital control for automation systems |
| DI810 | Digital Input Module 16 ch 24 VDC | Discrete input acquisition for ABB DCS |
| TU830V1 | Extended I/O Termination Unit | Reliable I/O connection for system modules |
