Product Introduction

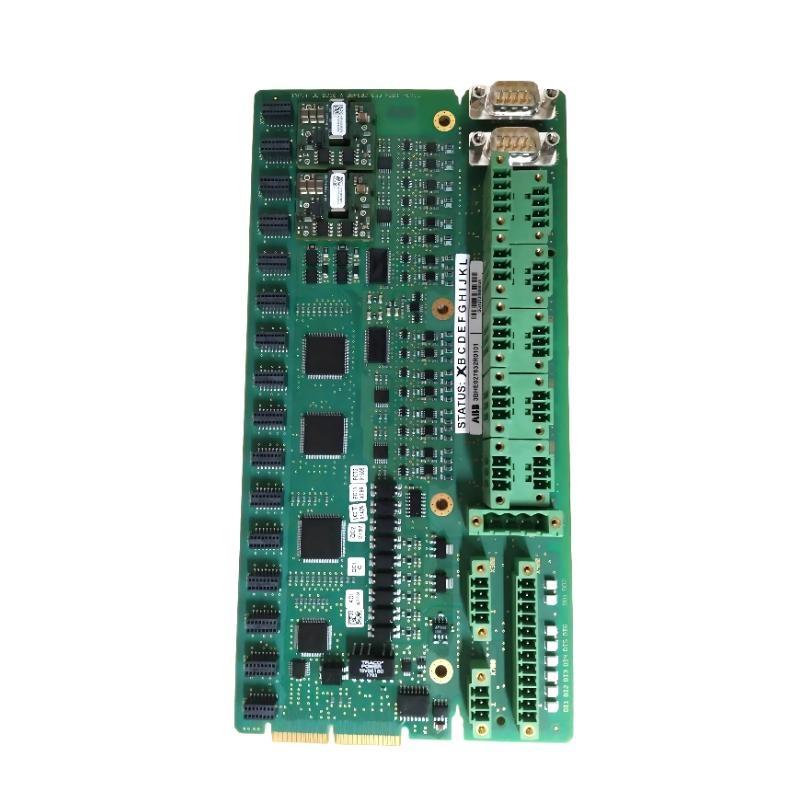

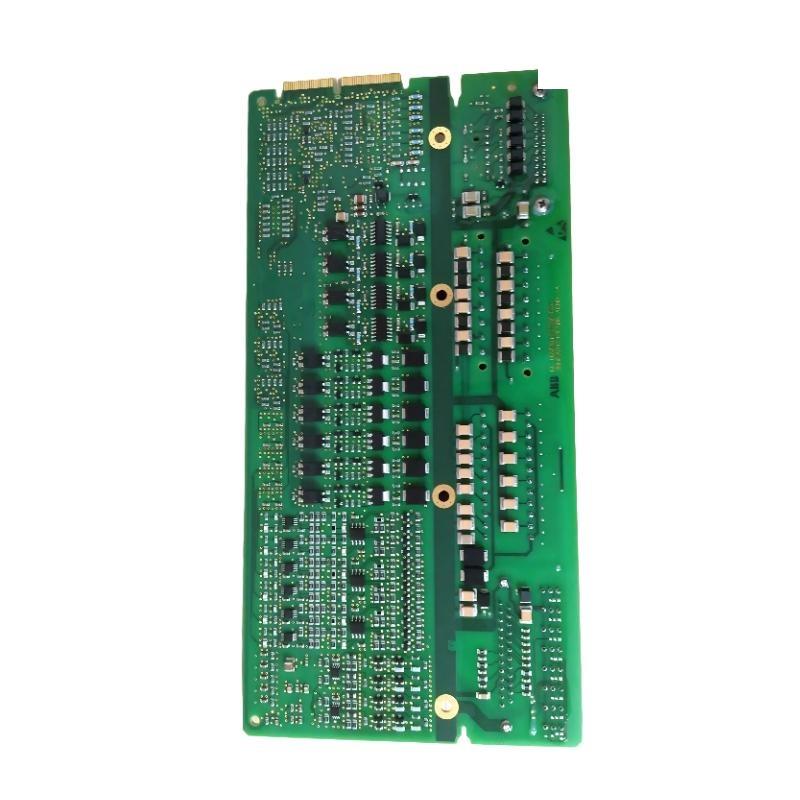

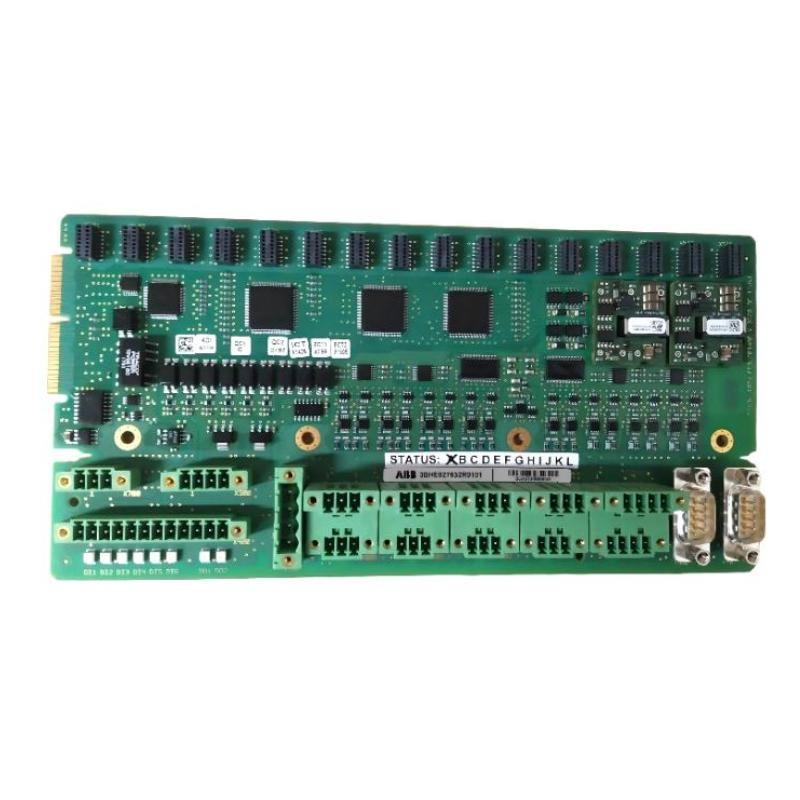

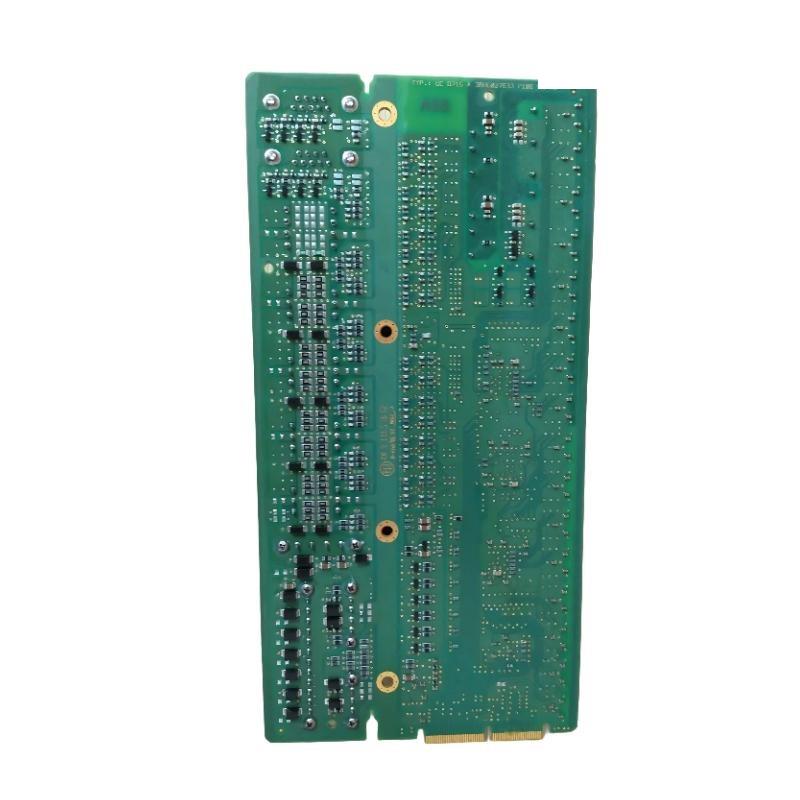

The ABB UC D216 A 3BHE027632R0101 Mainboard is a high-performance central circuit board designed for ABB UC series automation and control systems. This mainboard acts as the primary processing unit, managing communications, signal processing, and interfacing between peripheral I/O modules, controllers, and field devices.
Built with industrial-grade components, the UC D216 A Mainboard offers high reliability, robust signal integrity, and advanced protection features such as overvoltage safeguards and EMI shielding. Its modular architecture allows for easy installation, replacement, and system expansion, making it suitable for a variety of distributed control systems (DCS), process automation, and industrial control networks.
The board is widely used for real-time data processing, control of digital and analog signals, and interfacing with advanced automation systems. It is particularly suitable for environments where accuracy, reliability, and operational continuity are essential.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | UC D216 A |
| Part Number | 3BHE027632R0101 |
| Module Type | Mainboard |
| System Platform | ABB UC Series |
| Digital I/O Channels | 24 inputs / 24 outputs |
| Analog I/O Channels | 12 inputs / 12 outputs |
| Input Signal Range | 0–10 V / 4–20 mA for analog, TTL/CMOS for digital |
| Output Signal Range | 0–10 V / 4–20 mA for analog, TTL/CMOS for digital |
| Communication Interfaces | RS-485, RS-232, Ethernet |
| Power Supply Requirement | 24 VDC regulated input |
| Protection Features | Overvoltage, short-circuit, EMI shielding |
| Diagnostics | LED indicators for power, communication, and fault conditions |
| Mounting Type | Rack-mounted or slot installation |
| Cooling Method | Passive convection cooling |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Material | FR4 PCB with conformal coating |
| Dimensions | 230 × 150 × 45 mm |
| Weight | 0.6 kg |
| Certifications | CE, UL, RoHS compliant |
Product Applications
The ABB UC D216 A Mainboard is used in industrial control applications requiring robust signal processing and communication management:
-
Power Generation — Interfaces with sensors, generators, and auxiliary systems for precise control.
-
Oil & Gas — Central processing for automation of pumps, valves, and safety systems.
-
Chemical and Petrochemical Plants — Real-time monitoring and control of process variables.
-
Water and Wastewater Treatment — Controls pumps, flow meters, and actuators.
-
Mining and Metals — Provides communication and control for heavy machinery and process monitoring.
-
Industrial Manufacturing — Centralizes signal processing for automated production lines.
Its modular design allows for scalable integration into large distributed control systems, improving reliability and ease of maintenance.
Product Advantages
-
Comprehensive Signal Handling
Supports a mix of analog and digital I/O channels for flexible system integration. -
High Precision Processing
Ensures accurate signal conversion and control for complex industrial processes. -
Industrial Protection Features
Includes overvoltage protection, short-circuit protection, and EMI shielding. -
Real-Time Diagnostics
LED indicators display system status, power, and fault conditions for quick troubleshooting. -
Passive Cooling
Fanless design reduces maintenance needs and enhances long-term reliability. -
Modular and Scalable
Easily integrates with other ABB UC modules for expanded control networks. -
Durable Construction
Conformal coating and FR4 PCB material protect against environmental factors. -
Quick Installation and Replacement
Designed for easy mounting and modular replacement in industrial systems.
FAQ
-
What is the primary function of the UC D216 A Mainboard?
It serves as the central processing and communication hub for ABB UC series automation systems. -
Which types of signals can this mainboard handle?
It handles analog signals (0–10 V / 4–20 mA) and digital TTL/CMOS signals. -
How many input and output channels are supported?
The board provides 24 digital inputs, 24 digital outputs, 12 analog inputs, and 12 analog outputs. -
Which communication interfaces are included?
RS-485, RS-232, and Ethernet interfaces are available for integration with UC modules. -
Does the board include protection against electrical faults?
Yes, overvoltage protection, short-circuit protection, and EMI shielding are built in. -
Can it operate in harsh industrial environments?
Yes, the mainboard is designed for industrial conditions with temperature, humidity, and EMI resistance. -
Does it provide diagnostic feedback?
Yes, LED indicators show power status, communication activity, and fault conditions. -
What is the required power supply?
A regulated 24 VDC input is necessary for proper operation. -
Is the module compatible with other ABB UC series modules?
Yes, it is fully compatible with UC series controllers, I/O modules, and distributed control systems. -
Can the mainboard support system expansion?
Yes, its modular design allows additional modules and controllers to be integrated seamlessly.
Recommended Related Models (Same Series)
| Model | Description | System | Weight |
|---|---|---|---|
| UC D215 A101 3BHE027631R0101 | Mainboard for UC series | ABB UC | 1.22 kg |
| UC D214 A102 3BHE027630R0102 | Interface board | ABB UC | 1.18 kg |
| UC D213 B101 3BHE027629R0101 | Signal Processing Board | ABB UC | 1.15 kg |
| UC D212 B102 3BHE027628R0102 | Control Interface Board | ABB UC | 1.14 kg |
| UC D211 A101 3BHE027627R0101 | I/O Expansion Board | ABB UC | 1.12 kg |
| UC D210 A102 3BHE027626R0102 | CPU Interface Board | ABB UC | 1.10 kg |
Popular ABB Models (Same Brand)
| Model | Description | Product Type | Weight |
|---|---|---|---|
| PM864AK01 3BSE018161R1 | Advanced CPU Controller | DCS Processor | 1.05 kg |
| PM866AK02 3BSE050198R1 | Redundant CPU Controller | DCS Controller | 1.10 kg |
| CI854AK01 3BSE025961R1 | PROFIBUS Communication Adapter | Communication Module | 0.75 kg |
| AI810 3BSE008516R1 | Analog Input Module | I/O Module | 0.65 kg |
| DI810 3BSE008508R1 | Digital Input Module | I/O Module | 0.60 kg |
| DO810 3BSE008510R1 | Digital Output Module | I/O Module | 0.62 kg |
