Product Introduction

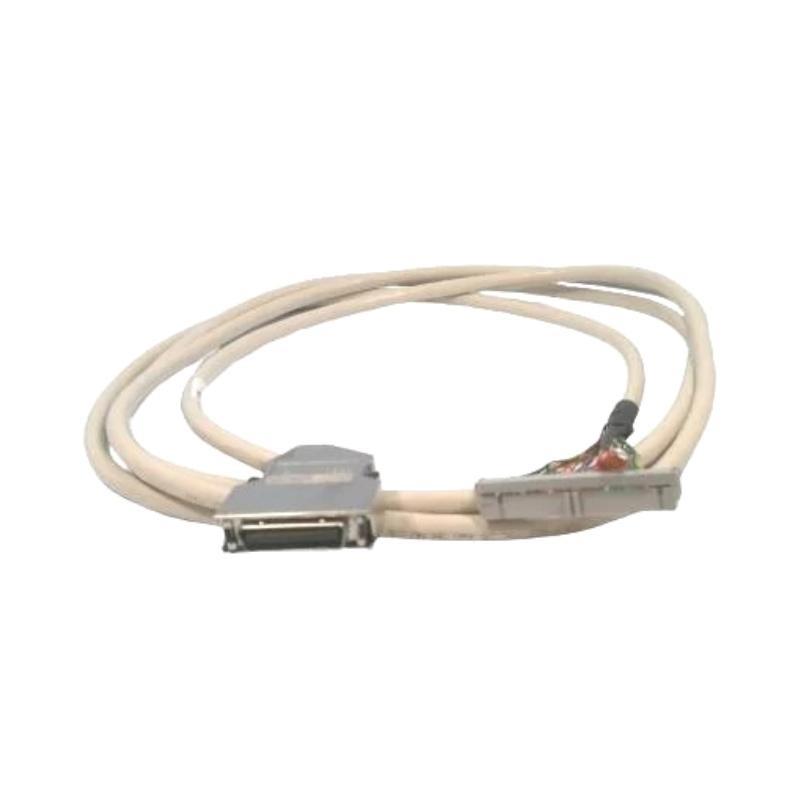

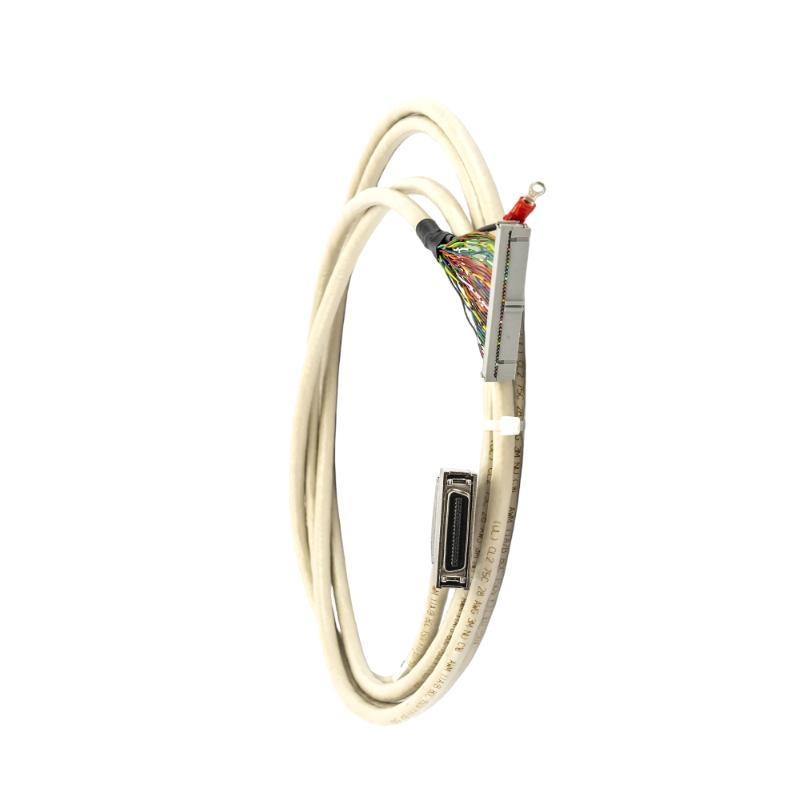

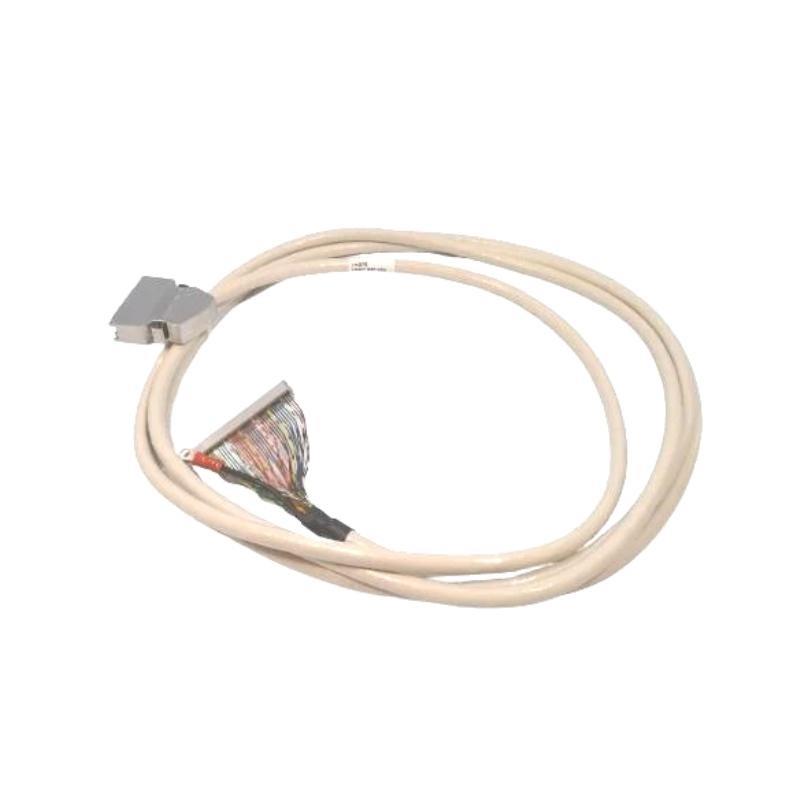

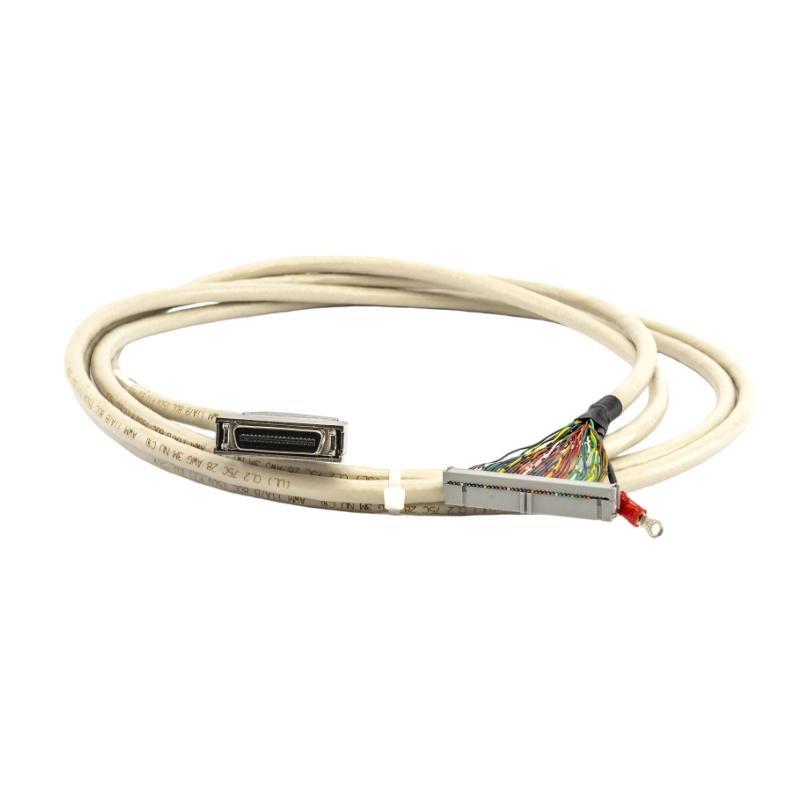

The ABB TK575 3BSC950054R1 Cable Assembly is a specialized industrial communication cable designed for use with ABB control systems, particularly within the ABB AC 800M, S800 I/O, and DCS (Distributed Control System) architecture. As a vital interconnection component, the TK575 facilitates reliable data transmission and system integrity across automation components.
Manufactured to ABB’s rigorous quality standards, the TK575 is engineered for high signal fidelity, low EMI (Electromagnetic Interference), and mechanical durability in demanding industrial environments. It ensures stable communication between controllers, I/O modules, and field devices in mission-critical applications, where downtime or signal loss is not an option.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB TK575 Cable Assembly |
| Part Number | 3BSC950054R1 |
| Cable Type | Pre-assembled communication/data cable |
| Connector Type | Pre-molded industrial-grade connectors |
| Cable Length | 2.7 meters |
| Cable Jacket Material | Industrial-grade PVC |
| Conductor Material | Copper (twisted pair shielding) |
| Voltage Rating | 300 V |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Fire Resistance | IEC 60332-1 compliant flame retardant |
| Insulation Resistance | > 20 MΩ·km |
| Compatibility | AC 800M, S800 I/O, Control Builder, CI modules |
| Color | Black with ABB label and part ID |
| Certification | CE, RoHS |
| Weight | 0.285 kg |
Product Applications
The TK575 cable assembly is designed specifically for industrial automation environments requiring high-speed and noise-immune communication. Typical application scenarios include:
-
Distributed Control Systems (DCS) in power plants, petrochemical sites, and manufacturing
-
AC 800M Controller Interfacing with I/O modules (S800 series)
-
Signal transmission between I/O clusters and processors in control panels
-
Control room to field device communication where vibration and EMI pose threats to signal quality
-
Redundant and remote I/O configurations
-
Testing and simulation environments in process automation
Its plug-and-play functionality ensures quick installation, minimized wiring errors, and reduced commissioning times.
Product Advantages
-
Optimized for ABB Systems: Fully tested and validated for use with AC 800M, CI modules, and S800 I/O series.
-
Superior Signal Integrity: Shielded conductors and high-grade copper minimize data loss and cross-talk.
-
Industrial Durability: Resistant to abrasion, oil, and temperature extremes, making it suitable for harsh industrial conditions.
-
Flame Retardant and Safe: Complies with IEC 60332-1 for flame resistance, enhancing safety in control panels.
-
Easy Identification and Use: Labeled connectors and molded ends simplify installation and maintenance.
-
Reduced Installation Time: Pre-terminated cable avoids manual crimping or stripping, improving field efficiency.
-
EMI Shielding: Twisted pairs and shielded jacket protect communication lines from electrical noise.
-
RoHS and CE Certified: Environmentally safe and compliant with major international safety directives.
Frequently Asked Questions (FAQs)
-
What systems is the TK575 cable compatible with?
It is specifically designed for ABB’s AC 800M and S800 I/O systems, and compatible with CI modules. -
Is this cable suitable for high-vibration environments?
Yes, it’s built with rugged insulation and secure connectors to withstand vibration and mechanical stress. -
Can I use TK575 in outdoor applications?
While durable, it is recommended for indoor or protected installations due to lack of UV resistance. -
How long is the TK575 cable?
The standard version is 2.7 meters in length. -
Can the cable be cut or extended?
No, it is a pre-terminated cable and should not be modified. Custom lengths should be ordered from ABB. -
What is the temperature rating for this cable?
It operates between -20°C and +80°C. -
Does the cable support shielding?
Yes, it features twisted pair shielding for EMI protection. -
Is the cable RoHS-compliant?
Yes, it complies with RoHS and CE environmental and safety standards. -
What is the typical application of this cable in DCS?
It connects controllers to distributed I/O modules in industrial control systems. -
Are connectors molded or field-assembled?
The connectors are factory-molded, ensuring high reliability and signal quality.
Related Models or Series Variants
| Model Number | Description | Length | Compatibility | Connector Type | Weight |
|---|---|---|---|---|---|
| TK576 (3BSC950085R1) | Longer version of TK575 cable | 5 meters | AC 800M, S800 I/O | Molded | 0.65 kg |
| TK520 | RS-232 communication cable for ABB CPUs | 2 meters | ABB AC 500/800M | DB9 | 0.30 kg |
| TK515 | CI854 PROFIBUS-DP cable | 2.5 meters | CI854 module | Pre-molded | 0.40 kg |
| TK579 | High-flex communication cable for testing | 3 meters | System simulation | Reinforced ends | 0.45 kg |
| TK560 | Power cable assembly for ABB I/O modules | 4 meters | S800 I/O power supply | Pre-terminated | 0.60 kg |
| TK550 | Communication cable for redundant CI modules | 3 meters | CI855, CI862 | Shielded pair | 0.50 kg |
Popular ABB Products (Same Brand)
| Model Number | Description | Application | Interface | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| AC800M PM864AK01 | High-performance CPU for 800xA/DCS | Distributed control systems | Ethernet/Serial | 185 x 140 x 75 | 1.5 kg |
| CI854AK01 | PROFIBUS-DP communication interface | I/O network communication | PROFIBUS | 130 x 120 x 70 | 0.9 kg |
| S800 I/O AI810 | 8-channel analog input module | Remote signal input | Fieldbus | 120 x 70 x 60 | 0.3 kg |
| CP600-Pro HMI | Industrial touchscreen interface | Operator control | Ethernet/USB | 240 x 180 x 60 | 1.8 kg |
| DCS880-S02-0150-05 | DC drive for motor control in process industry | Motion control | Fieldbus/Analog | 300 x 200 x 180 | 5.2 kg |
| PM5630-2ETH | Compact PLC controller with dual Ethernet ports | Small automation systems | Dual Ethernet | 135 x 118 x 70 | 0.85 kg |
