Product Overview

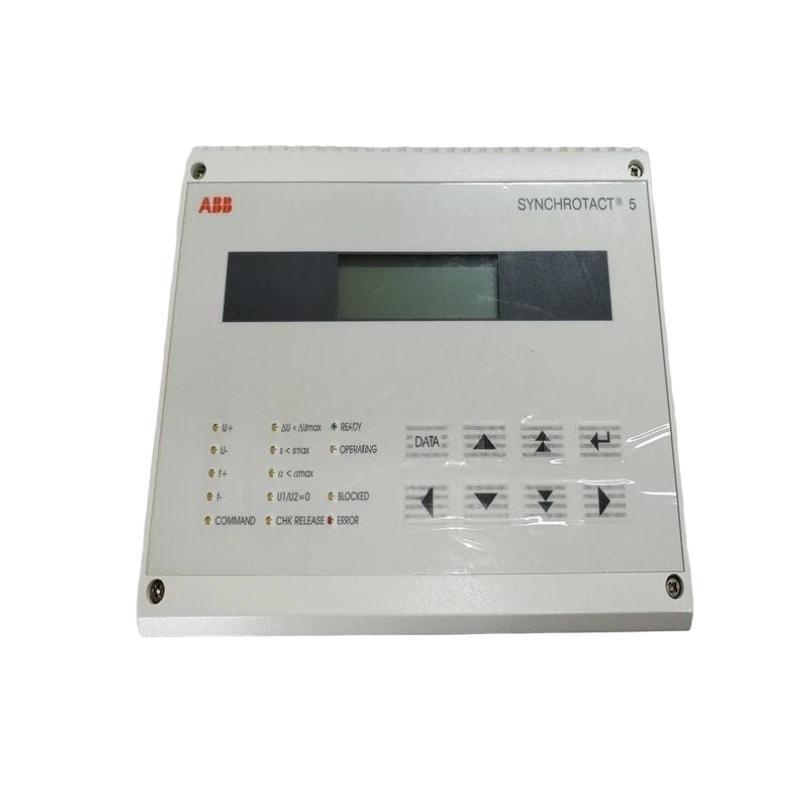

The ABB SYN5201A-Z Synchronous Control Unit is a high-performance control module designed for precise synchronization and protection of power generation equipment. It provides reliable control, monitoring, and interfacing capabilities for generators, motors, and other synchronous machines.
Key Features
-
High-precision synchronous control for generators and motors
-
Provides protection, monitoring, and control functionalities
-
Supports integration with ABB automation and SCADA systems
-
Flexible configuration for multiple machine types
-
Real-time diagnostics and fault detection
-
User-friendly interface for configuration and monitoring
-
Robust design for industrial and utility environments
-
Compatible with standard industrial communication protocols
Technical Specifications
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Part Number | SYN5201A-Z |
| Product Type | Synchronous Control Unit |
| Dimensions | 300 × 250× 150 mm |
| Weight | 8.0 kg |
| Power Supply | 110–240 V AC/DC |
| Control Voltage | 24 V DC (logic supply) |
| Output | Digital and analog outputs for machine control |
| Input | Analog, digital, and pulse inputs for monitoring |
| Communication | Modbus, Profibus, and standard industrial protocols |
| Operating Temperature | –20 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Relative Humidity | 0–95%, non-condensing |
| Mounting | Panel or rack-mounted installation |
| Applications | Generator synchronization, motor control, system protection |
Industry Applications
-
Power generation plants
-
Industrial motor control systems
-
Renewable energy facilities (wind, hydro, solar)
-
Utilities and grid synchronization
-
Oil & gas and petrochemical plants
-
Industrial automation systems
-
Retrofitting legacy synchronous machines
Frequently Asked Questions (FAQ)
Q1: What is the function of the SYN5201A-Z?
It provides synchronous control, protection, and monitoring for generators and motors.
Q2: What type of inputs and outputs does it support?
It supports analog, digital, and pulse inputs and outputs for control and monitoring.
Q3: What are the communication options?
Modbus, Profibus, and standard industrial protocols.
Q4: What is the operating temperature range?
–20 °C to +60 °C.
Q5: Can it be mounted in panels?
Yes, it supports panel or rack-mounted installations.
Q6: Is it suitable for renewable energy applications?
Yes, it is widely used in wind, hydro, and solar power facilities.
Q7: What is the power supply requirement?
110–240 V AC/DC with a 24 V DC logic supply.
Q8: Can it retrofit existing synchronous machines?
Yes, it is compatible with both new installations and legacy equipment retrofits.
