Product Introduction

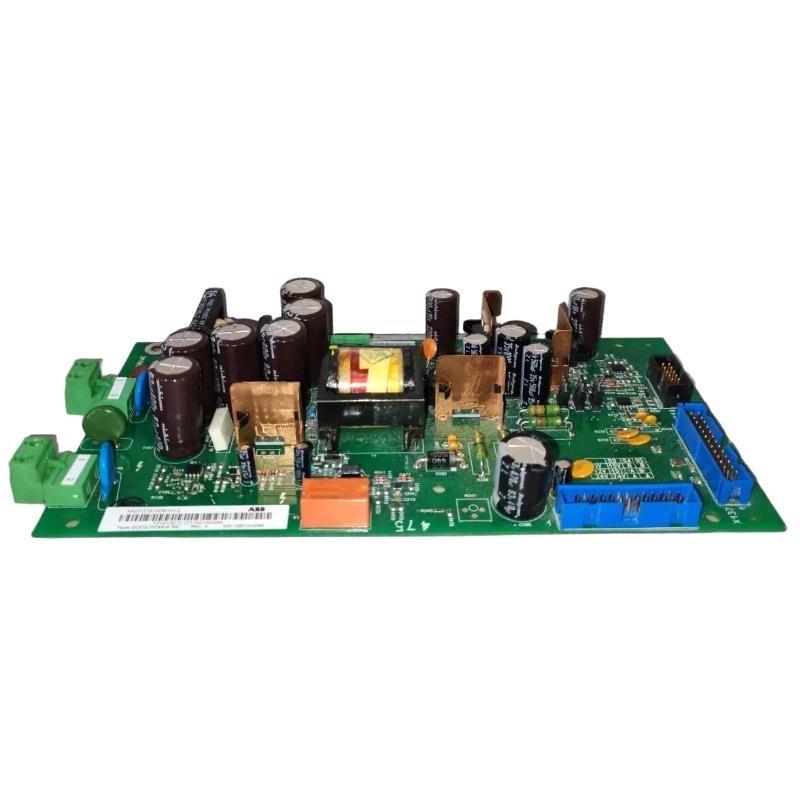

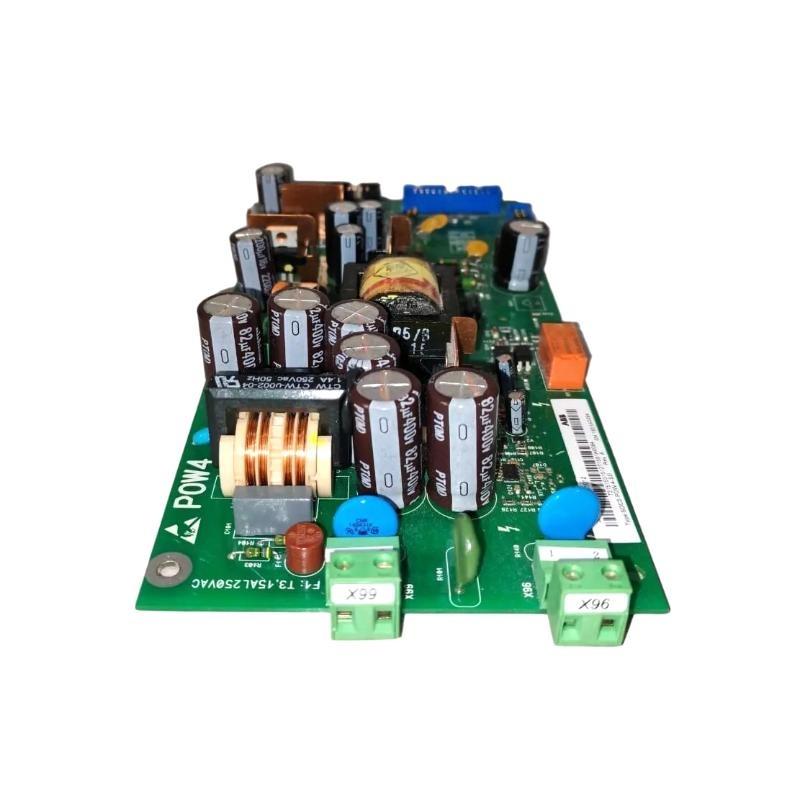

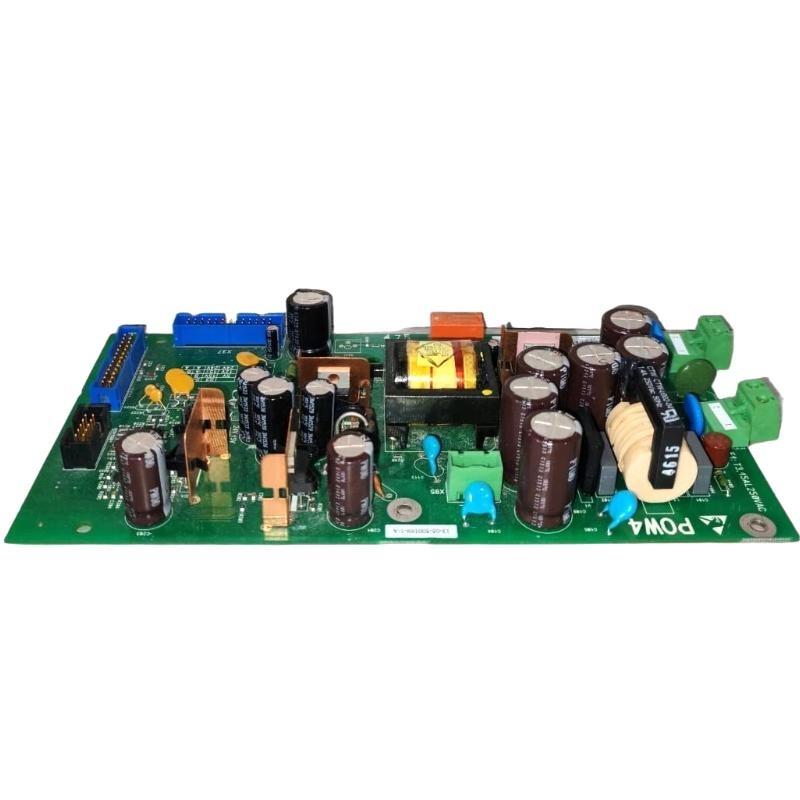

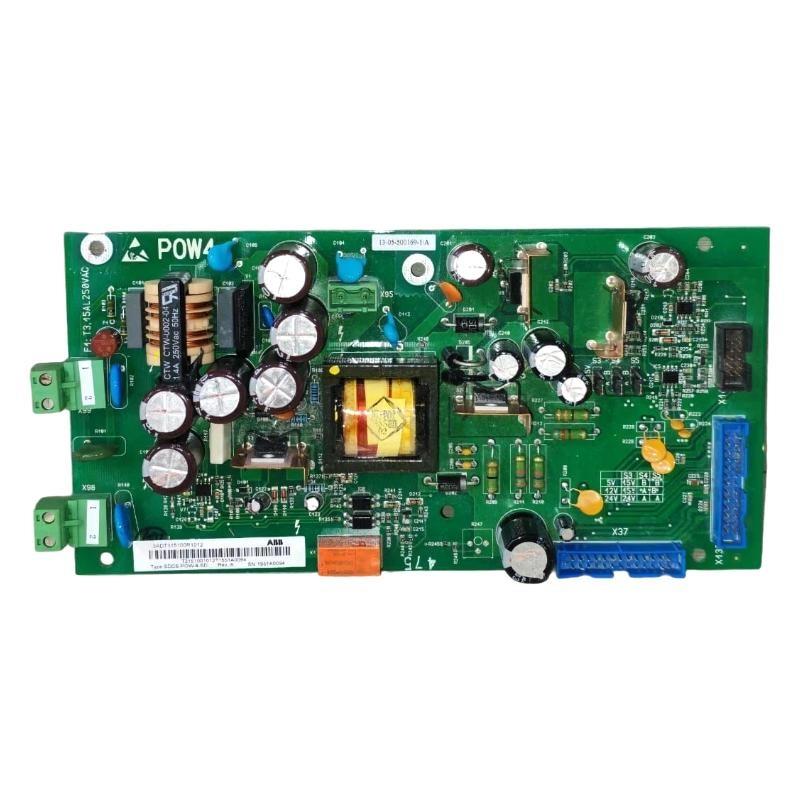

The ABB SDCS-POW-4-SD 3ADT315100R1001 is a dedicated power supply module designed for ABB’s DC drive systems, particularly the DCS400, DCS500, and DCS600 series. As a critical component within the control system infrastructure, it provides stable and isolated 24V DC power required to operate logic control boards, interface modules, and other auxiliary electronics.
Its rugged design and reliable performance make it suitable for installation in harsh industrial environments. Whether in a new installation or a retrofit application, the SDCS-POW-4-SD ensures a dependable energy source that meets stringent operational standards.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | SDCS-POW-4-SD |
| Part Number | 3ADT315100R1001 |
| Function | Regulated Power Supply Module for DC Drives |
| Input Voltage Range | 115 V / 230 V AC ±10%, 50/60 Hz |
| Output Voltage | 24 V DC (nominal) |
| Rated Output Current | 2.5 A max |
| Rated Output Power | Approx. 60 W |
| System Compatibility | ABB DCS400 / DCS500 / DCS600 Series |
| Mounting Method | Rack-mountable plug-in unit |
| Cooling Type | Natural air convection |
| Input-Output Isolation | Galvanic isolation built-in |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Tolerance | 5%–95% non-condensing |
| Dimensions (L×W×H) | 105 x 125 x 60 mm |
| Weight | 0.8 kg |
| Certifications | CE, UL Recognized, RoHS, IEC Compliant |
Product Applications
The SDCS-POW-4-SD (3ADT315100R1001) is used in a variety of industries and settings where precise and stable power is required for drive system components:
-
DC Drive Control Systems: Serves as the power source for logic boards in ABB’s DCS400/500/600 systems.
-
Industrial Automation: Ensures constant power supply for control modules in automated assembly lines.
-
Power Generation: Integrated in control cabinets for turbine or generator systems.
-
Pulp & Paper Industry: Used in high-reliability production environments with large paper handling systems.
-
Steel and Metals Industry: Supports high-demand motor drives and automation under extreme operating conditions.
-
Marine & Offshore: Installed in propulsion or lifting systems that utilize DC drives.
Product Advantages
-
Stable 24V Output for Control Electronics
Ensures uninterrupted operation of all internal drive and interface components. -
Designed for Harsh Industrial Environments
Withstands heat, dust, and vibration; ideal for demanding conditions. -
Supports Legacy and Modern Installations
Compatible with existing ABB drive systems, suitable for replacements or system upgrades. -
Quick Installation and Replacement
Plug-in rack design allows for fast maintenance without system rewiring. -
Integrated Safety Features
Includes protection against overload, short-circuit, and power surges. -
Global Certification
Meets CE and UL standards, ensuring acceptance in regulated industrial markets.
Frequently Asked Questions (FAQ)
-
What is the main function of this power supply module?
It supplies 24V DC to power internal control circuits in ABB’s DC drive systems such as the DCS500 or DCS600. -
Can this unit operate in high-temperature areas?
Yes, it performs reliably in environments up to 55°C. Ensure cabinet ventilation is adequate. -
How do I identify if this module has failed?
Loss of power to control boards or erratic drive behavior are common indicators. A voltage test at the output terminals can confirm failure. -
Can I use this model in a DCS800 system?
No, the SDCS-POW-4-SD is not compatible with the DCS800 platform. Use only with DCS400/500/600 systems. -
Does it support automatic voltage selection between 115V and 230V?
Yes, the module is designed to operate with either voltage input and handles the selection internally. -
Should I perform regular maintenance on the unit?
The module is maintenance-free but should be visually checked for dust buildup or damage during system inspections. -
Is it safe to install this module while the system is energized?
No. Always power down the system before installation or removal to avoid risk of damage or injury. -
Does this unit include output protection features?
Yes, it includes short-circuit and overload protection to safeguard connected components. -
Can I use this module in non-ABB systems?
It’s technically possible if the system requirements match, but it’s optimized for ABB DCS platforms and not recommended for third-party integration. -
Does this power supply require cooling fans?
No, it relies on natural convection. Make sure there’s enough space around the unit for airflow, especially in enclosed cabinets.
