Product Overview

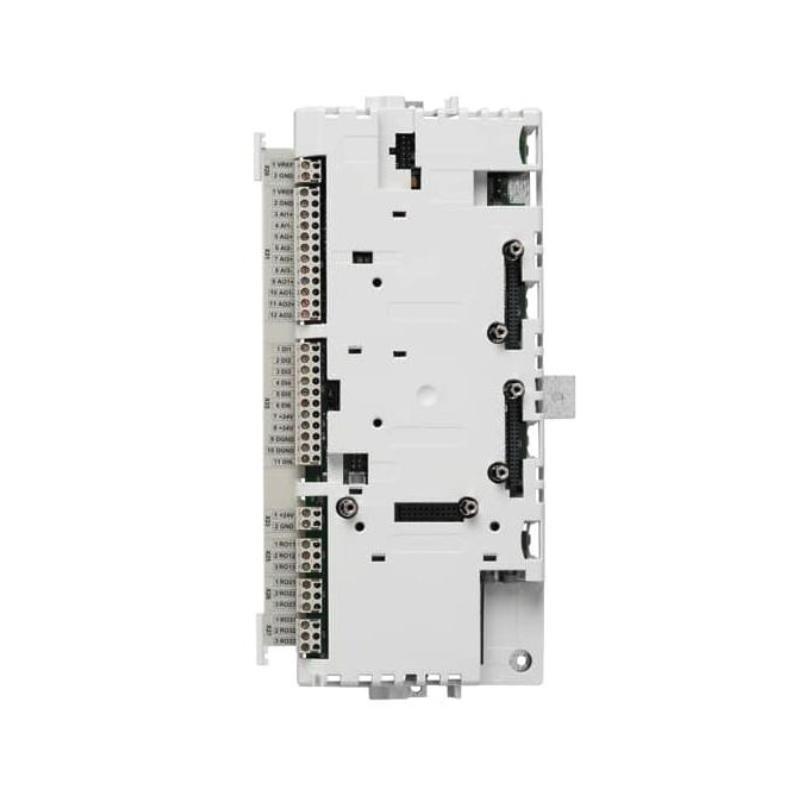

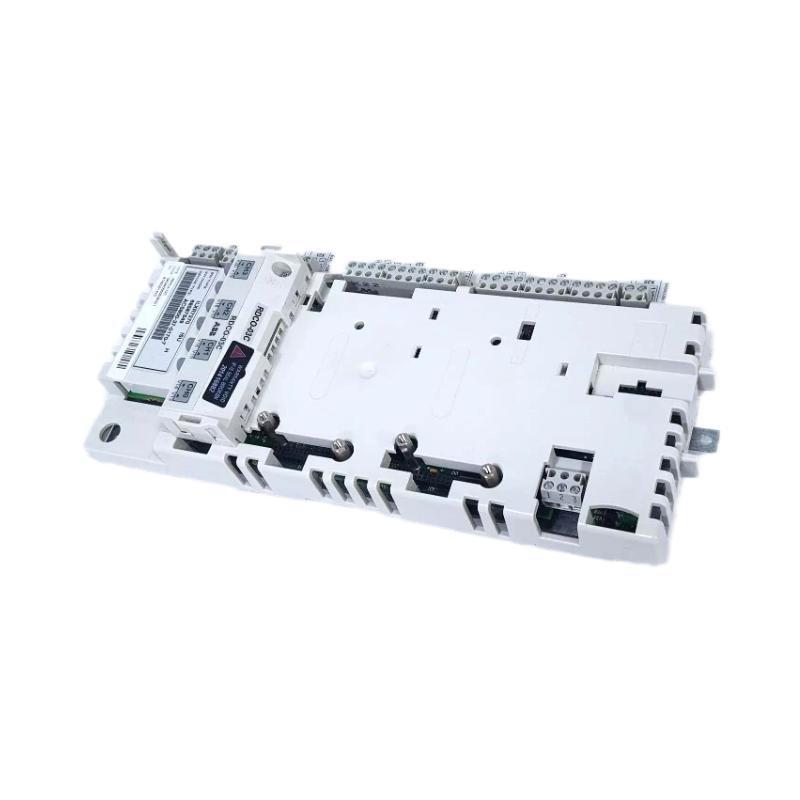

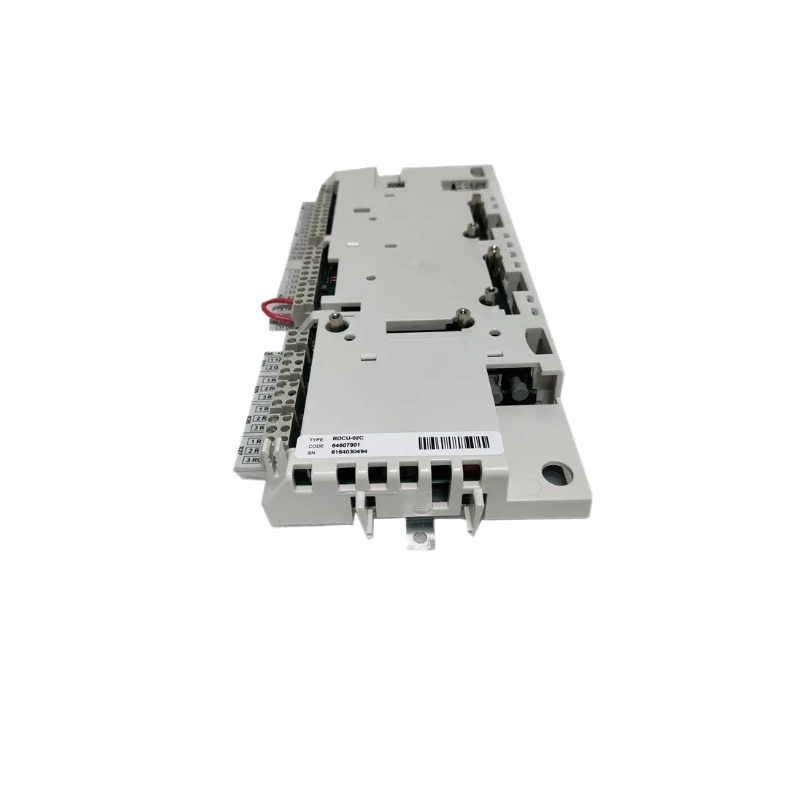

The ABB RDCU-12C 3AUA0000036521 is an advanced drive control unit designed to serve as the core control interface in ABB low voltage AC drives. This module is responsible for supervising key functions such as motor control, communication with fieldbuses, parameter storage, and diagnostics. It is commonly found in ACS800 drive systems and other ABB industrial drive families.
The RDCU-12C provides seamless integration between user interfaces, extension modules, and the drive’s internal systems. It ensures robust real-time data processing, fault tolerance, and adaptability to complex applications. The unit’s compact design and wide functionality make it suitable for both standalone and networked environments, supporting fieldbus protocols such as PROFIBUS, DeviceNet, Modbus, and CANopen through additional modules.
This control unit contributes significantly to system flexibility, energy efficiency, and operational transparency across diverse industrial environments such as manufacturing, water treatment, mining, oil & gas, and marine propulsion systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | RDCU-12C |
| Brand | ABB |
| Product Type | Drive Control Unit |
| Function | Motor control, diagnostics, I/O control |
| Input Voltage Range | Supplied by drive unit |
| Compatible Drives | ACS800 series, other ABB LV drives |
| Communication Support | Supports fieldbus modules |
| Diagnostic Capabilities | Integrated self-monitoring |
| Programming Interface | PC tool via fiber optic or RJ-45 port |
| Mounting Type | Internal panel installation |
| Cooling | Passive convection |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Protection Class | IP20 |
| Dimensions | 275 x 132 x 40 mm |
| Weight | 0.6 kg |
Product Applications
The RDCU-12C is engineered to meet the demands of a wide range of motion control and drive system applications:
-
Variable Speed Drives in Industry
Provides core control for AC motors, enabling energy-efficient operations. -
Conveyor Systems and Hoists
Ensures precise motor speed and torque control. -
Water and Wastewater Plants
Enhances control reliability for pumps and compressors. -
Cranes and Elevators
Delivers real-time monitoring and position control. -
Marine and Offshore Applications
Suitable for harsh environments due to its compact and rugged design. -
Material Handling Systems
Works seamlessly in automated machinery and robotics platforms.
Product Advantages
-
Centralized Control Intelligence
Functions as the brain of ABB drives, integrating all control logic. -
Modular Expandability
Easily works with communication and I/O expansion modules. -
Comprehensive Diagnostics
Real-time data logging and fault tracking built-in. -
Flexible Communication Support
Compatible with numerous industrial protocols via add-on modules. -
Energy Optimization Support
Helps implement smart motor control strategies for energy savings. -
Compact & Lightweight Design
Facilitates integration into tight control cabinets and confined panels. -
Rugged Reliability
Built to withstand industrial environmental stress. -
User-Friendly Setup
Supports ABB’s DriveWindow and other PC configuration tools.
Frequently Asked Questions (FAQ)
Q1: What drives are compatible with the RDCU-12C?
A1: It is primarily used with ABB ACS800 low voltage AC drives and select industrial drive series.
Q2: How is the RDCU-12C powered?
A2: It is powered directly from the drive unit it controls; no external power supply is needed.
Q3: Does the RDCU-12C support fieldbus communication?
A3: Yes, with additional modules, it supports PROFIBUS, CANopen, Modbus, and more.
Q4: Can it store motor and system parameters?
A4: Yes, the module retains parameter configurations and system settings.
Q5: How does it connect to programming tools?
A5: Through a fiber optic or RJ-45 interface, compatible with DriveWindow.
Q6: Is the RDCU-12C hot-swappable?
A6: No, power must be turned off before replacing or removing the unit.
Q7: What happens during a fault event?
A7: The module logs the event and can trigger configured alarms or shutdowns.
Q8: Is it suitable for marine applications?
A8: Yes, it’s commonly deployed in marine environments with proper enclosures.
Q9: How do I mount the RDCU-12C?
A9: It is designed for internal installation within ABB drive modules.
Q10: What is the expected lifespan of this unit?
A10: With proper environmental conditions, it exceeds 10+ years in operation.
Recommended Related Models (Same Series or Functional Family)
| Model | Description | Dimensions (mm) | Weight |
|---|---|---|---|
| RDCU-02C | Early generation control unit | 280 x 135 x 45 | 0.62 kg |
| RDCU-03C | Compact version with basic I/O | 265 x 125 x 40 | 0.57 kg |
| RDCU-11C | Enhanced version with high-speed I/O | 275 x 132 x 40 | 0.6 kg |
| RDCU-13C | Dual-channel control unit | 275 x 132 x 45 | 0.63 kg |
| RDCU-14C | For regenerative drives | 280 x 138 x 42 | 0.66 kg |
| RDCU-15C | Intelligent drive control unit | 275 x 132 x 40 | 0.6 kg |
Popular ABB Models (Same Brand)
| Model | Description | Function | Weight | Dimensions |
|---|---|---|---|---|
| CI854AK01 | Communication module for S800 I/O | PROFIBUS DP interface | 0.2 kg | 90 x 40 x 100 mm |
| AI810 | Analog input module (8 ch) | Data acquisition | 0.2 kg | 120 x 90 x 45 mm |
| DO820 | Digital output module (16 ch) | Signal control | 0.22 kg | 120 x 90 x 45 mm |
| PM864AK01 | CPU module for AC800M controller | Control processing | 0.4 kg | 140 x 120 x 50 mm |
| CI860 | ModuleBus Communication Adapter | AC 800M integration | 0.15 kg | 85 x 60 x 35 mm |
| PXAA 401 | Central unit for AC800F | System-level management | 5 kg | 380 x 235 x 110 mm |
