Product Introduction

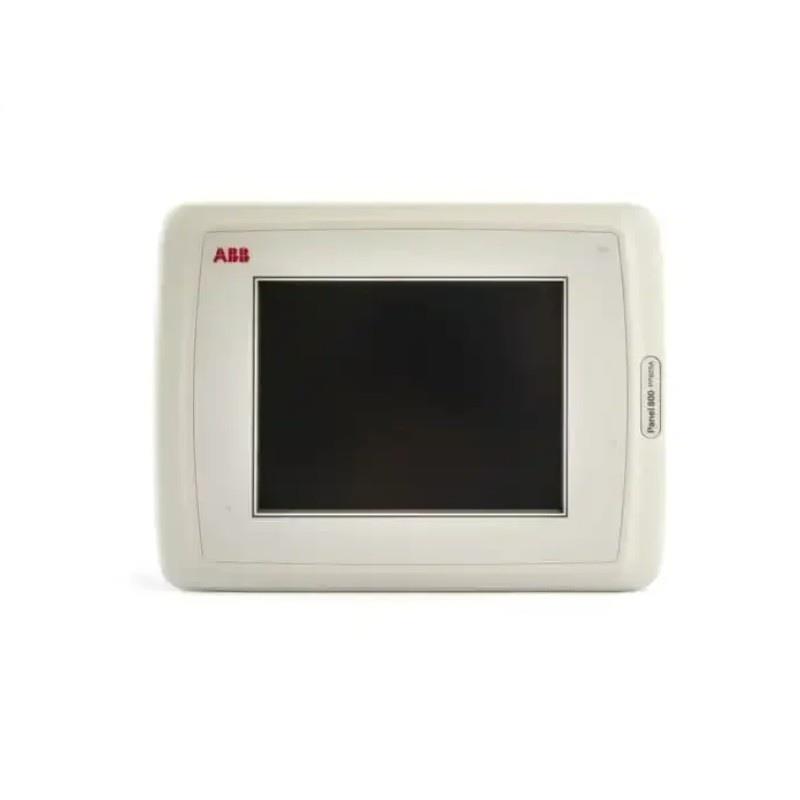

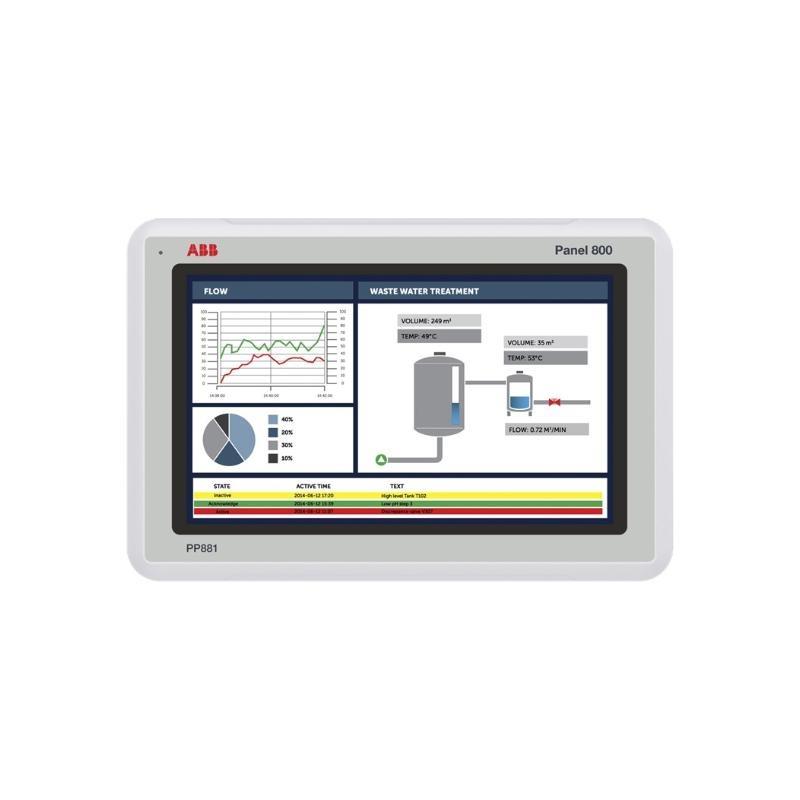

The PP881 (Part No. 3BSE092978R1) is an industrial-grade operator panel designed to provide a reliable and intuitive human-machine interface (HMI) for monitoring and controlling automation systems. Engineered for demanding environments, the PP881 offers seamless integration with automation control platforms and delivers user-friendly touchscreen operation, robust construction, and high display clarity.
This panel is ideal for enhancing control room efficiency, machine interfaces, and factory-floor operations, making it a vital component in any industrial automation architecture.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | PP881 |
| Part Number | 3BSE092978R1 |
| Dimensions | 52 × 194 × 292 mm |
| Weight | 1.65 kg |
| Display Type | LCD |
| Display Resolution | 640 × 480 pixels |
| Input Method | Touchscreen |
| Power Supply | 24 VDC |
| Operating Temperature | -20°C to +60°C |

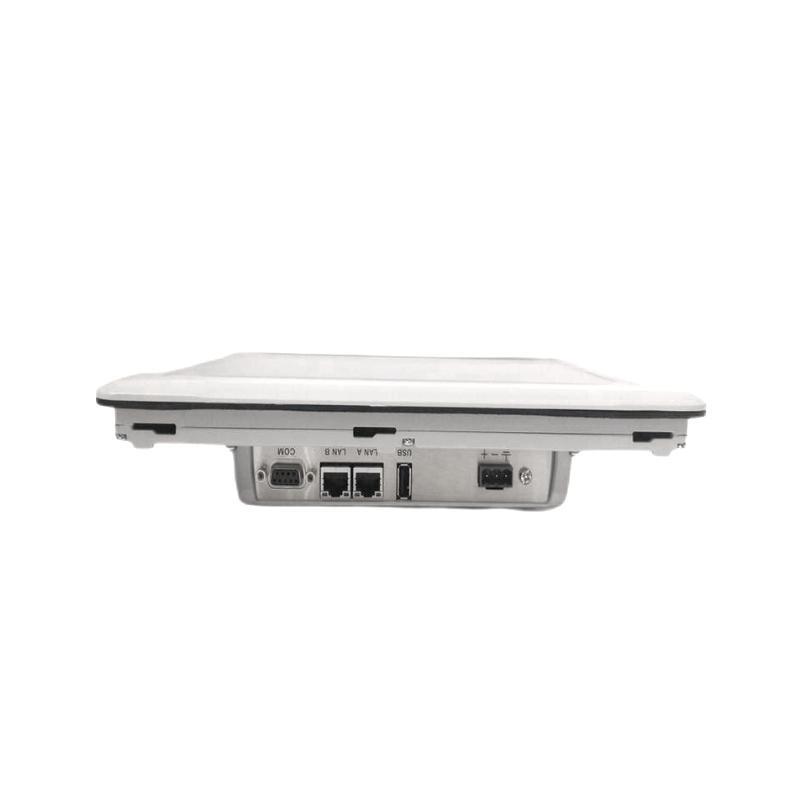

| Communication Ports | RS232, RS485 |
| Protection Rating | IP65 (front panel) |
| Mounting Type | Panel Mount |
| Cooling Method | Natural convection |
Product Applications
The PP881 operator panel is widely utilized in the following application areas:
-
Factory Automation
Provides visual and interactive interfaces for assembly lines, packaging machines, and robotics. -
Process Industries
Enables control and feedback in oil & gas, chemical, pharmaceutical, and food processing facilities. -
Energy and Utilities
Suitable for SCADA systems, substation automation, and power generation plant interfaces. -
Building Automation
Applied in HVAC systems, lighting control, and building management systems (BMS). -
Material Handling Systems
Used in conveyor systems, sorting machinery, and warehouse automation. -
Transportation and Infrastructure
Supports traffic control systems, smart grids, and intelligent transportation.
Product Advantages
-
Compact and Lightweight Design
With a slim profile and a weight of only 1.65 kg, the PP881 is easy to install in tight control cabinet spaces. -
Robust Industrial Build
Built to withstand harsh environments with IP65 front panel protection against dust and water. -
High Clarity LCD Screen
Offers a clear and sharp display resolution of 640 × 480, ensuring visibility even under strong ambient light. -
Responsive Touch Interface
Eliminates the need for external buttons, allowing fast and efficient operation with minimal training. -
Wide Operating Temperature Range
Operates reliably in both low and high temperatures from -20°C to +60°C. -
Multi-Protocol Communication
Supports RS232 and RS485, allowing flexible integration with various PLCs and automation networks. -
Energy-Efficient Operation
Low power consumption via 24 VDC input makes it ideal for energy-conscious applications. -
Long Service Life
Designed for continuous industrial use with high durability and minimal maintenance requirements.
Frequently Asked Questions (FAQ)
-
Q: What is the primary function of the PP881 panel?
A: It acts as a Human-Machine Interface (HMI) to control and monitor automation systems. -
Q: What kind of display does the PP881 use?
A: It uses an LCD display with a resolution of 640 × 480 pixels. -
Q: Is the panel suitable for outdoor use?
A: It features an IP65-rated front, offering protection against dust and water, making it usable in semi-outdoor conditions with enclosures. -
Q: What input voltage does it require?
A: The panel operates on 24 VDC power supply. -
Q: Can it be mounted in any position?
A: It is designed for panel mounting in industrial enclosures. -
Q: Is it compatible with other brands of PLCs?
A: Yes, via RS232/RS485 ports, it can communicate with various third-party systems supporting these protocols. -
Q: What is the weight of the PP881 panel?
A: It weighs 1.65 kg. -
Q: What is the operating temperature range?
A: The panel can operate between -20°C to +60°C. -
Q: Does the PP881 support touchscreen functionality?
A: Yes, it features a fully functional and responsive touchscreen interface. -
Q: How long is the expected service life of the panel?
A: The PP881 is built for long-term use in continuous operation environments with extended lifespan and reliability.
Recommended Models (Same Series or Related)
| Model | Part Number | Dimensions (mm) | Weight | Display Resolution |
|---|---|---|---|---|
| PP880 | 3BSE092979R1 | 50 × 180 × 280 | 1.55 kg | 640 × 480 |
| PP883 | 3BSE092981R1 | 55 × 200 × 300 | 1.75 kg | 800 × 600 |
| PP885 | 3BSE092982R1 | 60 × 210 × 310 | 1.80 kg | 800 × 600 |
| PP887 | 3BSE092983R1 | 58 × 205 × 295 | 1.70 kg | 1024 × 768 |
| PP889 | 3BSE092984R1 | 53 × 190 × 300 | 1.60 kg | 640 × 480 |
| PP891 | 3BSE092985R1 | 56 × 195 × 305 | 1.75 kg | 800 × 600 |
Popular Models (Same Brand)
| Model | Description | Dimensions (mm) | Weight (kg) | Features |
|---|---|---|---|---|
| PP836 | Communication interface module for S800 I/O | 195 × 100 × 50 | 0.35 | Supports optical and electrical communication, redundant capable |
| PP845 | Profibus-DP interface module for AC 800M systems | 195 × 100 × 50 | 0.38 | Dual-channel DP, diagnostics support, redundancy supported |
| PP846 | Redundant Profibus-DP communication module | 195 × 100 × 50 | 0.40 | High availability, enhanced error handling, hot swap supported |
| PP841 | MODBUS RTU/ASCII interface module | 195 × 100 × 50 | 0.36 | Galvanic isolation, configuration via Control Builder M |
| PP844 | Ethernet-based communication module for AC 800M | 195 × 100 × 50 | 0.37 | High-speed data transmission, supports redundancy |
| PP847 | Extended Profibus-DP module with integrated diagnostics | 195 × 100 × 50 | 0.42 | Advanced diagnostics, robust industrial design |
